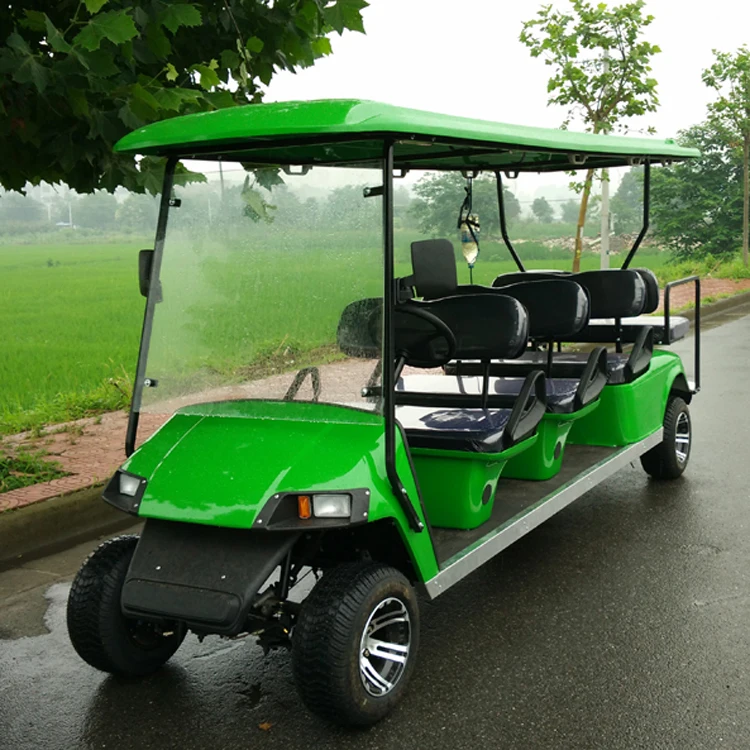

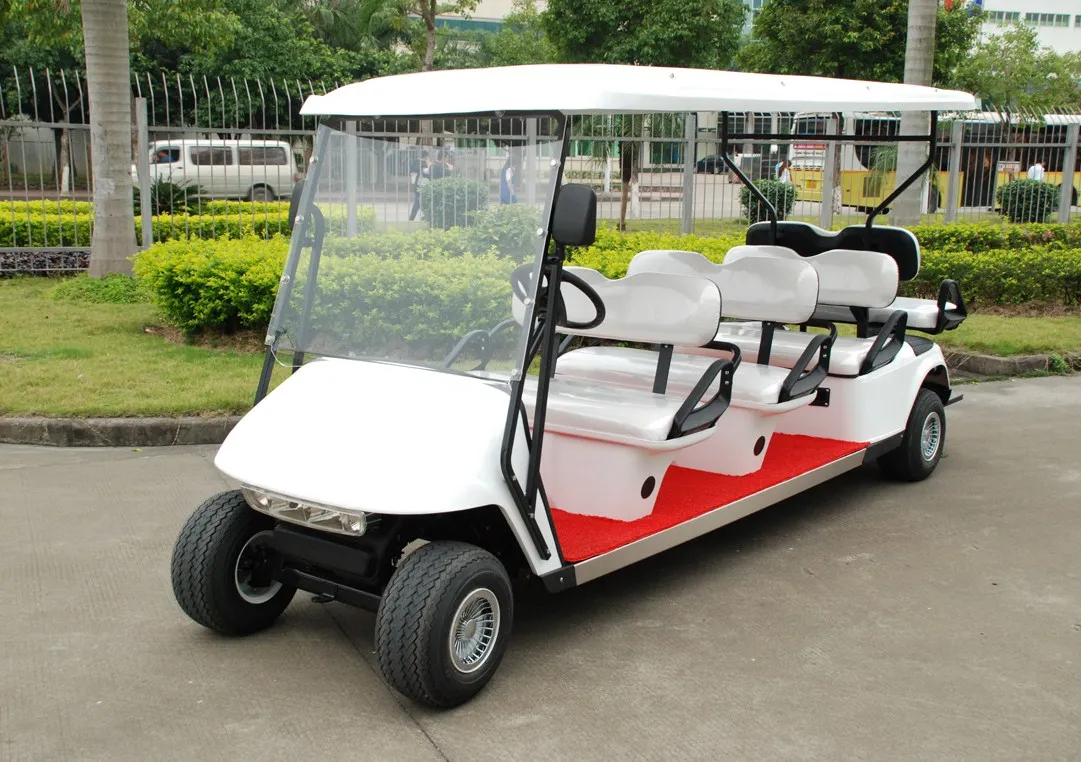

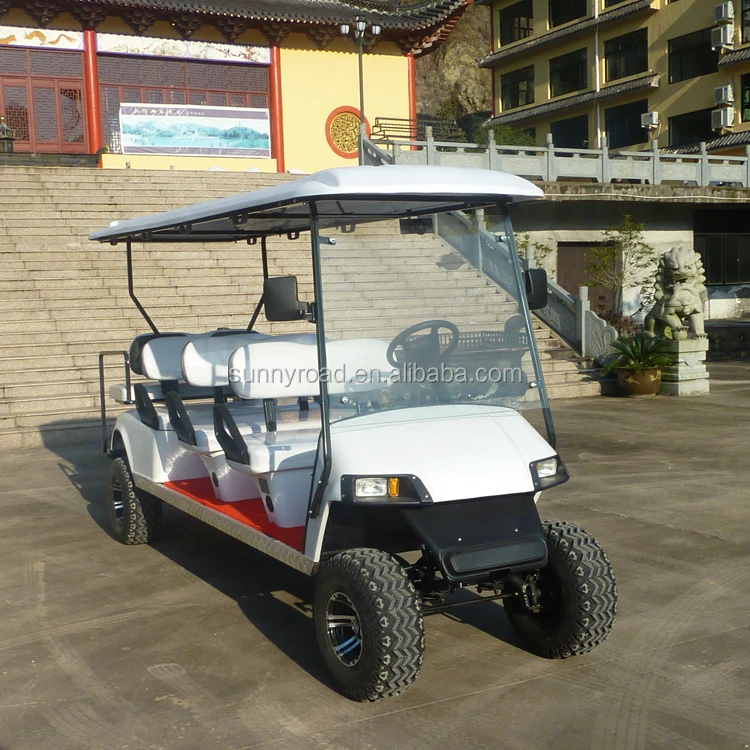

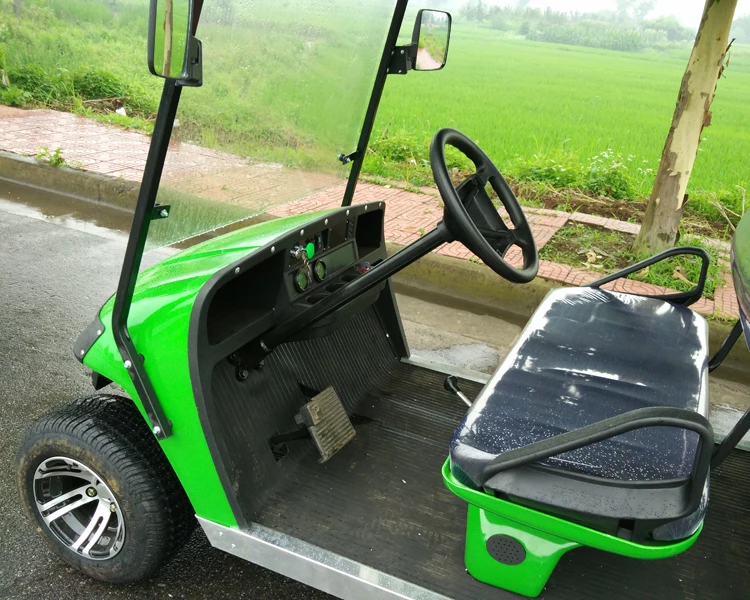

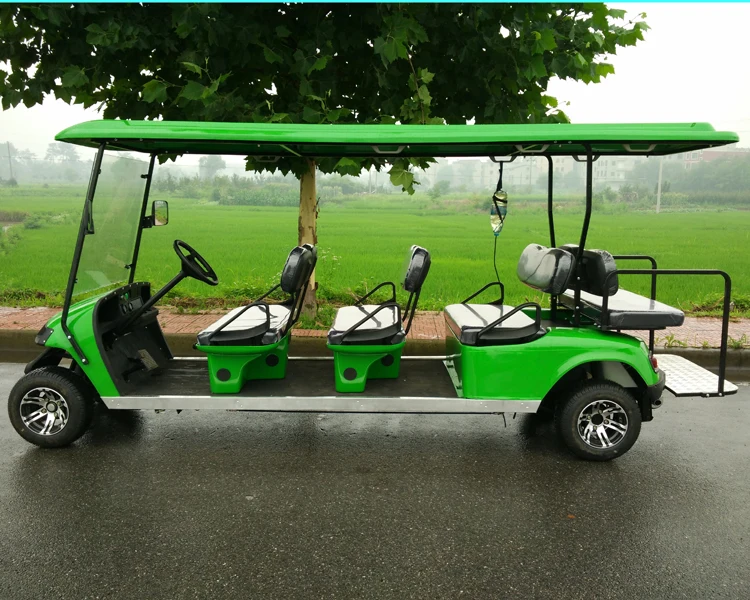

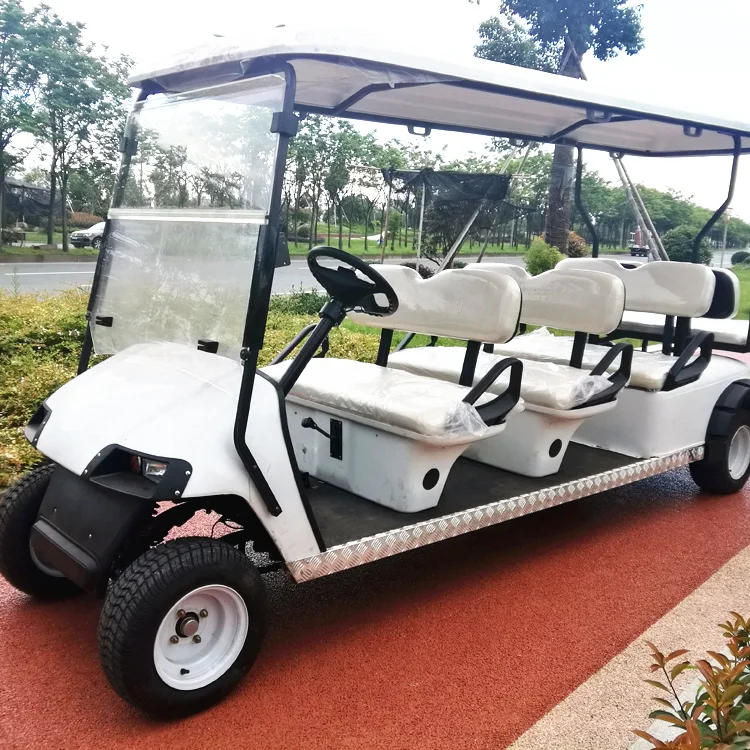

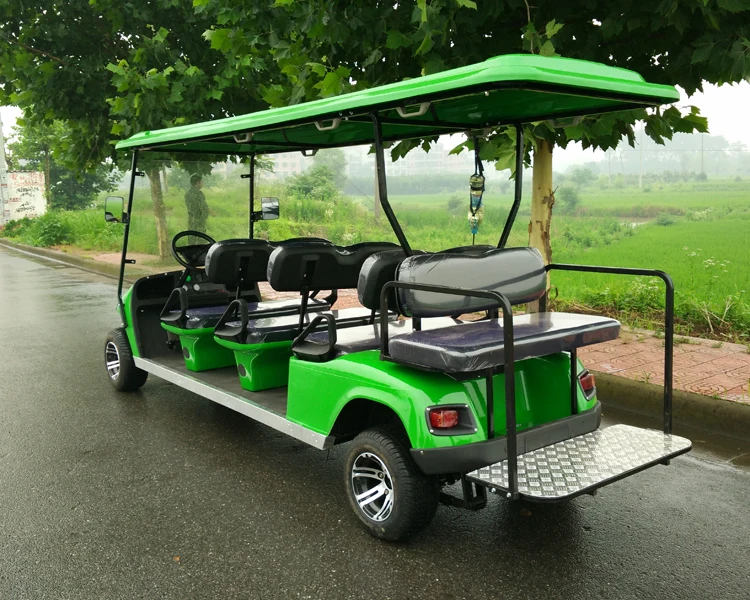

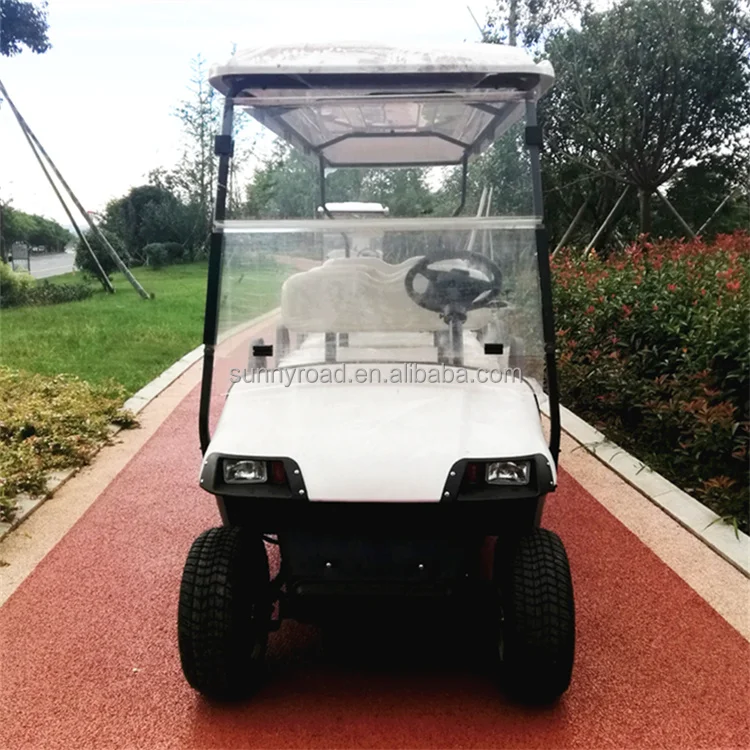

Китай ce 8 местный порт воздуха электрический автобус Электрический гольф мобиль

Item No.:

SR-EG6-2S

Brand

Sunnyroad

Body and Chassis

Frame:

Welded steel with double coating

Body and Finish

Injection Molded TPO

Stand Color

White

Dimensions

Overall length

167.3inch(425cm)

Overall width

47inch(120cm)

Overal highth

67inch(171cm)(top of sun canopy)

Wheel track :

Front33inch(84cm)  /Rear38.8inch(98.5cm)

Wheel base :

3140mm

Ground clearance:

5inch(12.7cm)

Power

Motor

4kw AC motor

Controller

48v 406A famous Brand controller with auto brake function/Crutis

Battery:

48V, 8V/150Ah, 6 unitS

Battery lifetime:

More than 700 times of charge.

Charger:

Intelligent pulse charge to recover the battery,input volt:100-220volt.

Charge time:

8-9hours

Steering and Suspension

Steering:

Double ended rack and pinion

Suspesion

Front Independent A-arm Coil Over Shock Reear  3spring with hydraulic shock absorbers

Performance

Brakes:

Hydraulic drum brakes on rear wheels

Brakes Distance

<4m

Tires:

205/50-10  Tubeless on road tyre 10 inch aluminum rim

Seat Capacity

8

Min.Turning Radius:

440cm

Discharge rate:

.>80%

Running period of every charge:

 80-90kms

Max. slope of climb:

25%

Max. speed:

25-30km/h

Curb weight:

530kgs

Max load capacity:

800kgs

Electrical systems:

Brake lights,Head lights,rear light,turnning light,night lights,horn,battery level indicator,speed meter(optional),reverse gear,,etc.

Loading Information

Product size:

425*120*171cm

Packing size:

380*120*95cm

Container

Iron Rack Pack  12units/40" & 18units/40"HQ
