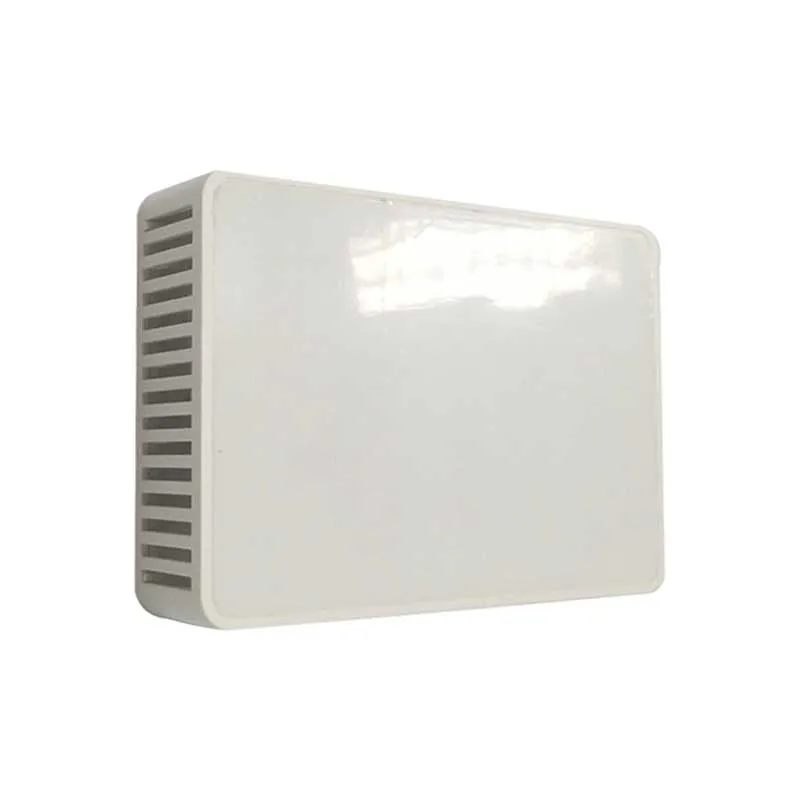

Newest Temperature Humidity Sensor 24V For Comfort Control

Power suply

Option voltage

DC24V or AV24V

Power Cunsumption

Max 2 VA

Signal out

signal

4-20mA or 0-10V by jumper select

Humudity accuracy

5%

Humudity range

0%-100%

Temperature accuracy

0.5°C

Temperature range

0 – 50 °C

Sensing element

Capacitive Element:

Range

Accuracy

5%---95%

2%

Connection

Connection Terminals

2.5 mm²

Environment

Operation
Climatic Conditions
Temperature
Humidity

To IEC 721-3-3
class 3 K5
-40-70°C
<95% r.h.

Transport & Storage
Climatic Conditions
Temperature
Humidity
Mechanical Conditions

To IEC 721-3-2 and IEC 721-3-1
class 3 K3 and class 1 K3
-40-80°C
<95% r.h.
class 2M2

Standards

          conform according to
EMC Standard 89/336/EEC
EMEI Standard 73/23/EEC

EN 61 000-6-1/ EN 61 000-6-3

Automatic electrical controls for household and similar use

Special requirement on temperature dependent controls

EN 60 730 1

EN 60 730 2 - 9

Pollution Class

Normal acc. To EN 60 730,RoHS compliant

Degree of Protection

IP56 to EN 60 529

Safety Class

III (IEC 60536)

Housing Materials

       Cover & Mounting Plate

Fire proof ABS plastic

General

Dimensions [mm]

Cover: 42 x 112 x 88 (H x W x D)

probe: ø 10 x 200 (Diameter x L)

Weight (including package)

135g
