Landfill waste bentonite clay waterproof blanket GCL

Share on:

Price:RUB 23.01 - RUB 38.34
Price in USD:Details


Product Overview


Product Description

Bentonite clay waterproof blanket GCL

GCL are high performance needle punched environmental reinforced composites which combine two durable geotextile outer layers with a uniform core of natural sodium bentonite clay to form a hydraulic barrier. Fibersfrom the non-woven geotextile are needle punched through the layer of bentonite and incorporated into the other geotextile (either a woven or non-woven).when hydrated under a confining load,the bentonite swells to form a low permeability clay layer with the equivalent hydraulic protection of several feet of compactd clay.

Bentonite clay waterproof blanket GCL


Width:2m-6m,normal 5.8m,

Length:20m-35m,normal 30m,

Geotextile Weight:PP woven geotextile 110g/m2

PET Nonwoven geotextile 220g/m2.

GCL Technical Data
GCL Feature

Compactness: A permanent waterproof performance, and excellent water seepage performance, impermeability hydrostatic pressure up to 1.0MPa above, permeability coefficient 5 *10-9cm / s. Because the Department of Natural sodium bentonite inorganic materials, even after a long time or the surrounding environment changes, aging or corrosion does not occur.
Permanent waterproof performance: because sodium base bentonite is a natural inorganic material, even after a long time or the surrounding environment changes, also won't happen aging or corrosion phenomena, so the waterproof performance persistence.
Construction simple and short time limit: compared to other waterproofing materials, construction is relatively simple, don't need to be heated and paste.With bentonite powder and nails, washers, etc are connected and fixed.After construction does not need special inspection, if it is found that the waterproof defects and easy to maintenance.GCL is existing waterproof material in construction period of the shortest.
Integration: sodium base bentonite under water, the swelling capacity of 20~28 times, even if the concrete structure vibration and settlement, within the GCL bentonite can also repair the crack on the surface of the concrete within 2 mm.
Green: bentonite as natural inorganic material, non-toxic harmless to human body, no special effects to the environment, have good environmental performance.

GCL Application

(1)Municipal engineering, underground engineering subways, buildings and roofs reservoir seepage.
(2)Environmental sanitation, solid waste landfills, sewage treatment plants, industrial waste.
(3)water, rivers, lakes and reservoirs dam seepage, plugging, reinforcement.
(4)Garden artificial lake golf course pond seepage and so on.
(5)Petrochemical, mining and other areas of engineering seepage, leakage, etc

Our Company

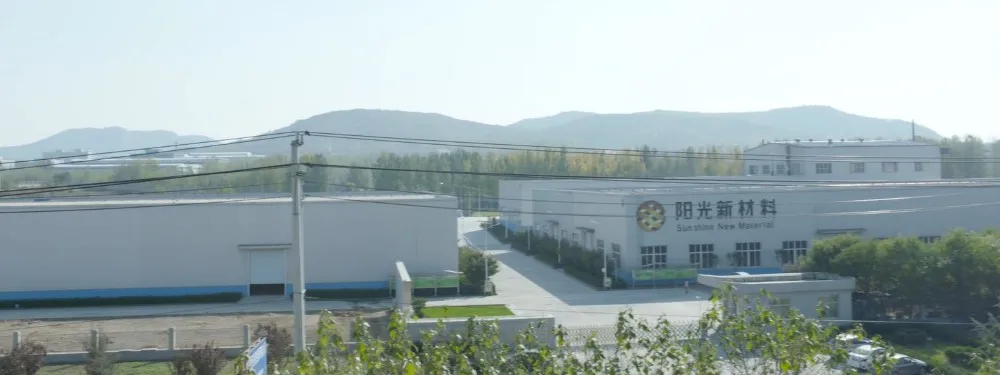

Shandong Sunshine New Material Technology Co.,Ltd is a subsidiary company of Shandong Enfly Group.It is established in 2005 and now has a staff of more than 260 including 16 high-class engineering tehnicians.It covers an area of 100,000 m2 and has registered capital of 300 million RMB.
The company has imported the world`s most advanced high strength warp-knitting and post-processing machines from Germany and has the annual production capacity of 30 milion m2.The advanced production equipments and modern management lay a solid foundation for the high quality of products.
Now,the company has more than 60 specification products including High strengh polyester mine grid,Polyester geogrid,Fiberglass geogrid,Geocell,Geotextile and etc.and they have widely applied in coal mine supporting,expressway,high-speed rail way,airport construction.reclamation and other engineering construction projects.And the product have got the certificates and tests of ISO9001,MA,CE,BV,FITI,SGS,one invention and two new application patents.They have been highly praised by the professionals and clients,and exported to many countries and districts such as Russia,Canada,Vietnam,Britain,America and etc.
Warmly welcome all clients to Sunshine to seek sincere cooperation and mutual developments.

Contact Us

Q:Where is your company located ?
A: Qingchun Chuangye Development Zone, Taian, Shandong, China.
Q:What’s your delivery method ?
A:By sea , By train , By ari, depend on your country.
Q: What's your MOQ quantity ?
A:MOQ is 30,000SQM , the quantity could be negotiable .
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days,it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, We provide free sample for testing, but freight cost should be on your account. You could tell us your Fedex/ DHL/ TNT courier account directly, or pay the freight cost by Alibaba trade assurance or western union.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shipment.
