500L planetary concrete batching mixing plant
1. The reduction unit (patent technology), ensures a high efficiency and low-noise rotation.
Compared the traditional gearbox, this unit takes less space, and the maintenance space of the mixer can enlarge 30%.
2. Special designed mixing facility makes the mixing faster and more homogenous, no material heaped.
3.According to different materials, the liner and tiles can be cast-iron, HARDOX steel plate (Sweden original) or hard facing materials.
4. Ni-hard cast iron blades are more wearable.
5. Easy maintenance and cleaning.
6. The key-operated safety switch and limit switch guarantee safety.
Options:
1. Hydraulic coupling
2. Moisture Probe
3. High Pressure Washout System

Specifications
Item | MPC | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 | 1500 | 2000 | 2500 | 3000 |
Filling Volume | L | 75 | 150 | 225 | 375 | 500 | 750 | 1125 | 1500 | 2250 | 3000 | 3750 | 4500 |
Feeding Capacity | Kg | 120 | 240 | 360 | 600 | 790 | 1200 | 1800 | 2400 | 3600 | 4800 | 6000 | 7200 |
Compacted Concrete | L | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 | 1500 | 2000 | 2500 | 3000 |
Mixing Power | Kw | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 30 | 37/45 | 55/75 | 75/90 | 90/110 | 110/132 |
Mixing Star*Mixing Blade | Qty | 1*2 | 1*2 | 1*2 | 1*2 | 1*3 | 1*3 | 1*3 | 2*3 | 2*3 | 3*3 | 3*3 | 3*3 |
Side Scraper/Discharge Scraper | Qty | 1/- | 1/- | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 | 1/1 | 1/2 | 1/2 | 1/2 |
Discharging Power | Kw | Pneumatic Discharging | 2.2 | 2.2 | 2.2 | 3 | 3 | 4 | 4 | 4 | |||
Weight | Kg | 500 | 850 | 1300 | 1500 | 2200 | 2500 | 3500 | 5500 | 6500 | 8500 | 10500 | 11000 |

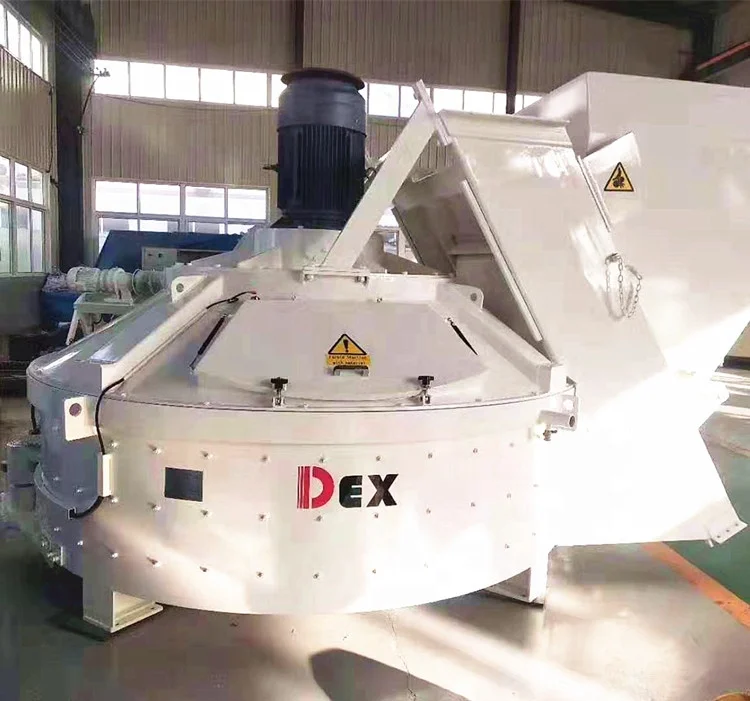

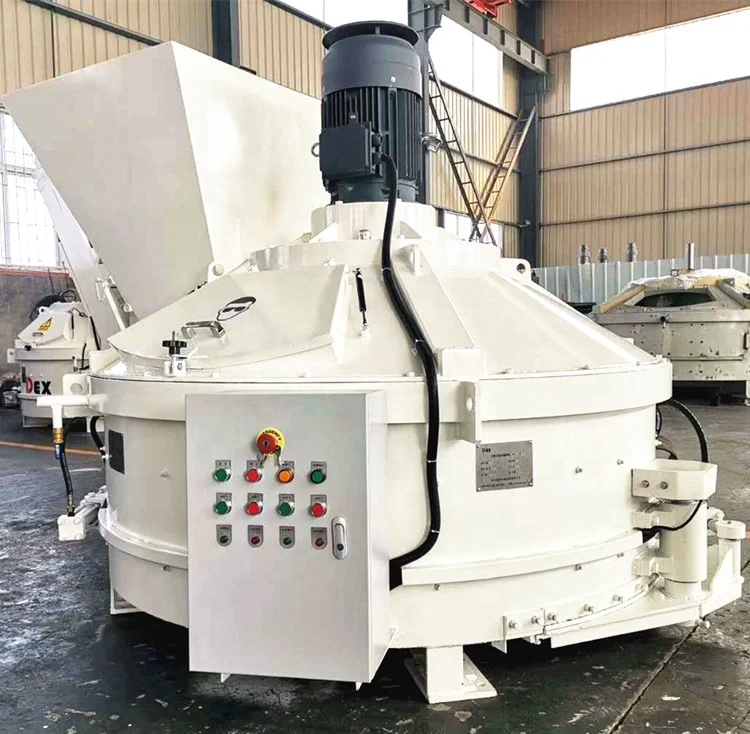

Product Photos

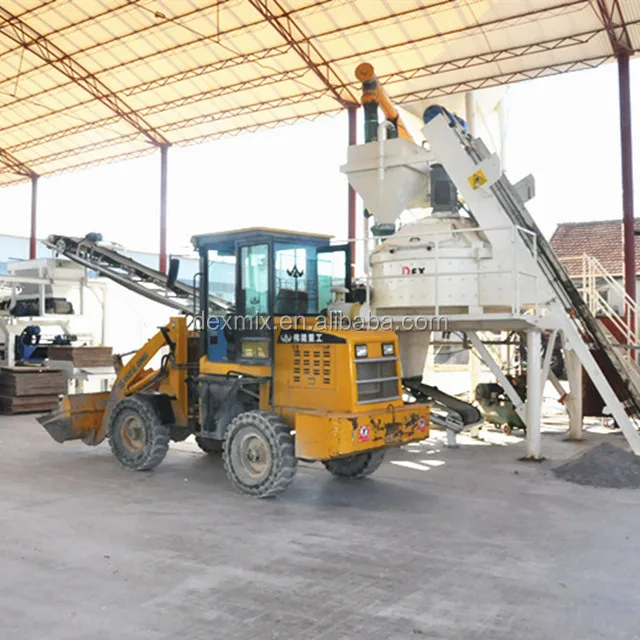

Job Site


Packing and Shipping

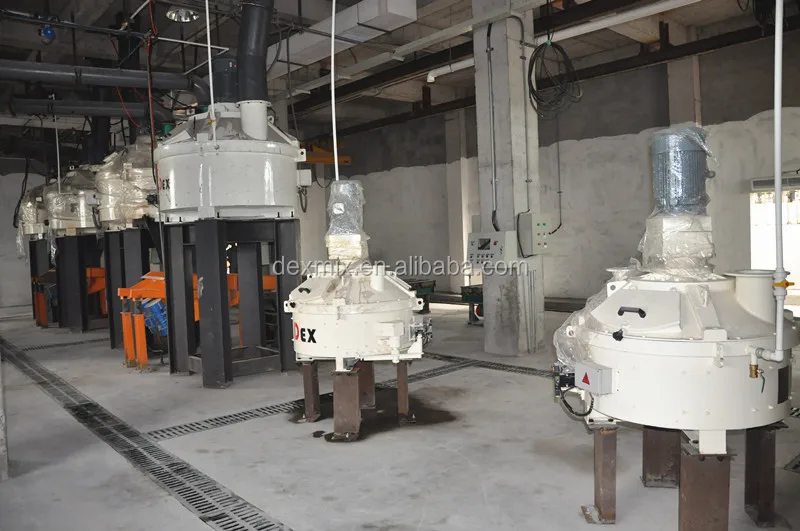

Factory Show

Certificate

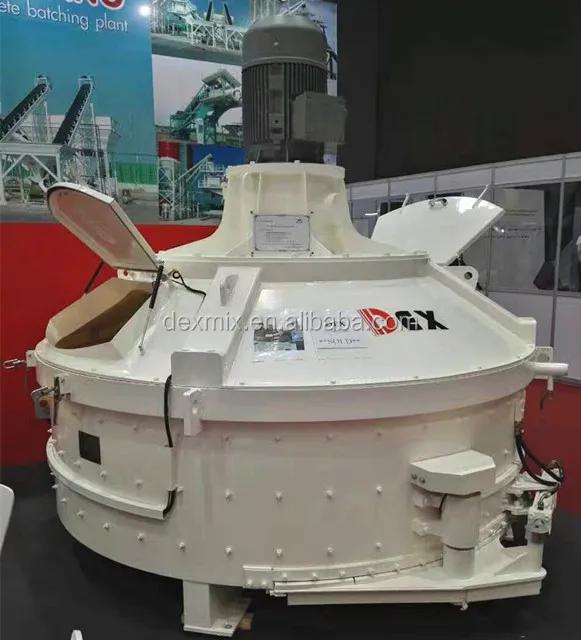

Fair and Exhibition

*We are factory, not trading company.
Which means we can control the producing better and communicate with our clients in time.
*We always keeping growing, and have the top technology in our field.
Dex is the first company to adopt counter-current technics.
*We have a big excellent team to service you.
Top design team, sales team, producing team, shipping team and after-sales team.
*Can supply special design for different requirements.
For example, some clients don't have enough space for all machines, we can make a special design and supply a best solution.
*We confirm the drawing with our clients before producing.
Which make sure all details are correct.
More questions, please contact us!
