high performance aluminium nitride heater thin film heating element PTC for Air Conditioner

Product Overview

Description

Air conditioner ceramic heater

Air conditioner ceramic heater assembled with electrode plates and heat sink fins are dynamic heating element designed to heat up moving air. The large surface area of aluminum fins ensures a homogeneous heat transfer adjustable with air flowing volume. Power can be regulated by the airflow and assembly condition. The higher the airflow, the higher the power(wattage) .Jinke is providing a wide range of designs.



 Main features

1.  Safety due to automatic temperature control, max temperature is lower than 300 degree C. Won’t burn when contact with paper, clothes or others.



2.   Self-regulationg function of power, no need the thermostat.



3.   Reliable and long life



4.   Low air resistance, low electrical noise.



5.   Awarded CUL/UL, TUV, VDE,CQC certifications



 Air conditioner PTC heating elements Specifications



1.Power: 200 to 4500W
2.Rated voltage: AC/DC 48V, 100V,110V,115V-240V
3.Operating life: up to 1,000 times

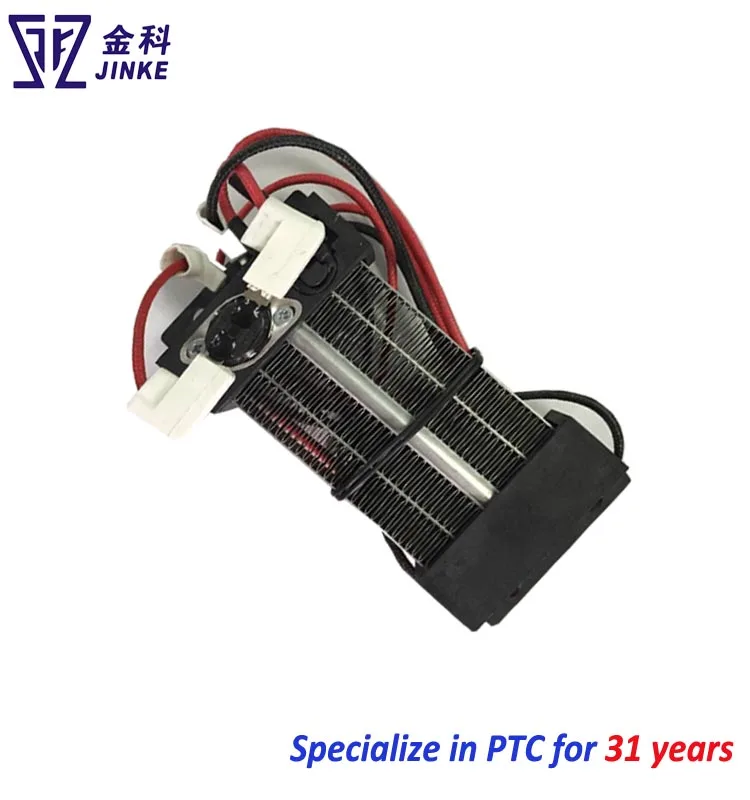

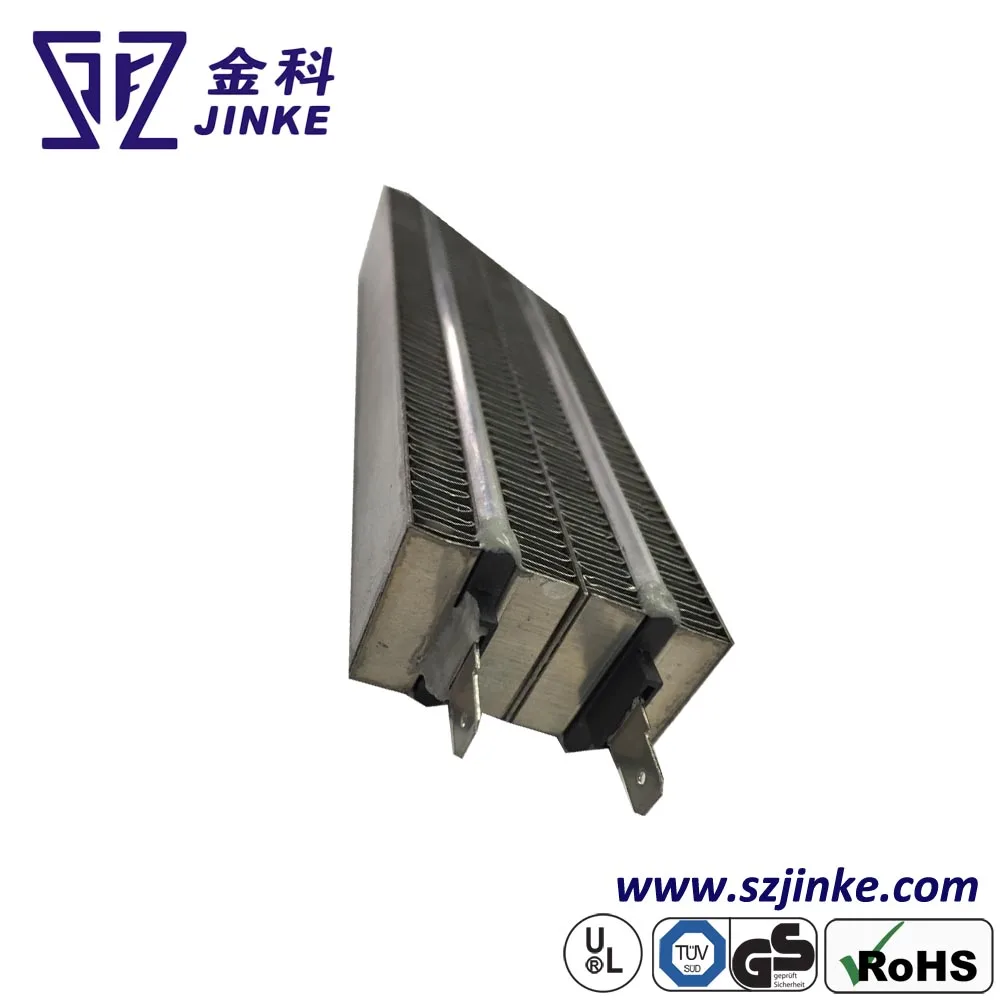

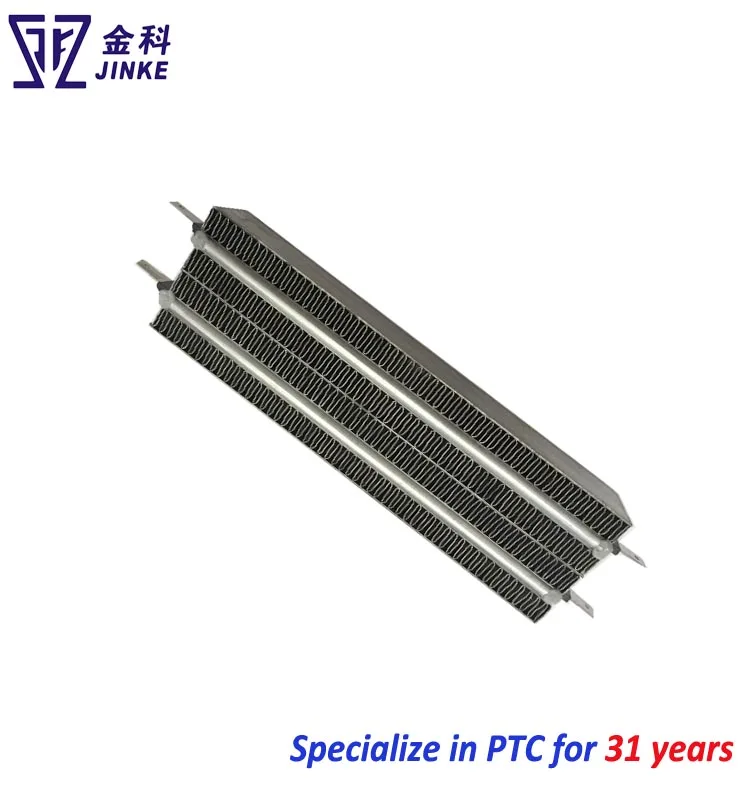

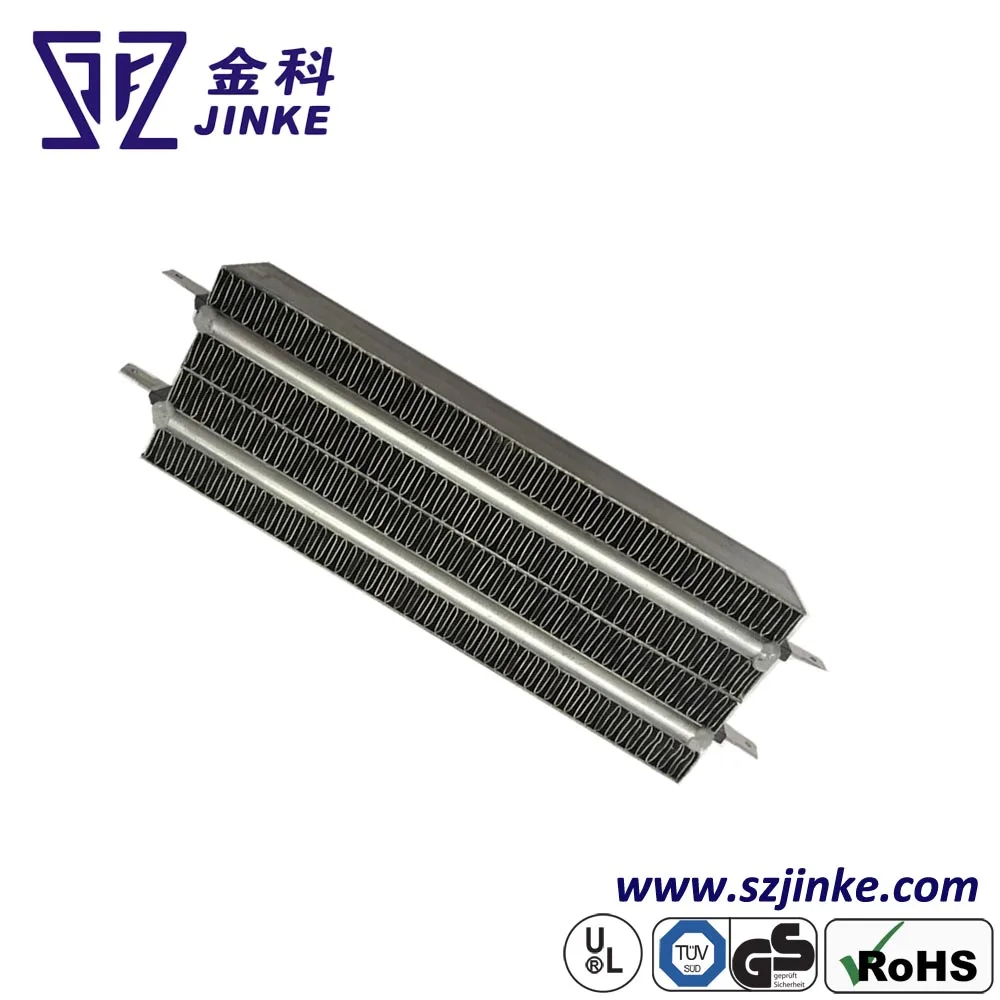

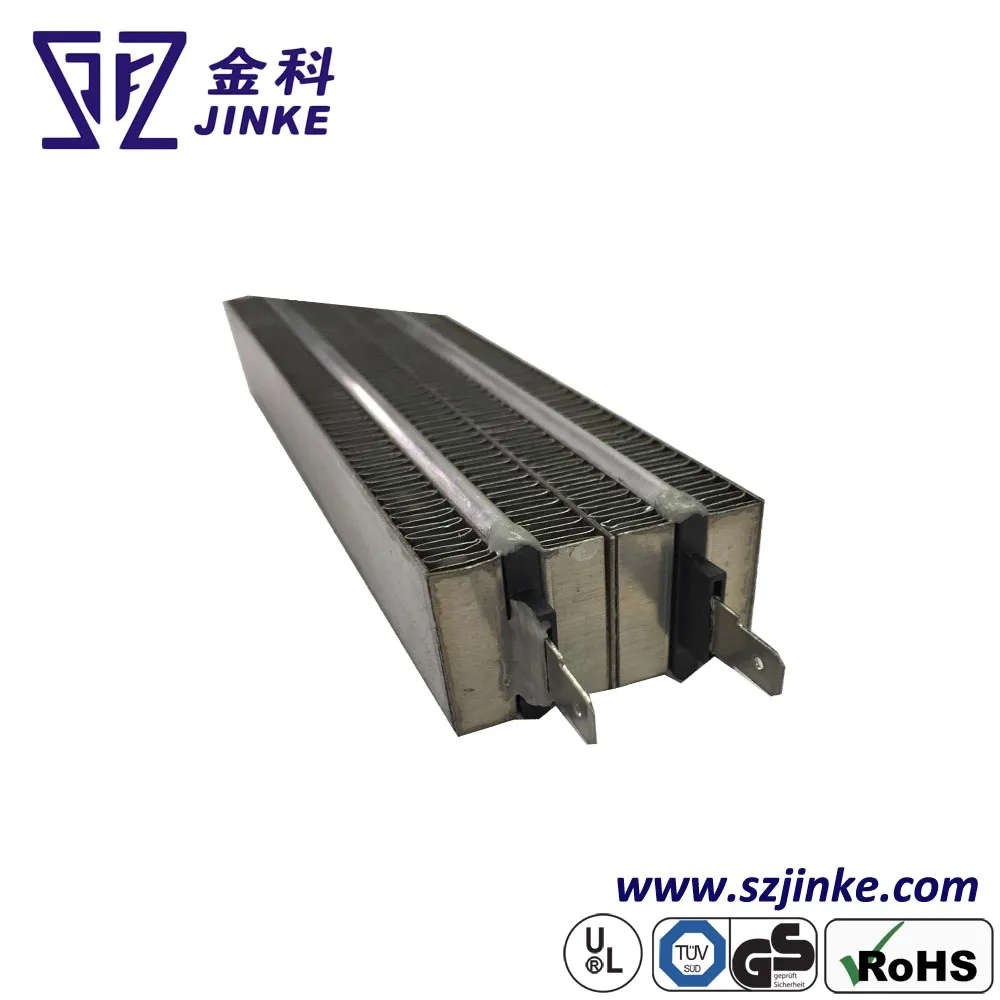

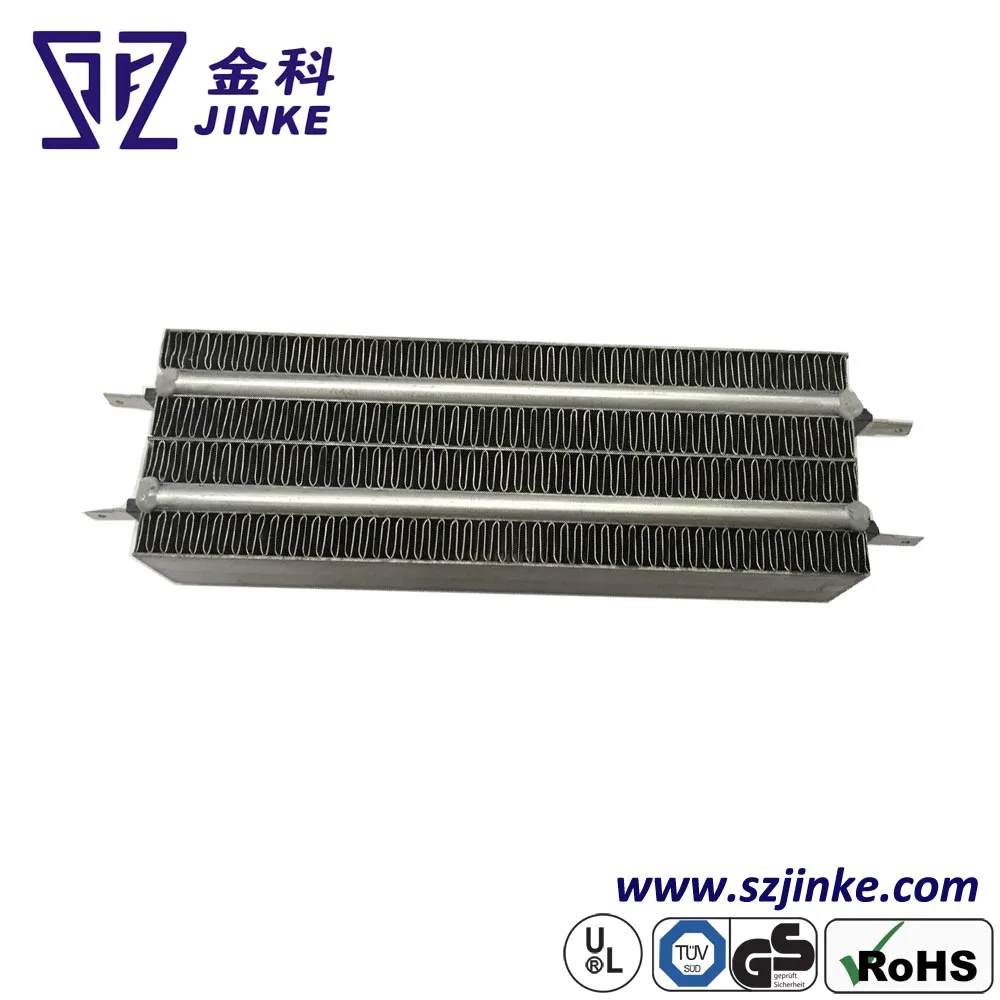

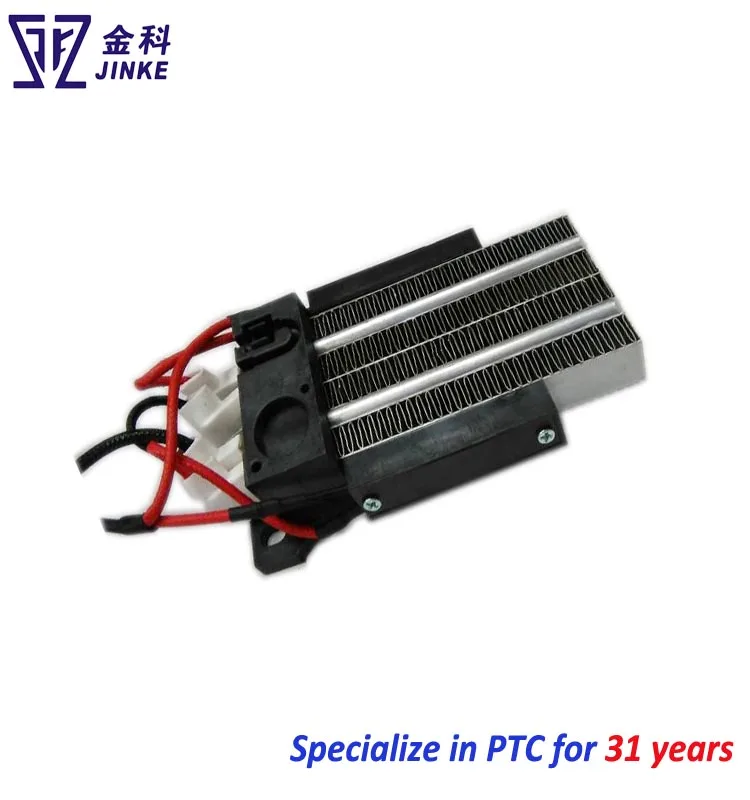

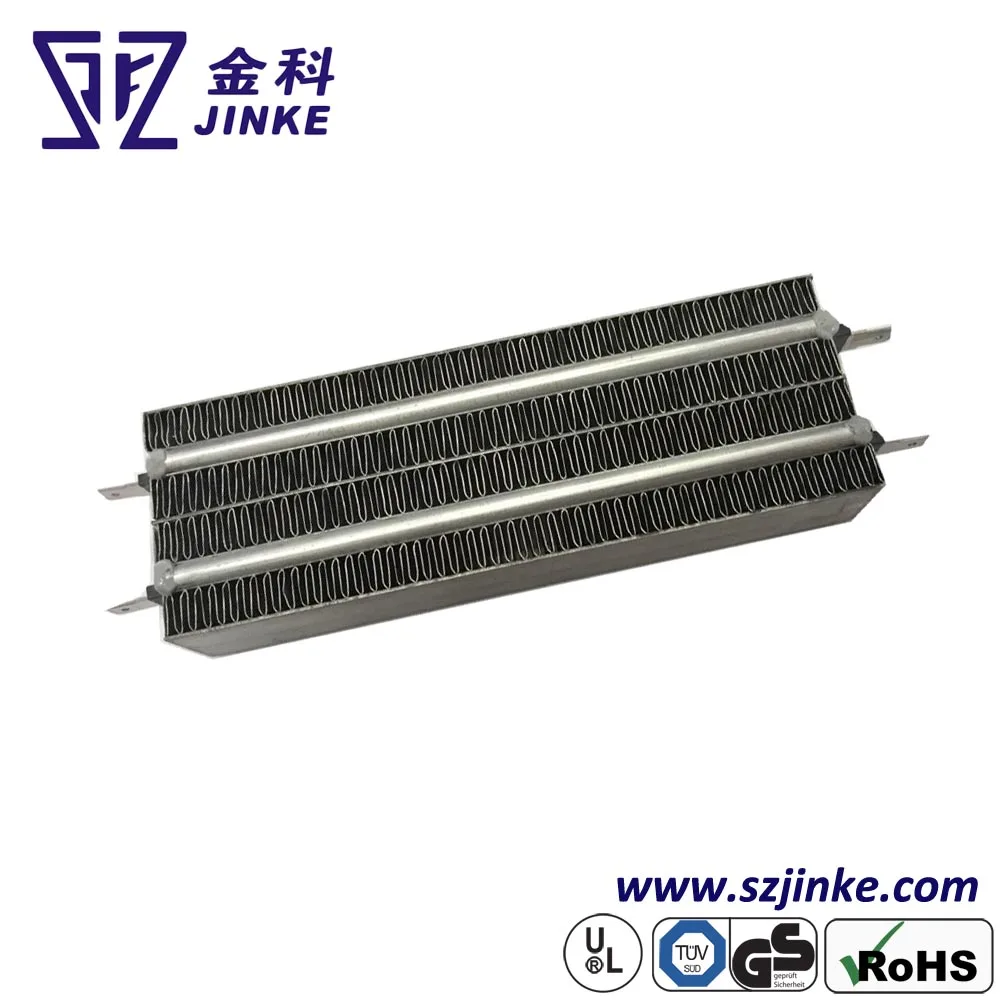

Product picture





Product quality certifications















 Air conditioner ceramic heater workshop





Professional production team,production line , experienced technical expert who engaged in this industry for 28 years ,we have the professional production for ptc fan heater

Main Applications

This kind design ptc ceramic heater can be widely used for kinds of air heating. Such as the fan heater, hand dryer, cloth dryer, dish dryer, shoes dryer etc.







 Notice in application

1)After switching on, the power is large, and then decrease, finally it become steady state. The steady state power changes with applied conditions. Faster is the heat conduction, higher is the steady state power; higher is the surface temperature, higher is the power.



2)The surface temperature of this kind  ceramic heater   can be controlled by itself, control circuit may be omitted in most appliances.
3)Our PTC products are high reliable, long lifetime, but if they are assembled improperly, the power or temperature may be instable.
4)Parallel connection is necessary for two or more ptc ceramic heater element connection



Coperation Partner



 Company introduction



 Shenzhen Jinke Special Materials Co.,Ltd was founded in 1987ed. We are the first & biggest PTC ceramic heater heating element manufacturer in China and an high technology enterprise of R&D, production & sales. Our company have the ISO9001:2008, ISO9001:14001, and TS16949 certifications.



Our main products include PTC heating element, PPTC resettable fuse, ceramic fan heaters, coolers, humidifiers, graphites, and carbon nanotubes. All the products have been approved by UL,ROHS,CE certifications. OEM & ODM are welcome here.



We participated the fairs..
