New type model Three wheel roller round 1200 wet pan grinding mills for gold, Gold Ore dressing wet pan mill machine price
- Category: Mine Mill >>>
- Supplier: Henan,Baichy,Machinery,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
New type model Three wheel roller round 1200 wet pan grinding mills for gold, Gold Ore dressing wet pan mill machine price
The Introduction of wet pan mill
Wet pan mill is the best equipment to replace ball mill. because it have small investment, high output, low production cost, good efficiency and easy installation. And the machine is the ideal beneficiation equipment for small and medium-sized enterprise. Wet pan mill is mainly used to process the gold, silver, lead, zinc, iron, molybdenum, copper, antimony. The wet pan mill is named by the diameter of roller. Φ1300,Φ 1350,Φ 1400,Φ 1500,Φ 1600 is suitable for selection of iron ore, molybdenum ore ,lead ore ,zinc ore, antimony ore and so on. Φ 850, Φ 900, Φ 1000,Φ 1100,Φ 1200 is suitable for selection of gold ore. Above all, 1200a type is the most popular and widely use.
Working Principle of wet pan mill
The Wet pan mill repeatedly squeeze and mill gold ore through the weight of the wheels until the gold ore has been crushed completely. And then add 1 kg mercury into the water . Meantime, every 5-10 minutes, add gold ore to the machine. After 24 hours, recycle mercury. Then pack mercury with big density of cloth. Twist the cloth and let the mercury come out. The gold will be left in the cloth.
1.Less investment.
2.Easy to operation and maintenance.
3.High efficiency and saving power.
4.It can take the place of ball mill because all the materials that ball mill can handle, the wet mill machine can handle as well.
5.Wet pan mill is the ideal equipment for small and medium enterprises that are in the field of ore dressing.
Model | Specification | Input size(mm) | Rotate Speed (r/min) | Powder(kw) | Weight(t) |
1600A | 1600×400×200×500±20mm |
30mm
| 20-22 | 25KW | 14.5 |
1500A | 1500×350×200×460±20mm | 20-22 | 22KW | 13.5 | |
1500B | 1500×350×150×460±20mm | 20-22 | 22KW | 12.3 | |
1500C | 1500×300×150×420±20mm | 20-22 | 22KW | 11.3 | |
1400A | 1400×250×150×350±20mm | 16-18 | 18.5kw | 8.5 | |
1400B | 1400×250×150×350±20mm | 21-23 | 18.5kw | 8.5 | |
1350A | 1350×250×150×350±20mm | 16-18 | 18.5kw | 8 | |
1350B | 1350×250×150×350±20mm | 21-23 | 18.5kw | 8 | |
1300A | 1300×250×150×350±20mm | 16-18 | 15kw | 7.5 | |
1300B | 1300×250×150×350±20mm | 21-23 | 15kw | 7.5 | |
1200A | 1200×200×80×250±20mm | 17-19 | 7.5kw | 5.5 | |
1200B | 1200×200×80×250±20mm | 23-25 | 7.5kw | 5.5 | |
1100A | 1100×200×80×250±20mm | 17-19 | 7.5kw | 5 | |
1100B | 1100×200×80×250±20mm | 23-25 | 7.5kw | 5 | |
1000 | 1000×200×80×250±20mm | 13-15 | 5.5kw | 4.5 |
6 Types of Gold Ore
Gold exists in quartzite. Usually, quartz appears as small stones in large cracks in riverbeds or mountain slopes and has crystals in different colors such as white, yellow, pink, purple, gray, or black. The most common types of quartz with gold ore are rose quartz gold ore and rainbow gold ore. A high gold-quartz ore contains 25% gold by mass, and it occurs in areas where the bedrock is fractured by tectonic and volcanic activity.

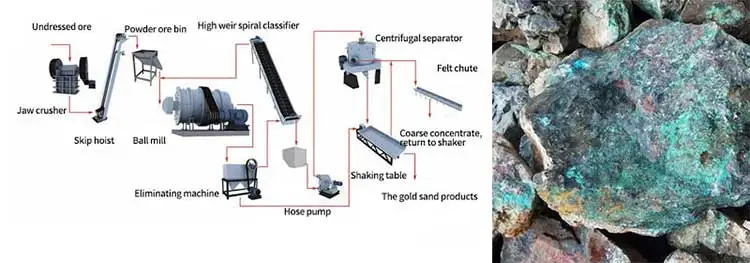

Flow chart of gold ore processing
Placer gold ore with high gold content mostly exists in the form of particles. Therefore, the ideal method to process placer gold ore is gravity separation.
According to different physical and chemical properties of different types of gold ores, flotation separation utilizes various reagents to make the gold attached to the bubbles then scraping these gold particles from blades to get the concentrate.
Flotation Machine

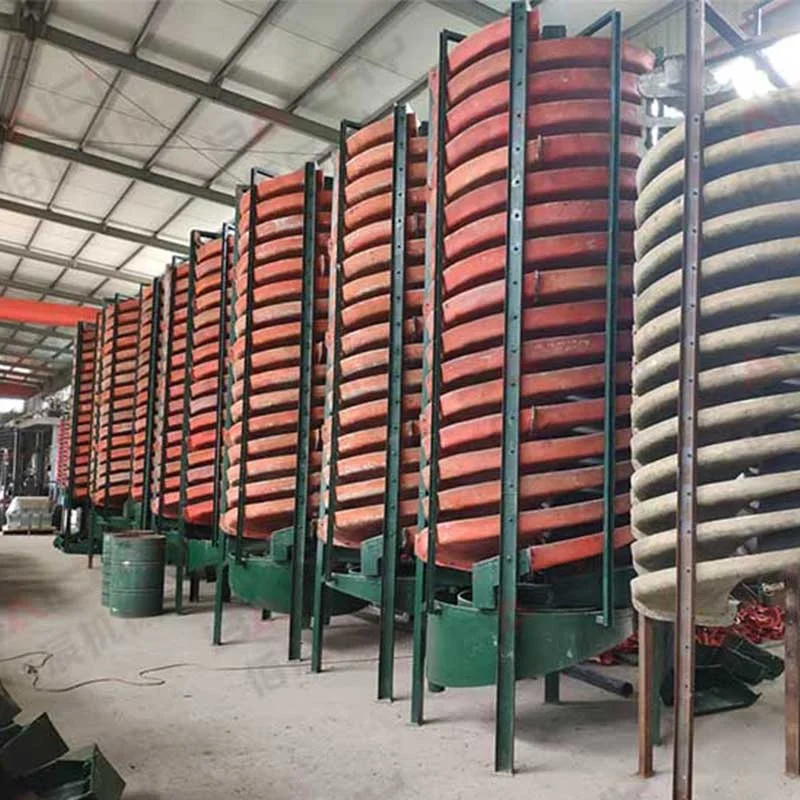

Spiral Chute
Magnetic Separator
Agitator

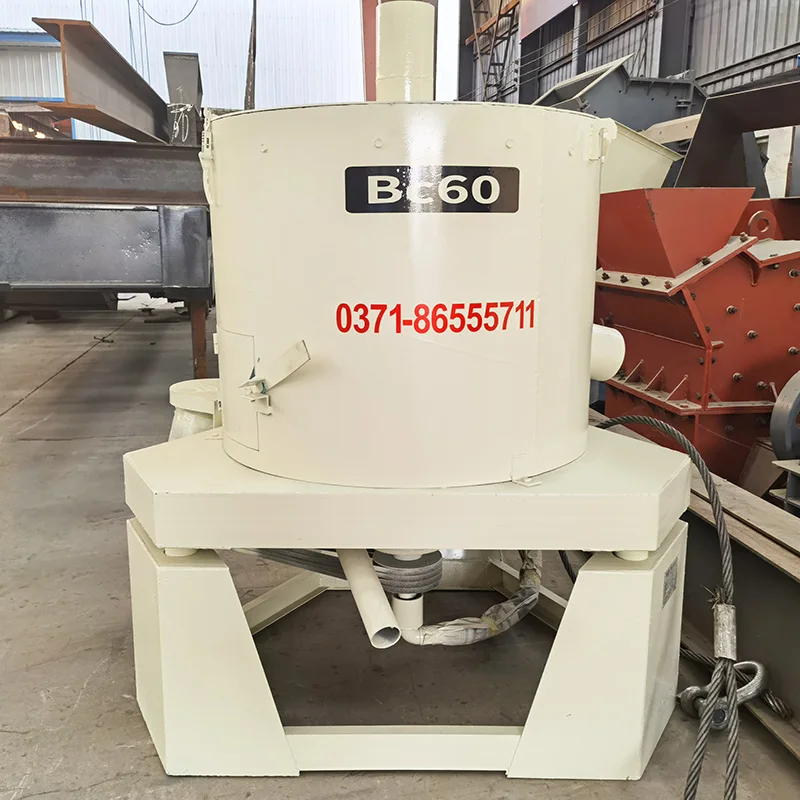

Gold Concentrator
Ball mill
Baichy headquarters is located in the industrial park in Jiaozuo City. It covers a total area of 200,000 square meters, including 150,000 square meters of standarized workshop. There are more than 200 sets of various large and medium-sized metal processing lathe, riveting machine, welding equipment and assembly equipment. We have more than 500 workers, including more than 20 middle and senior technicians. Baichy is mainly focus on 4 series products: stone crusher machines, sand making equipment, powder grinding mills, mineral processing equipment and their spare parts. Every year, Baichy can turn out 1,000 sets of crushers and 10,000 tons of crusher parts.
1. Are you manufacture or trading company?
We are factory, established in 2003.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
30% deposit in T/T advance, 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at lowest cost.
5. If I need the complete crushing plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice. We had already build many mining projects in China & Overseas.
