Hydraulic Knuckle Telescopic Boom Marine Mini Crane for Sale
- Category: >>>
- Supplier: Shanghai HAOYO Machinery Co. Ltd.
Share on (60754346056):
Product Overview
Description
Product Description

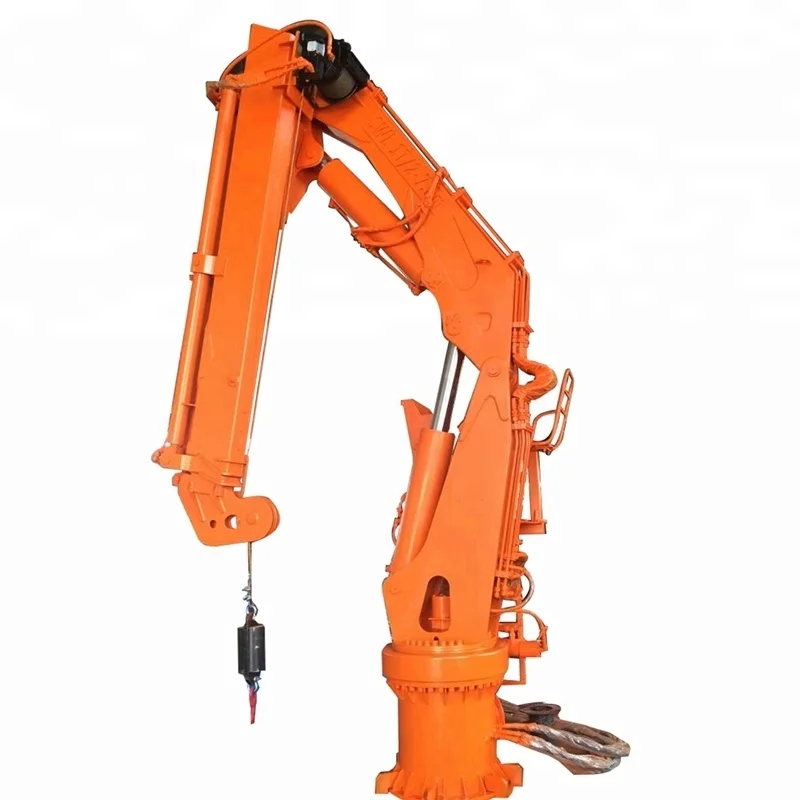

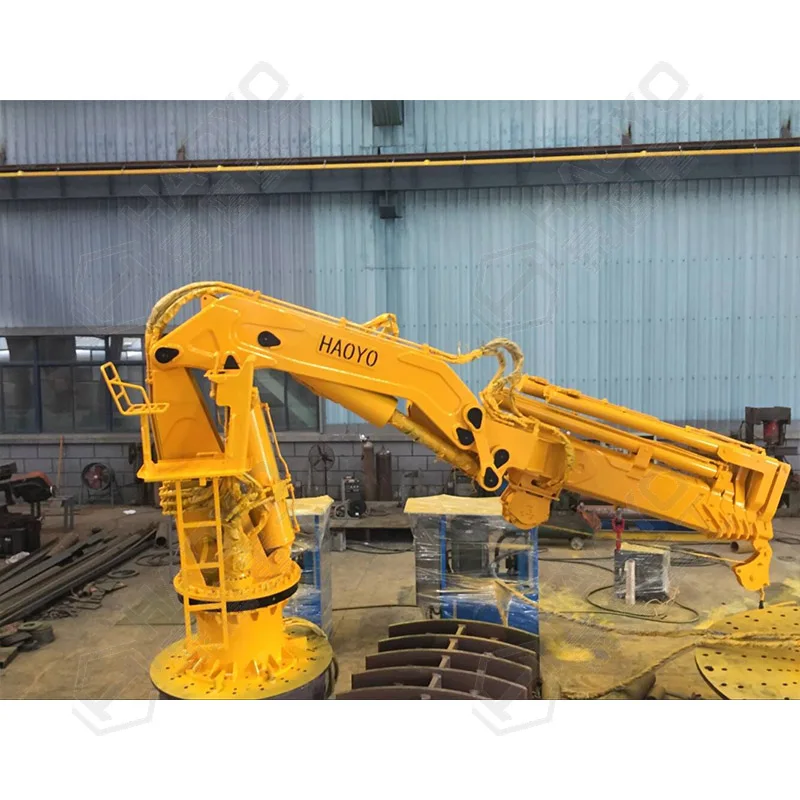

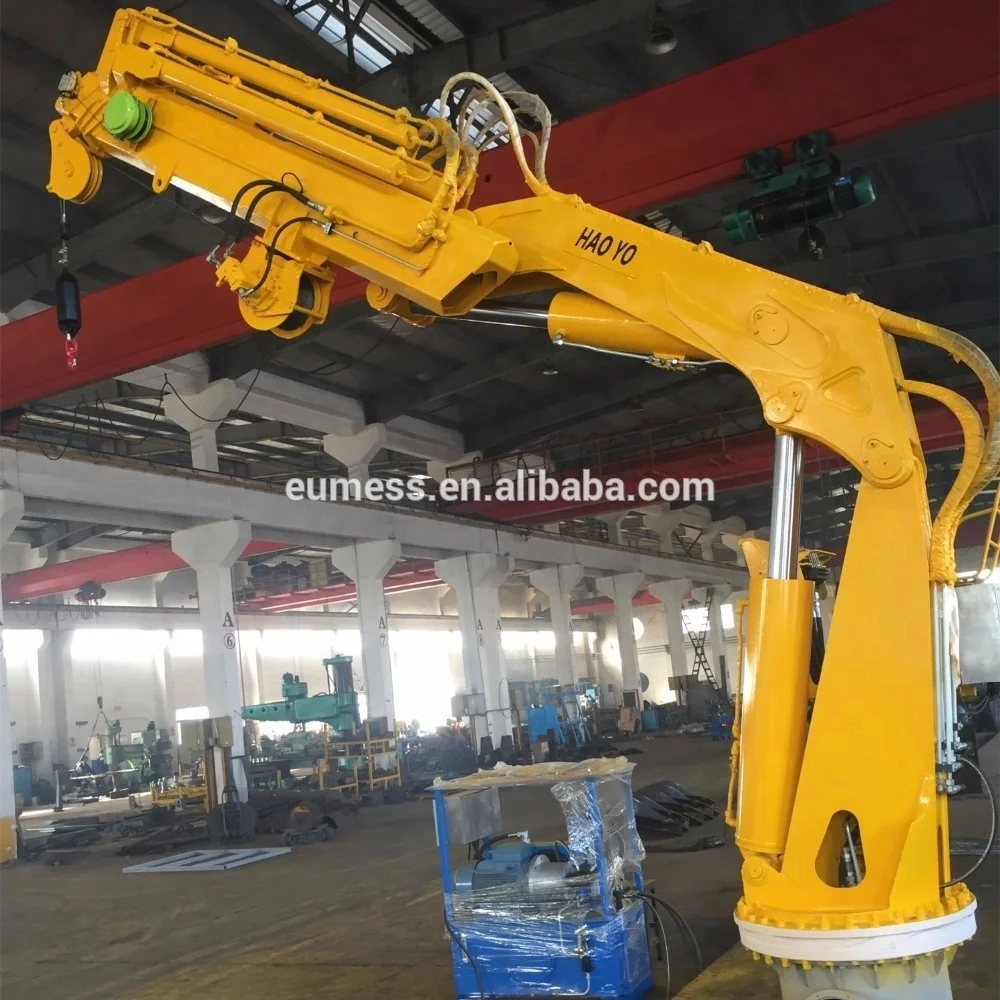

Hydraulic Knuckle Telescopic Boom Marine Mini Crane for Sale
Application: Service Crane, Provision and Cargo Lifting Crane, Service Crane, Fishing Crane
Features: Flexible and Strong, Saving Space,Multi-function
Introduction: With full foldable boom structure, HAOYO foldable boom crane can work in strongly and flexibly.
The foldable boom crane is installed on many types of the vessel especially the limited space as a multi-functional tool.
MODEL | Outreach(M) | Lifting capacity(kg) | Lifting moment(kNm) | Total Moment(kNm) | Pedestal Diameter (mm) | Dead Weight (t) |
CF2700 | 1.5-5 | 1745-500 | 25.6-25 | 25.6-25 | 27.2 | 230-260 |
CF4501 | 3.4-11 | 1180-230 | 38.9-24.2 | 44.9 | 450 | 560-760 |
CF6500 | 3.5-9.2 | 1600-480 | 55.7-43.8 | 58.7 | 450 | 530-670 |
CF8500 | 2.5-10.6 | 3450-620 | 85-65.5 | 93.7 | 450 | 700-1060 |
CF8501 | 3.5-13.8 | 2100-250 | 72-33.8 | 79.3 | 450 | 810-1230 |
CF11001 | 3.7-14 | 2550-390 | 93.4-54 | 104.8 | 450 | 820-1270 |
CF12000 | 4-14.3 | 2850-470 | 113-64.3 | 116.6 | 596 | 1080-1520 |
CF15500 | 4-14.3 | 3600-600 | 140.2-84 | 144.1 | 596 | 1190-1710 |
CF18500 | 4.1-14.3 | 4350-940 | 174.1-1 | 196.8 | 620 | 1820-2400 |
CF23500 | 4.1-16.4 | 5400-900 | 217-144.2 | 235.9 | 620 | 2190-3230 |
CF29002 | 4.1-21.1 | 6200-560 | 245.4-115.5 | 282.9 | 620 | 2360-2890 |
CF 32080 | 4-13.7 | 7700-1900 | 299.6-255.5 | 340 | 620 | 2740-4065 |
CF32002 | 4.1-20.4 | 7440-725 | 301-145.6 | 352 | 709 | 2360-2890 |
CF41002 | 4.1-20.8 | 9160-1015 | 370.2-207.7 | 431 | 709 | 2740-4065 |
Product Name | Hydraulic Knuckle Telescopic Boom Marine Mini Crane for Sale |
Working condition | -25°~40° |
Power supply | 380v 50HZ 440V 60HZ |
Control model | cabin room, remote control and both |
Safety protection | Overload protection system Main lifting motor with thermal protection Hooks with latch Rubber buffers Protective earthing |
Brade | Rock |
Thread | coarse, fine |
Used | building industry machiner |
Detail & Processing
PULL BOX
COLUMN

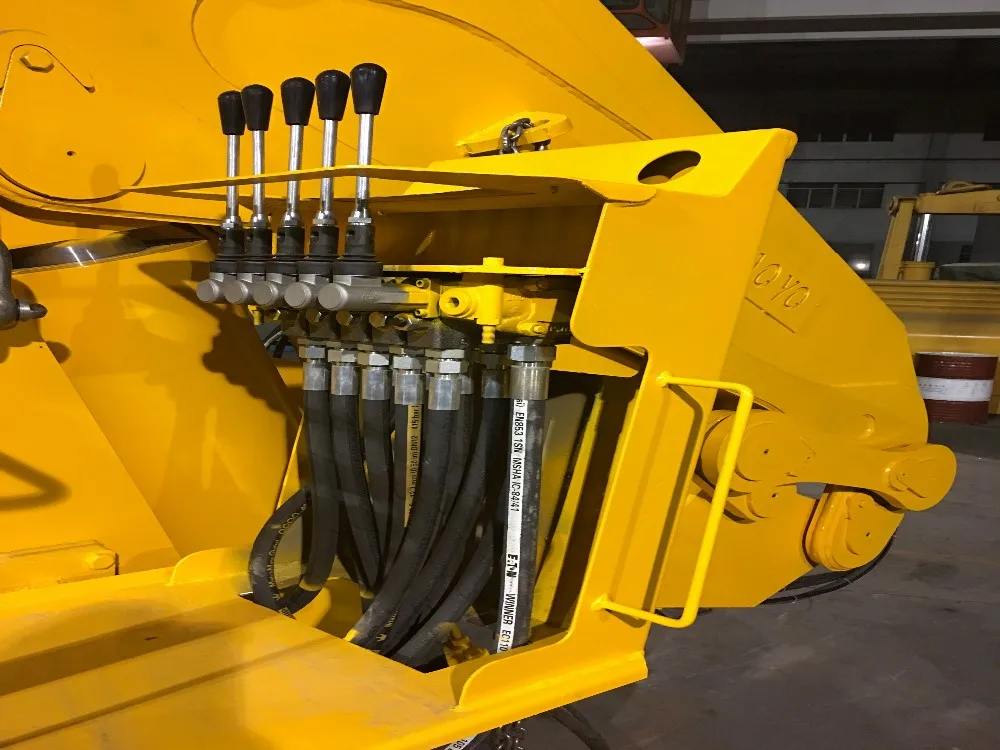

CONTROL VALVE

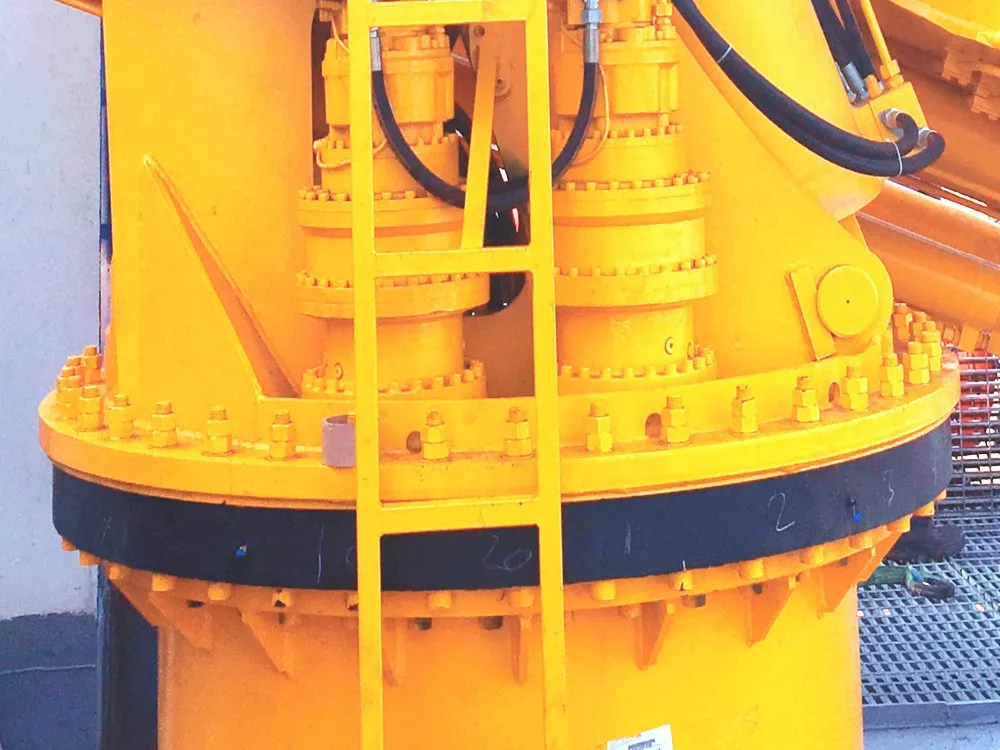

SLEWING BEARING

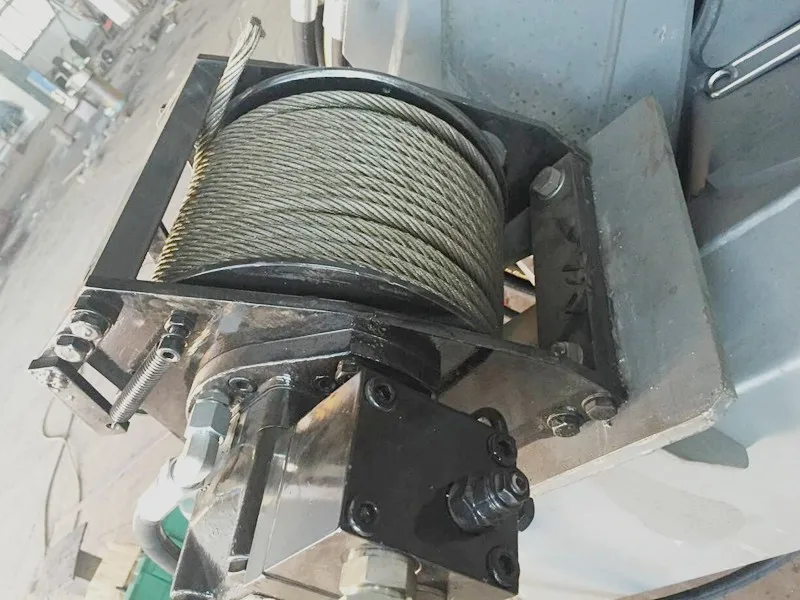

WINCH

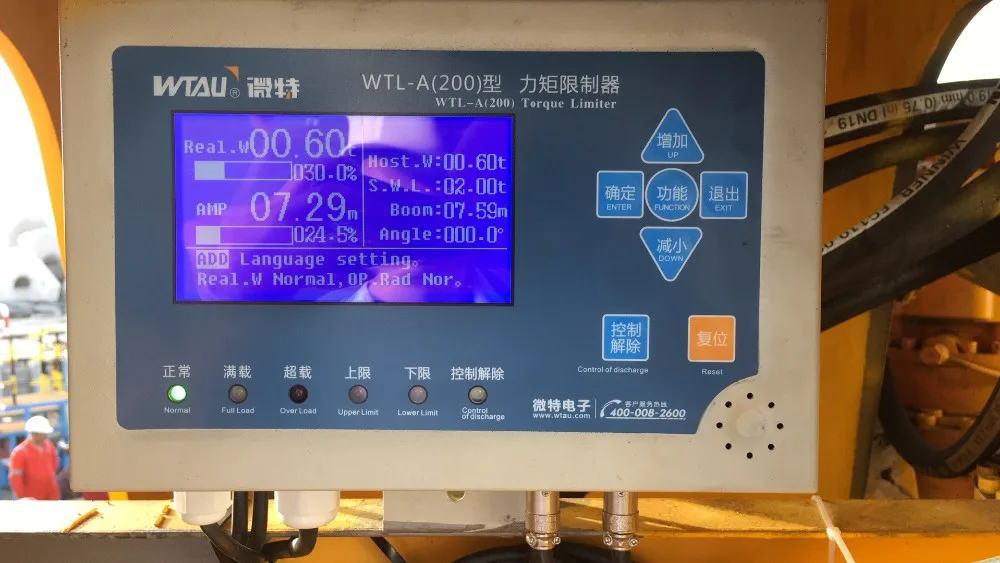

TORQUE LIMITER

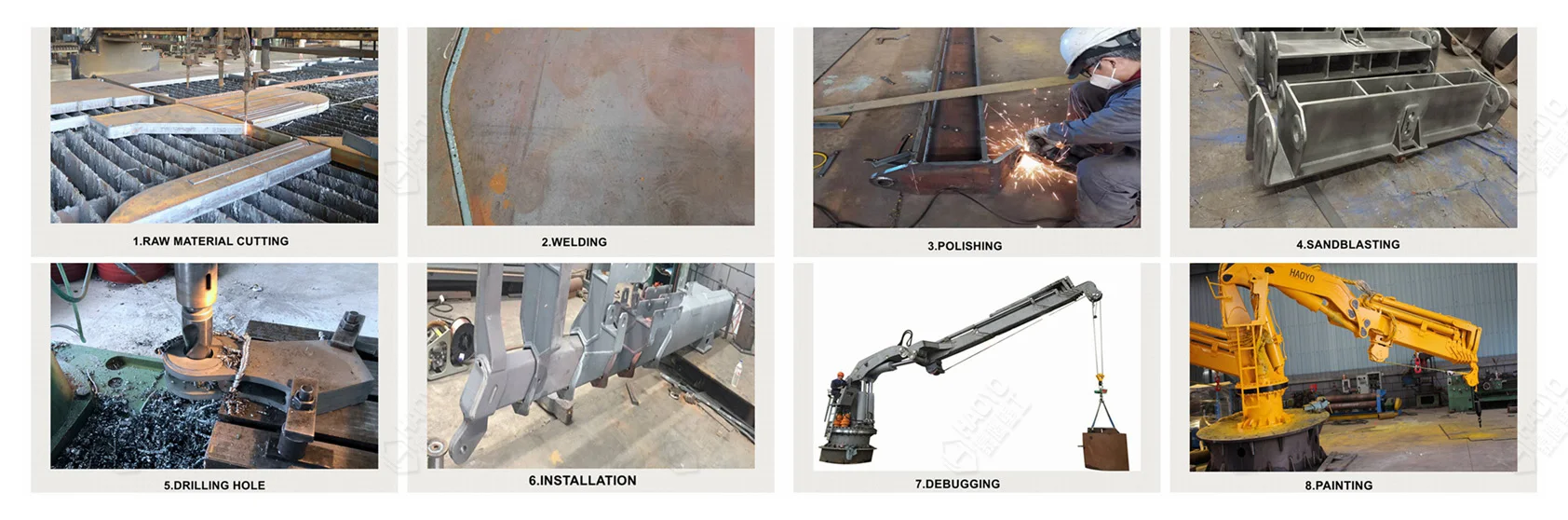

Product Flow
HAOYO provides you with reliable, innovation and customized marine and port handling equipment.
We are committed to offer the best performance in every detail.Every main part will use the top import brand to make the crane high stable and efficiency.

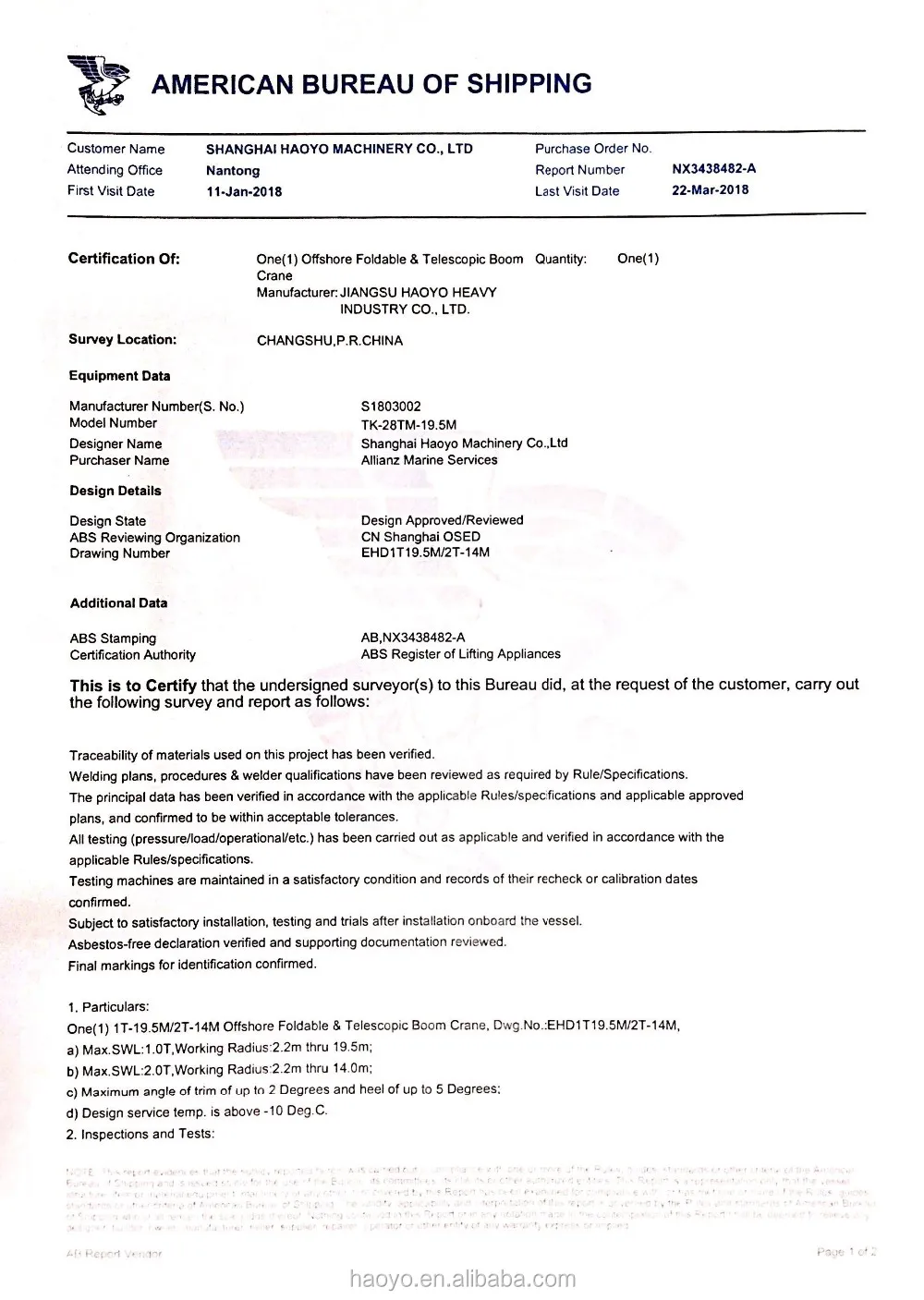

Certificates
Why Choose Us
ABOUT US
Focus marine crane for 15 years
CERTIFICATION
Meet almost all certification
PARTNER
Use best parts and materials
24 HOUR RESPONSE
Respond to customer any time
WELDING CERTIFICATION
All workers have welding certificates
MACHINING
Machining that other suppliers can't
Company View
More Products
FIXED BOOM CRANE TELESCOPIC CRANE KNUCKLE CRANE FOLDING CRANE
IF YOU WANT MORE INFORMATION PLEASE CLICK THE PICTURE
FAQ
1.What's type of the crane you want (stiff boom crane,knuckle boom crane,foldable boom crane,telescopic boom crane)
2. Crane SWL requested (___T)
3. Max. working radius of the crane (____M)
4. The crane will be used on ship, offshore platform or fixed platform (motor 380V or 440V)
If you have any other special request for the crane, please advise us
