Digital Video Portable Vagina Colposcope camera Sony CCD
- Category: Medical Optical Instruments >>>
- Supplier: Xuzhou Lianchuang Medical Equipment Co. Ltd.
Share on (60754386508):
Product Overview
Description
Product Description

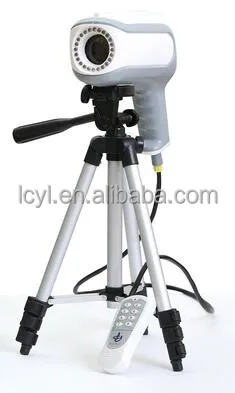

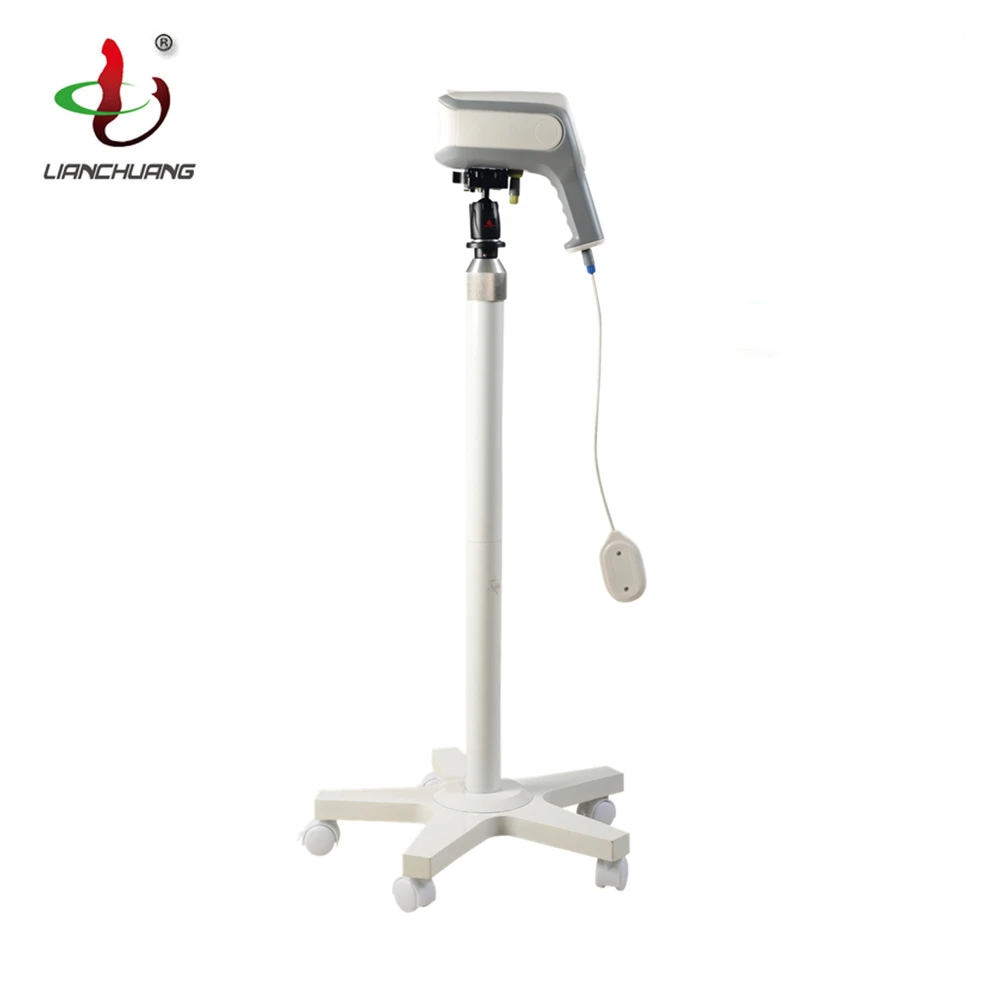

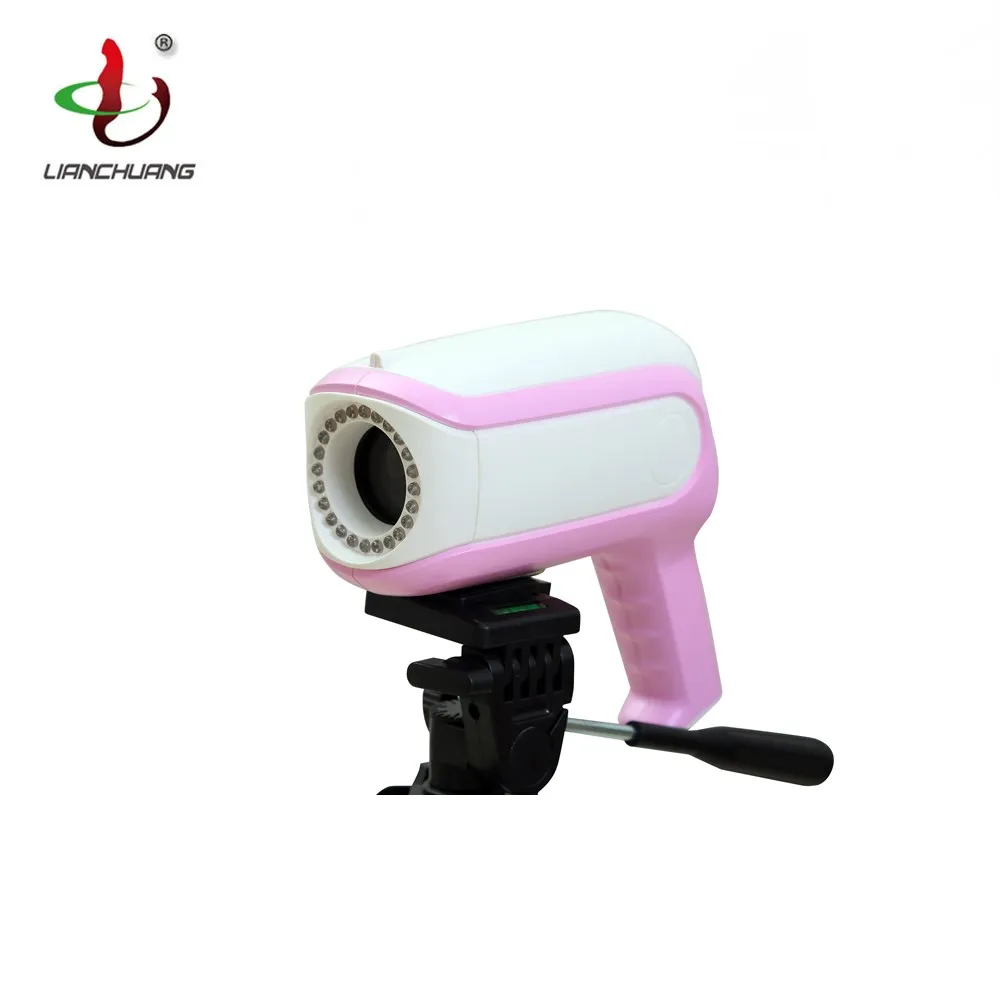

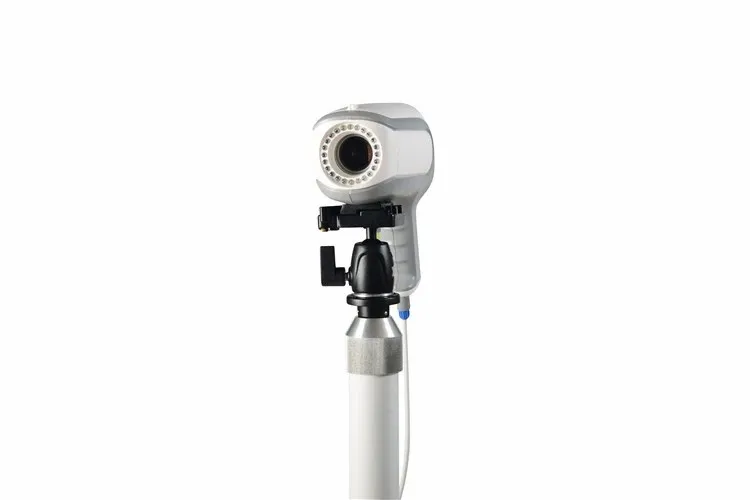

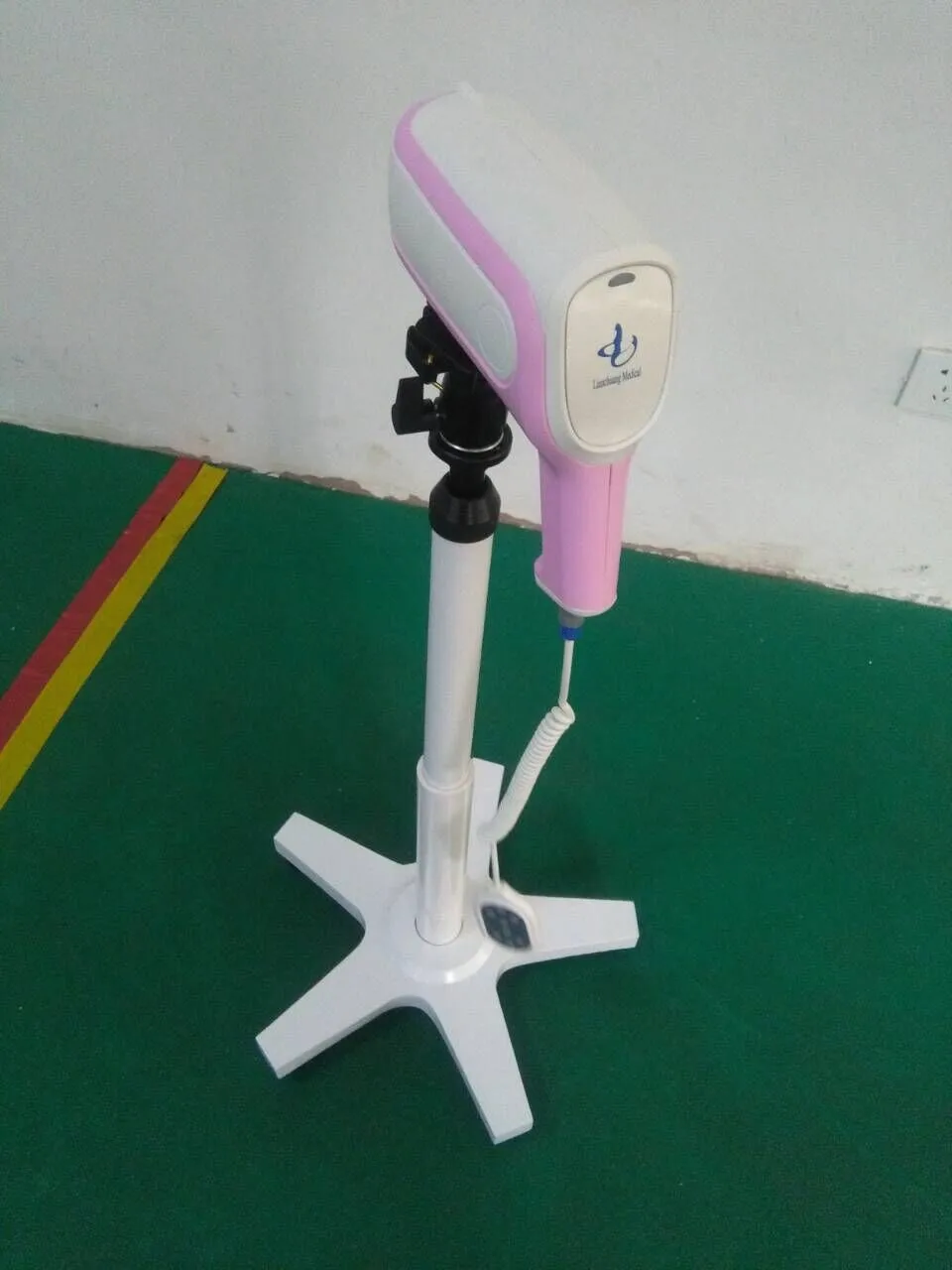

Portable digital colposcope with sony ccd camera
Product Paramenters
A colposcopy is a method of examining the cervix, vagina, and vulva with a surgical instrument called a colposcope. The procedure is usually performed if the results of a Pap smear (the screening test used to identify abnormal cervical cells) are unusual.
Product Name | Digital Colposcope Camera |
Camera | 1/3” Sony CCD camera |
Pixels | ≥1,200,000 |
Cold light source | High brightness ≥1200Lux LED light source |
Working distance | 250-350mm (can reach to 350-450mm) |
Magnification times | ≥280 times |
English colposcope software | Included |
Model LC-9100
Camera | 1/3" Sony CCD |
Total Pixels | >1,200,000 |
Image Size | 720*576 |
Scanning System | Progressive Scanning |
Framme Rate | 50p |
Video output | CVBS: 1Vp-p |
Signal output | SDI |
Light source | LED circular cold light source |
Horizaontal resolution | >600lines |
Work distance | 350mm-500mm |
Focusing distance | 20mm-40mm |
Magnification | 25X Optical, 12X Digital |
AE Control | Automatic/ Manual/ EV compensation/ Backlight compensation/ Brightness |
Features
1) Fashionable appearance, convenient design.
2) Adopt the color digital sony or samsung CCD camera with high resolution and clarity.
3) Bulbs adopt supper cold LED light source whose diameter is only 2 mm.

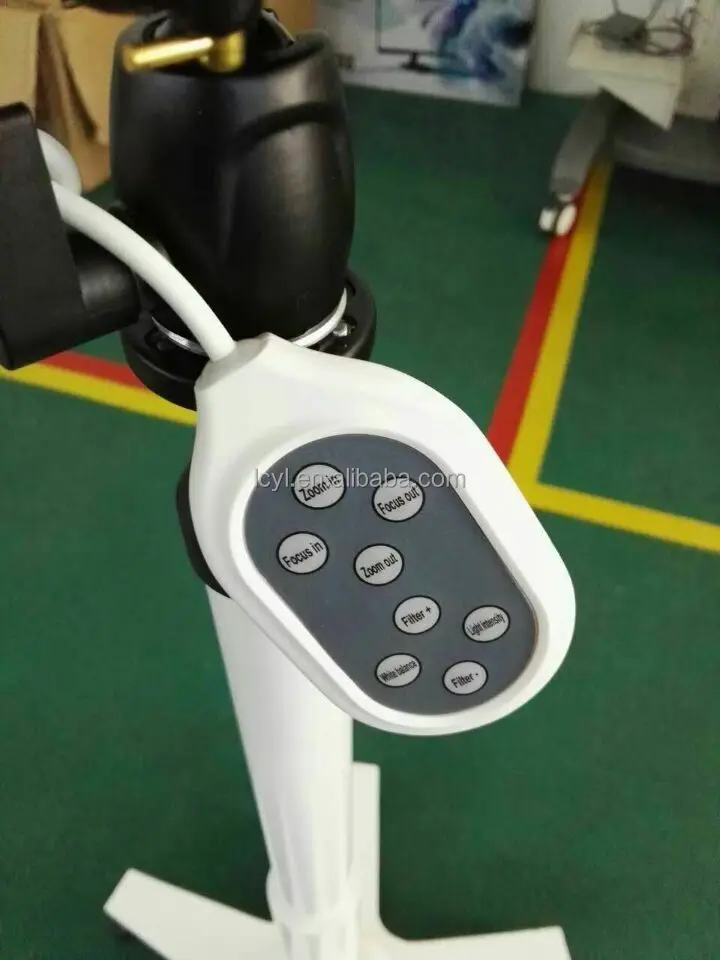

4) There are “freeze, filter, zoom in, zoom out, white balance” buttons on the handle control of the camera for the speedy
automatic functions.
5) Professional green-filter techniques.
6) Image freeze.
7) White balance.
8) Auto focus.
9) Timing of acetic acid and iodine reaction tests.
10) Powerful image software and workstation system.
2) Adopt the color digital sony or samsung CCD camera with high resolution and clarity.
3) Bulbs adopt supper cold LED light source whose diameter is only 2 mm.
4) There are “freeze, filter, zoom in, zoom out, white balance” buttons on the handle control of the camera for the speedy
automatic functions.
5) Professional green-filter techniques.
6) Image freeze.
7) White balance.
8) Auto focus.
9) Timing of acetic acid and iodine reaction tests.
10) Powerful image software and workstation system.
