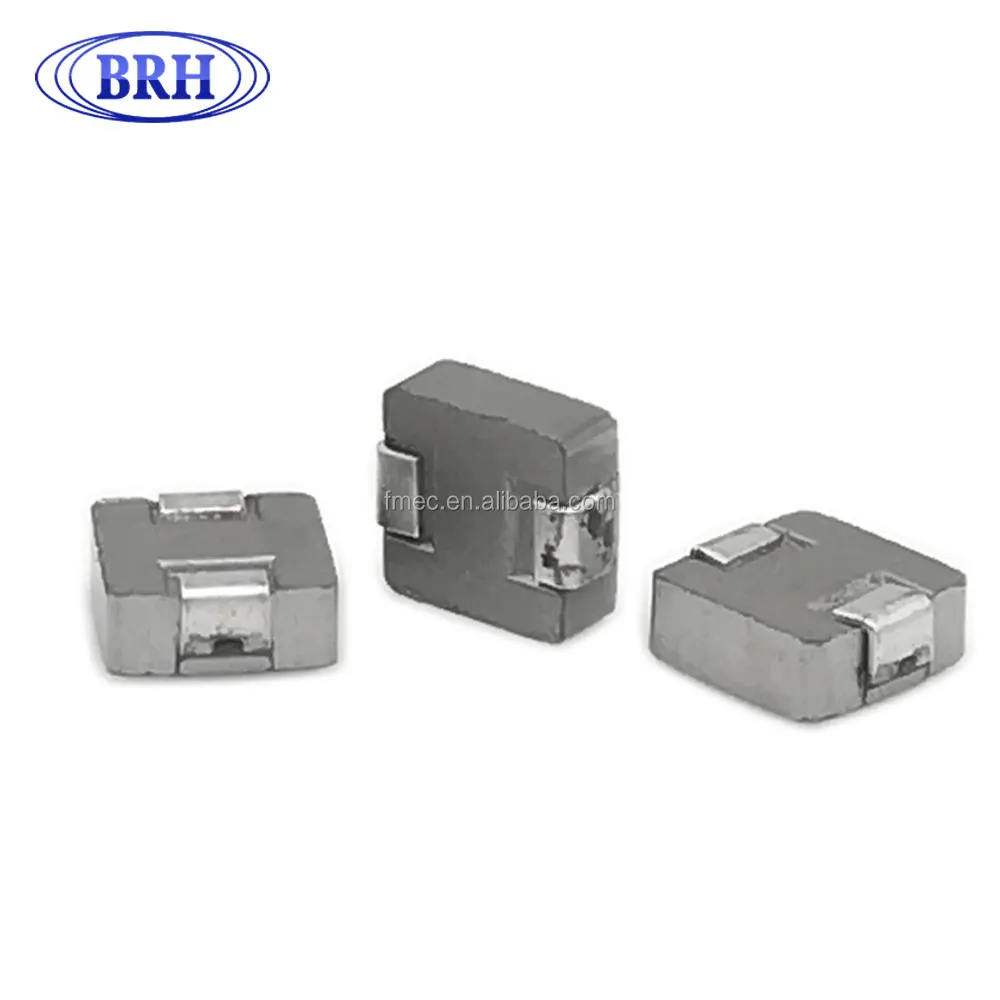

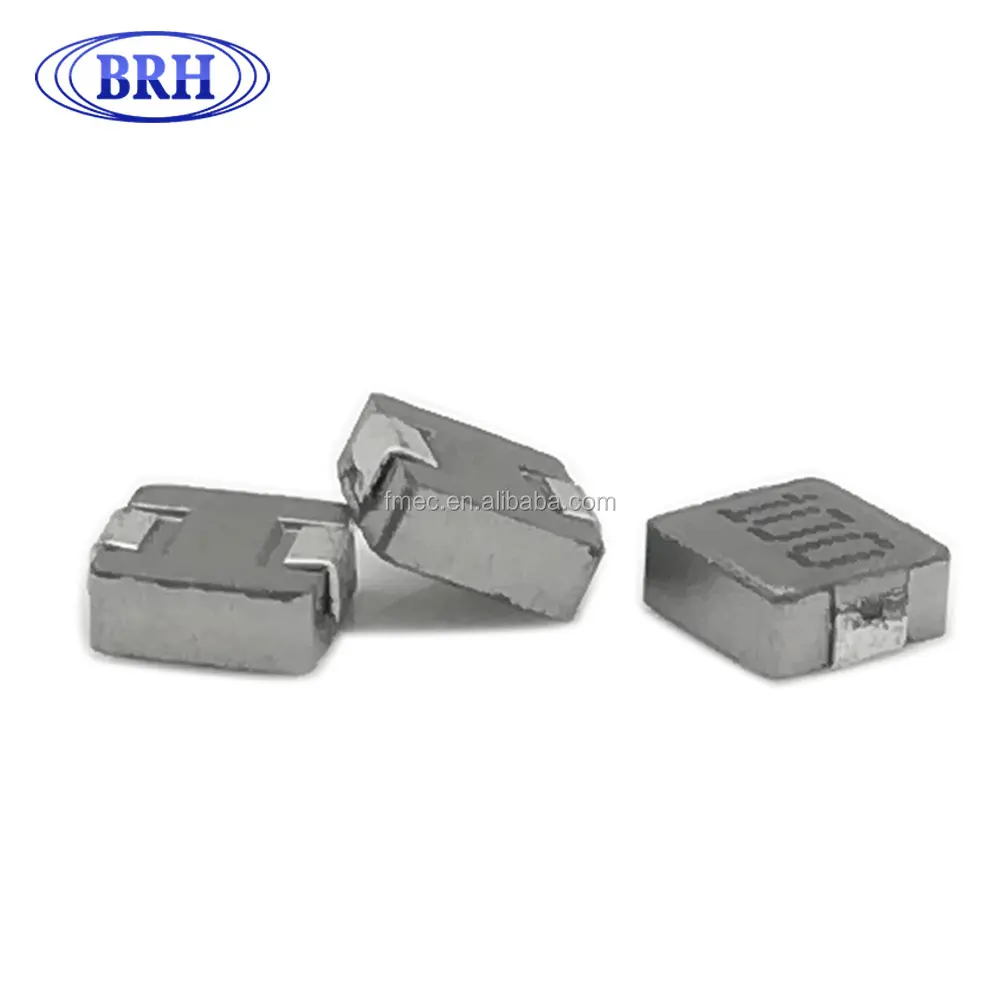

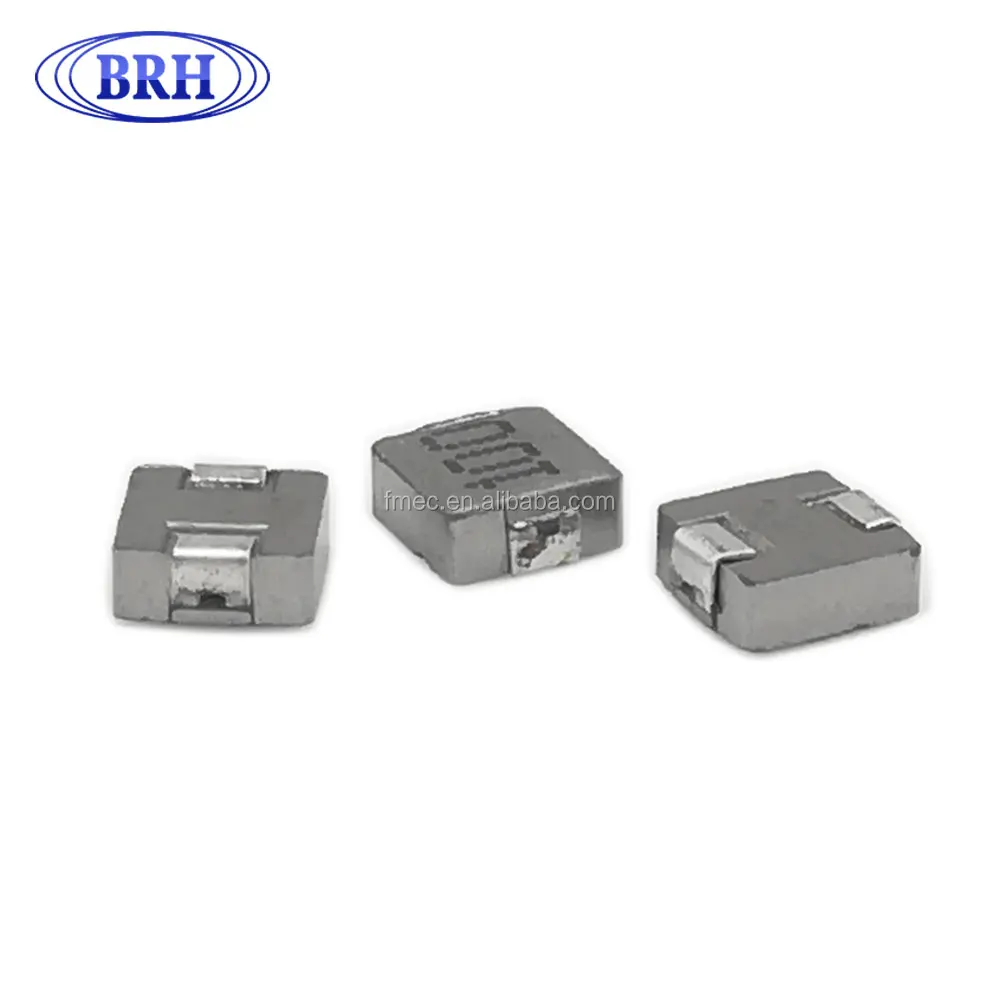

Manufactory Wholesale 04020 size smd shielded chip inductor 10uh 2.5A
- Category: >>>
- Supplier: Shenzhen Yan Bai Technology Co. Ltd.
Share on (60754647119):
Product Overview
Description
Products Description
Description

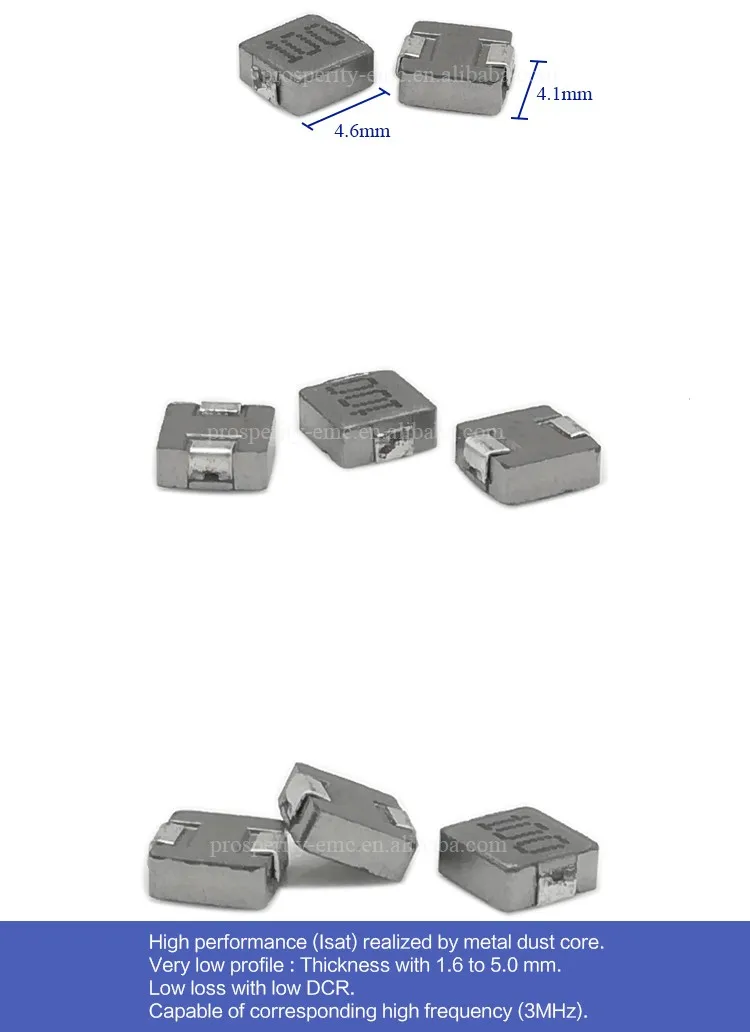

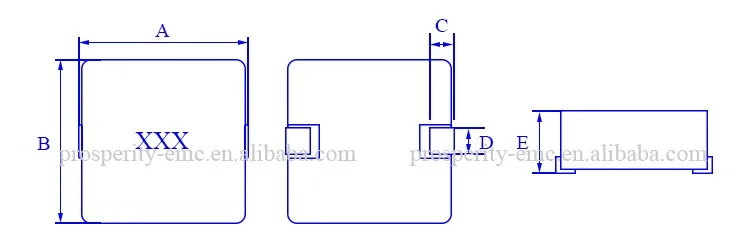

SIZE CODE | A | B | C | D | E |
04020 | 4.6±0.20 | 4.1±0.20 | 1.0±0.50 | 1.5±0.30 | 2.0 MAX |
SIZE CODE (mm) | A Typ. | B Typ. | C Typ. |
04020 | 2.5 | 1.5 | 3.7 |
06030 | 3.5 | 2.4 | 6.1 |
06050 | 3.5 | 2.4 | 6.1 |
10040 | 4 | 3.5 | 9.5 |
12060 | 5 | 4 | 10.1 |
1265 | 5 | 4 | 10.1 |
Parameter
Test Data For Pre Production Samples | ||||||||||||||
MEAS. Item | L(µH) Isat=0A | L(µH) Isat=2.5A | RDC (Ω) | A m/m | B m/m | E m/m | L(µH) Irms=1A | |||||||
Suggest | 10±20% | L*0.7 | 0.24+0 | 4.6±0.30 | 4.1±0.30 | 2.0 MAX | ∆T=40℃ | |||||||
1 | 9.91 | 7.330 | 0.223 | 4.66 | 4.09 | 1.95 | 35.00 | |||||||
2 | 9.93 | 7.380 | 0.225 | 4.62 | 4.11 | 1.92 | 36.00 | |||||||
3 | 9.98 | 7.450 | 0.222 | 4.55 | 4.10 | 1.89 | 35.00 | |||||||
4 | 9.96 | 7.360 | 0.224 | 4.60 | 4.11 | 1.90 | 34.00 | |||||||
5 | 9.96 | 7.380 | 0.223 | 4.62 | 4.09 | 1.92 | 34.00 | |||||||
6 | 9.00 | 7.370 | 0.222 | 4.65 | 4.09 | 1.87 | 35.00 | |||||||
7 | 9.95 | 7.350 | 0.224 | 4.55 | 4.09 | 1.86 | 34.00 | |||||||
8 | 9.92 | 7.410 | 0.223 | 4.48 | 4.11 | 1.89 | 35.00 | |||||||
9 | 10.02 | 7.380 | 0.224 | 4.53 | 4.10 | 1.91 | 35.00 | |||||||
10 | 9.98 | 7.390 | 0.223 | 4.56 | 4.10 | 1.89 | 34.00 | |||||||
X-bar | 9.86 | 7.380 | 0.223 | 4.58 | 4.10 | 1.90 | 34.70 | |||||||
R | 1.02 | 0.120 | 0.003 | 0.18 | 0.02 | 0.09 | 2.00 | |||||||
The above test data for reference,Actual results may differ due to different production batches | ||||||||||||||
