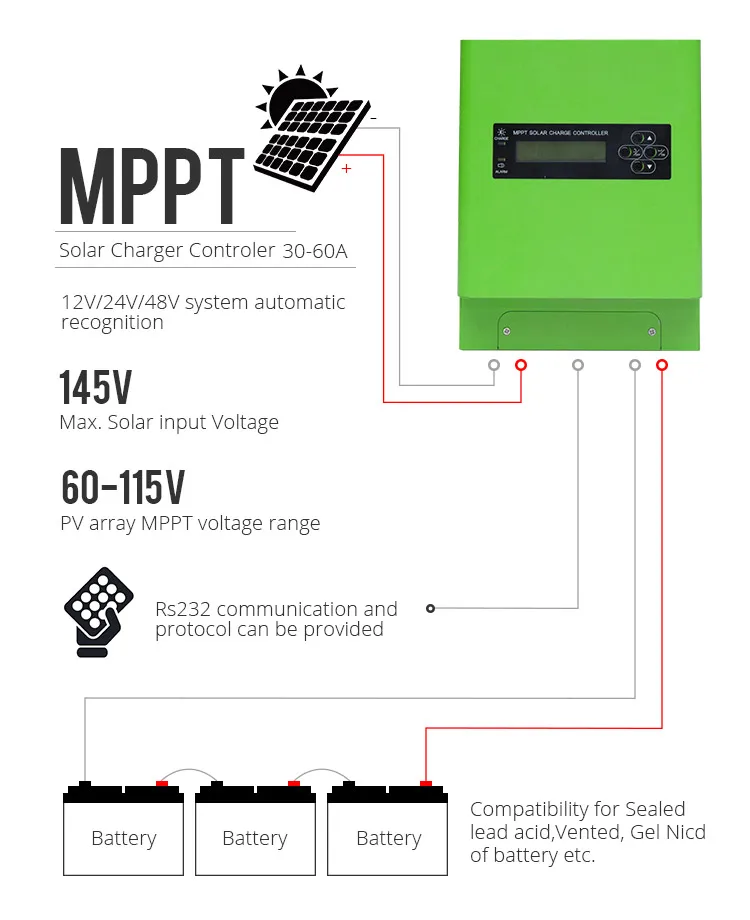

Inverter mppt solar charger 60A off grid system

Model

PV Operating Voltage

18~100Vdc@12V

35~100Vdc@24V

50~100Vdc@36V

60~100Vdc@48V

18~150Vdc@12V

35~150Vdc@24V

60~150Vdc@48V

Max. PV input power

12V 400W

12V  600W

12V 700W

24V 800W

24V 1200W

24V 1400W

36V 1300W

36V 1700W

48V 1700W

48V 2300W

48V 3400W

Rated input current

30A

40A

50A

Self consumption

2W

3W

Protection

PV array short circuit, over charging,battery reverse polarity,output short circuit

Battery charging

Battery Type

Sealed  Gel AGM  Flooded  Lithium Battery

Sealed  Gel AGM  Flooded

Charge algorithm

4 stage: Bulk, Absorption, Float, Equalize charging

3 stage: Bulk, Absorption, Float

Bulk charge voltage

Sealed: 14.4V AGM 14.2V  Gel:14.2V Flooded:14.6V User defined:10-15V

Float charge voltage

Sealed/Gel/AGM:13.8V  Flooded:13.7V User defined:10-15V

Communication

Communication Port

RS485

RS485(Standard) Ethernet RS232 Optional with On line monitoring system

Physical

Net weight

2kg

3kg

Gross weight

2.2kg

4kg

Dimension

410*220*62MM

280*180*89MM

Cooling

Dual fan cooling

Fan cooling

Environment

*Technical data for 12V system at 25℃, twice in 24V system rate, triple in 36V System rate and quaduple in 48V system rate
