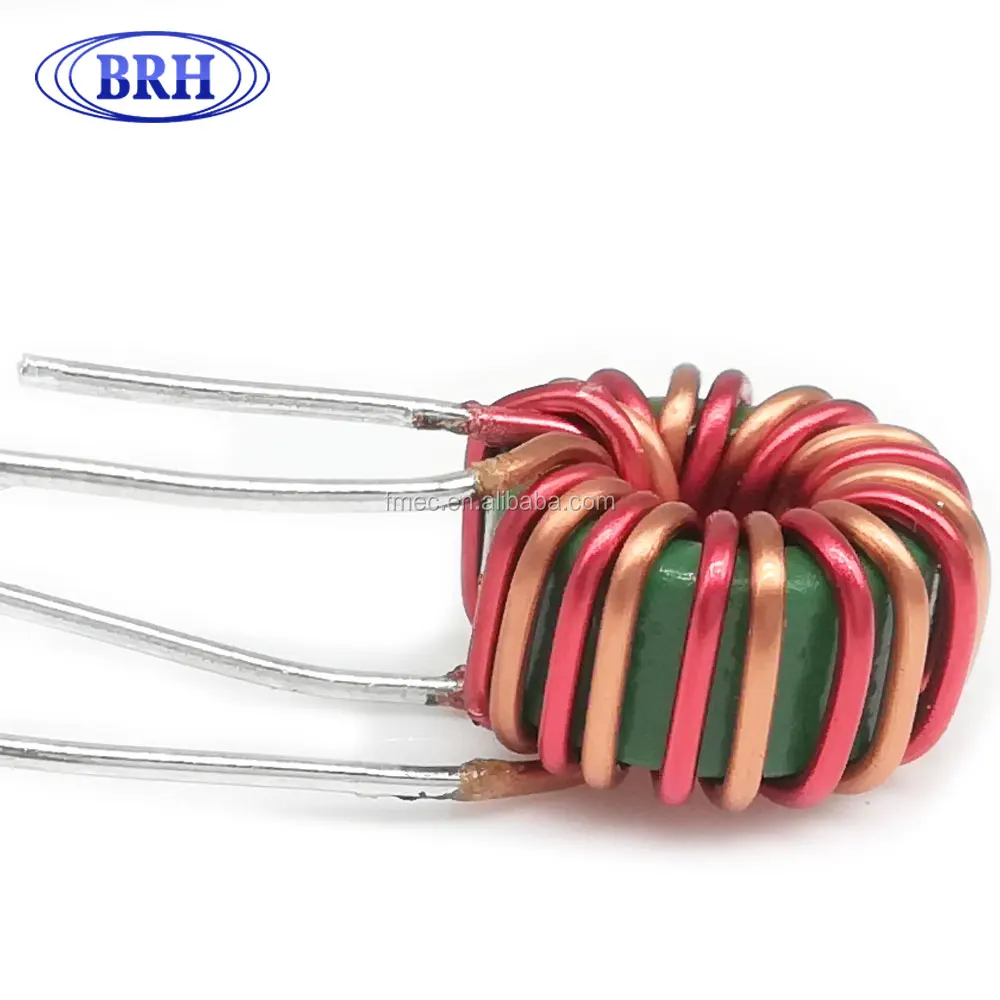

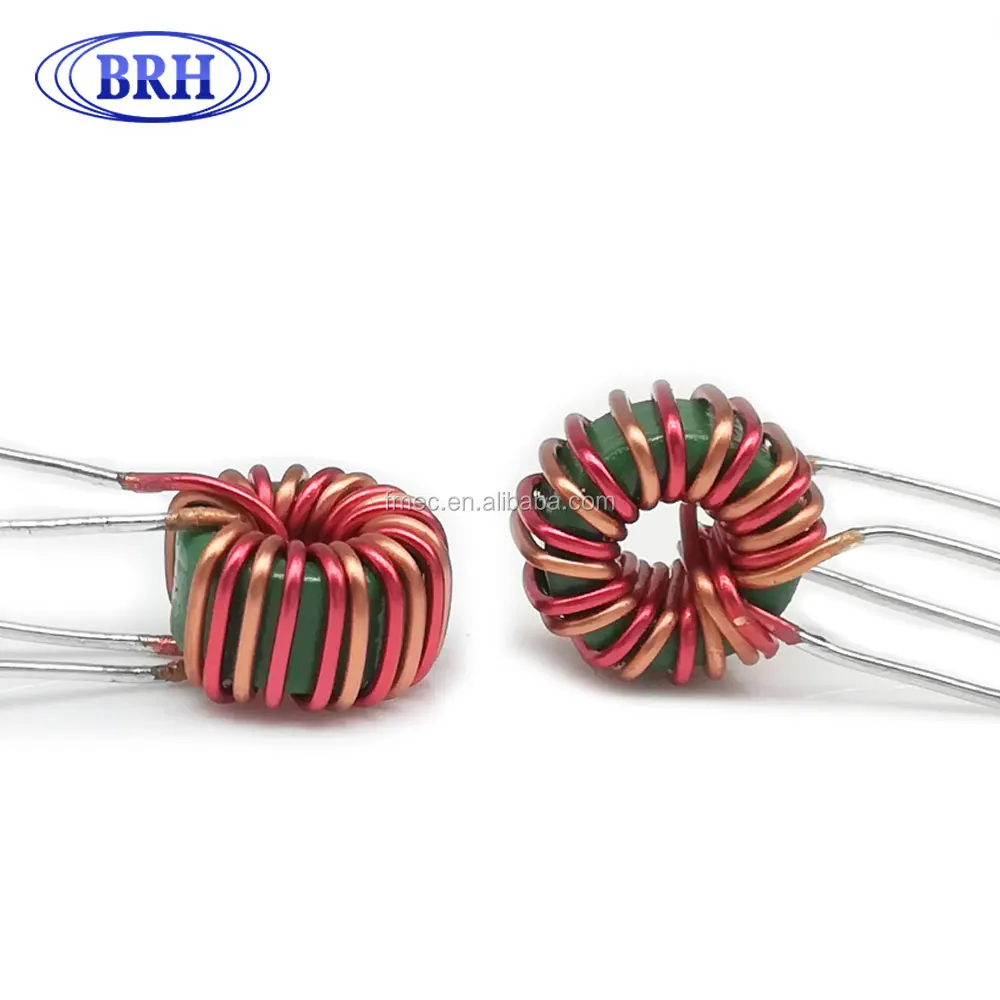

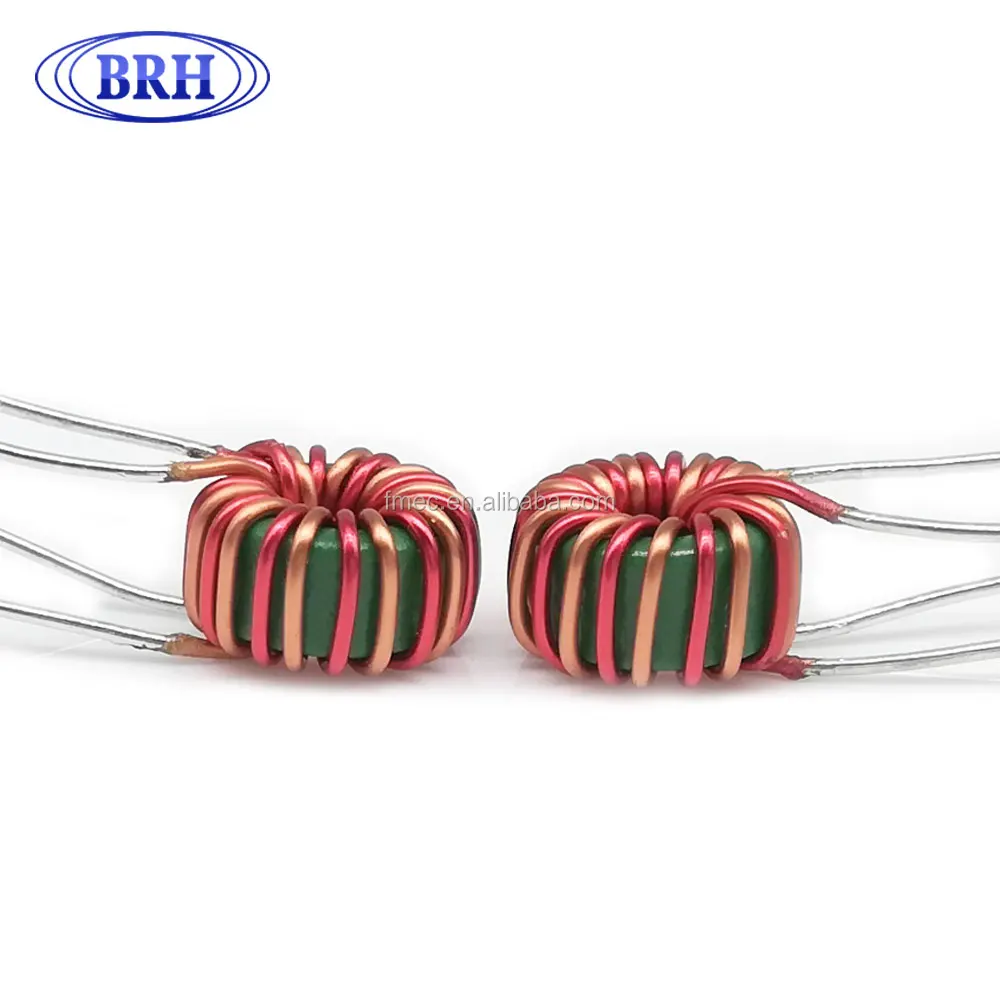

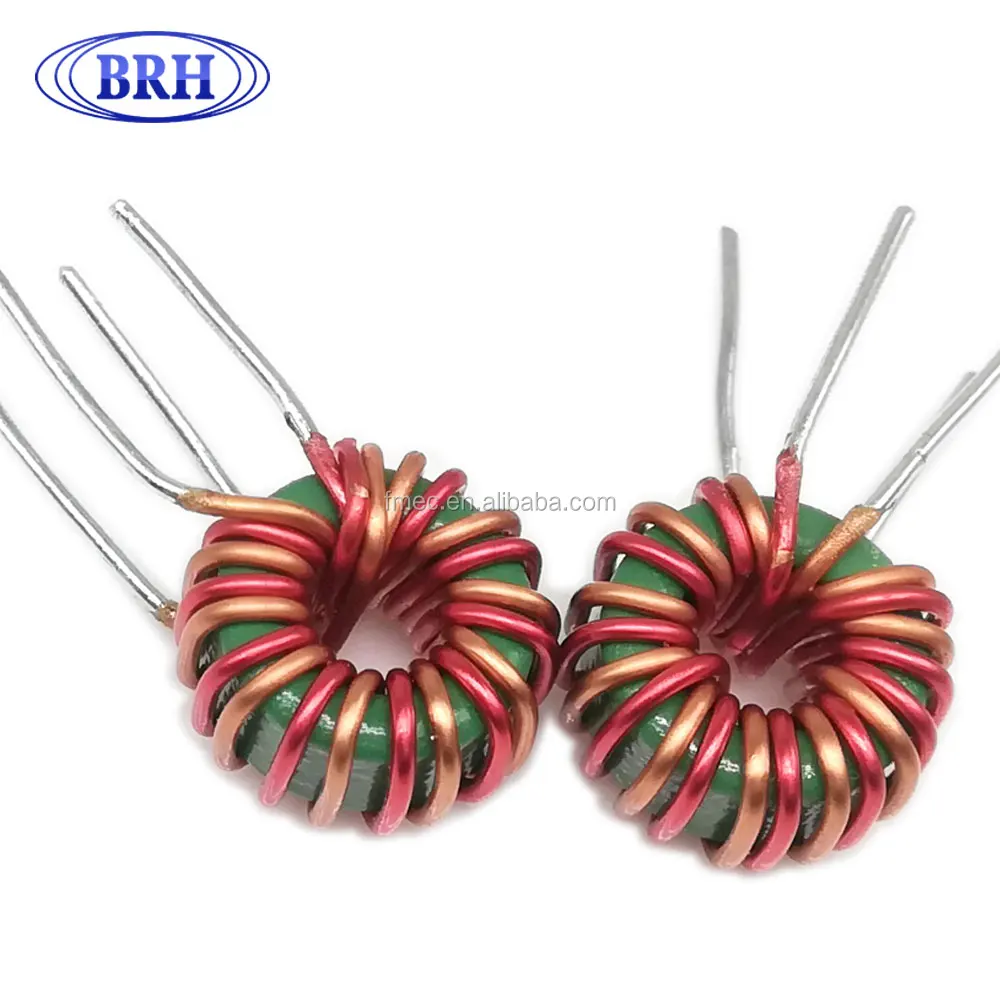

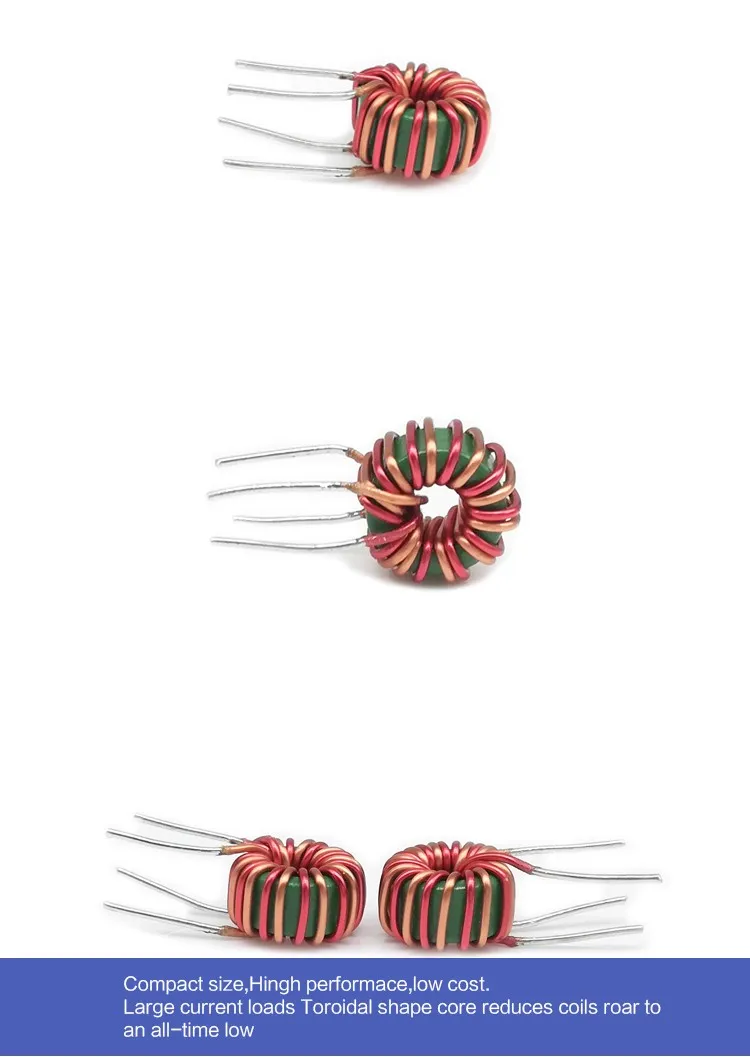

High voltage wire wound toroidal ferrite core power inductor 300uh
- Category: >>>
- Supplier: Shenzhen Yan Bai Technology Co. Ltd. [Guangdong China]Shenzhen
Share on (60755117285):
Product Overview
Description
Description
| DIMENSIONS(mm) | A | B | C | D | E | F | G |
| TII10*6*4-301P | 13.5MAX | 8.5MAX | 10.0±2.0 | 6.0REF | 7.0REF | 1.5MAX | 0.7±0.1 |
| MATERIAL | ||
| CORE | WIER | Sn |
| T10×6×4 | φ0.7MM*2P*10TS(REF) | |
Parameter
| ELECTRICAL CHARACTERISTIC | |||
| ITEM | SPEC | TEST EQUIPMENT | TEST CONDITION |
| L（1-2）(4-3) | 300μH MIN | TH2828 | 1KHz/0.25V |
| DCR （1-2）(4-3) | 10(mΩ） MAX | 502BC | |
| TEST DATA FOR PRE PRODUCTION SAMPLES | ||||
| ITEM | L(μH )（1-2） | L(μH )（4-3） | DCR(mΩ)（1-2） | DCR(mΩ)（4-3） |
| SPEC | 300MIN | 300MIN | 10MAX | 10MAX |
| 1 | 980 | 976 | 7.75 | 7.83 |
| 2 | 860 | 862 | 7.86 | 7.90 |
| 3 | 1190 | 1200 | 7.98 | 7.68 |
| 4 | 1140 | 1120 | 7.78 | 7.73 |
| 5 | 1000 | 1010 | 7.85 | 7.80 |
| 6 | 1050 | 1130 | 7.92 | 7.88 |
| | | | | |
| X-bar | 1036.667 | 1049.667 | 7.857 | 7.803 |
| R | 330.0 | 338.0 | 0.23 | 0.22 |
| RELIABILITY TEST | |
| STORAGE TEMPERATURE: | -40℃～85℃ |
| OPERATING TEMPERATURE RANGE : | -40℃～+125℃(CONTAIN HEATING COIL) |
| EXTERNAL APPEARANCE: | NO EXTERNAL DEFECTS CAN BE FOUND IN THE VISUAL INSPECTION. |
| TERMINAL STRENGTH: | FIXED INDUCTORS,ONE END OF THE ELECTRODE WITH 0.45KG PULLING FORCE,GUIDED THE NEEDLE DOES NOT FALL OFF. |
| INSULATING RESISTANCE: | THE INSULATION RESISTANCE SHOULD BE OVER 1000MΩ WHEN D.C.100V IS APPLIED TO THE WINDING –CORE. MEANWHILE NO STRUCTURE AND ELECTRIC DEFECTS SHOULD BE FOUND FOR 1 MINUTE. |
| HUMIDITY TEST: | INDUCTANCE DEVIATION IS WITHIN ±10.0% AND NO STRUCTURE AND ELECTRIC DEFECTS CAN BE FOUND AFTER 96±2hours TEST UNDER THE CONDITIONOF RELATIVE HUMIDITY OF 90～95% AND TEMPERATURE OF 40±5℃. AND 1 HOUR STORAGE UNDER ROOM AMBIENT CONDITIONS AFTER THE DEVICE IS WIPED WITH DRY CLOTH. |
| VIBRATION TEST: | INDUCTANCE DEVIATION IS WITHIN ±10.0％ AFTER 1 HOUR SWEEPING VIBRATION IN EACH THREE DIRECTIONS. NAMELY, FREQUENCY IS10～55Hz ANDTHE AMPLITUDE OF 1MINUTE CYCLE IS 1.5mm . |
