Модернизированная огнестойкая Водонепроницаемая гипсокартонная/гипсовая панель класса A1

Product Overview

Description

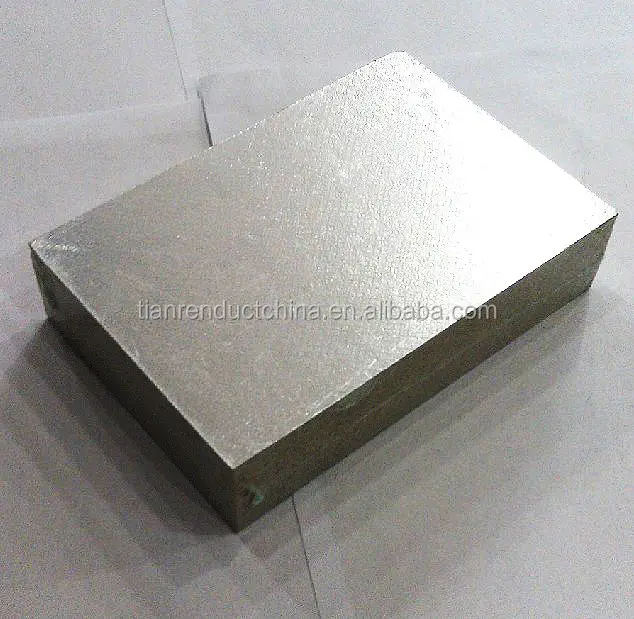

Upgraded Class A1 fireproof waterproof gypsum board/gypsum panel



General Introduction



Terasun upgraded Class A1 fireproof waterproof gypsum panel price competitive is known as TSM---Terasun Silicate Magnesium board. Using foam particles, cement, plant fiber, glass fiber cloth, non-woven fabrics, etc as raw material, Terasun upgraded gypsum board is made through gelling, pressing and other special techniques and is a new type material renonwn for stability in performance.



Terasun upgraded gypsum panel---TSM, is characteristic of fireproof, waterproof, high intensity, thermal and sound insulation, long endurance in use, low shrinkage and convenient for construction.



Terasun upgraded ypsum panel---TSM, is your best choice for buiding, construction and decoration.



Technical Data



Commodity	Terasun Silicate Magnesium Board---TSM
Raw Material	Foam particles, cement, plant fiber, glass fiber cloth, non-woven fabrics, etc
Density	≤ 0.95  g/cm³
Size	1220*2440mm or 1200*2400mm Customerization is available
Thickness	6~20mm
Moisture Content	≤ 12%
Fireproof	Class A1 incombustible
Moisture Movement	≤0.12%
Bending Strength	≥8.5 Mpa
Maximum Service Temperature	1200  °C
Water Permeability	No water vapor after 24 hours' test
Color	Grey
Features / Merits	WATERPROOF; fireproof; termite proof; light-wight; flexional; easily to be shaped, perforated, bended; long service life; environmental friendly, etc
Applications	Interior&exterior wall board; partition wall; gypsum ceiling board; subflooringr; desktop board; sandwich panel shin; kitchen and bath wall board; decoration, etc

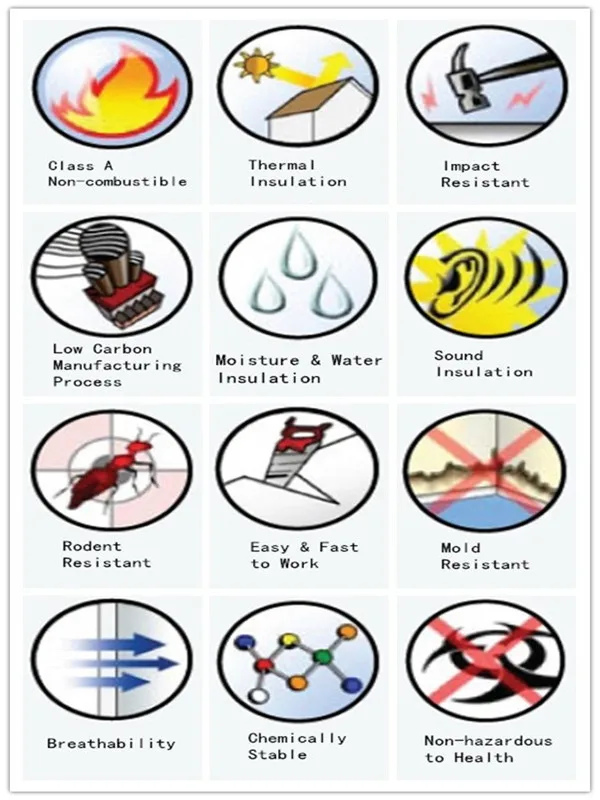

Features

With Great Fireproof

    The non combustible board is rated class A and would lead to no noxious fumes.

With Excellent Waterproof

    The board can maintain stability in performance and not expand in places of high humidity.

With High Intensity

    The board is solid that even board in 6mm are more solid than paperbacked plasterboard in 9.5mm. The wall made from TSM board is very solid and substantial, not easily damaged by shocks.

Thermal Insulation and Sound Insulation

    Terasun board has great thermal insulation and heat preservation. The partition wall with 100mm thickness is better in terms of heat preservation than normal brick wall. In the meantime, it has very good sound insulation.

Long Endurance in Use

    TSM has a stable performance, acid and alkali resistance. In addition, it has no getting damp and there's no afraid of insects, which will ensure a super long endurance.

Low Shrinkage

    The board is made through advanced techniques like pressing by advanced components. The dry state shrinkage ration and expansion rate are well controlled and it's the best boards among all inorganic boards with respect to the performance.

Convenient for Construction

    It has good mechanical properties and able to be saw, shave, nailed without being warped or crack
