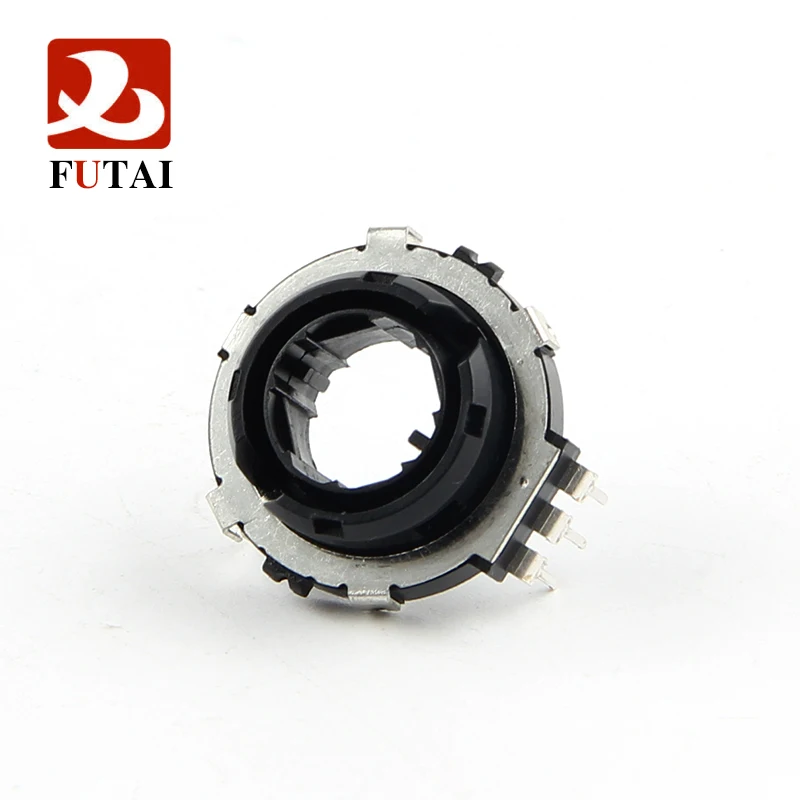

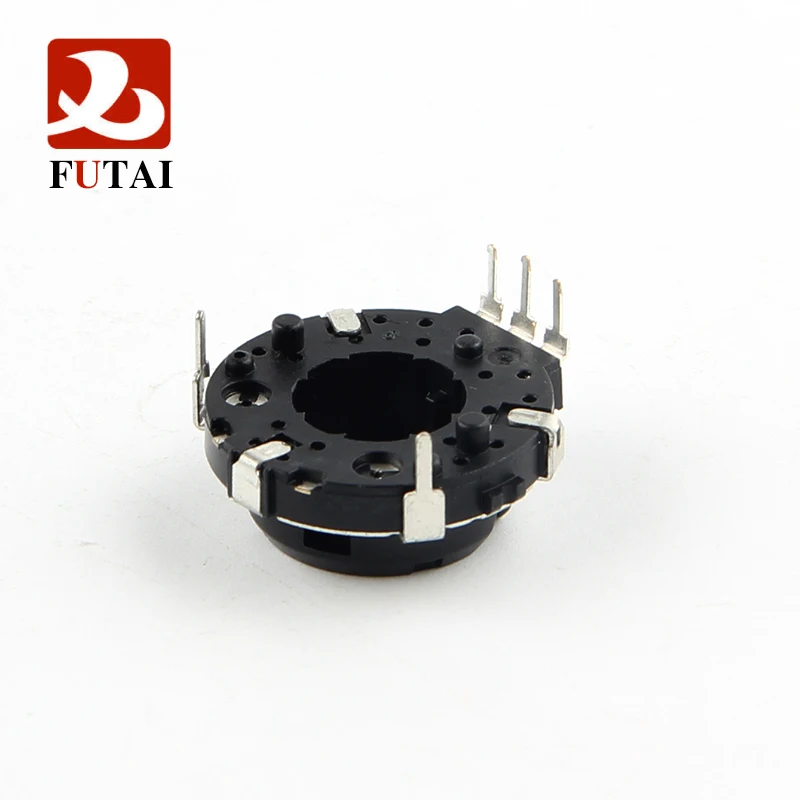

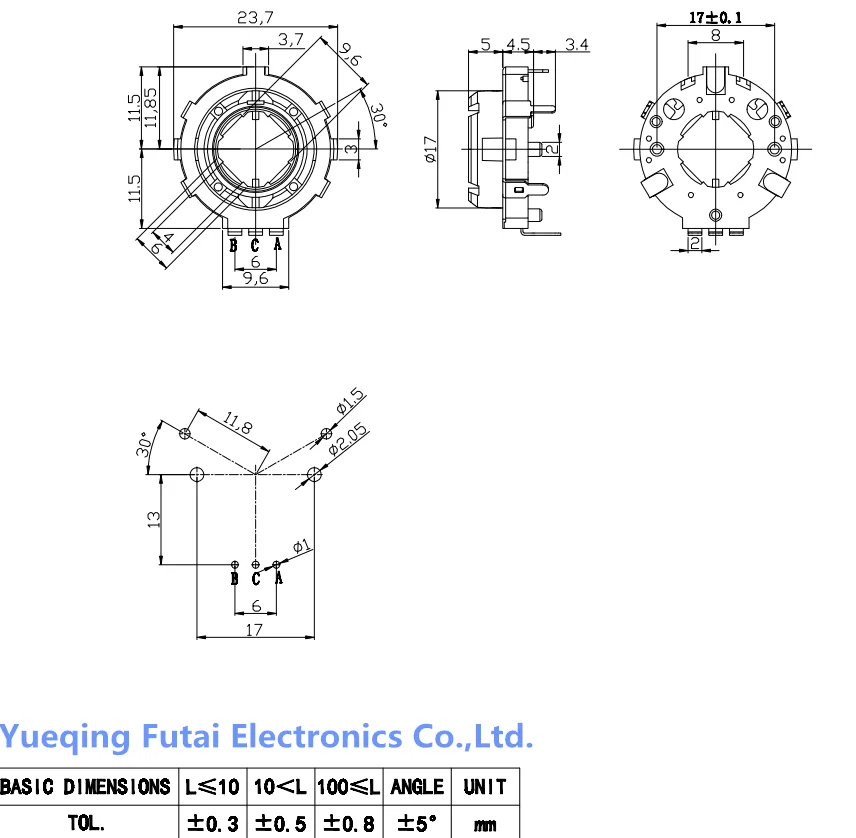

Futai Ring type Hollow Shaft EC25 25mm series Rotary Encoder

Product Overview

Description

Appliance:

 The product is suitable for car audio, car air conditioning, car navigation and other household appliances, the related electronic equipment, adjust the volume, adjust the temperature, frequency, function switch and so on.

  EC25-10P-20C CCW

 EC25-20P-20C CW





Mechanical characteristics
Total rotational angle	360°
Click torque	30-120gf.cm
Push-pull strength of shaft	Pull:8.0kgf push:8.0gf Min at 10 sec
Shaft wobble	0.7XL/30mm P-P Max  L-Shaft length
No. Of detents(click)	20 detents step angle:18°±2°
Shaft play in axial direction	0.4mm max
Shaft play in rotational wobble	5° Max
Electrical  characteristics
rating	DC 5V, A,B lead 5mA Max, C lead 10mA Max
Output signal	A,B 2 signals
Resolution	10 pulses/360° 20 pules/360°
Contact resistance between terminal	1Ω Max
Phase difference	T1.T2.T3.T4≥0.08T
Sliding noise	T1,t3≤3mS t2≤2mS
Insulation resistance	100MΩ Min at DC 250V
Dielectric strength	1 minute at AC 300V
Endurance characteristics
life	30000±200 cycles
Storage temperature range	-40℃-85℃
Operating temperature range	-30℃-80℃
Soldering heat	Dipping in solder:260℃±5or less, within 3S Solder by hand:300℃±5° or less, within 3s
