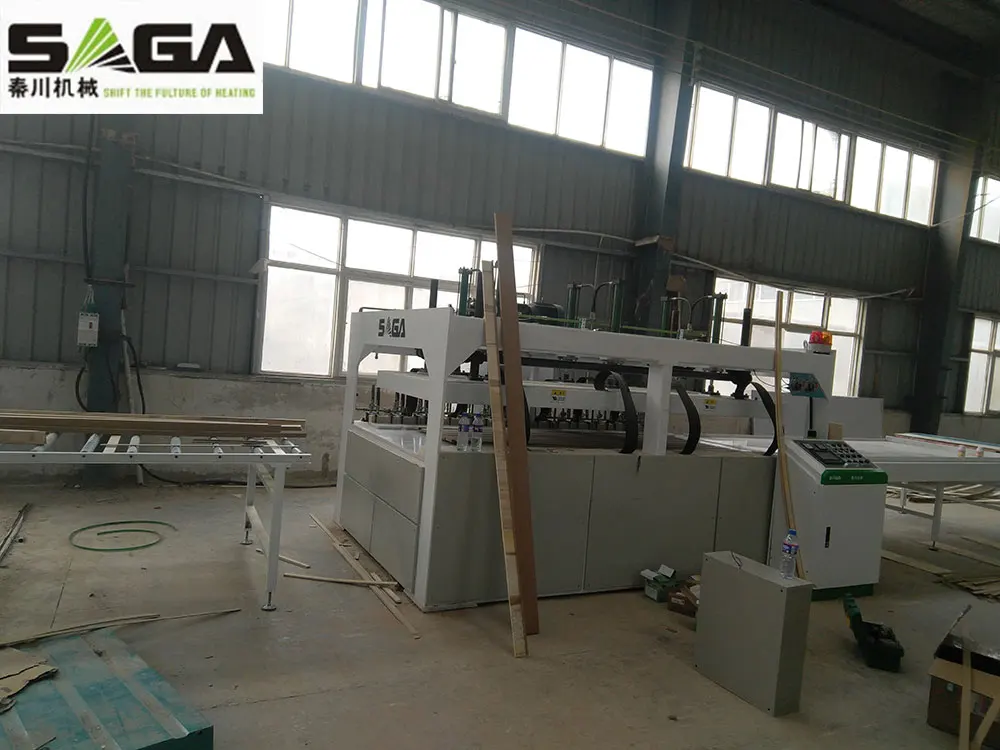

High Frequency Automatic Laminated Wood Machine HF Edge Joining Machine

features high frequency dielectric heating with 2-direction pressure, and it’s suitable for finger joint or edge glued board joining or the rim of solid door or other wood block gluing.



Features:

1) High frequency dielectric heating, so faster and firmer;

2) PLC automatic control with auto feeding cart.

3) Most of the electronic components from the famous global brands, like Schneider, Siemens, Omron, etc. to enable stable working.

4) Strict quality control and regulation on mechanical spare parts like hydraulic and other parts all under the international standard.



Technical Specs:



Model No.	SP20-SA	SP30-SA
HF Input Power	30KVA	40KVA
HF Output Power	20KW	30KW
Standard Working Size	1220x2440 mm
Gluing Thickness	8-100 mm
Horizontal Pressure	Cylinder Diameter: 50 mm
	Cylinder No.: 12 pcs
	Total Pressure: 36 ton
Vertical Pressure	Cylinder Diameter: 50 mm
	Cylinder No.: 3 pcs
	Total Pressure: 9 ton
Dimension of Main Press	L: 2700mm, W: 2100mm, H: 2200mm
Weight	5800 kgs	6500 kgs



Application Case:



Standard working size is 1220x2440mm, gluing thickness is 8-100mm, 6-7mm hard wood board can be made.

3000mm, 3500mm, 4000mm, 4880mm,5000mm and 6000mm is optional, can be customized as customer's requirements.

Heating time for standard size wood boards is 2-3 minutes.



Wood Requirements:



Timber Species: Softwood and Hardwood

Timber Moisture: 8~12%

Timber Processed Qualities Require: Planed on four sides +-0.05mm



After-sale Service:



1. Engineers install and train the operators overseas.

2. One year guarantee for whole machine except high frequency tube;

3. Calling or door-to-door service when having a problem in use.

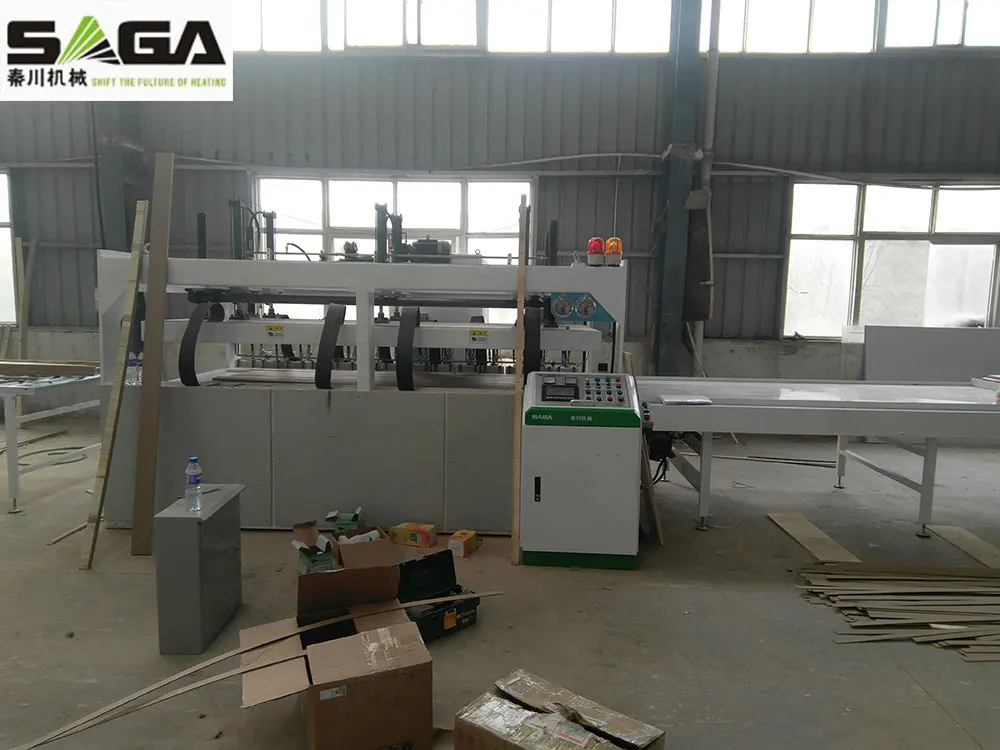

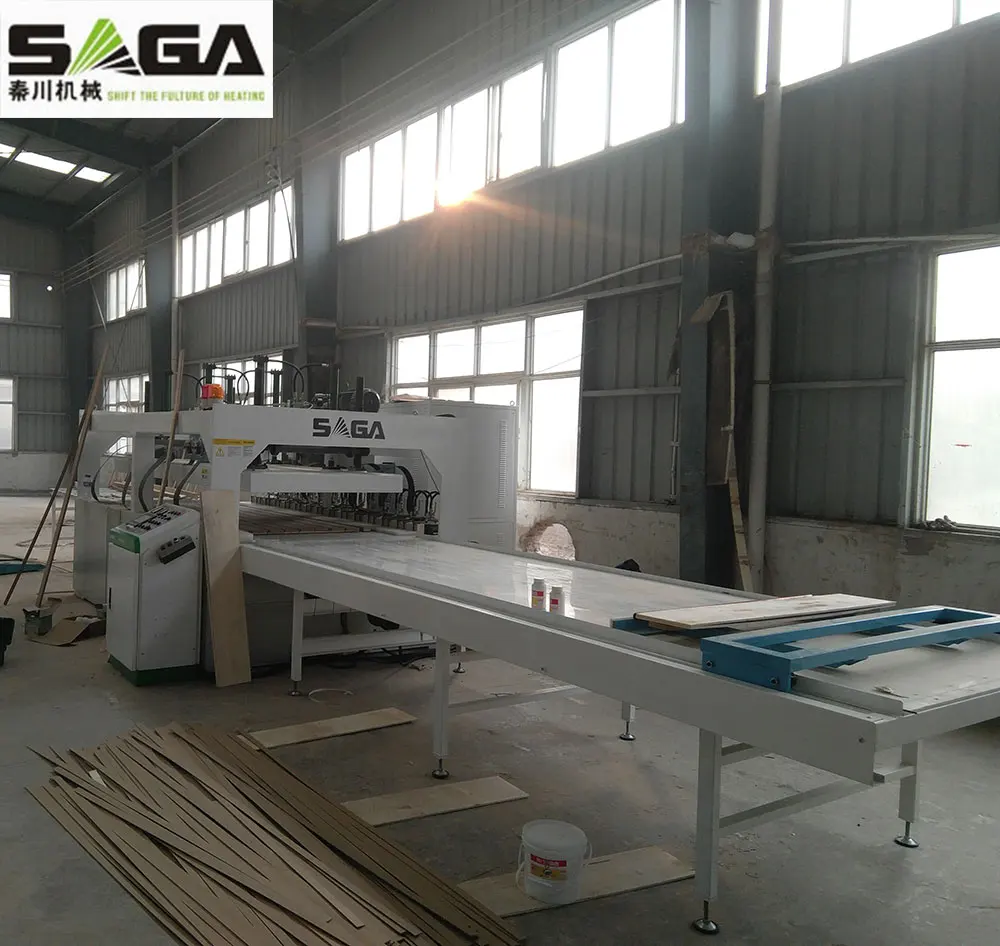

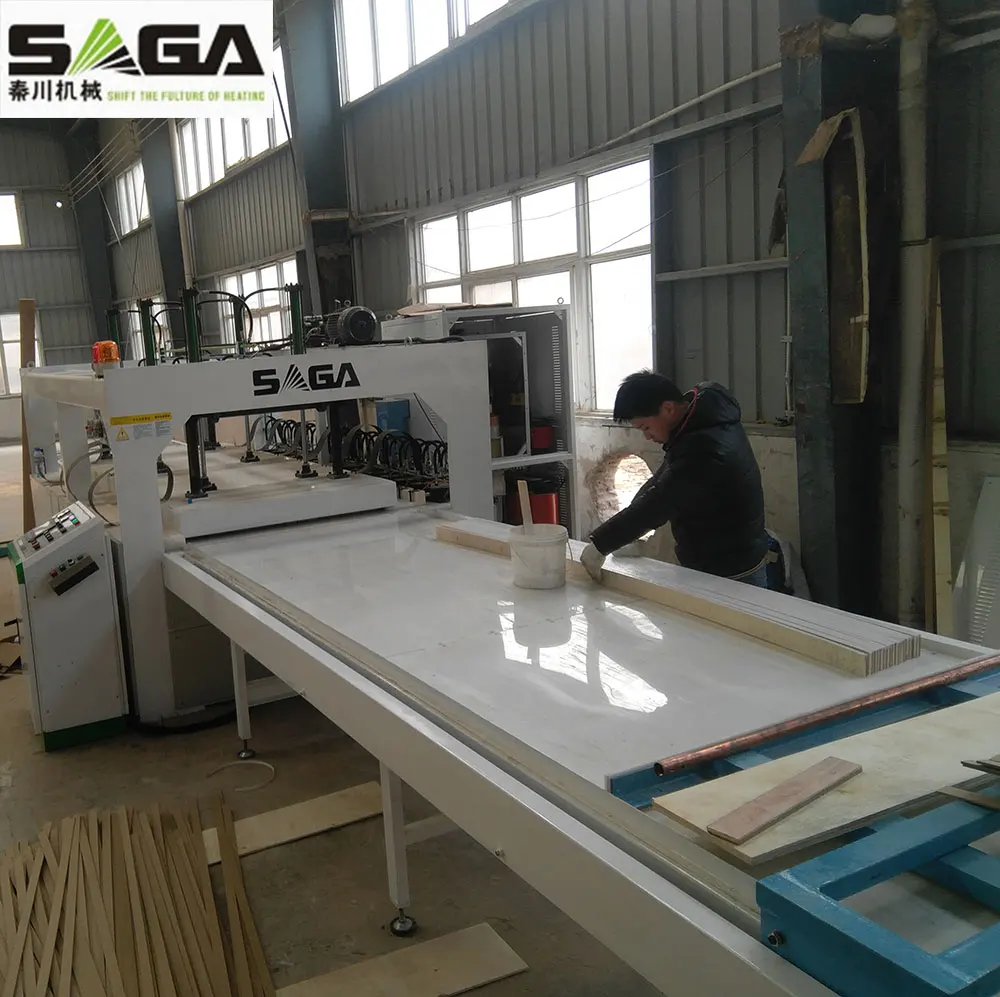

Detailed Pics:

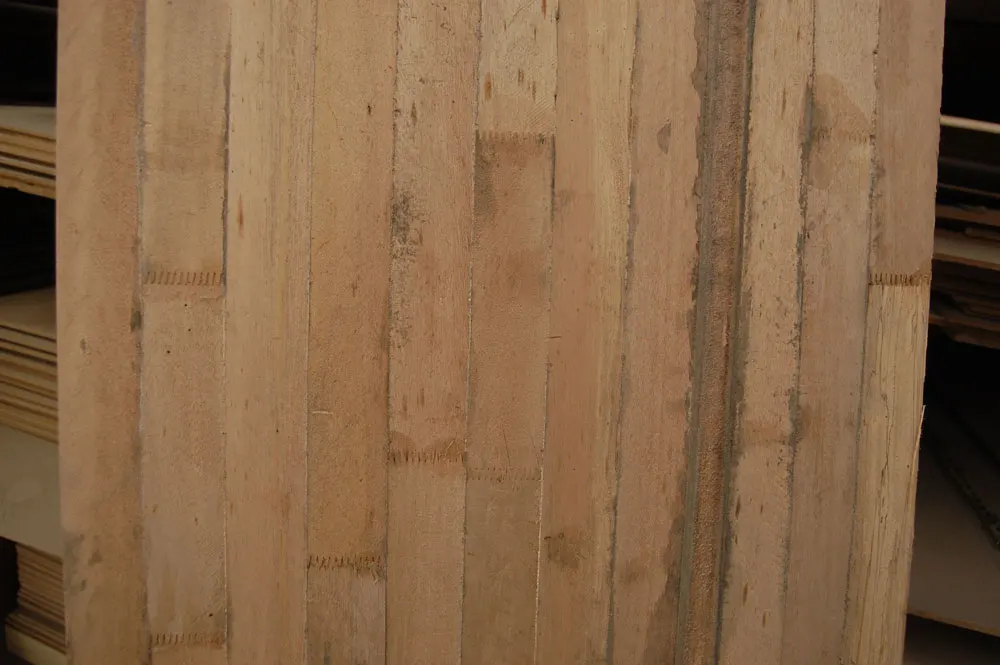

Laminated Wood Boards:









Planeness of the Wood Boards:





All the models available:



Model No.	Out Power	Gluing Size	Gluing Thickness
SP15-SA	15KW	2440x1220 mm	5-50 mm
SP20-SA	20KW		8-100 mm
SP30-SA	30KW
SP303-SA	30KW	3000x1220 mm	8-100 mm
SP304-SA	30KW	4800x1220 mm
Custom models can be made according to customers’ requirements.

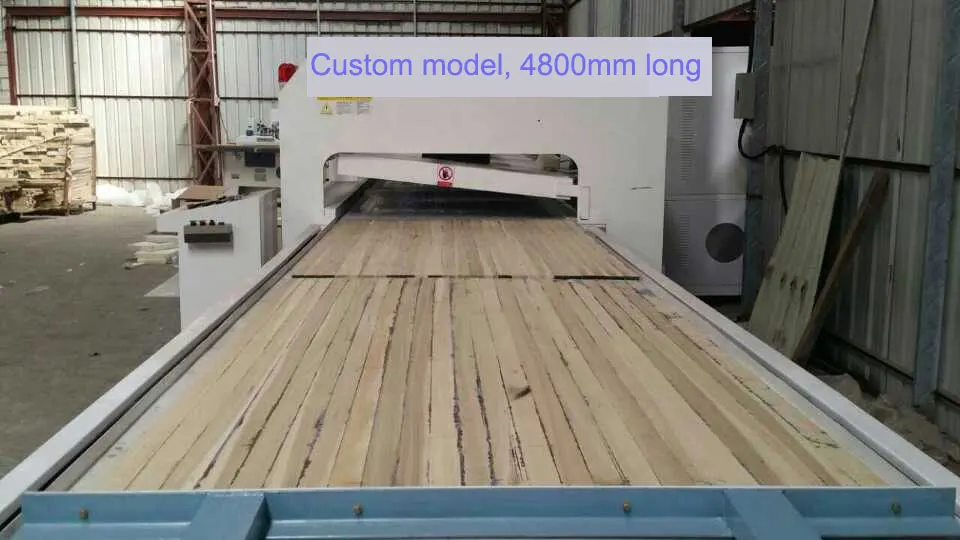

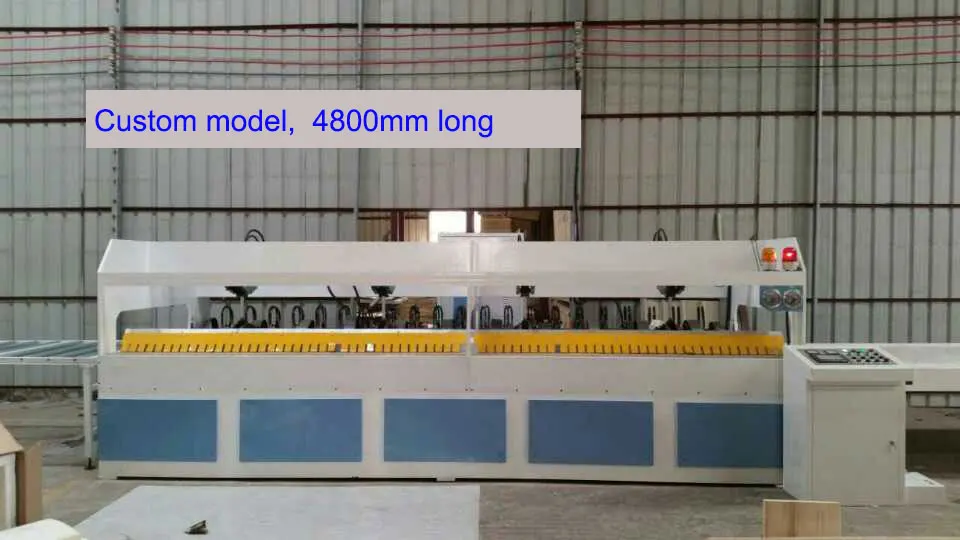

4800mm Long Custom Model:

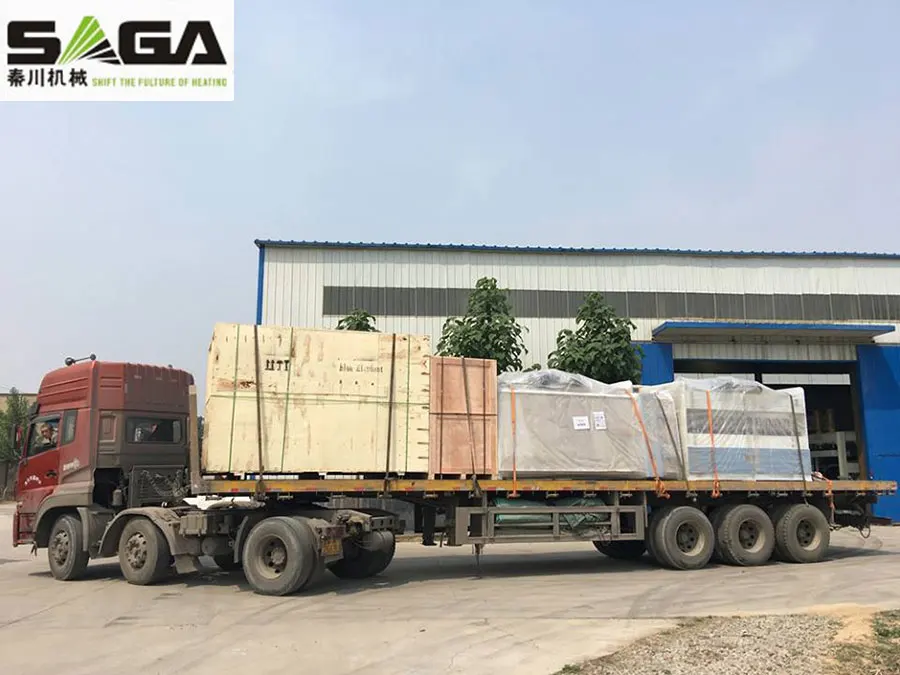

Transport:





About Saga Machinery





Shijiazhuang Saga Machinery Co., Ltd. specializes in developing, designing and producing smart series high frequency woodworking machinery. Our products cover high frequency vacuum wood dryer, edge gluing machine, wood curving machine, wood frame assembly machine and high frequency generator, etc.



Saga’s senior engineers, production manager, sale group and persons for after-sale service have more-than-15-year professional experience in high frequency machine industry. The energetic and passionate staff and the highly-efficient and innovative team of Saga are hoping to cooperate with you.
