TP 50 Solder Paste Liquid Controller Dropper Fluid Auto Glue Dispenser

Product Overview

Description

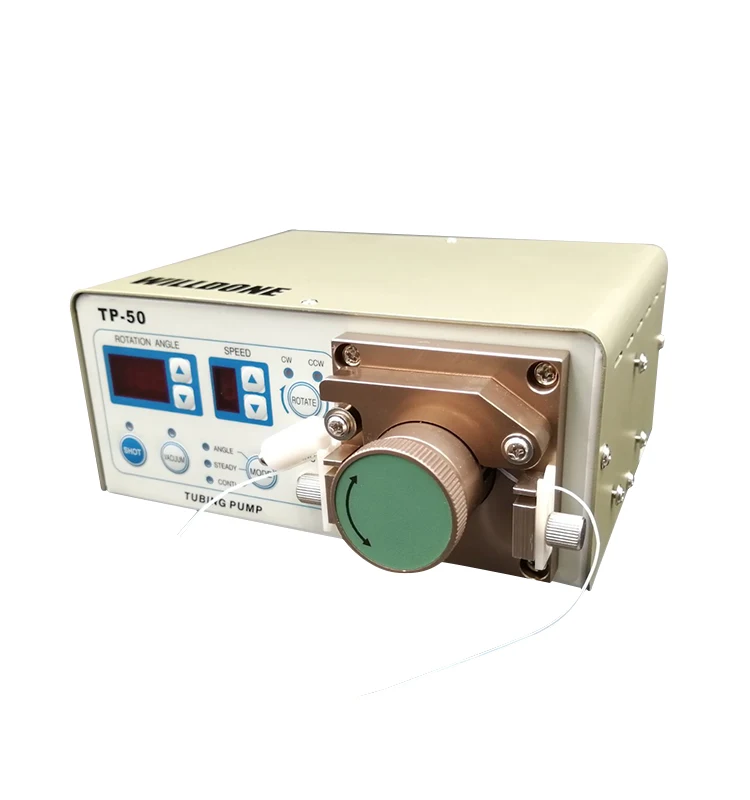

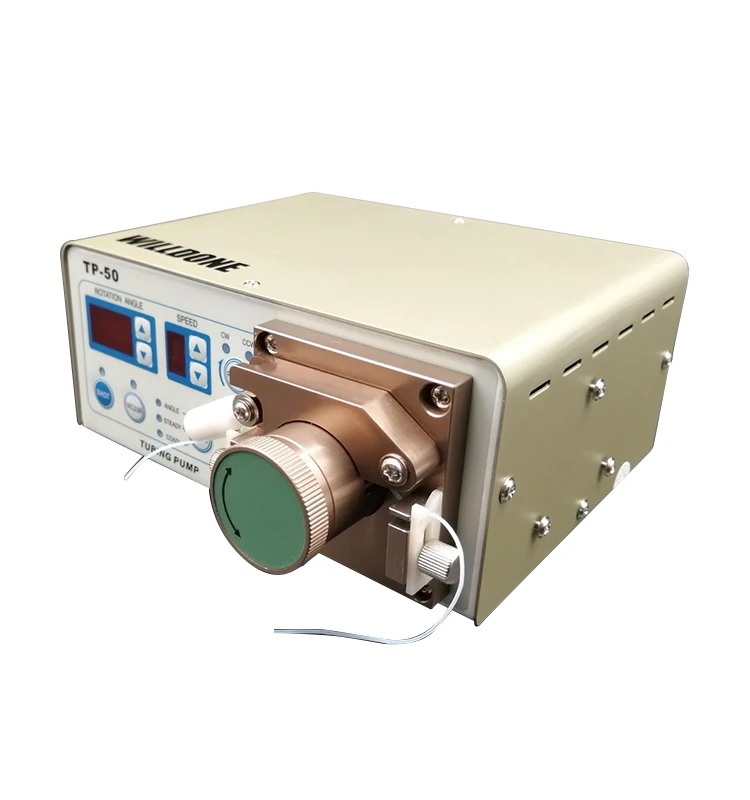

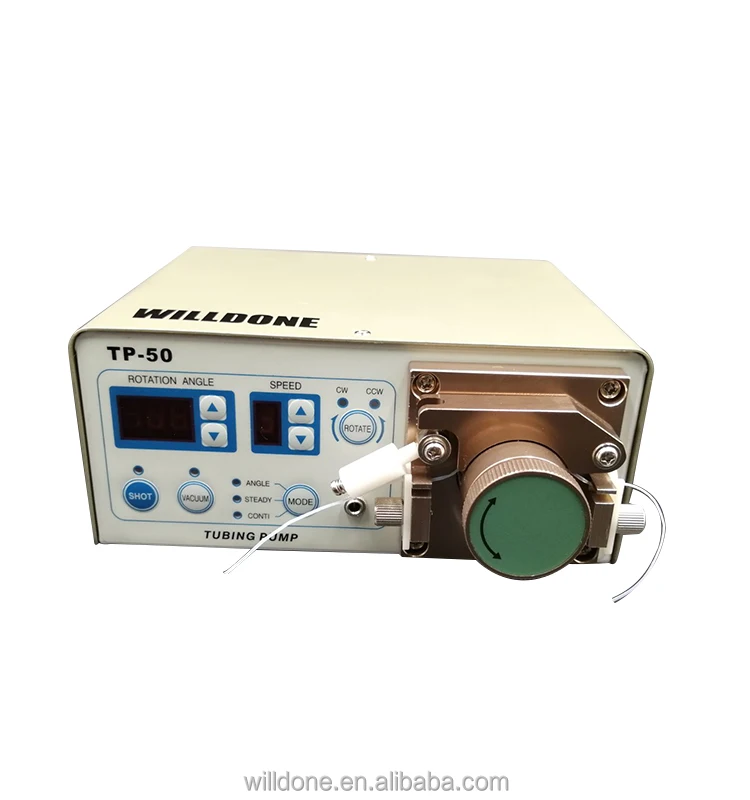

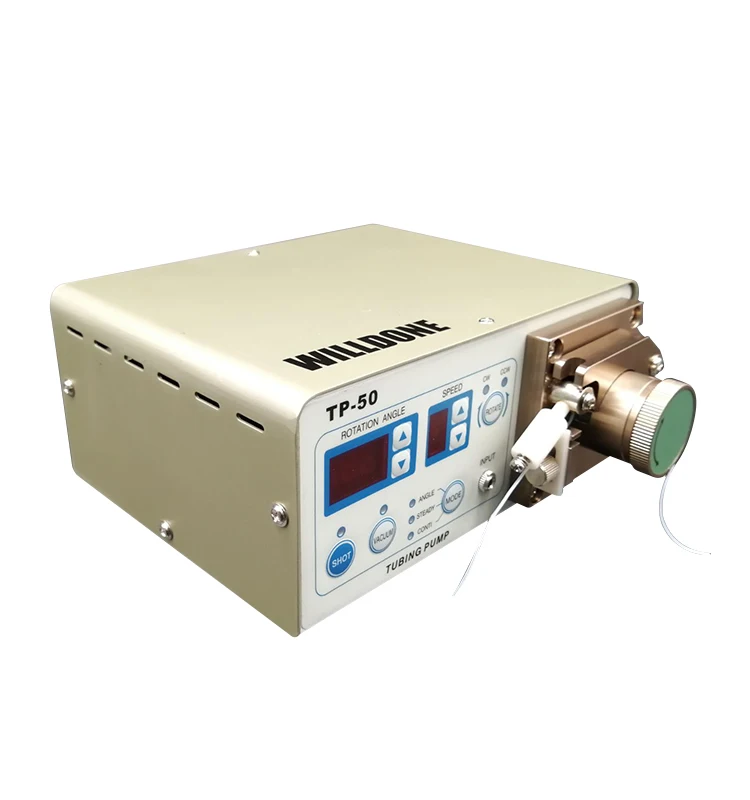

TP-50 Solder Paste Liquid Controller Dropper Fluid Auto Glue Dispenser









Suitable for quick-drying glue,instant dry glue,electrolyte,ink,liquid,oil and other liquids with a viscosity of less 10000 cps.



Machine type	TP-50
Minimum discharge	0.001ML
Product speed	0-160rmp
Power consumption	10W
Spit out angle	0~999.9°
Back suction angle	1~999.9°
Spit viscosity	<5000cps
Spit mode	quantitative spit,manual control
Product power	AC100V±10% 50Hz/60Hz;AC220V±10% 50Hz/60Hz
External dimensions (mm)	27.5*22.5*10.5cm
Product weight	3.3kg



Control method: electronic pipe compression method
Dispensing function mode: cycle mode / quantitative mode / manual mode



1.Using original wear-resistant rotor mechanical device, effectively prolong the service life of the pipe, and better save the production cost
2 using the backlit LCD display, the dispensing parameters directly clear
3. More convenient manual switch control
4. No air pressure, convenient operation
5 with function shortcuts, and the installation is very simple, no annoying adjustment work
6. Standard level signal input interface, free to carry automation equipment to control



Application field:plug wiring,mobile phone buttons,remote control buttons,VCD,DVD discs,magnetic heads,solution dispensing and other precision machines.

Uses:viscosity,fixed,point coating,linear coating,etc.
