4 port Gigabit Active PoE Injector 48V 56V auto negotiating injector Midspan PoE Patch Panel For IP Camera, IP Phone
- Category: Ethernet Modules & POE >>>
- Supplier: Shenzhen Zhangqing Electronic Ltd.
Share on (60755222523):
Product Overview
Description
4 port Gigabit Active PoE Injector auto negotiating injector Midspan PoE Patch Pane For 802.3at Devices
Product Description
Gigabit Active, Mode A 4 Port Injector
Power an IP camera, desktop phone, WiFi access point, or other low voltage devices through a network data cable using this Power over Ethernet (PoE) injector. The PoE Injector takes power from a DC power source (power supply sold separately) and adds it to your Ethernet data cable (Cat5, Cat5e, Cat6) to your device.
Save big on network upgrades and device installations Power over Ethernet delivers power 328 feet from the PoE Injector, eliminating the expense and hassle of installing AC power near your powered device. With this PoE Injector, you can add power to your data cable for a fraction of the cost of upgrading to a PoE capable network switch.
Active PoE means the right power at the right time . An active PoE injector negotiates with the powered device to deliver the voltage needed, so there are no concerns about accidentally burning out lower powered or non-PoE devices. Power is only added to the data cable when an 802.3af or 802.3at device is connected.
Simple, Reliable, and Supported By Experts We design our Power over Ethernet Injectors for simple installation and long life, but sometimes things go wrong. When that happens, Please contact us, we will provide the best solution and service for you.

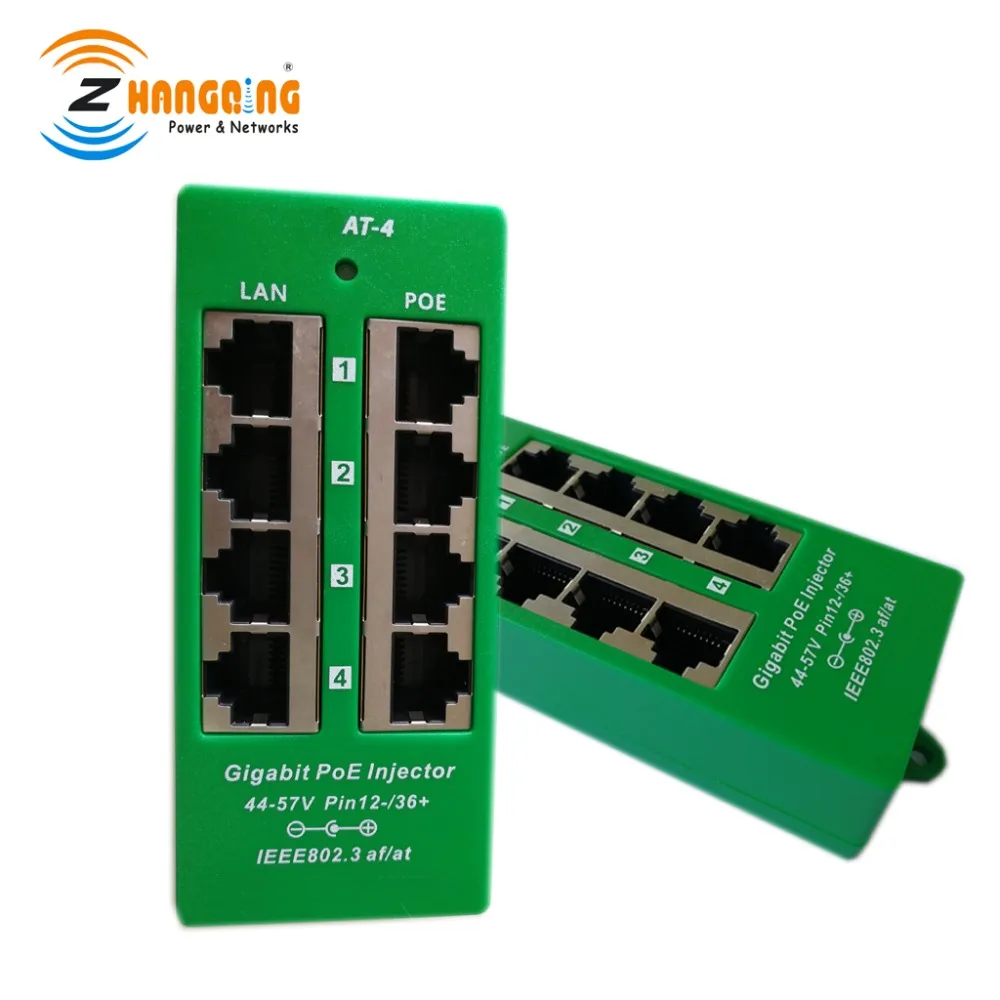

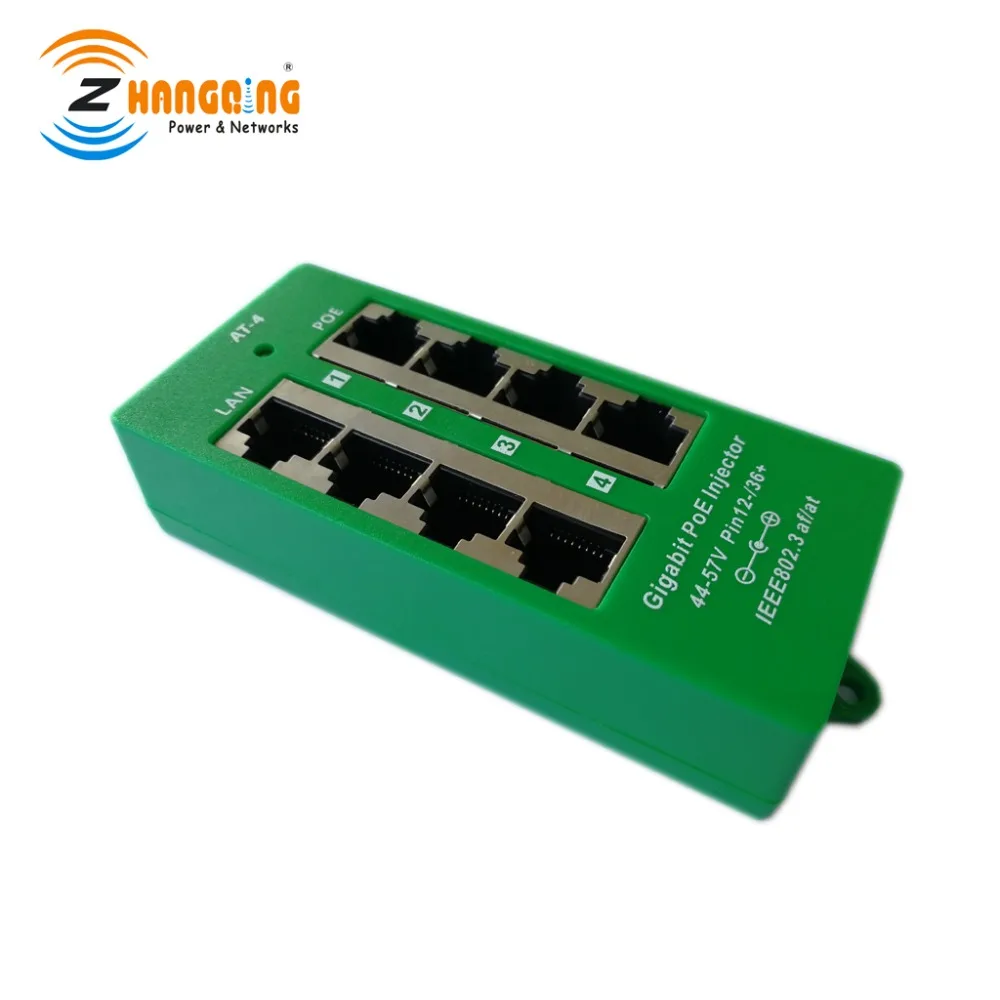

Picture Details :
Add gigabit PoE to any Switch
• Mix 10/100 and gigabit data rate and power on the same cable
• For 4 devices with 60 watts total power
• Power 802.3at devices
• 4 data in, 4 Data + PoE out
• This is not a switch - use it to add PoE to any switch or router
• Extend power to 328 ft or 100 meters
• Power is off until a compatible device is connected
Specification of PoE injector
• 4 Port 802.3af and 802.3at compliant gigabit Ethernet Injector
– no power unless a PoE device is attached
– 4 Shielded RJ-45 LAN
– 4 Shielded RJ-45 LAN+POE
– all 4 data pairs active for gigabit data rates
– shared data and power
– supports 802.3at class 0, 1, 2, 3, 4

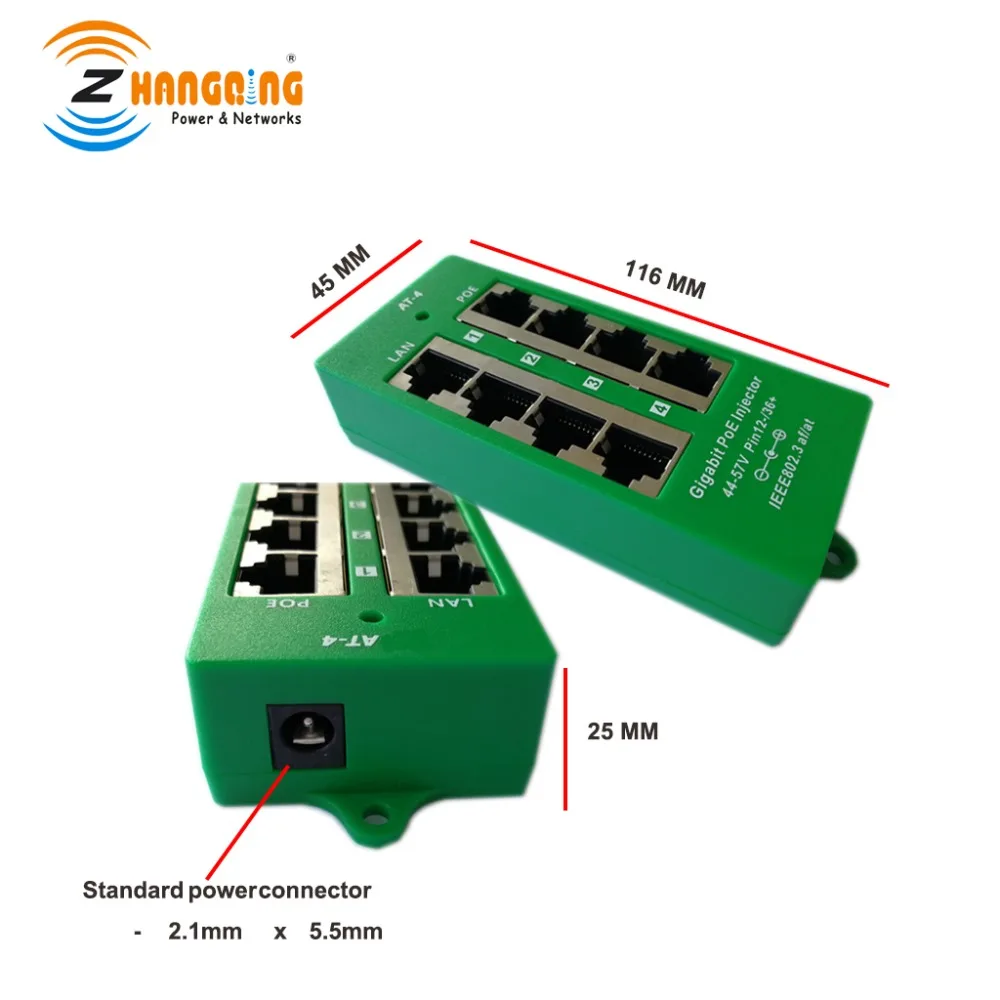

• Wall mount Injector: 116 mm x 45mm x 25m
( including 2x 10mm tabs )
• 550 ma current limiter per port per 802.3at specifications
• No power is supplied to non-PoE devices
• Same voltage to all ports after negotiation
• Use with any Ethernet switch – passes all management info
transparently
• Ideal for IP Cameras, VOIP phone, WiFi Access Points with
802.3af or 802.3at

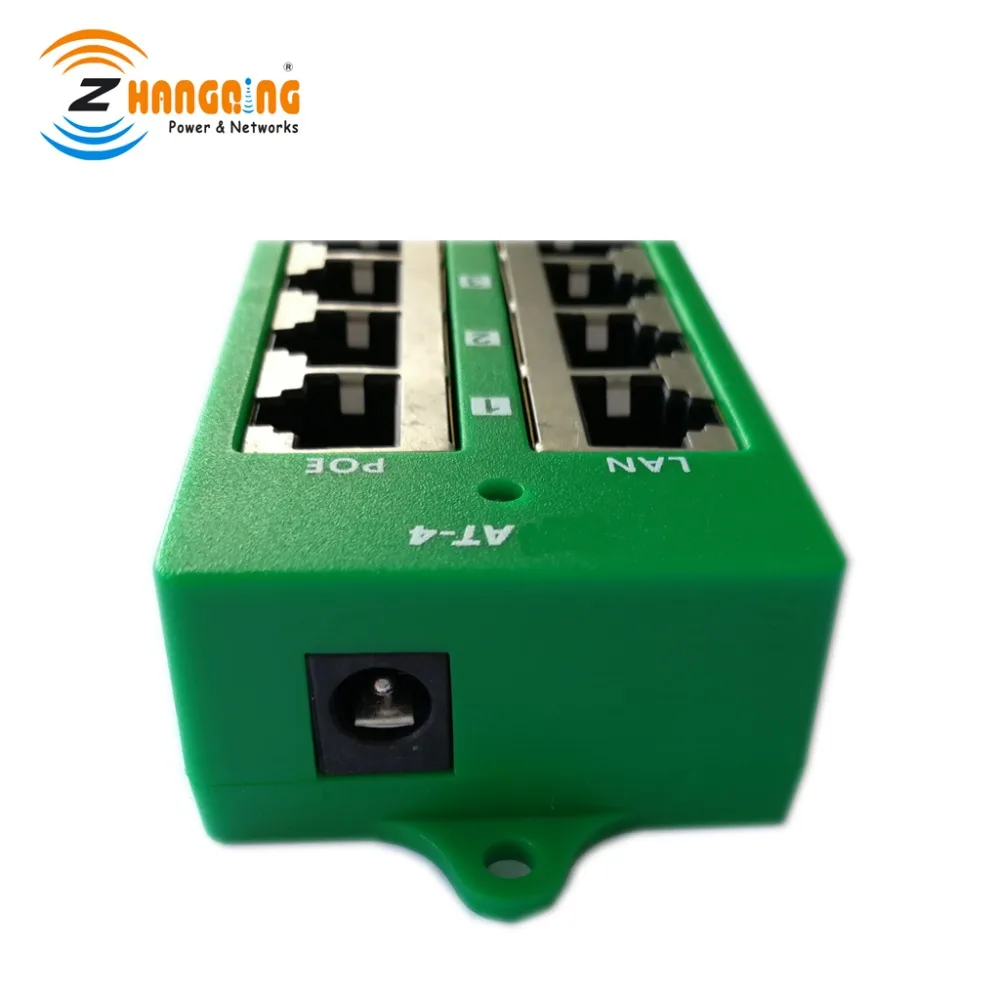

• Standard power connector - 2.1mm x 5.5mm
• Mode A power output via isolated transformer
- pins 1-2 (-)
- pins 3-6 (+)
- reversing option on request
Environment of PoE injector
– Operating temperature range – 0 to 50 deg C
– Storage temperature range – 0 to 50 deg C
– Relative humidity range – 5 to 90% non condensing
– The device is PELV per NFPA standard 79 – protected extra low voltage
– No cooling is required, no fans. Quiet operation
Applications of poe injector
• WiFi Access points like Meraki, Aruba 802.11ac
• IP Cameras like Hikvision
• any 802.3af or 802.3at Device
• USB, 5v and 12v , non-poe devices - please see our active splitter
Packaging & Shipping
Packaging details : packing of the 4 port PoE injector
100Pcs in a Carton
ploy bag + carton
Company Information
Shenzhen ZhangQing Electronic LTD was founded in 2010. After these years developing, we finished many unique and completed PoE midspan product line, 200w full range of power supplies,rich special features of PoE switch etc products.For the moment we have our sales office in Shenzhen and manufacturing factory in ZhongShan. Since the company set up, we focus on power supply and Power Over Ethernet(PoE) all the time. so "focus, professional, honest, innovation,wise " are our company faith. Devoting ourself provide PoE and power solution on WiFi Access Point, IP camera, IP phone etc for our customers is our target.Creating value for customers by our products and services is our pursue.
Choose us, you will get value , professional, comfortable product and service. Let's work together to gain a bright future for all of us.
