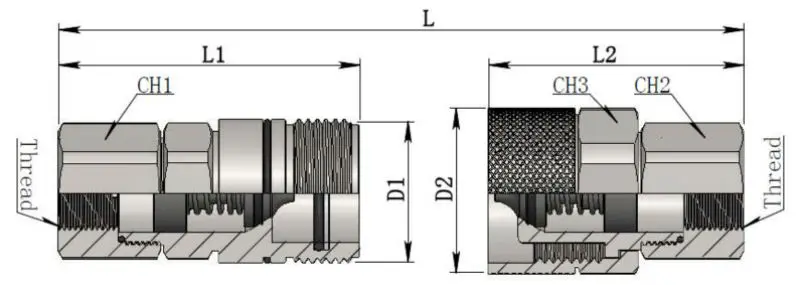

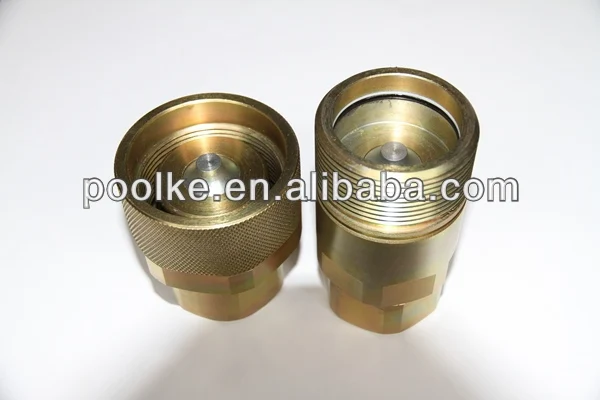

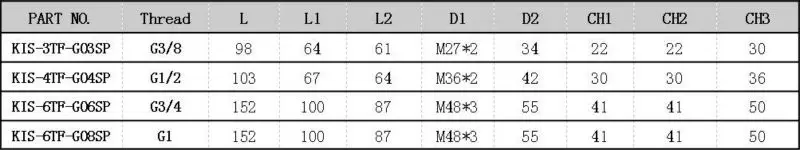

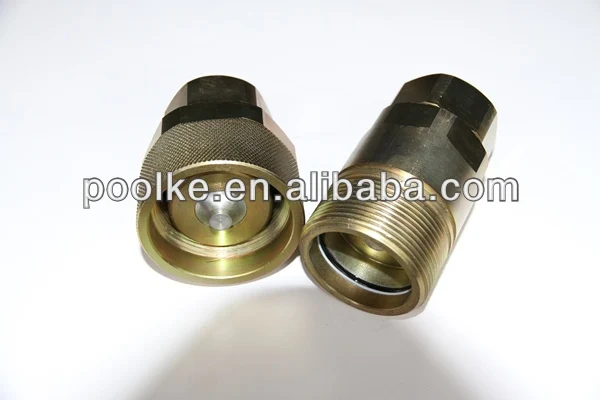

Series KIS TF,High Pressure Screw Type Quick Coupling

High Pressure, Thread-to-Connect Hydraulic Coupling

Materials:

1)    Coupler: steel Nickel-plating)

2)    Nipple: Hardened steel (Nickel-plating)

Features:

3)    Heavy-duty design as standard

4)    O-ring and PTFE back-up ring to withstand flow surges

5)    Using threaded nipple locking mechanism, mates with matching male threads on the sleeve

6)    Modular construction, broad choice of end configurations

7)   Connection is available under pressure up to 5 Mpa is possible

Interchangeable with similar products

8) Parker QPHA, Faster CVV

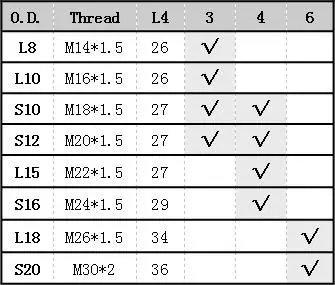

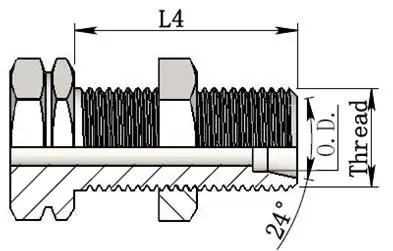

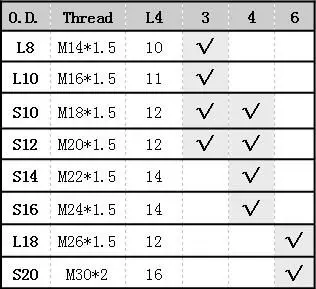

 TD               TDB     TM
