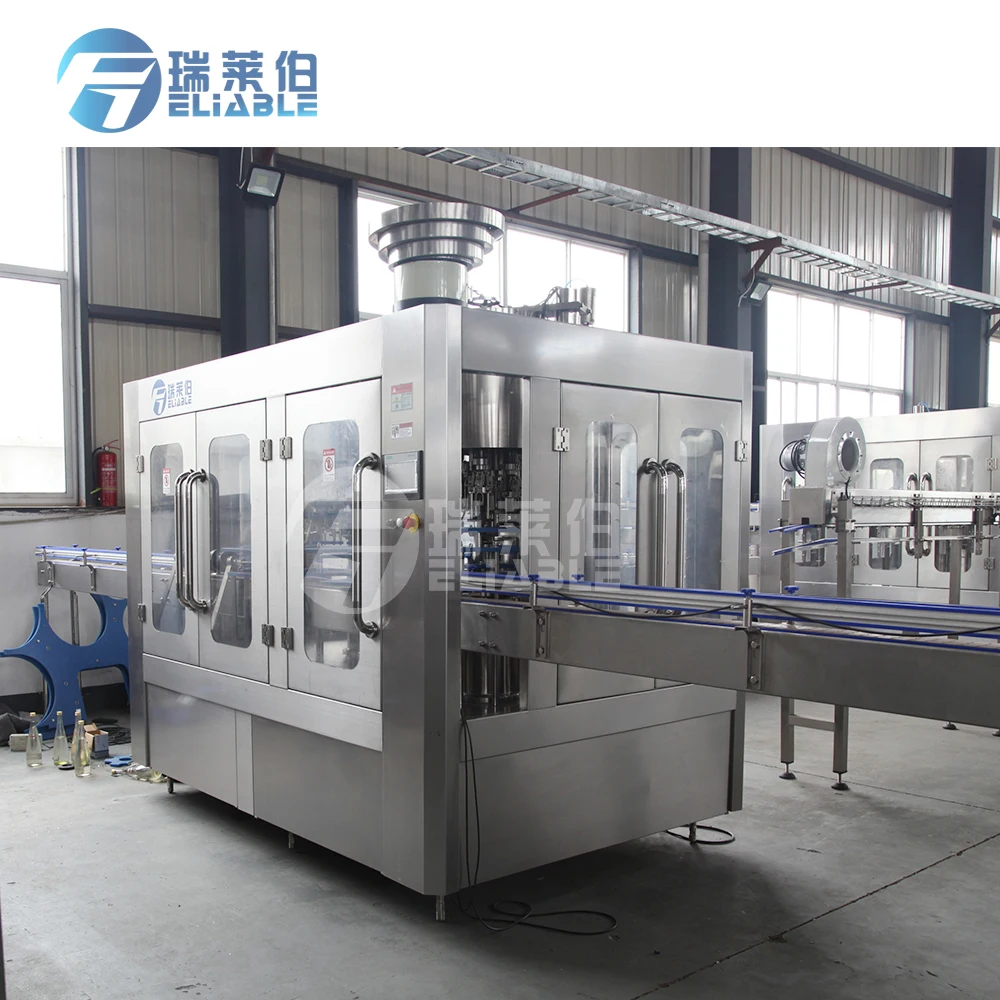

3 in 1 Glass Bottle Red Wine Filling Equipment For Liquid Drinks
1, This machine is usinghigh-strength stainless steelbottles of spring-loaded folders, to ensure a stable reversal of the glass bottles. The nozzle is a plum-like structure can wash every corner of the sidewall and bottom to make the bottle clean.
2, This machine with spring-type mechanical lifting equipment to upgradeglass bottles, large bearing support floundering in the vat and use of guide-rod in the orientation of the structure, there arepre-cover features.
3, Using high-precision mechanical filling valve, with cylinder liquid level and theback pressure controlledby a variable signal proportional. Fast, stable, accurate, to be vacuum one at a time.
4, Stainless steel plunger and mechanical stirring gland-type magnetic reasonable cap to ensure that the gland is healthy and reliable. Hopper and the cap taking- cover, capping transmitted by magnetic. The capping is reliable and automatic unloading,reducing the rate of broken bottles.
5,This machine adopts advancedman-machine interface, PLC control, frequency conversion stepless speed regulation and other automatic control technology, with no bottle no open valves, no stamps; no cap no operation, and other security protection.
Detailed Images

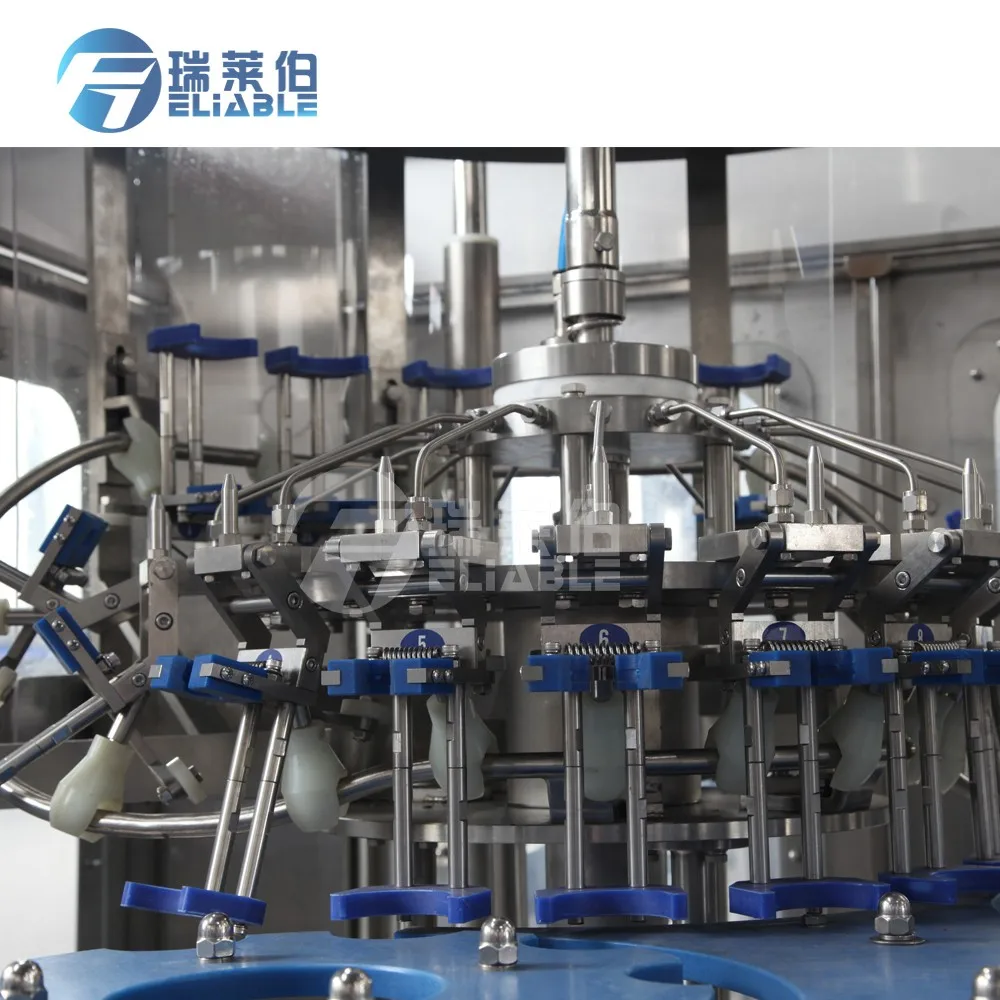

1. Washing part
1.The glass bottle washing filling capping machine is a rotary bottle washing machine, it adopts water spray to clean the bottle. 2.Using company original tilting bottle clip, bottle clamp stuck bottleneck, avoid the traditional bottle on rubber clip to block the bottle thread parts may be caused by the pollution. 3.The rotary disk is fully made of SUS304 stainless steel, health and durable.

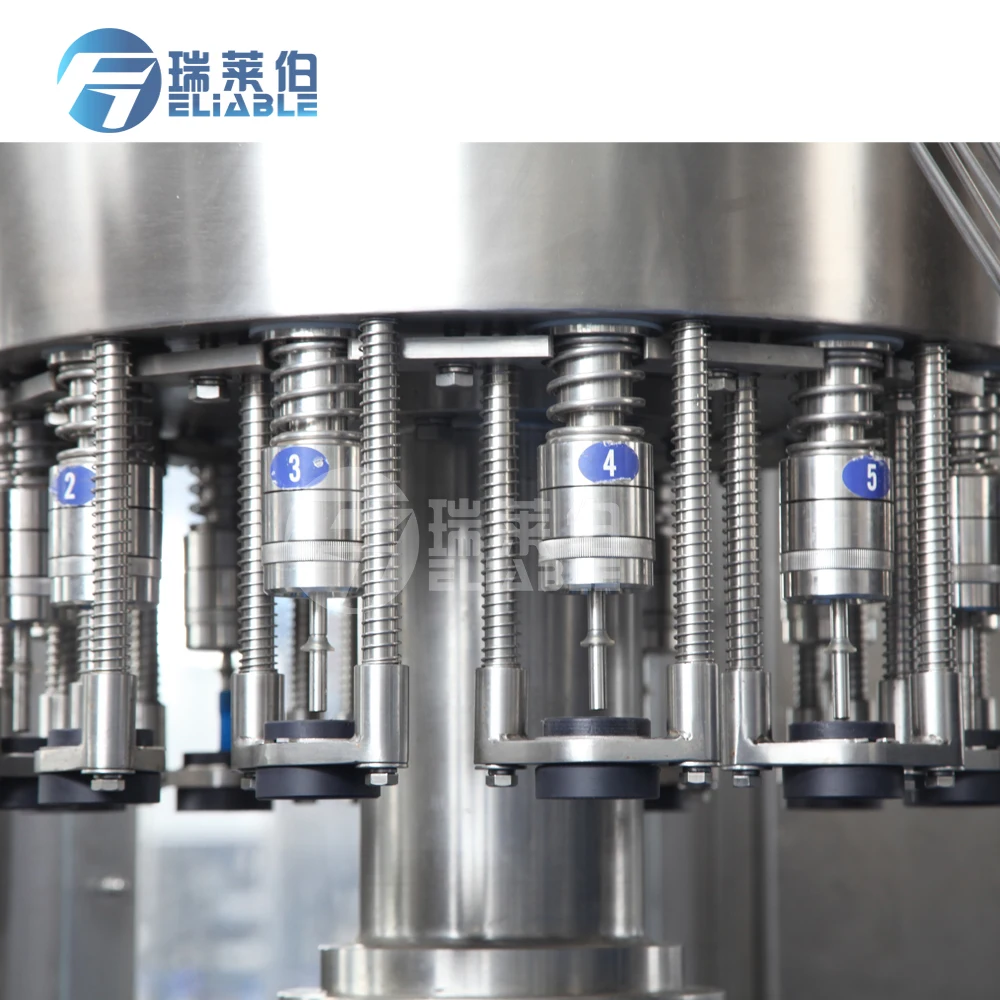

2. Filling part
Wine filling machine is specially designed according to the beer feature, and the filling part is designed to be twice pre-evacuation.
The filling part is made up of main liquid pipe, rotating cylinder bearing base, filling cylinder fulcrum loop, beer tank, filling valve, filling cylinder pipe, control loop device, ascending device, the distributor, height adjusting control, stimulating bubble arm, vacuum system, etc.

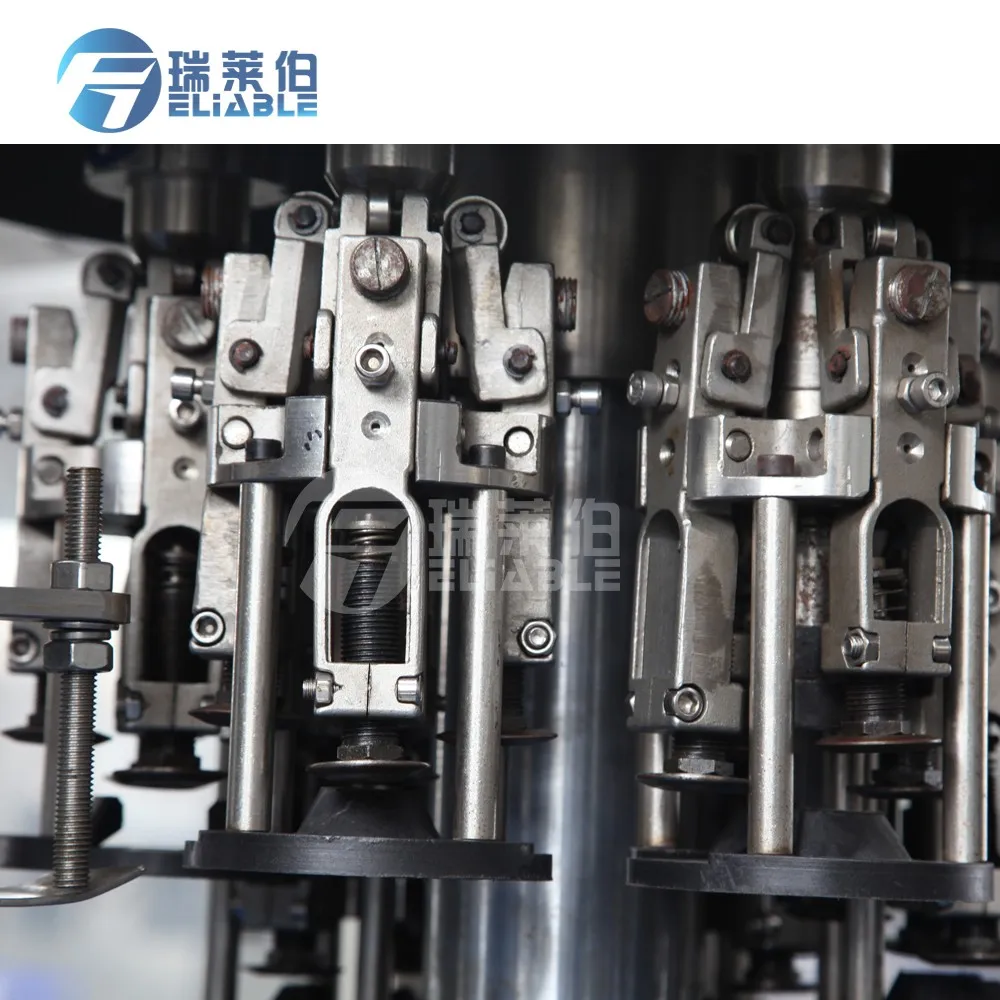

3 Capping part
The capping machine is made up of cap holder, capping slideway, capping upper part, capping lower part, elevating part and anti-circling column.
After the bottle is transmitted from the filling machine, the capping nozzles have been fed with a bottle cap. The capping nozzles moves downwards the bottle under the capping platform driven by cam guideway, then the bottle cap with the aid of the damping ring.
Technical Parameter
Model No
DCGF 12-12-6
DCGF 18-18-6
DCGF 24-24-8
DCGF 32-32-10
DCGF 40-40-12
Washing No
12
18
24
32
40
Filling No
12
18
24
32
40
Capping No
6
6
8
10
12
Capacity(500ml)bph
3000-4000
5000-6000
7000-8000
10000-12000
12000-15000
Power(Kw)
3.5
4
4.8
7.6
7.6
Application
Suitable for Glass Bottle
User Ambient Conditions
Temperature:10~40℃;Humidity:No dew
User Electrical Supply Specification
Voltage:220V,380V,3phase;Frequency:50HZ/60HZ or your requirement
