Product Overview
Description

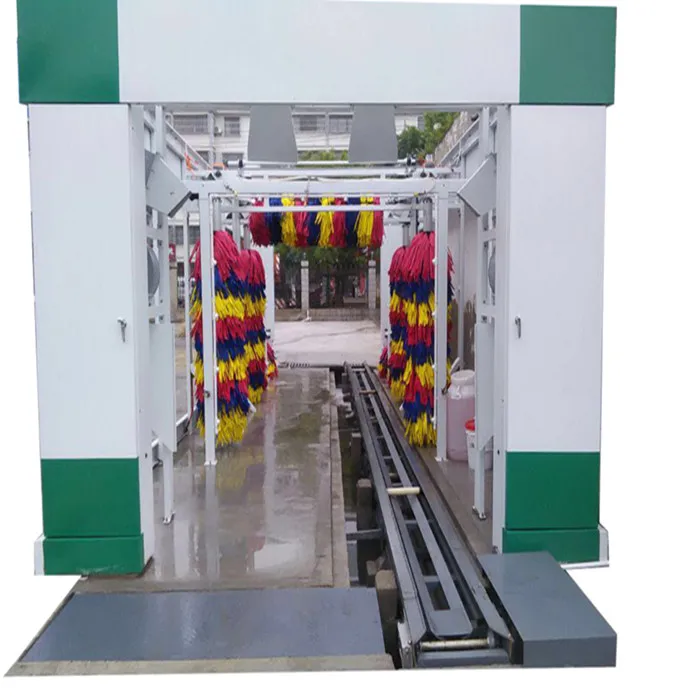

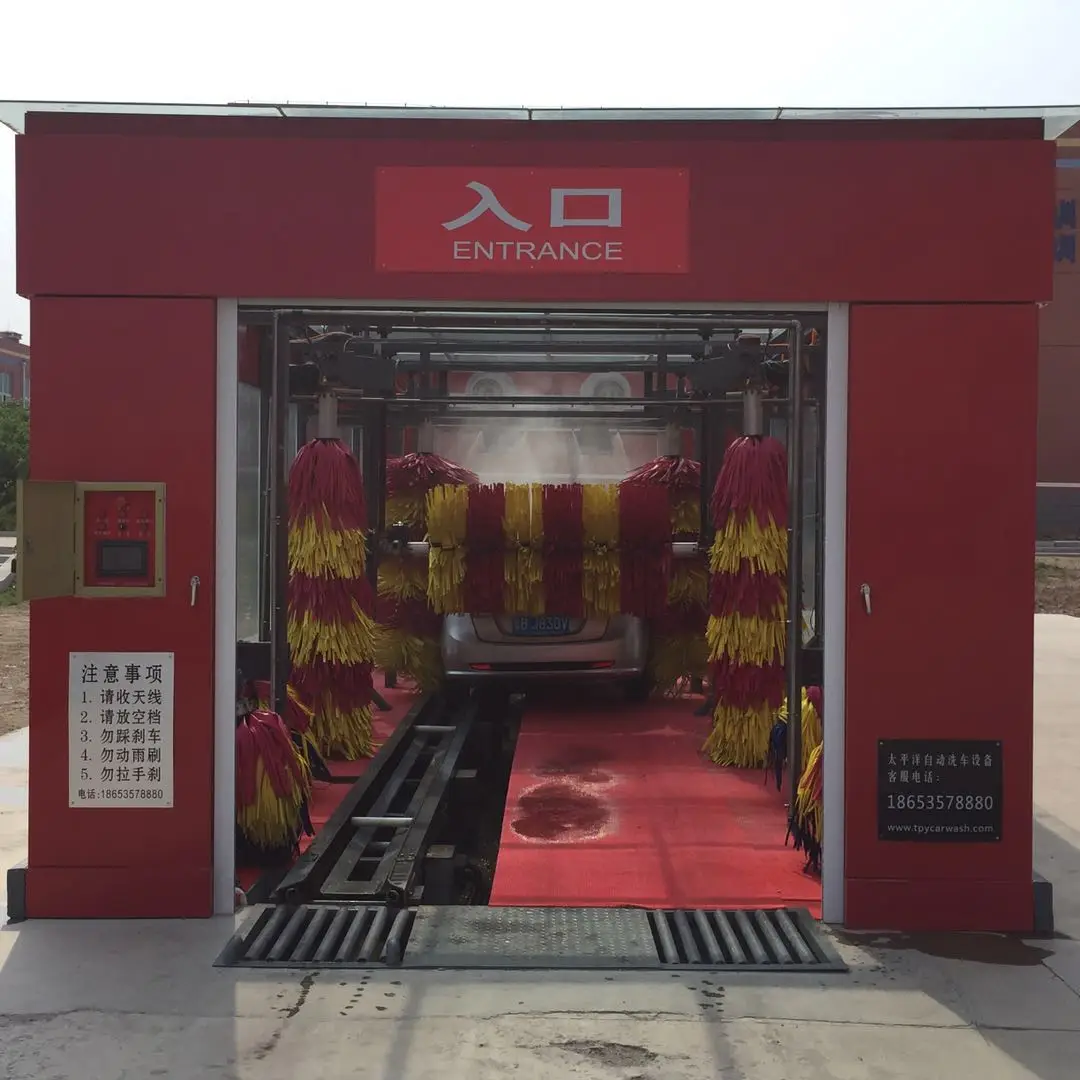

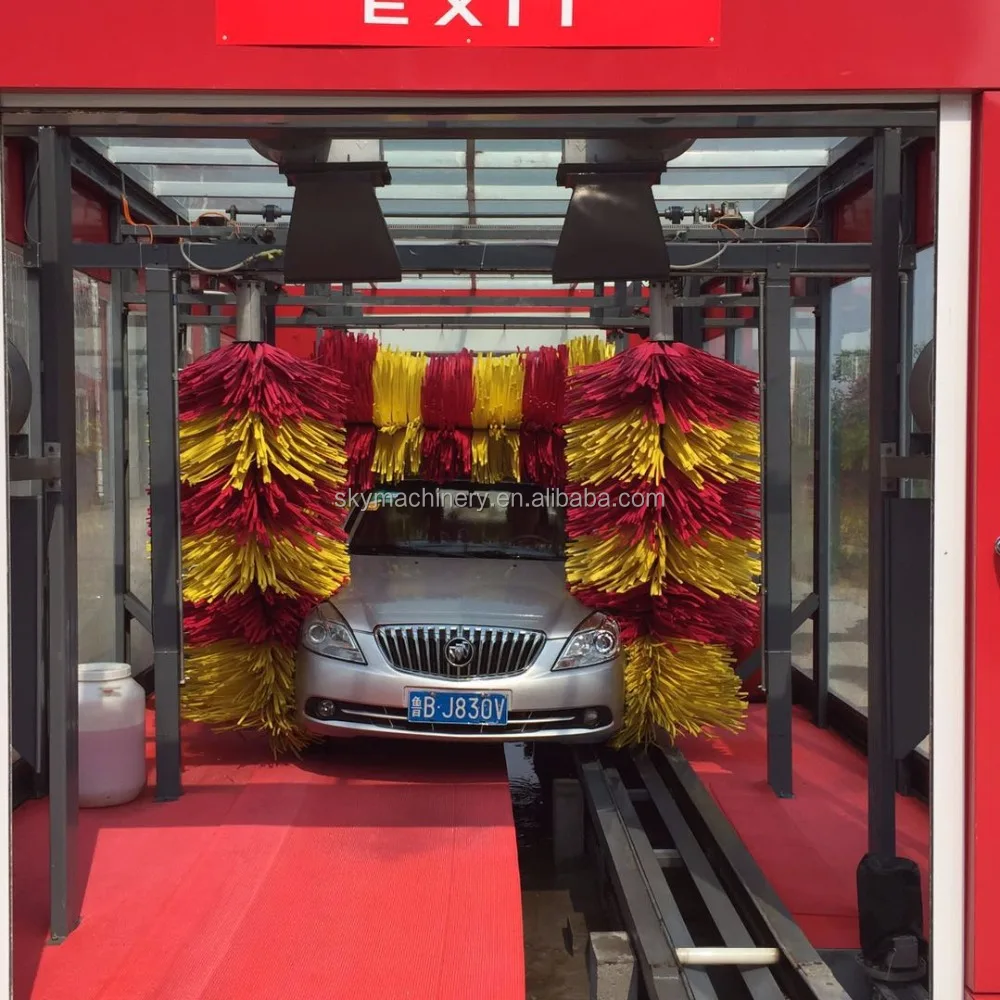

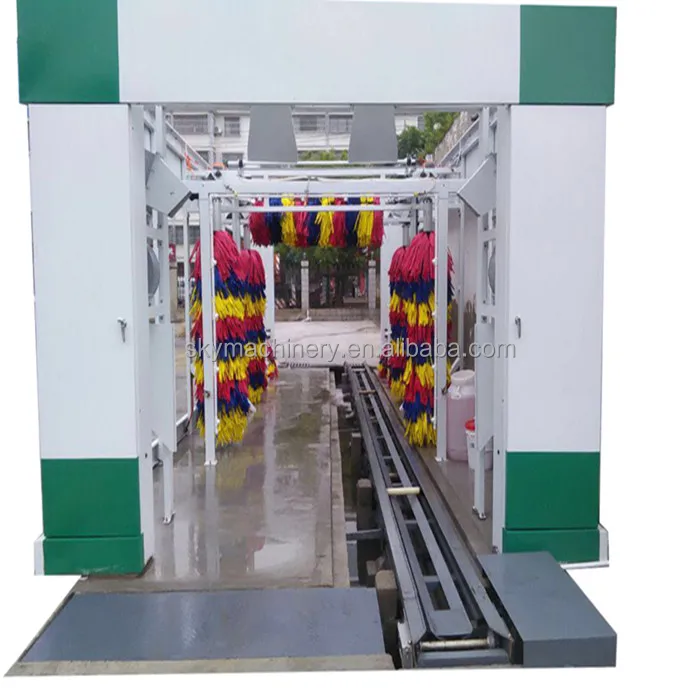

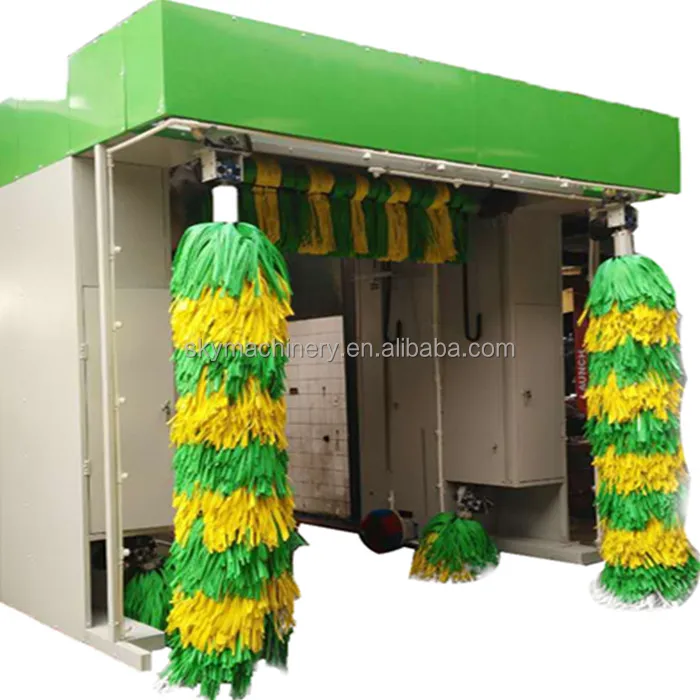

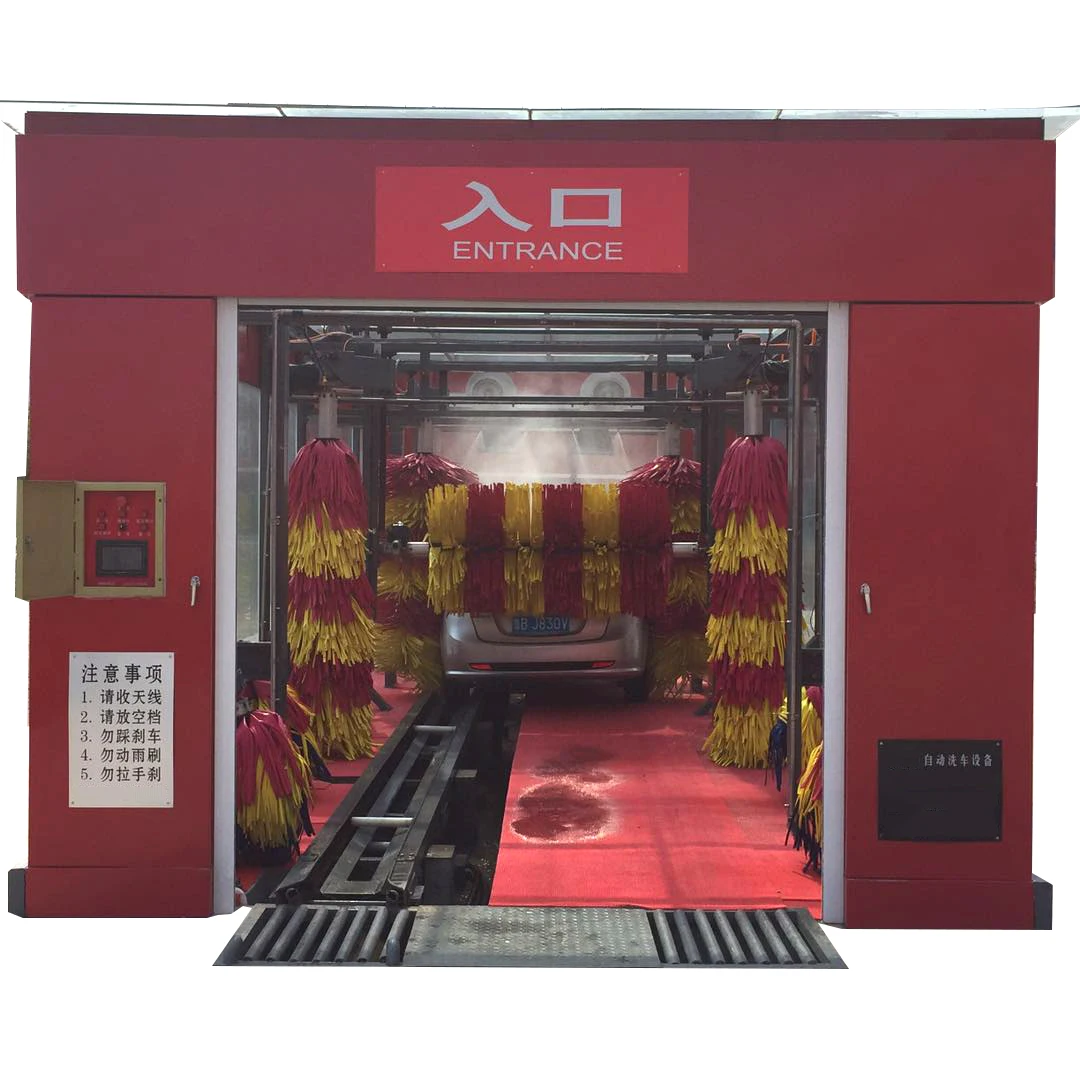

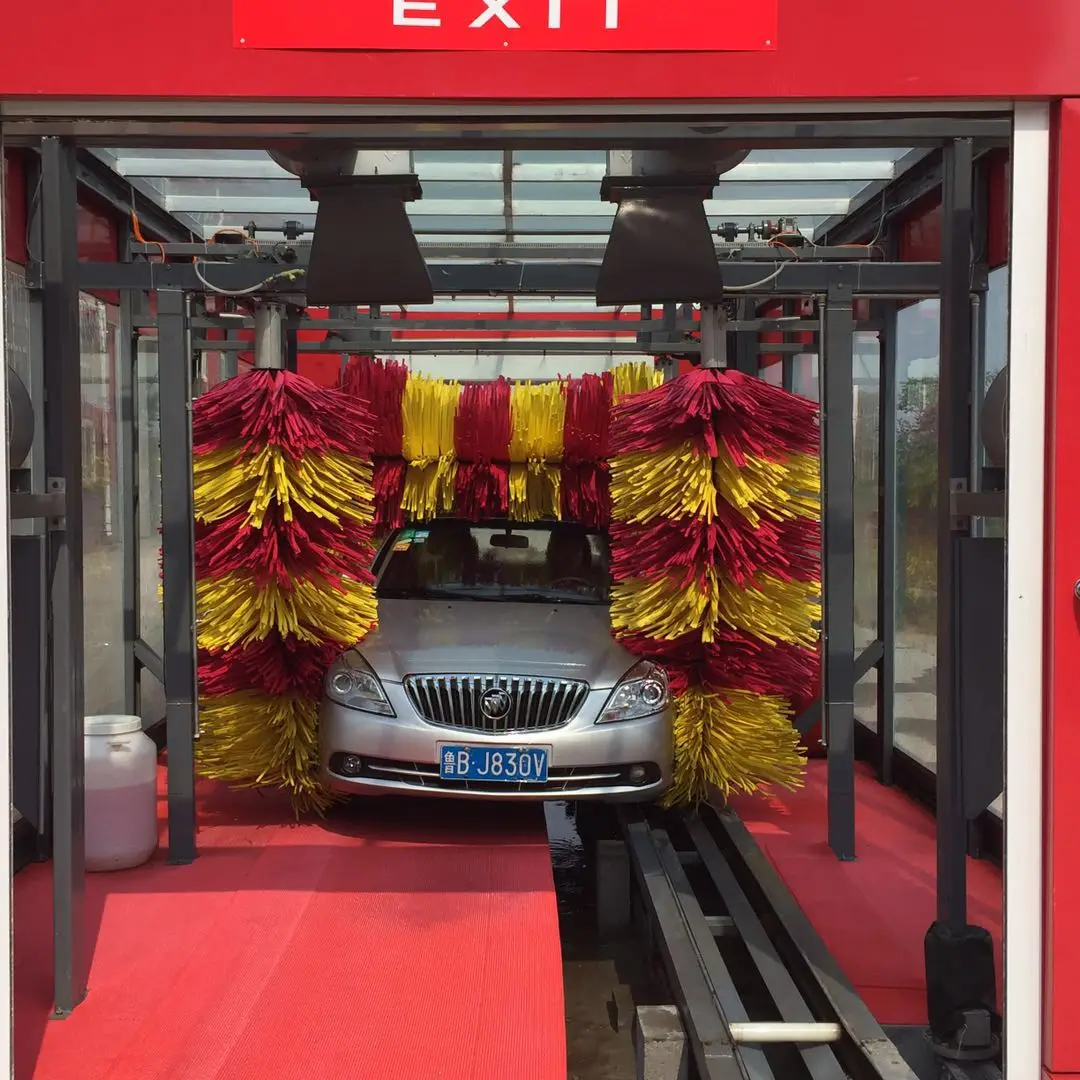

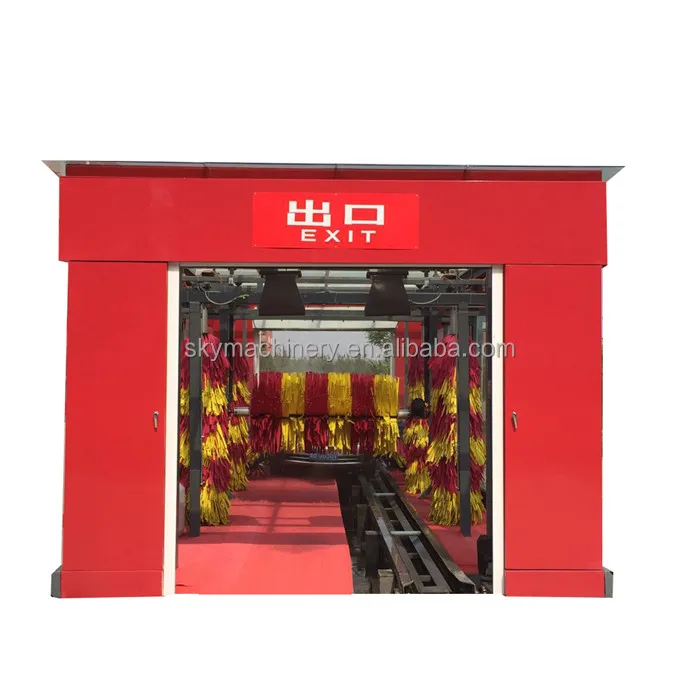

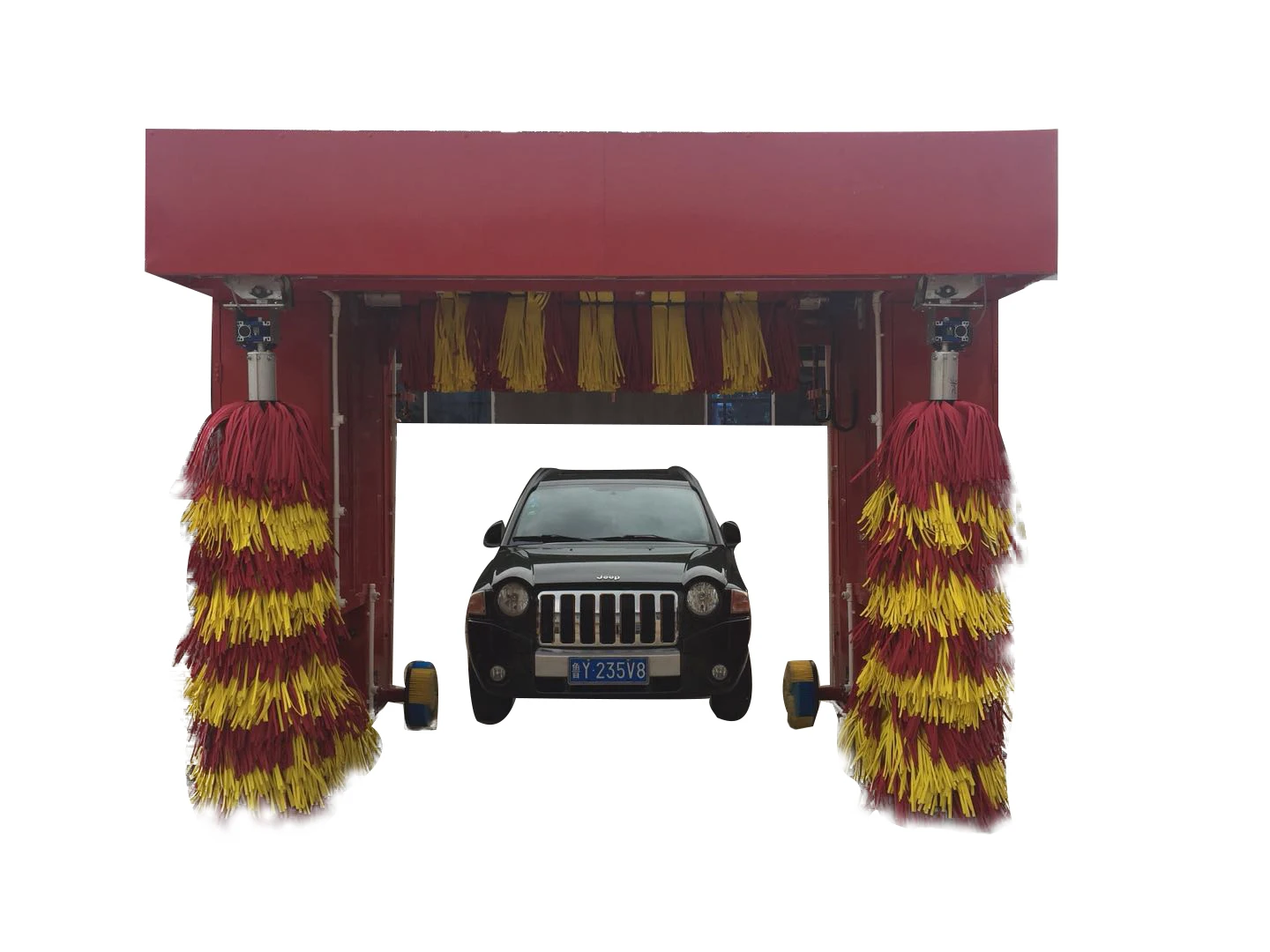

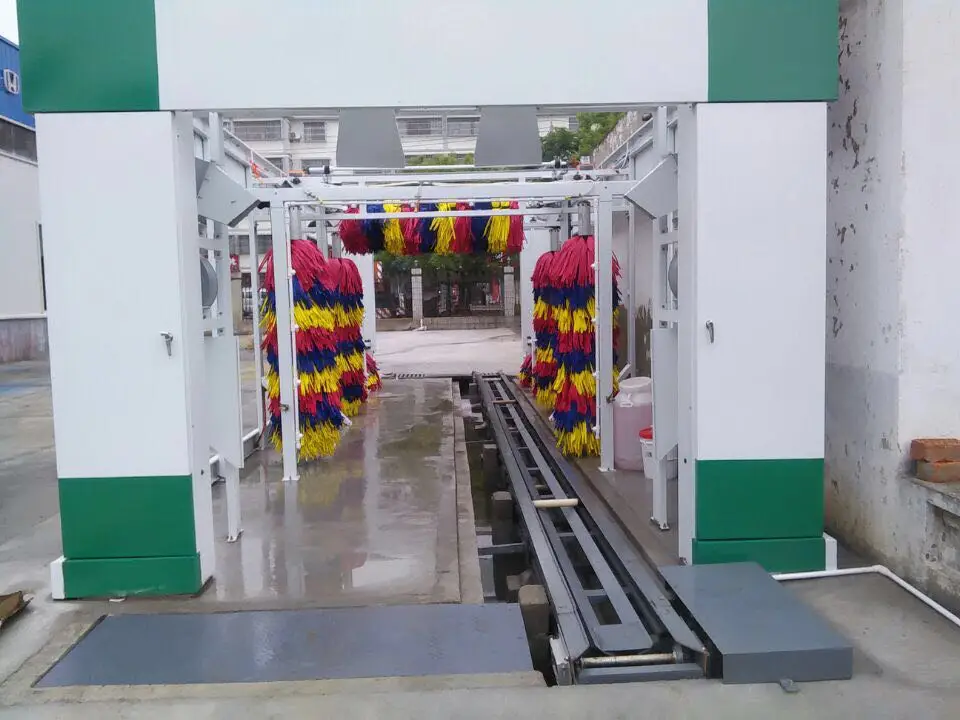

High quality automatic gantry type car washing machine system price/CE
Model | SKY-300 | SKY-500 | SKY-504 |
Car washing machine size (length * width * height) | 2.4*3.6*3.0m | 2.4*3.6*3.0m | 2.4*3.6*3.0m |
Track length | 9m | 9m | 9m |
capacity(Length * width * height) | 5.5m*2m*2m | 5*2.1*2.1m | 5*2.1*2.1m |
usage area(Wide * long) | 10m*4m | 4*10m | 4*10m |
Power supply | 10kw/380v/4p HASE | 10kw/380v/4p HASE | 18kw/380v/4p HASE |
Water source | 3 pieces | 3 pieces | 3 pieces |
Water consumption | 100L/car(Using circulating water20L/car) | 100L/car(Using circulating water20L/car) | 100L/car(Using circulating water20L/car) |
Car wash ability | 3-4min/car(Set according to degree) | 3-4min/car(Set according to degree) | 3-4min/car(Set according to degree) |
Pneumatic system | Air pressure 0.8Mpa | Air pressure 0.8Mpa | Air pressure 0.8Mpa |
Large straight brush | 2 PCS(Hi-tech Foam cotton) | 2 PCS(Hi-tech Foam cotton) | 2 PCS(Hi-tech Foam cotton) |
Small straight brush | none | 2 PCS(Hi-tech Foam cotton) | 2 PCS(Hi-tech Foam cotton) |
Top cross brush | 1 PCS(Hi-tech Foam cotton) | 2 PCS(Hi-tech Foam cotton) | 2 PCS(Hi-tech Foam cotton) |
Drying system | none | none | 1set(Three outlets) |
Water wax |
1set | ||
High foam wax | |||
Bottom spray system | |||
Water spray system | |||
conveying system | |||
Guiding system | |||
computer control system | |||
Frame | |||
guide,limit | |||
Sewage treatment system | 1set(Optional) | 1set(Optional) | 1set(Optional) |
High pressure water knife system | 1set(Optional) | 1set(Optional) | 1set(Optional) |
Car washing machine decoration | Aluminum plate, stainless steel, galvanized sheet, Fiberglass-Reinforced Plastics | ||
Note: The above dimensions and equipment are standard sizes, and the car washing equipment for other models can be customized according to customer requirements.
Features
1. Intelligent unmanned systems, self-service card payment system.
2. Smart 360 technology.
3. Intelligent chemical mixing system.
4. Innovative suspension system non-resistance rails.
5. Unique embedded fast drying system.
6. Digital voice security alarm system.
7. Faulty self-checking system.
8. One key anti-frozen system
User-Friendly Design
*LED with voice guidance
*Automatic clean rearview mirror
*Faulty record with data report
* Automatic standby service
* Multi control mode ( could operate wash system through touch panel, magnetic card, payment station button,
remote controller )
Our Services
SERVICE
1. OEM ODM service.
2. Customized service.
3. One year quality warrant service, during the period spare part supplied free
if you pay for shipping.
4.Professional team supply service for life long time.
Packaging & Shipping
Packaging:
Two packages: One Platform, One Plywood box for towers and accessories.
Shipping:
Standard package for sea transportation.
Certifications
Company Information

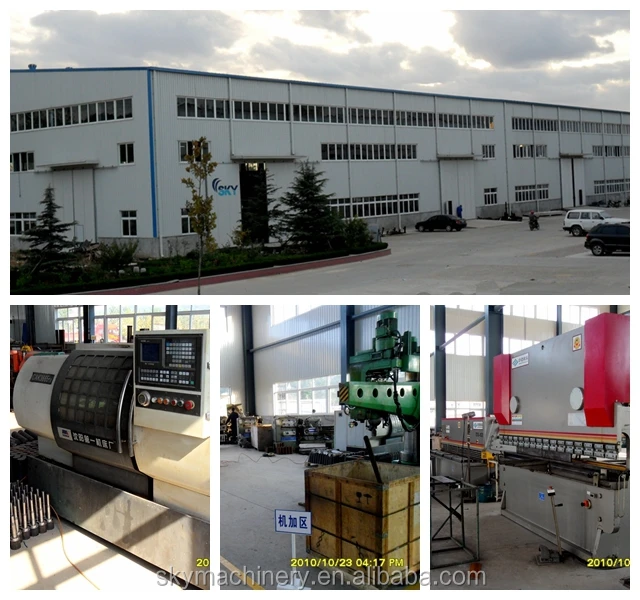

Yantai Sky Machinery CO., LTD has been specializing in manufacturing auto body frame machine, waste oil burner/heater/boiler, spray booth, car rotisserie, car lift and other equipments for over than 9 years, enjoys good reputation of high quality together with competitive price.
From various customers we learnt various experiences in manufacturing applications and businesses. No matter who you are, you are our God, we will offer you added-value.
