POE 8 ENC Cheaper wall mount 8 port 24v 48v 56v passive poe injector power IP CAMERA WiFi AP

Use with any ethernet switch

Flexible power(DC 12V TO 56V)

10/100Mbps fast ethernet

Ideal for IP Cameras,VOIP,WiFi

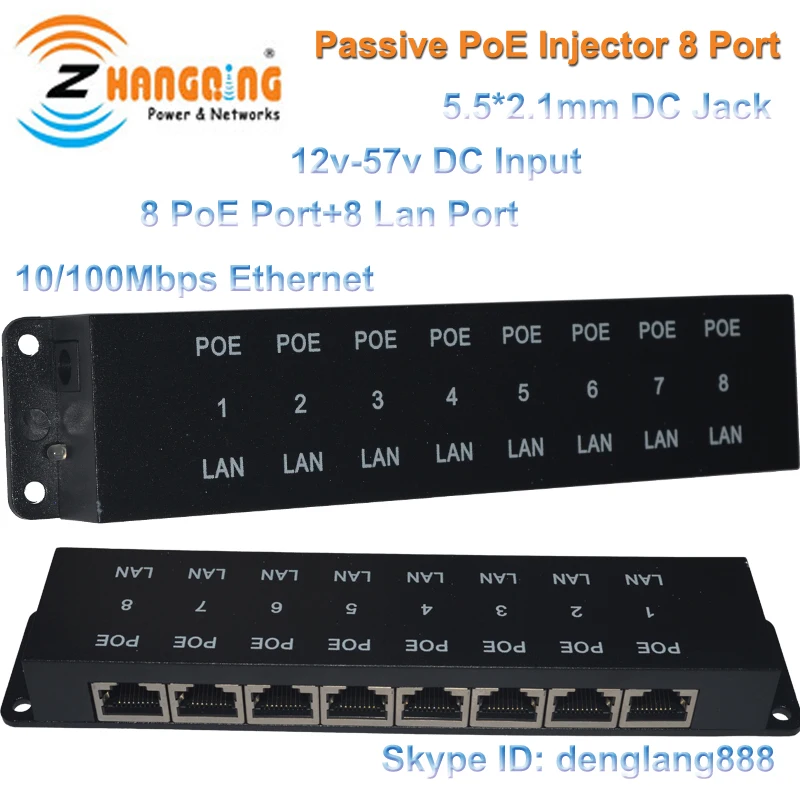

8 Port Injector(8 Lan&8 Lan+PoE port)

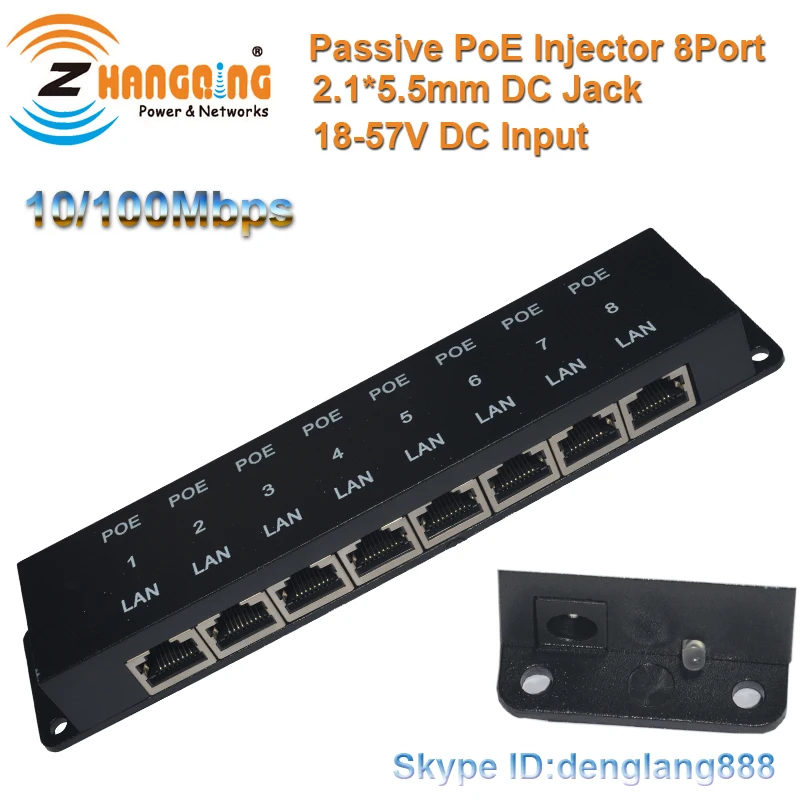

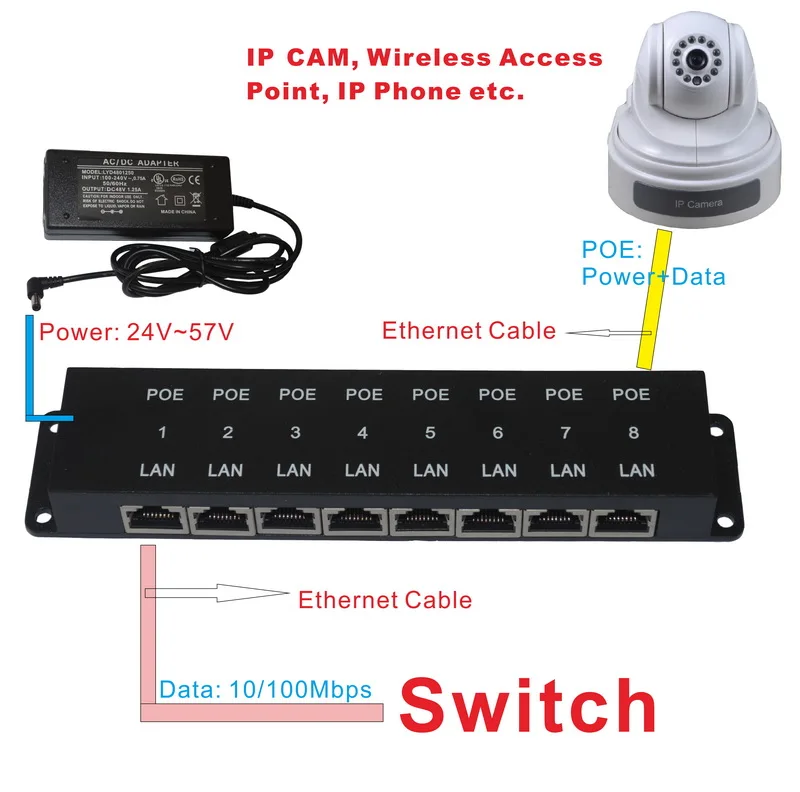

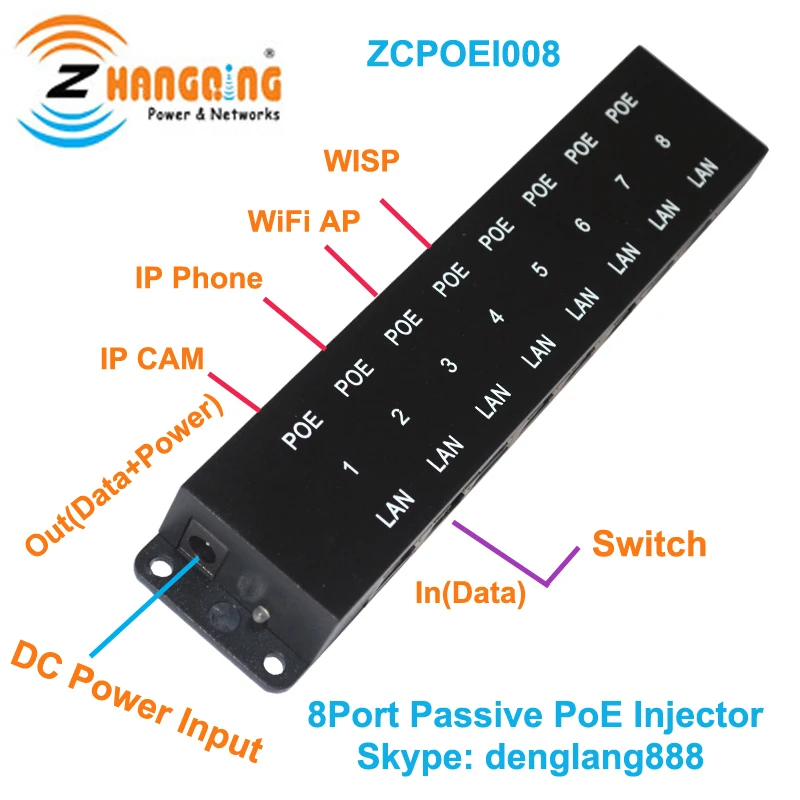

The 8port passive Poe Injector is used 10/100M Ethernet, The LAN RJ45 sockets is form “Switch/PC/HUB” 1/2&3/6 are transmitting data. The POE RJ45 (power + data) socket is to deliver data and power. Pin 1/2 & 3/6 transmitting data, Pin 4/5(+) & 7/8(-) for power. Passive PoE is composed of 8 set of Rj45 sockets and one 60V DC power jack. Input power requests 60W or more Ac to Dc Power converter. The input dc hole diameter is 2.1mm and the other end OD id is 5.5mm

The sum total output power must be lower than the Max input power of AC-DC power converter. If not, it is necessary to consider taking higher AC-DC power converter. There commended formula for AC-DC power converter is: 10W per RJ45 set (1 set = 2 x Rj45 sockets). For example, 8 x 10W = 80W for 8 port Passive PoE panel.

SPECIFICATION

Input : 12-56V DC 2.1MM
Output: 12-56V PER PORT(30W Max)
Data: 1/2&3/6
Power: 4/5 V+ & 7/8 VData In :Connects PC/HUB/Switch
Weight : 140g
Dimensions: 175mm×37mm×20mm
Ethernet Cable : TIA/EIA 568 Cat. 5
Data rate : 10/100Mbps
Connector: RJ-45
Operating Temperature : 0°C ~ 40°C
Storage Temperature : -40°C~+70°C
Operating Humidity : 10%~80%RH
Storage Humidity :5%~90%RH

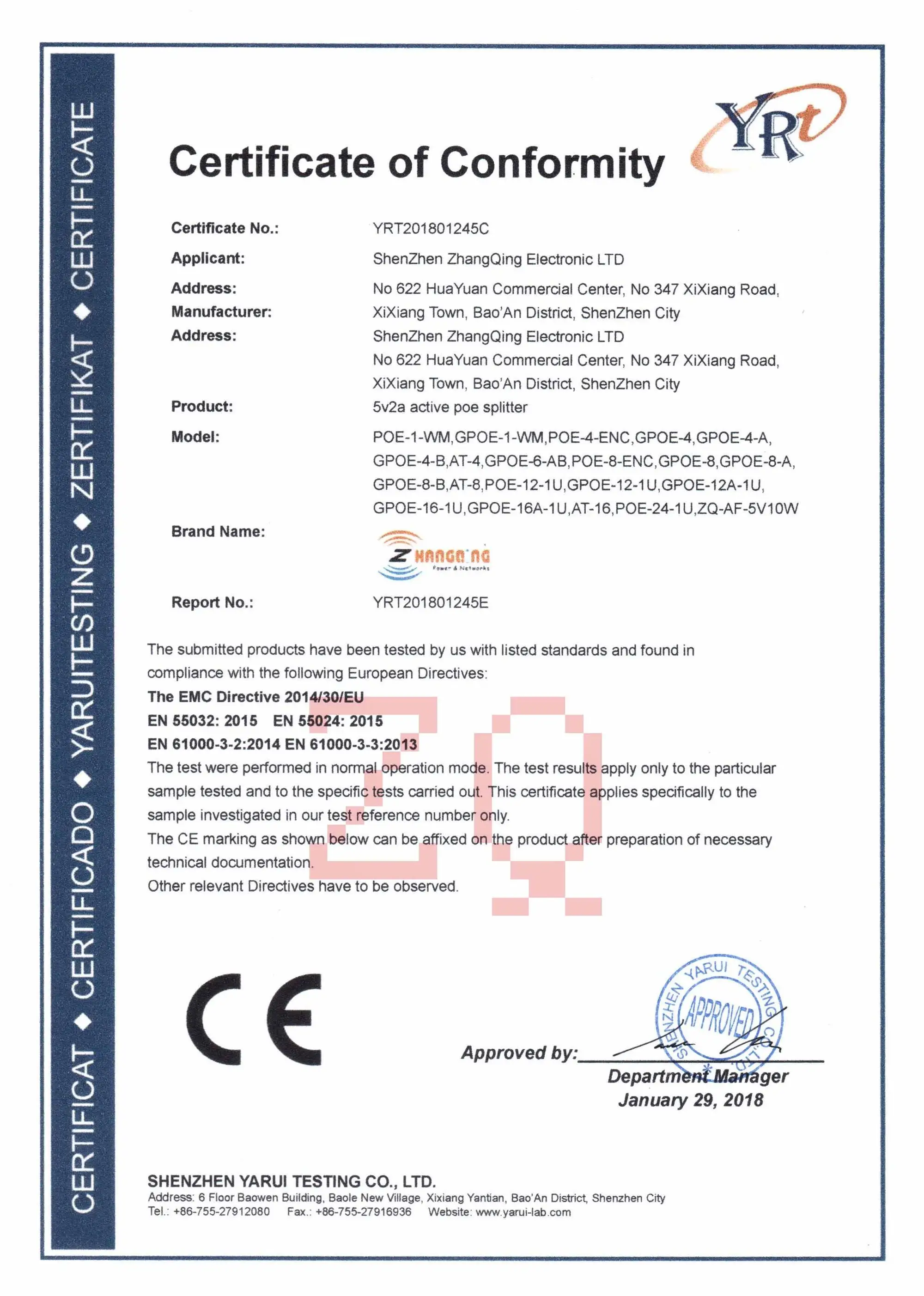

Certification: CE

HOW TO ORDER

POE-8-ENC 8 PORT POE Panel 4/5+,7/8-

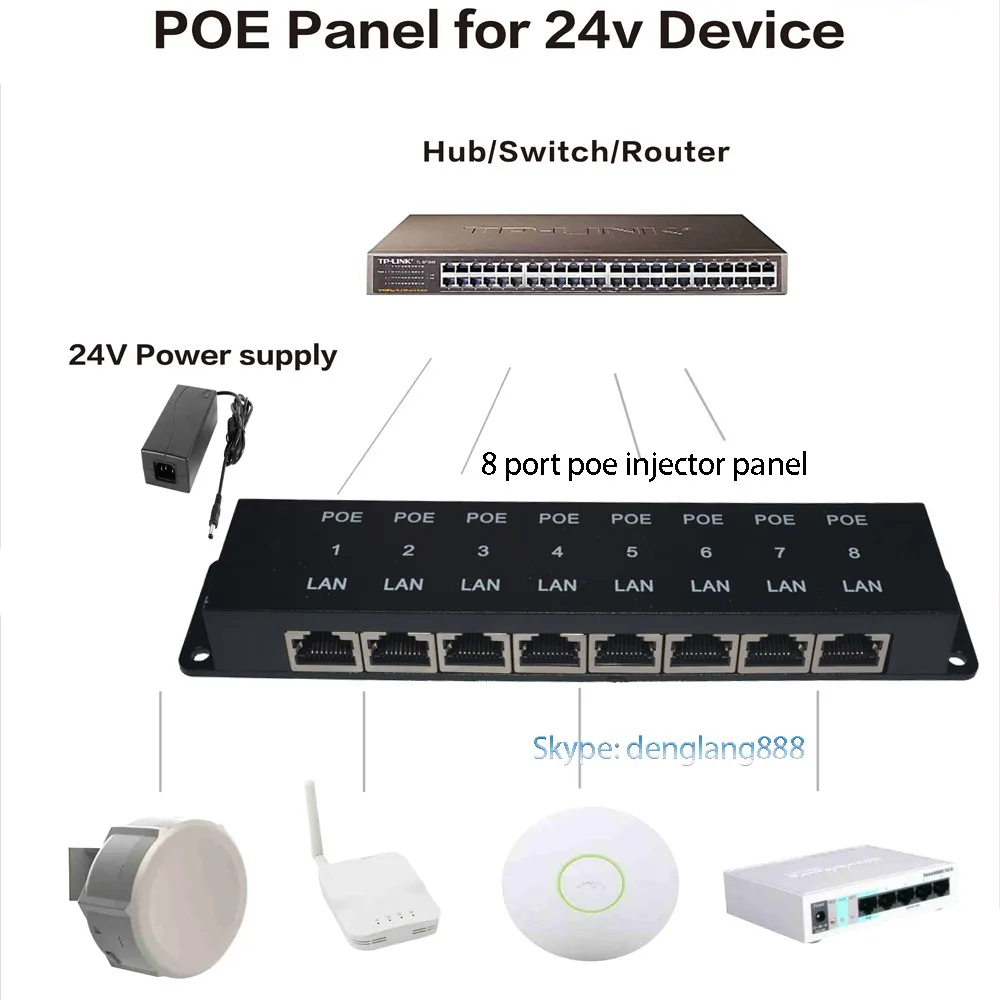

IP/VoIP Phone
Wireless Access Point (WiFi AP), such as MikroTik, Ubiquiti, OpenMesh etc
WiMAX Basestation
IP Survellance Camera
Door Security
POS
Netbook/mini Notebook

100pcs a carton, 14KGS, 47*20*32cm

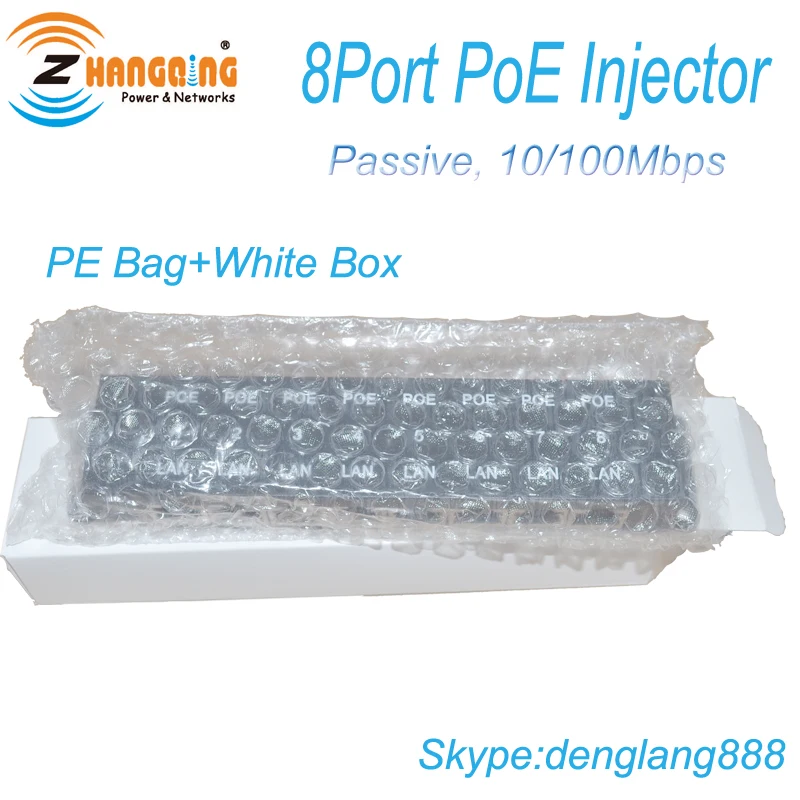

1 piece in a white box

Usually Some in stock
