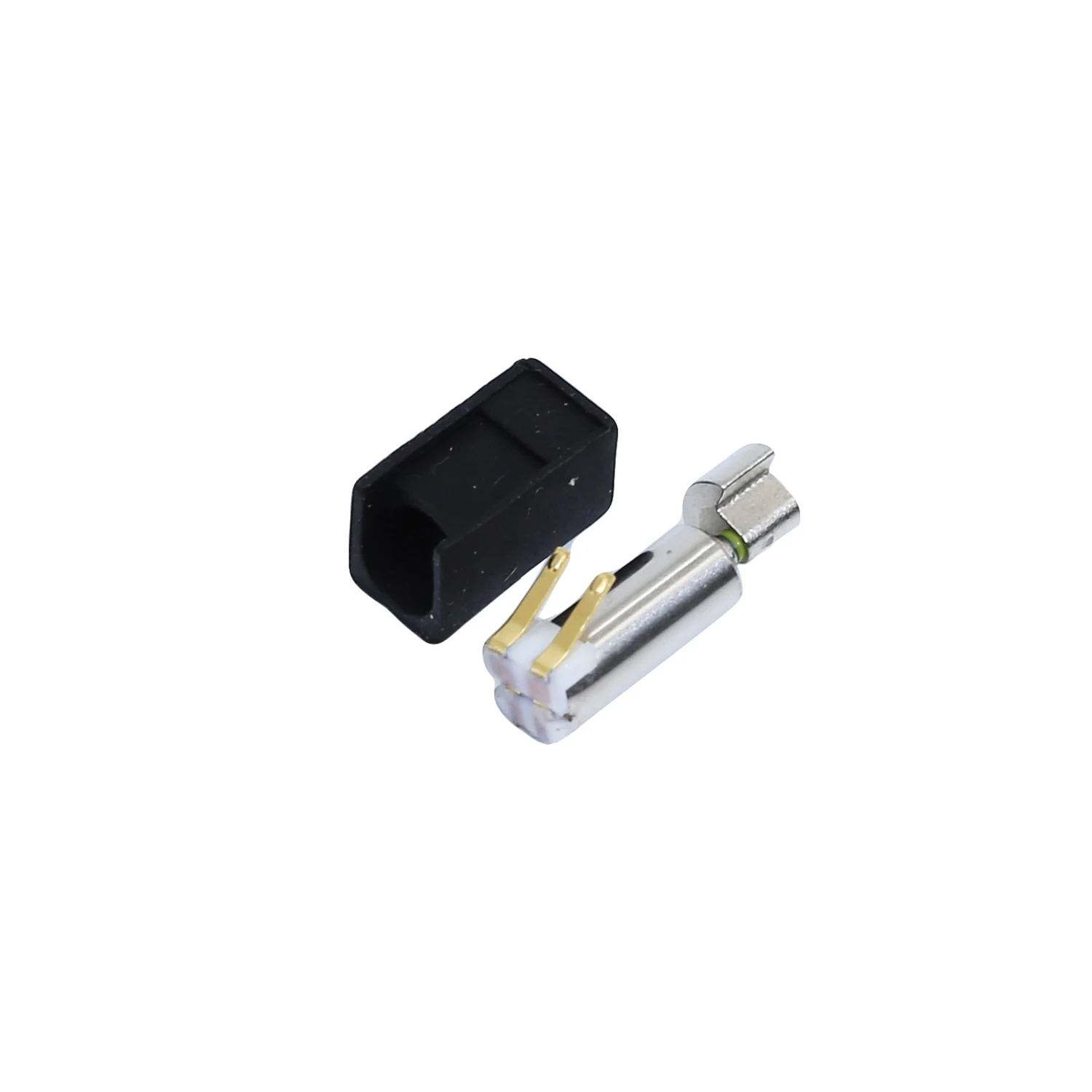

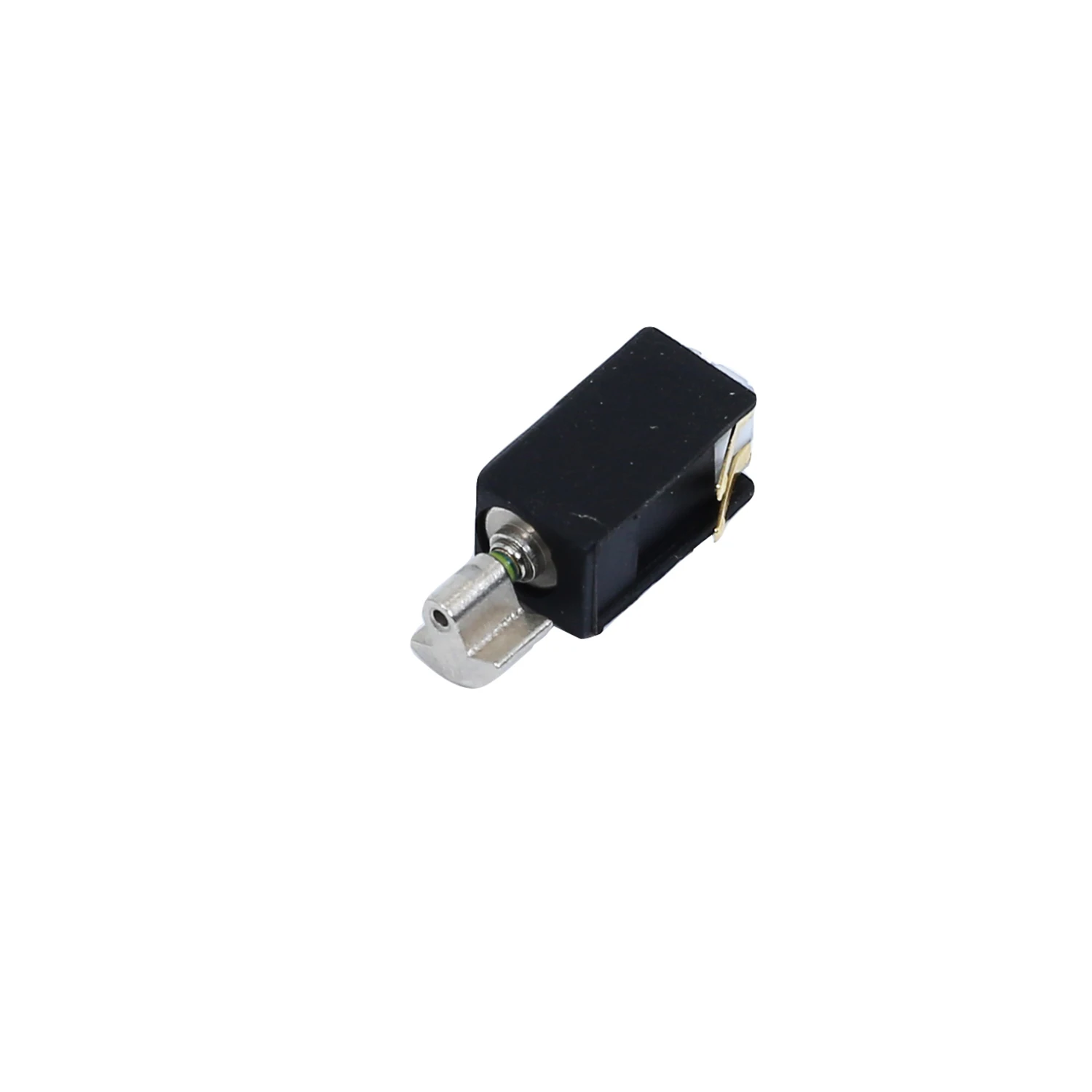

3.0V 0408 electric 4mm diameter coreless mini micro vibration motor with spring contact
- Category: Vibration Motor >>>
- Supplier: Shenzhen Ineed Youngsun Technology Co. Ltd.
Share on (60755473603):
Product Overview
Description
3.0V 0408 electric 4mm diameter coreless mini micro vibration motor with spring contact
1) Electrical performance
| MPN | Rated voltage | Rated current | Reted speed | Starting voltage | Operating voltage | Road load |
| IND-YZ0408H-2.0 | 3.0 V DC | 85 mA Max | 13,000 ± 2000 rpm | 2.0 V DC | 2.0V -3.6V DC | Counterweight R2.0 *2.0 |

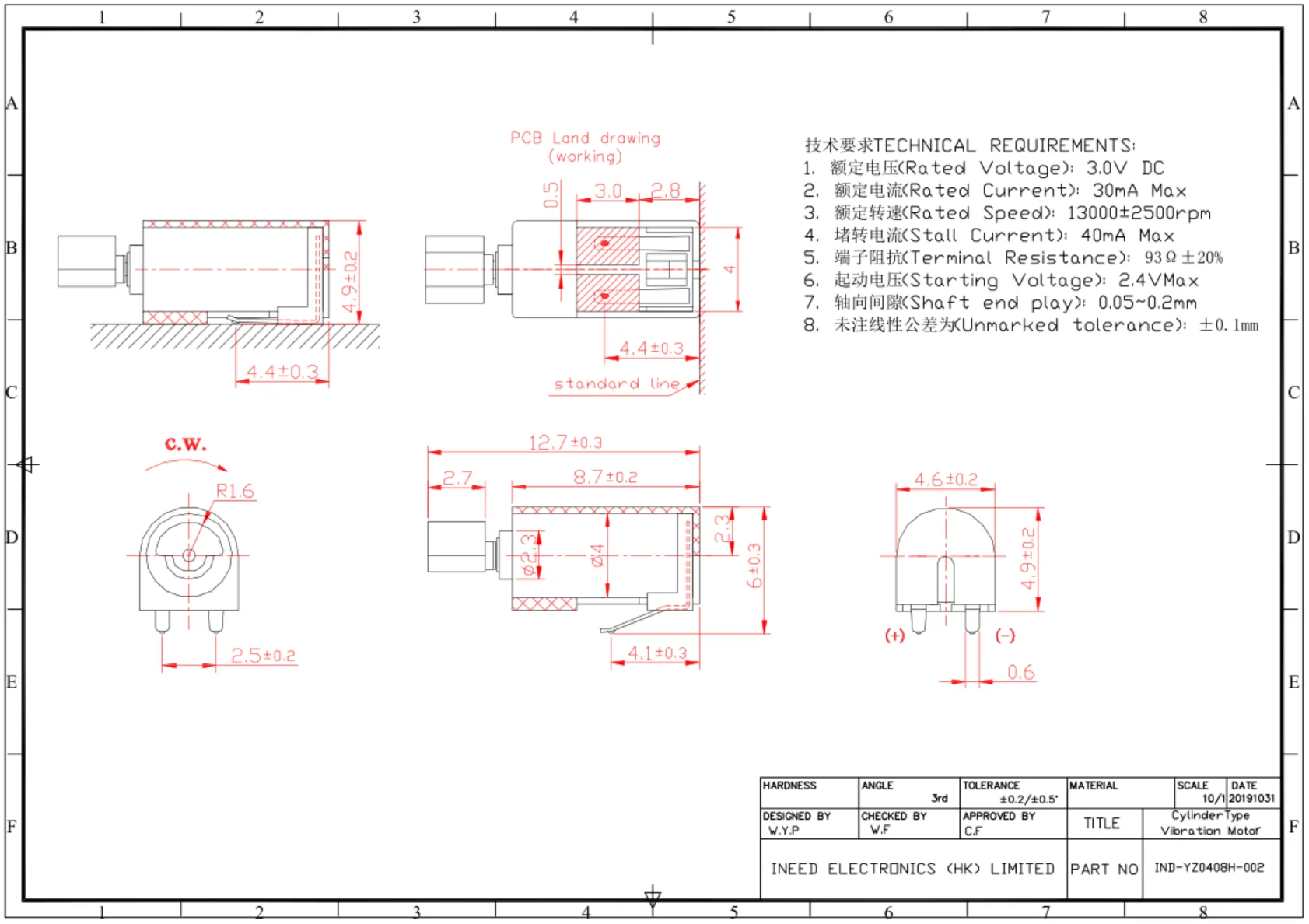

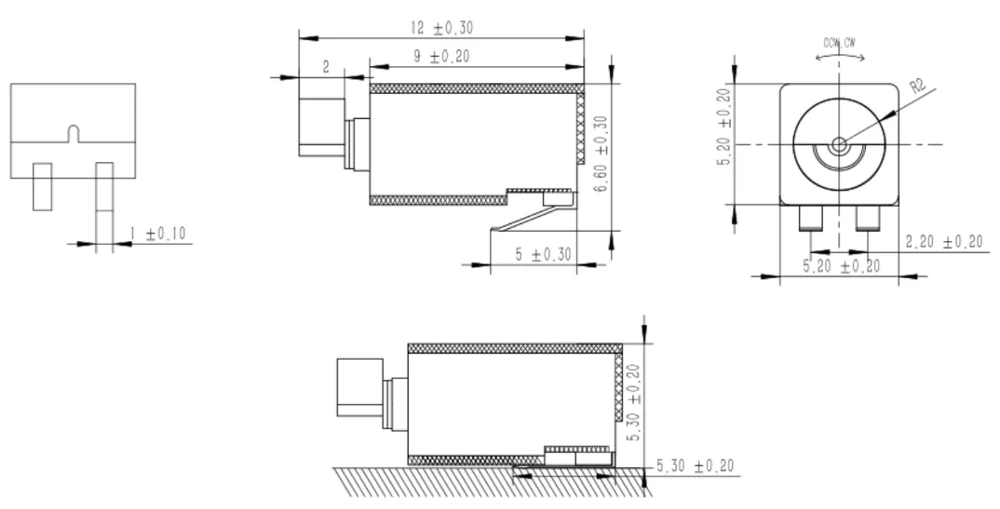

2) Product Drawing
3) Main Component of the coreless vibrating motor
1. The raw materials of cylindrical motor we use the best one with high magnetic flux to achieve motor stable property.
2. Imported first class brush material made the motor long life, fast reaction.
3. We have our own winding machine& mould&toolings of motor coin.
4. We have many years experience in manufacturing dc electric motor, so can better control quality and process
4) Main Application
You could find the right haptic solution with our below various vibrators:
7-10mm diameter coin type brushed vibration motors.
3-4mm height reflow solderable SMD type vibration motors.
4-7mm diameter cylinder type brushed vibration motors.
5-9 diameter coin type brushless vibration motors.These BLDC Motors have much longer lifetime than the normal brush type motors. At the test mode of 0.5s On 0.5s Off as one cycle, total lifetime can be 1 million cycles.
8-9 diameter coin type linear vibration motors. Vibrating in direction Z, vibration force at its peak acceleration value around 1.8G, much stronger than other normal brush type coin motors at 0.6-0.8G usually.
Company Information
Manufacturing all kinds of micro motor for over ten years. These motors are widely used intelecommunication devices and health-care products, medical devices and robotic products. Monthly capacity over 15 million motors.We have been making the best efforts tobecome one of the leading micro motor manufacturers in this industry. By investing ten percent of our annual revenue into R&D as well as advanced facilities, we continue to grow stably.Our mission is to produce cost effective products with good quality to satisfy ourcustomers worldwide. This is the target we aim at now and forever......
1) Competitive Advantages
- Experienced Staff: average 7-year experience in R&D
- Competitive Price
- High Product Performance: Low noise, High efficiency, Long lifespan
- Small Orders Accepted
- Short Lead Time 2-3 Weeks
- International Approvals: ROHS/ISO9001:2015, ISO14001:2015, OHSAS18001:2011
2) Production workshop (Part)
Worshop site 1 Worshop site 2

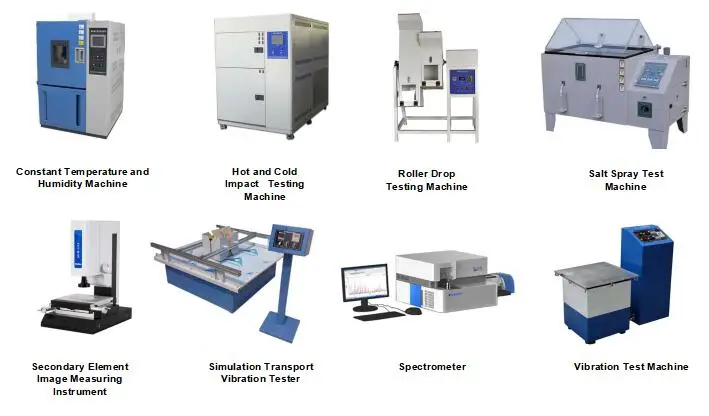

3) Testing equipments
4) Packing & Shipping
Packing Details
100pcs per tray, 60 trays per carton, 6000 pcs per carton
Carton size: 50.5cm*46.5cm*27cm
Gross weight: 7.5kgs/ carton
Inner box bubble, then carton. And then reinforced with plastic pallet for outer packing. Or according to client's requirement.
Shipping Details
Samples Can be shipped within 10 days.
Mass production order leading time according to the actual situation.
