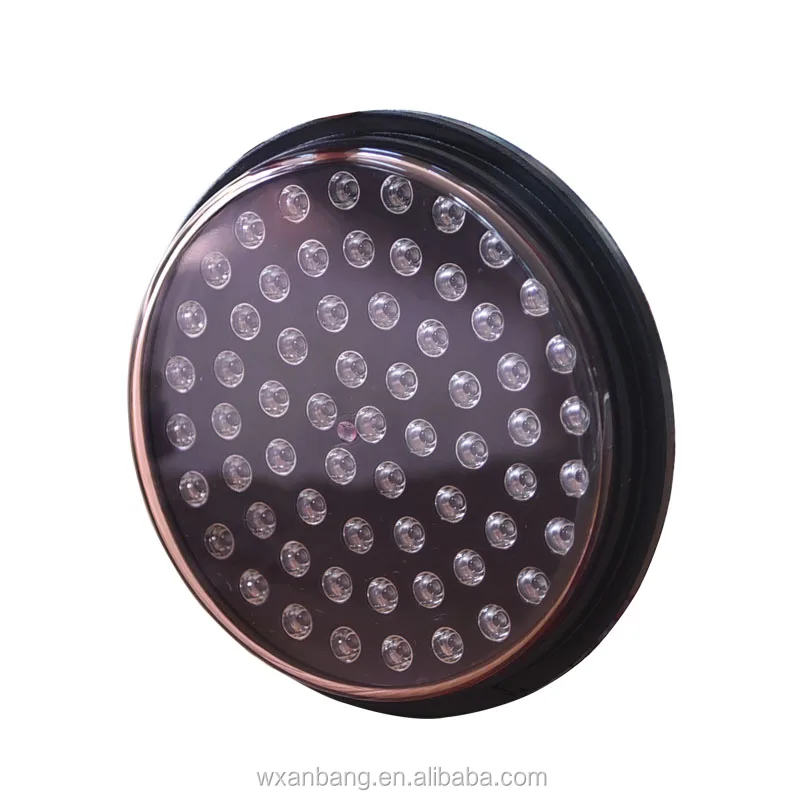

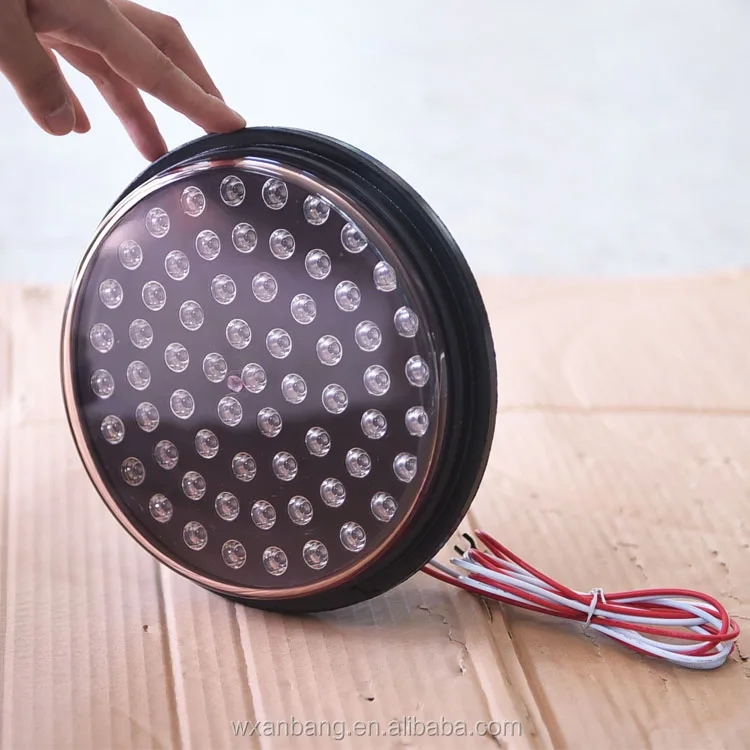

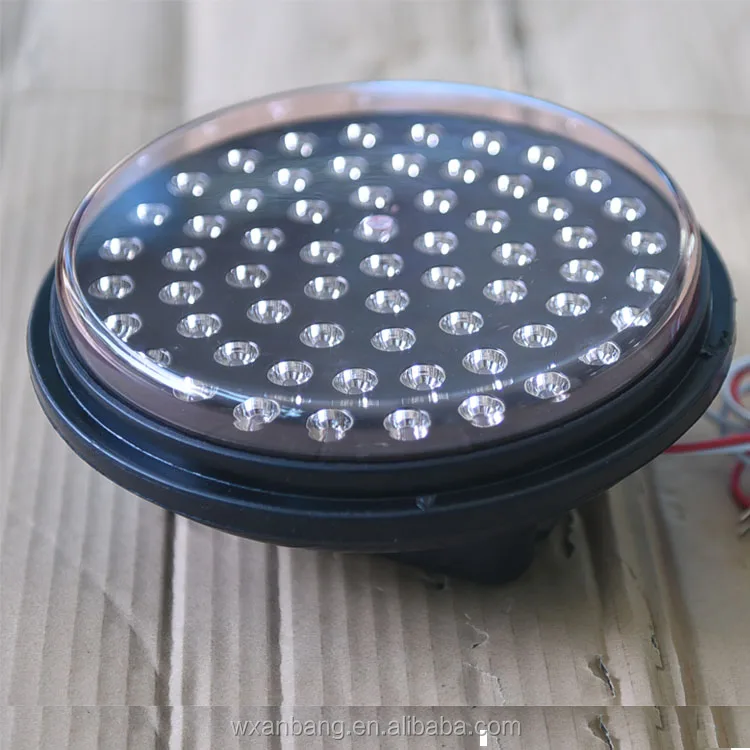

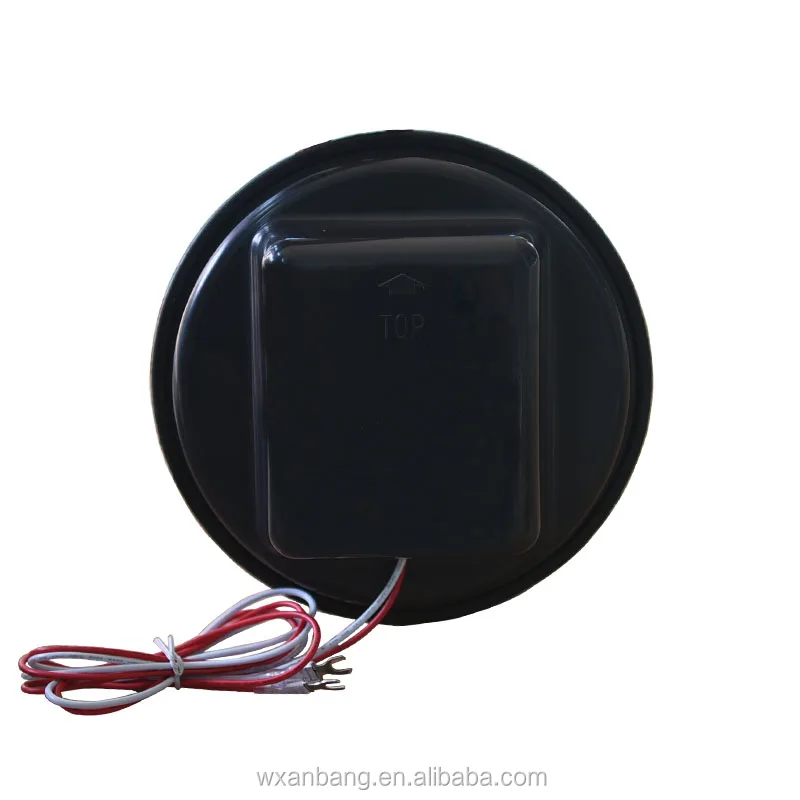

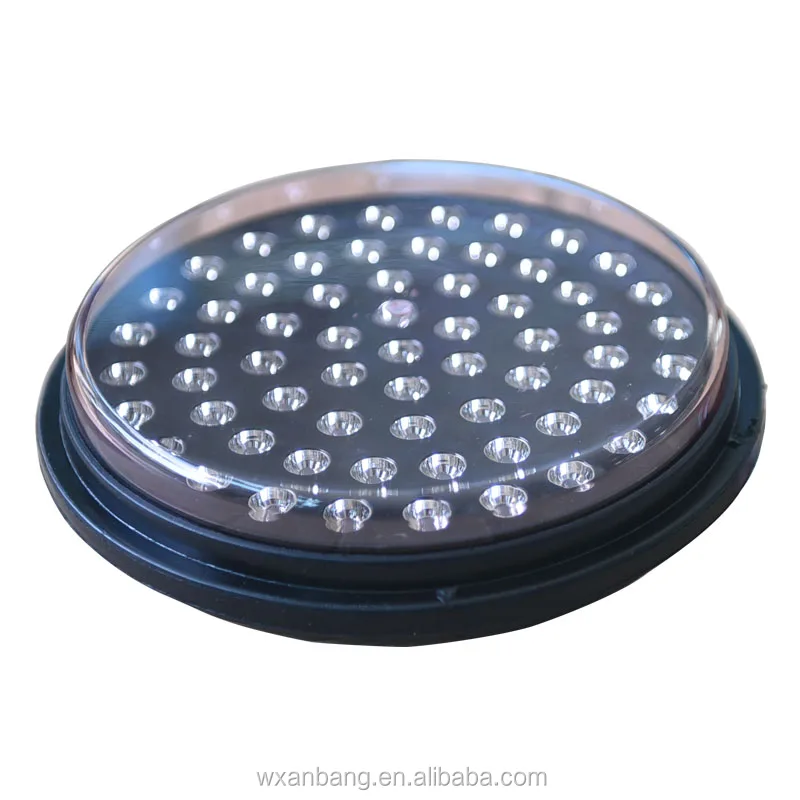

200mm Hi Flux Led Traffic Signal Light Module

Conform to ITE standard
Operating at the temperature of -40℃ to +74℃
Wide viewing angles& low power consumption
Even brightness & standard chromatogram
Compatibility with most traffic housings and controllers
Module design offers easy assembly and maintenance.
Specicifaction of Red Safety Road Symbol Signs Traffic Lights
No | Model: | JXC200-VIR/Y/G |
1 | Color: | Red, Yellow, Green |
2 | LED quantity: | Red-63pcs; Yellow-63pcs, Green-63pcs; |
3 | Light Intensity | R>162cd, Y>402cd, G>211cd |
4 | Wavelength: | Red:626nm, Yellow: 592nm, Green:505nm |
5 | Power Consumption | R≤7W Y≤9W G≤7W |
6 | Operation Voltage | 12vdc, 24vdc,110vac,, 220vac |
7 | Packages | 10pcs/carton 25cm*46cm*52cm |
8 | Gross weight: | 9.00kgs/carton |
9 | Housing: material | Polycarbonate – UV resistant |
10 | Life time & IP Grade: | >85,000 hours IP55 |
Red Safety Road Symbol Signs Traffic Lights

Red Safety Road Symbol Signs Traffic Lightsmainly replace and are installed in existing 200mm traffic lights.


Package for Red Safety Road Symbol Signs Traffic Lights
Quantity | Dimension | Net weight (kgs) | Gross Weight (kgs) | Volumn (m3) |
10pc/carton | 25cm*46cm*52cm | 7.0kg | 9.00kg | 0.06 |
We arrange the shipment according to our product quantity and weight
For samples, shipped by Express, DHL,UPS,EMS,Fedex available
For more quantity, we can shipped by air/sea to yours nearest port
Wuxi Anbang Electric Co.,Ltd created 1998, is a high-tech enterprise specializing in researchi& develop led traffic light, include led traffic signal light(100mm/200mm/300mm), traffic signal light modules, pedestrian traffic signal light, traffic countdown, arrow traffic light, fullball solar traffic light, led street light of different Specifications.
All our traffic lights comply with ITE, EN12368, CE, RoHS, ISO9001: 2008 standards.

Sunburst traffic light trade show

1. Do you have your own factory or a trading company ?
A : We have our own factory in Wuxi(150kgs from Shanghai) ,welcome to visit our factory anytime
2. Do you have any MOQ of the products ?
A : Our MOQ is just 1pc(normal product) ,sample order are welcome
3. How can I make an order
A : You can send us inquiry via alibaba or TM, once received your inquiry we will contact you in 24 hours .
You can also contact us by email , skype or by telephone ,tell us the model and quantity you need , we will reply you accordingly
4. What's the shipping method do you offer ?
A : For small quantity, we can ship by DHL, UPS,FEDEX , for large quantity we can ship by air and sea
according to your request.
