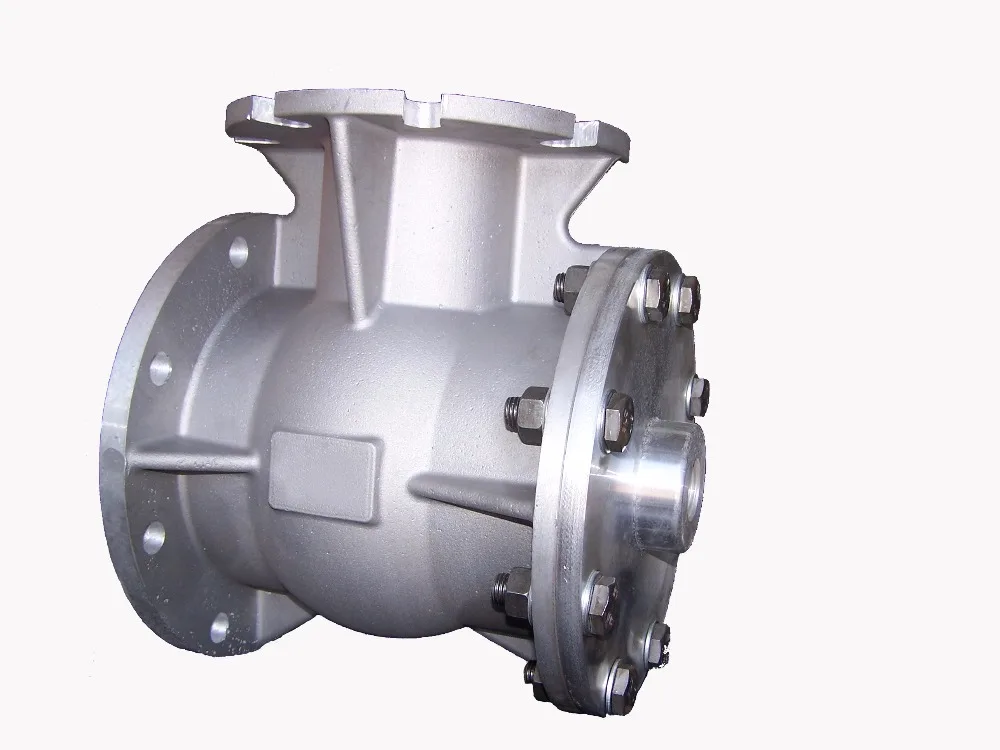

Air cannon part valve system could be used to Martin air cannon in USA
- Category: >>>
- Supplier: Puyang Zhongshi Group Co. Ltd.
Share on (60755654979):
Product Overview
Description
Introduction:

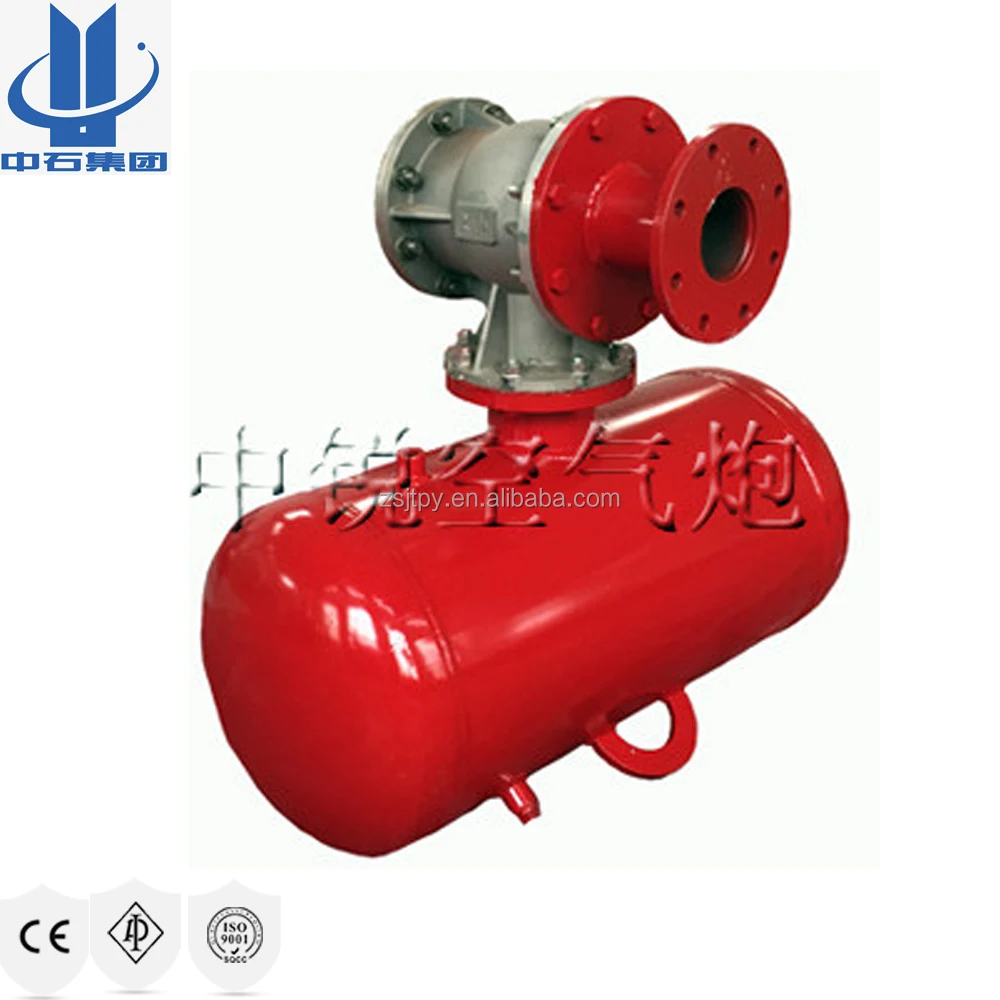

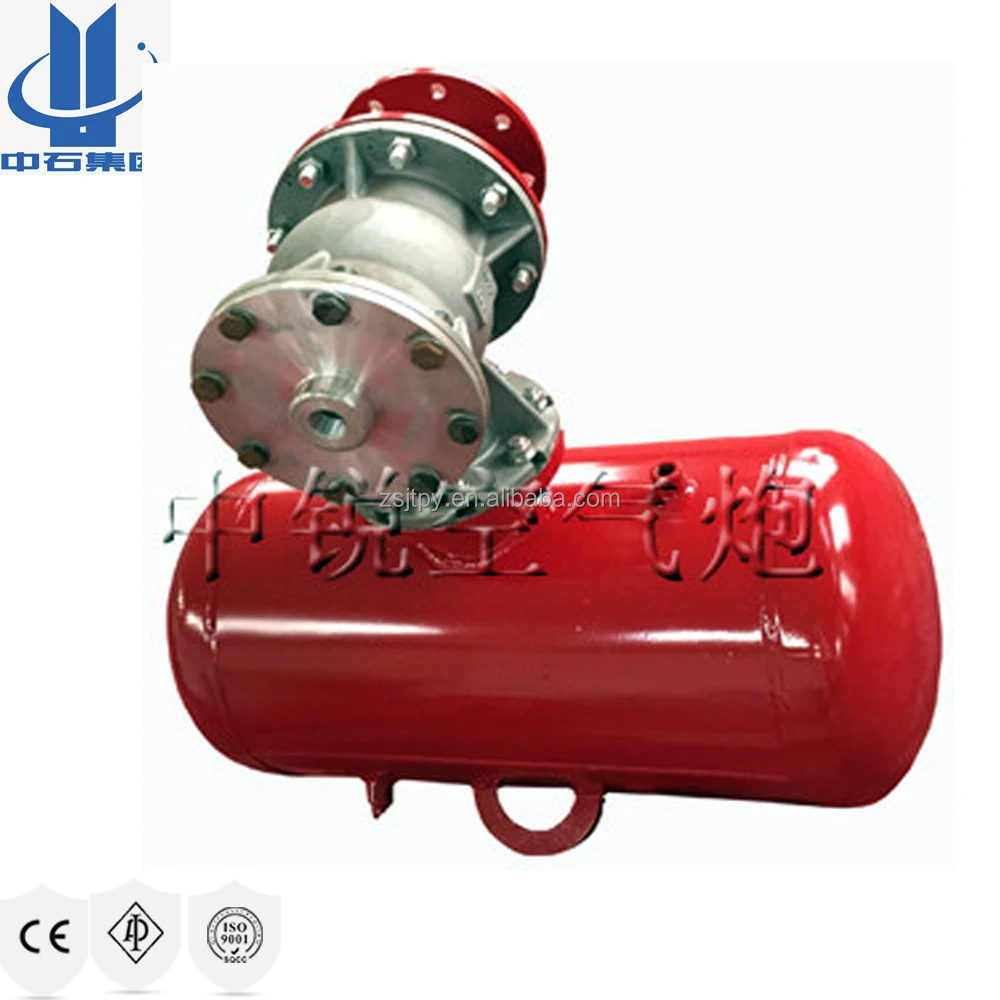

GKQP-B Air Cannon is newfashioned stype with high temperature resistance and high momentum characteristics.
It's developed by us Puyang Zhongshi Group with foreign advanced technology. Provide a more efficient clearing blocking solution for the high temperature silos' problems.
Main Characters
A). High temperature resistance: the sealing elements and the valve parts adopt non rubber elements and this type specially suits high temperature region,like grate cooler,kiln slopes,smoke box.This type has longer life service and can lower cost of maintenance.
B). Self-lubricating: air cylinder and piston bearing needn’t lubricated
C). Low maintenance: few breakdowns and easy to replace parts.
D). Long life service: The critical components adopts advanced design procedures and improves the ir-tightness.
E). High impulsion: Higher impulsion than the congeneric products
F). High compatibility: The valve can connected with othe air cannons,lowering the upgrade cost.

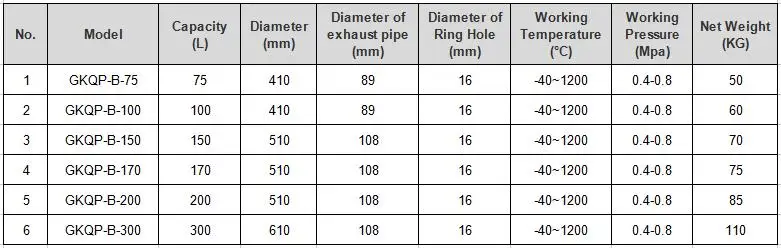

Parameter list:

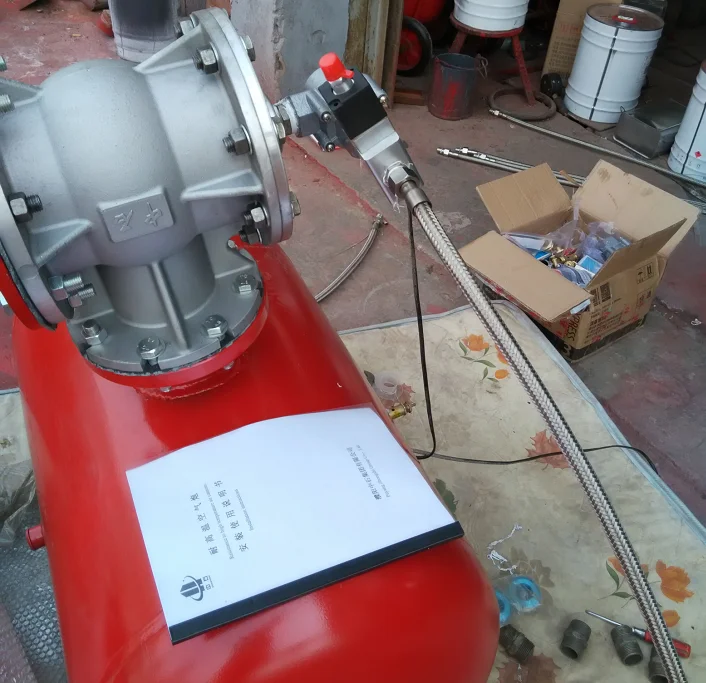

How to assemble:

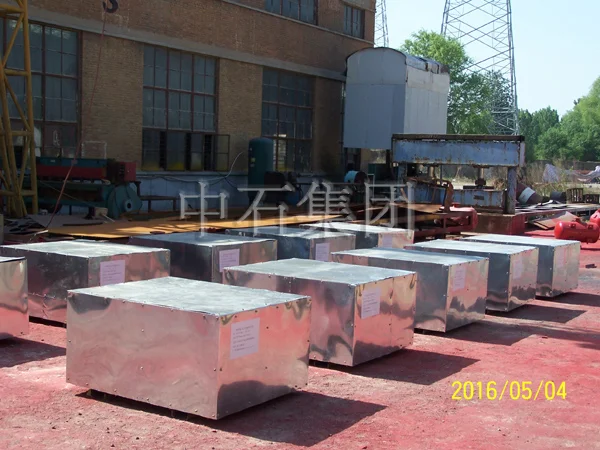

Package Show:
Part show

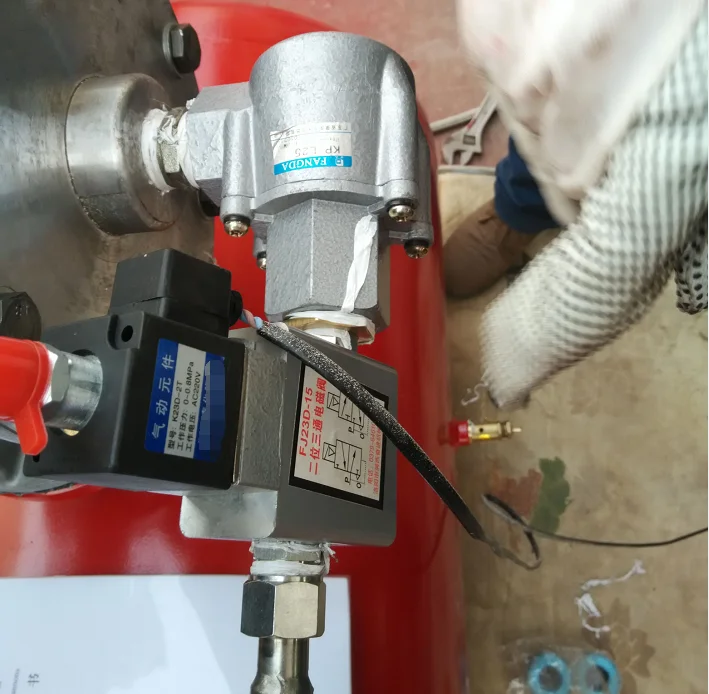

* Solenoid valve
* Cylinder
* Piston(aluminium alloy)
* Spring
* Piston seal
* Other parts if customer need.

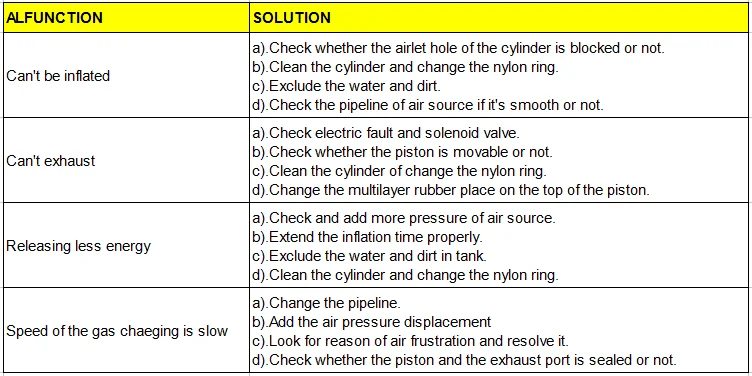

Malfunction Occurrence and Solution:
