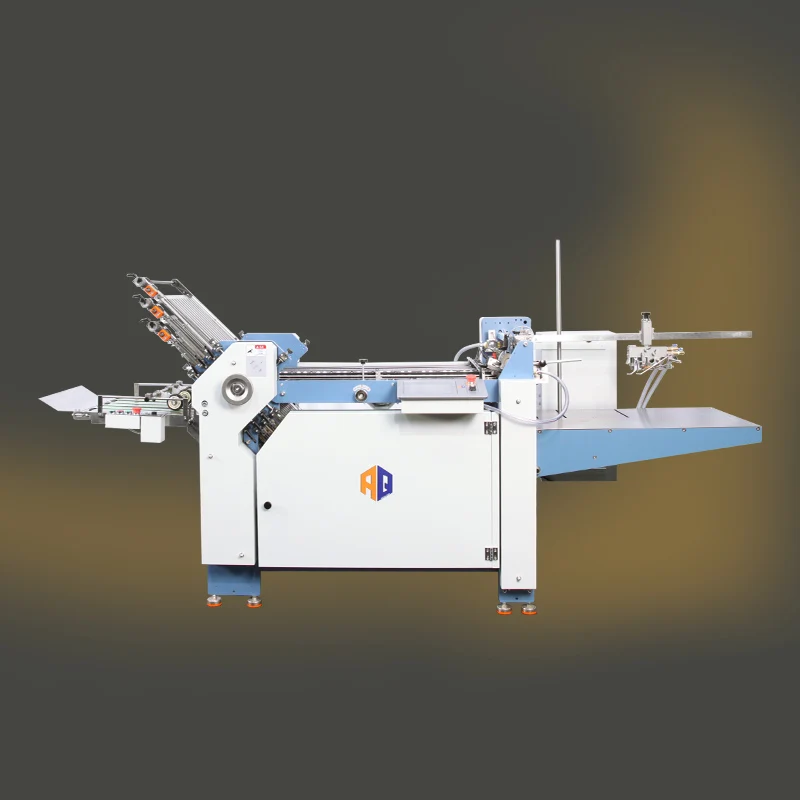

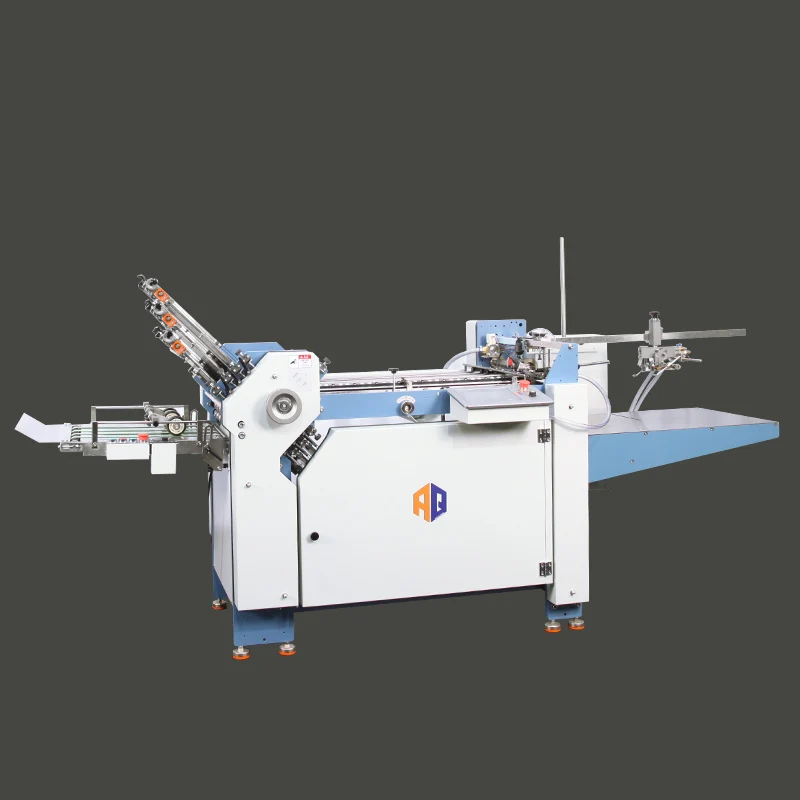

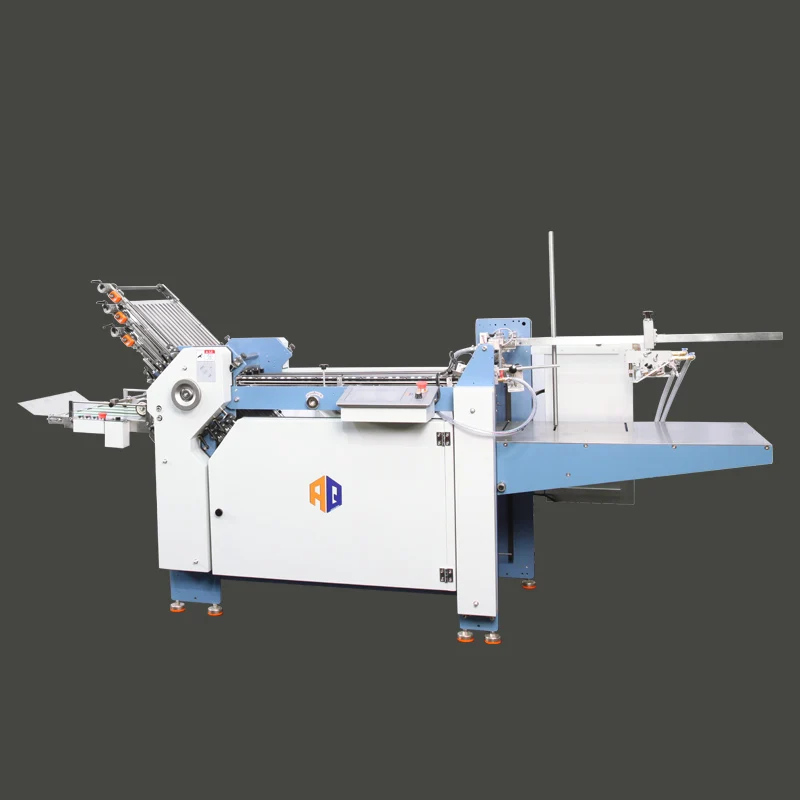

Easy to Operate 180m/min Double Sheet Detection Automatic Leaflet Paper Folding Machines
- Category: >>>
- Supplier: Dongguan Aoqi Packing Machine Co. Ltd.
Share on (60755667729):
Product Overview
Description

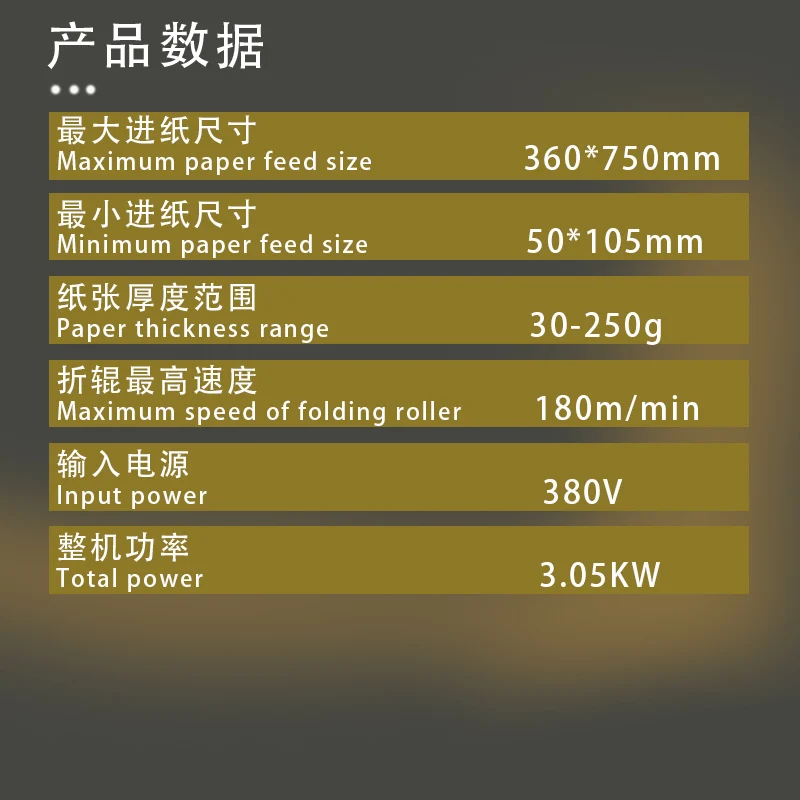

PRODUCT SPECIFICATIONS
Model | 360T/480T | 530TS | 480TS/600TS |
Min.sheet Size | 50*105mm | 70*120mm | 70*120mm |
Max.sheet Size | 360*(750/1000)mm 480*(750/1000)mm | 530*1000mm | 480*1000mm 600*1000mm |
Paper Thickness | 40-250g | 40-200g | 40-200g |
Folding Roller Fastest Speed | 180/MIN | 180/MIN | 180/MIN |
Folding Knife Max.frequency | 500stroke/min | 400stroke/min | 400stroke/min |
Input Power | 380v | 380v | 380v |
Power Consumption | 2.0-3.75kw | 3.1-3.75kw | 3.9-4.75kw |
Net Weight | 500-1500kg | 800-1500kg | 800-1500kg |
Features And Functions
1. Automatic Control Device Of Pile Height
2. High Performance Sheet-separating Feeder
3.Feeding System Adopts Three Holes Sucked Rotor
4.Nonskid,wear Proof ,anti-rust Steel-pu Folding Roller With Screw Stripe,so That Thecontact Area Is Increased By 75%in Contacting With The Paper
5.Electrical System Controlled By Plc.Smoothly Controlled By Vvve With Overload Protecting Function
6.Sensitive Automatic Control Device Of Double Sheet And Jammed Sheet.man-machine Interface Facilitates Parameter Input
7.Indentation, Punching , Slitting
8.Belt Driving Guarantees Smooth Driving And Low Noise
9.Designing The Angle Of The Transitional , That Efficacious In Preventing The Paper Wrinkled
10.Electrically Controlled Knife Of Photoelectric Integration Realizes High Speed, Superior Reliability And Minor Paper Wastage
11.Adopt Germany Imported Electric Appliances Of Schneider
2. High Performance Sheet-separating Feeder
3.Feeding System Adopts Three Holes Sucked Rotor
4.Nonskid,wear Proof ,anti-rust Steel-pu Folding Roller With Screw Stripe,so That Thecontact Area Is Increased By 75%in Contacting With The Paper
5.Electrical System Controlled By Plc.Smoothly Controlled By Vvve With Overload Protecting Function
6.Sensitive Automatic Control Device Of Double Sheet And Jammed Sheet.man-machine Interface Facilitates Parameter Input
7.Indentation, Punching , Slitting
8.Belt Driving Guarantees Smooth Driving And Low Noise
9.Designing The Angle Of The Transitional , That Efficacious In Preventing The Paper Wrinkled
10.Electrically Controlled Knife Of Photoelectric Integration Realizes High Speed, Superior Reliability And Minor Paper Wastage
11.Adopt Germany Imported Electric Appliances Of Schneider
