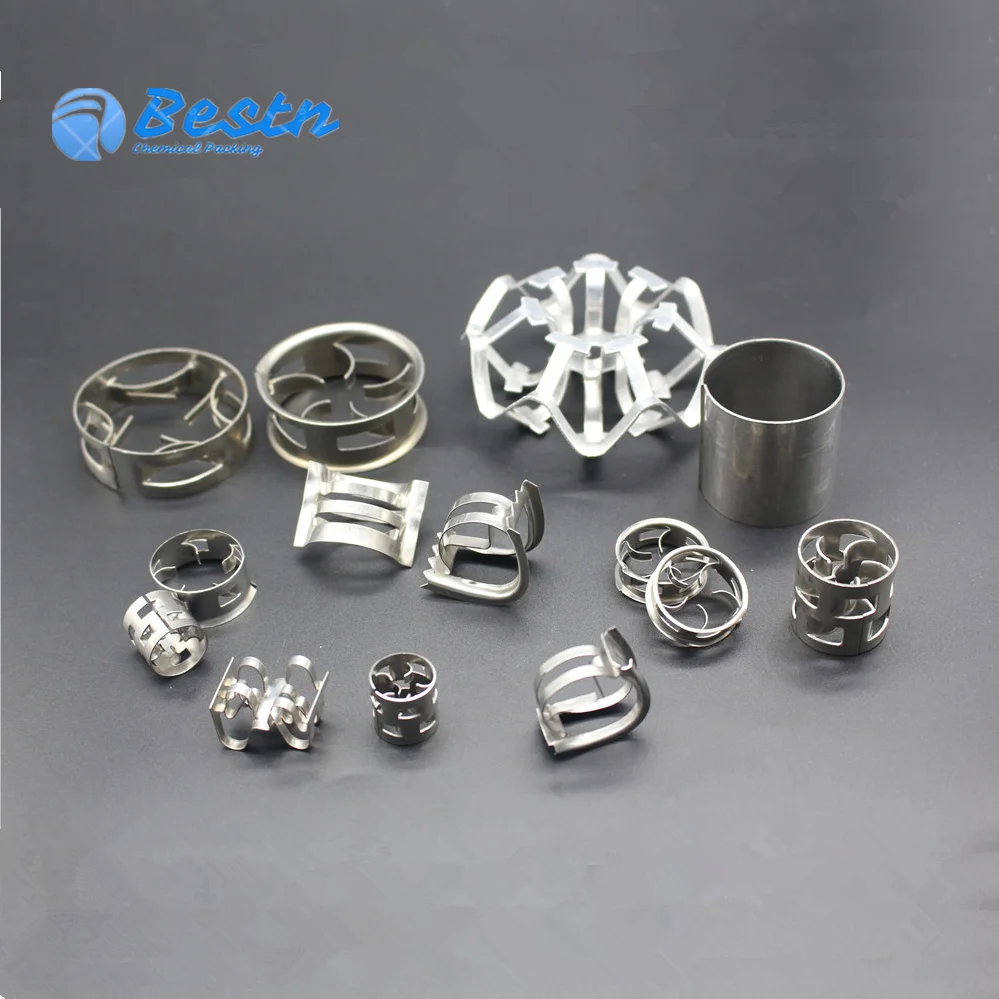

Metallic Raschig Ring 25mm 50mm Metal Super Raschig Ring

Product Overview

Description

Metallic Raschig Ring 25mm 50mm Metal Super Raschig Ring



 The design of the Super Raschig Ring offers an optimal solution to industry's demands for a modern

heavy-duty packing. Unlike previous packing shapes, the Super Raschig Ring avoids the droplet formation

which is such a frequent interference accompanying large gas loads.

The Super Raschig Ring has a more than 30% greater load capacity, an almost 70% lower pressure drop and a mass transfer efficiency exceeding that of conventional metal packings by over 10%.



Item	Technical properties
Metal super raschig ring	Size	Number per	Surface	Void ratio(%)
	(mm)	m3	area (m2/m3)
	15	180,000	315	96
	20	145,000	250	97
	25	46,500	180	98
	30	32,000	150	98
	38	13,750	120	98
	50	9,500	100	98
	70	4,300	80	98
Materials	Carbon steel, SS304, SS316, SS304L, SS316L, etc

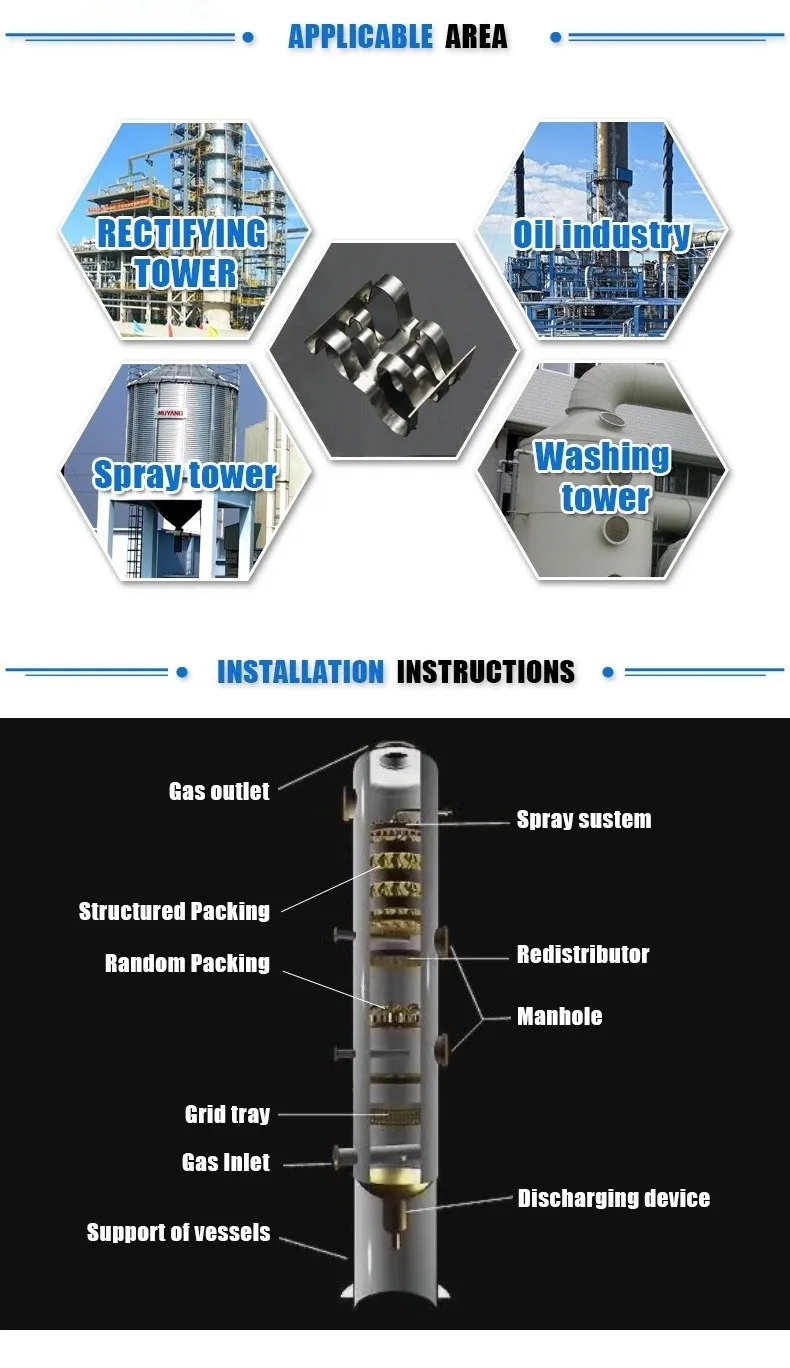

Application	Chemical industry and related sectors, as well as in environmental protection installations,i.e in absorption, desorption, extraction and rectification columns.
