Portable cheap veterinary ultrasound machine/ dog pig sheep cow horse for pregnancy test

Product Overview

Description

(Honesty-Quality-Timely-Cooperative)

 Portable cheap veterinary ultrasound machine/ dog pig sheep cow horse for pregnancy test

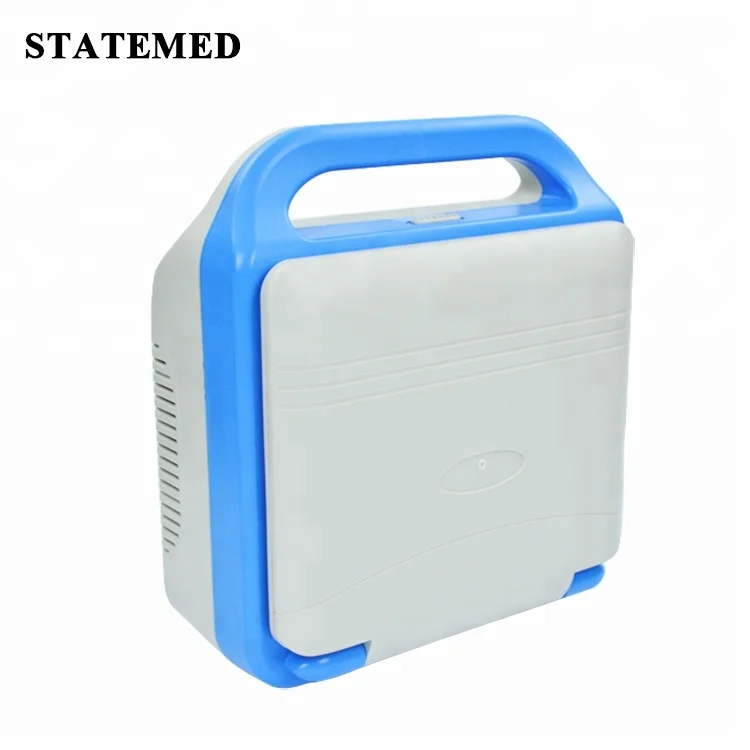

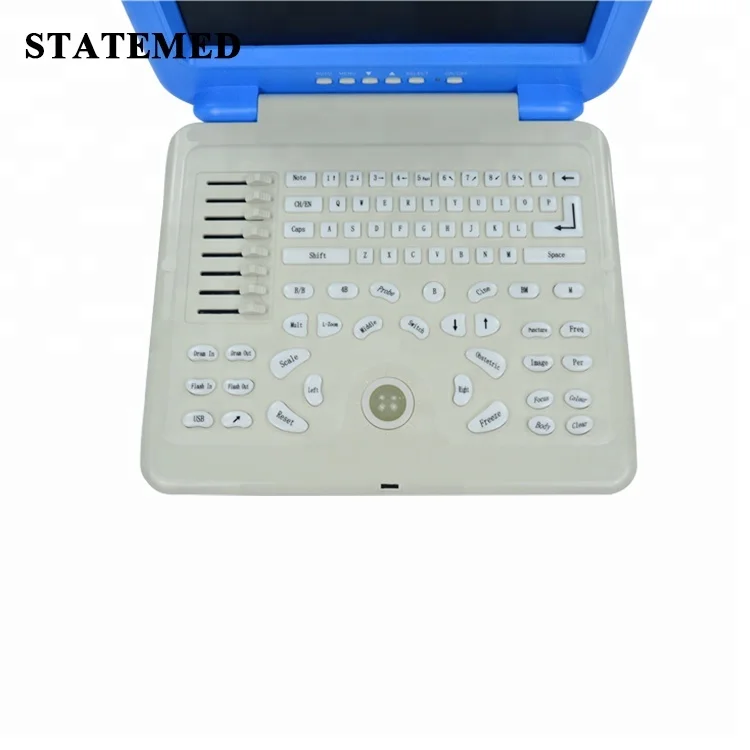

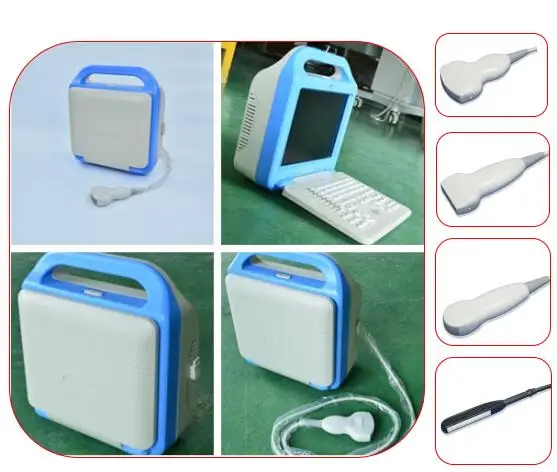

1. Product Show:



2. Product Information



Main Features:

Powerful measurement & calculation software packages

8-Segment TGC ABD Trackball adjustment

12 inch LED monitor

Permanent function of image store: 32 images

Back-lit keyboard

Scope of application: pig, dog, horse, cattle, sheep, cat, etc.

2 probe connectors

Probe automatic identification

Main Technical Specification:

Scanning mode: Convex/Linear/Trans-vaginal/Trans-rectal;

Display modes: B, B+B, B+M, M, 4B;

Scanning depth: 240mm;

Gray scales: 256;

Body marks: 18;

Function of image magnification: image zoom (real-time status under B mode), up to 5 times (area); local amplification function which can be enlarged under the real-time and froze;

Image conversion: up/down, left/right, black/white;

Function of puncture guide;

Max dynamic range>=100db;

Detecting depth>=190mm, scanning depth>=240mm;

The geometric location accuracy: vertical<=5%; lateral<=5%; blind spot: <=4mm;

Vertical resolution: <=1mm (depth<=130mm) < =2mm (130mm

Lateral resolution: <=1mm (depth<=130mm) < =2mm (130mm

Per: 4-stage per function;

Variety of focus selection and multi-stage dynamic focusing with 4 transmit focus; support to launch multi-focus combination;

Fixed characters and real-time clock and calendar display;

Software reset function;

Printer function: can connect laser printer and Video printer directly;

Comment: Date, Name, Sex, Age, Hospital, Annotation;

Zooming: *1.0, *1.2, *1.5, *2.0;

Port: USB 2.0, VGA, Video connector;

USB Function of image store: more than Sixteen thousand images;

Power supply: AC 110V-240V, 50HZ/60HZ;

Probe connector: 2;

USB/VGA/ ports;

Video connector;

Measurement:

Wide application:   Dog and Cat: GS, HD, CRL, BD

 Equine: CD, SD

 Cattle: CRL, HD, HL, TD

 Pig: HD, BD

 Sheep: HD, TD

Standard configuration:

12 inches LCD main unit 1set;

60R/3.5MHZ Convex array probe(2.0/3.5/4.5/5.0/5.5/6.5/7.5MHz) 1pc;

Power line 1pc;

Ground line 1pc;

Fuse 4 pc;

User’s manual in English 1pc;

Warranty card 1pc;

Options:

7.5MHZ Linear array probe (7.5/8.5/10.5MHz);

5.0MHZ Micro-Convex array probe (4.0/5.0/5.5MHz);

7.5MHZ Trans-rectal array probe (5.0/7.5/10.0MHz);

Mitisubishi Video Printer P93C;

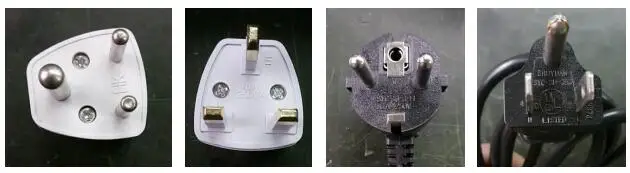

3. Optional Plugs:

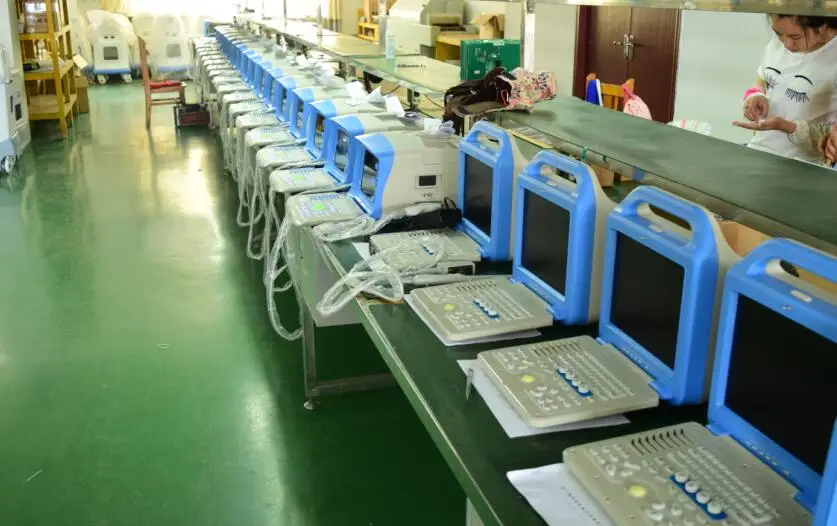

4. Factory:

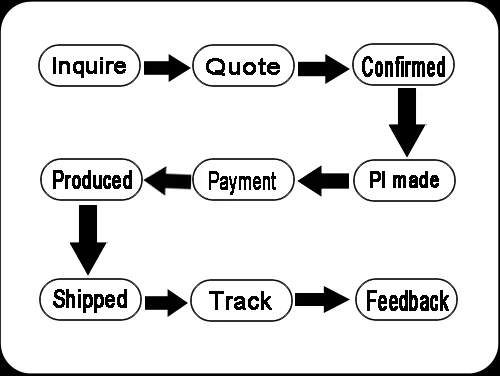

5.Order Guide





6.FAQ



1. How to place order of portable ultrasound machine ?

A: Firstly we confirm product details with you and then send you the Proforma Invoice for checking, If everything is okay then you make payment to us through Alibaba Trade Assurance or T/T, Western Union,after we confirm your payment then we will start the production and ship the product to you at first time.

2. For portable ultrasound machine product,What’s the minimum order quantity (MOQ)?

A: For our portable ultrasound machine , our MOQ:1pc,All clients are warmly welcomed to place order,if you have any product questions,we will serve you anytime by Email or Trademanager.

3. What is your warranty?

A: For most of our products the warranty is for 12 months, some products we provide 18 months warranty. For portable ultrasound machine , we provide 12 months warranty.

4. What’s your delivery time?

A: Generally it is 5 working days if the goods are in stock. or it is 10 working days if the goods are not in stock, And also the delivery time depends on quantity. For  portable ultrasound machine , the delivery time is 10 working days.

5. How to ship the product?

A: The shipping way normally depend on your quantity,total CBM and weight.We have our own shipping company to provide best shipping cost and efficient way.

6. What is your terms of payment ?

A: Payment terms:T/T,Western Union or Alibaba trade Assurance. By Alibaba trade Assurance will be better and most welcomed.



Why to choose Us?

A. Export department delicated since 2006
B. Return policy
C. 1-2 years warranty period, life-long maintenance
D. High quality with authorized certification, CE, ISO etc.
E. Professional engineer team with best technique support
F. 24 hours on line service, response rate is up to 100%



If have any special demand, don't hesitate to tell us.

Looking forward to cooperate with you in the future.
