Product Overview
Description
50KW 60KW 80KW 100KW Off Grid Power Inverter with AC bypass input stable voltage and frequency output
Product Description
Technical Features for 50KW 60KW 80KW 100KW Off Grid Power Inverter with AC bypass input stable voltage and frequency output
1, Two kinds of start mode: Reduction Voltage Start and Variable Frequency Start. Customers can set start mode according to the type of the load.
2, The output frequency can be set, this function is very convenient for customer.
3, The output voltage can be set between +20 % to -40 % of rated voltage. It’s a great convenience to users.
4, The DC input voltage range can also be set. Over-voltage point, under-voltage point, over-voltage recovery point, under-voltage recovery point all can be set via the LCD panel. Convenient for increasing or reducing the quantity of batteries, photovoltaic modules also can be used flexibly.
5, Pure sine wave output. with good transient response less than 40MS, little harmonic distortion, higher conversion efficiency and stable output voltage.
6, Powerful data display and fault instruction function. LCD can display the DC input voltage, output frequency, phase voltage, phase current, AC bypass input voltage, output power KWH, time and date, temperature, fault code display.
7, Using the sixth generation efficient IPM intelligent module from Japanese Mitsubishi, high efficiency and stable performance. It with powerful protection function, the protection for short circuit, over load, over temperature is more safe and reliable. It’s service life can up to 15 years or more.
8, Wide input voltage can be set according to customer’s requirement. Input voltage range can be selected from 100-400V or 400-850V.
9, Product have passed the European CE (EMC and LVD) certificated and accredited by Australia CEC energy network.
Technical Data for 50KW 60KW 80KW 100KW Off Grid Power Inverter with AC bypass input stable voltage and frequency output
BZP-60KW | ||
Isolation mode | Low Frequency Transformer | |
DC Input | Rated voltage (Vdc) | 480V |
Rated current(A) | 125A | |
AC Output | Rated output power | 60KW |
Output waveform | Pure Sine Wave | |
Rated Voltage | 380VAC±3% | |
Phases | 3 phase 4 wire | |
Rated current(A) | 157A (phase current) | |
Frequency | 50Hz or 60Hz | |
Rated output voltage range (V) | 380/400/415/440VAC optional | |
Power Factor(PF) | 0.9 | |
Overload Ability | 150%, 5 seconds | |
Efficiency | >93% | |
Waveform distortion rate (THD) | <3% linear load | |
Dynamic Response (0 to 100% load) | 5%,≤50ms | |
Display | LCD | |
Running mode | Working continuously | |
Electrical insulation properties | 2000Vac, 1 Minute | |
Protection Function | Protection | Input reverse polarity, under voltage, overvoltage, output over-current, short circuit, overheating etc. |
Cooling method | Fan-cooled | |
Short-circuit protection | No automatic recovery, need to restart the machine | |
Working environment | Noise ( 1 meter) | ≤50dB |
Degree of protection | IP20(indoor) | |
Working Altitude(m) | ≤2000 | |
Working temperature | -25~+55℃ | |
relative humidity | 0~90%,non-condensing | |
Mechanical dimension | Depth* Width * Height | 900x1100x1600mm |
Weight (Kg) | 400Kg | |
Above parameter only for reference ,could be custom made to user specifications.
Model | BZP-80KW | BZP-100KW | ||
Isolation mode | Low Frequency Transformer | |||
DC Input | Rated voltage (Vdc) | 480V | ||
Rated current(A) | 167A | 208A | ||
AC Output | Rated output power | 80KW | 100KW | |
Output waveform | Pure Sine Wave | |||
Rated Voltage | 380VAC±3% | 380VAC±3% | ||
Phases | 3 phase 4 wire | 3 phase 4 wire | ||
Rated current(A) | 121A (phase current) | 152A (phase current) | ||
Frequency | 50Hz or 60Hz | |||
Rated output voltage range (V) | 380/400/415/440VAC optional | |||
Power Factor(PF) | 1 | |||
Overload Ability | 150%, 5 seconds | |||
Efficiency | >93% | |||
Waveform distortion rate (THD) | <3%(Linear load) | |||
Dynamic Response (0 to 100% load) | 5%,≤50ms | |||
Display | LCD | |||
Running mode | Working continuously | |||
Electrical insulation properties | 2000Vac, 1 Minute | |||
Communication interface (optional) | RS485 | |||
Protection Function | Protection | Input reverse polarity, under voltage, overvoltage, output over-current, short circuit, overheating etc. | ||
Cooling method | Fan-cooled | |||
Short-circuit protection | No automatic recovery, need to restart the machine | |||
Working environment | Noise ( 1 meter) | ≤50dB | ||
Degree of protection | IP20(indoor) | |||
Working Altitude(m) | ≤2000 | |||
Working temperature | -25~+55℃ | |||
relative humidity | 0~90%,non-condensing | |||
Mechanical dimension | Depth* Width * Height | 750x750x1400mm | ||
Weight (Kg) | 520Kg | 600Kg | ||
50KW-80KW Picture:

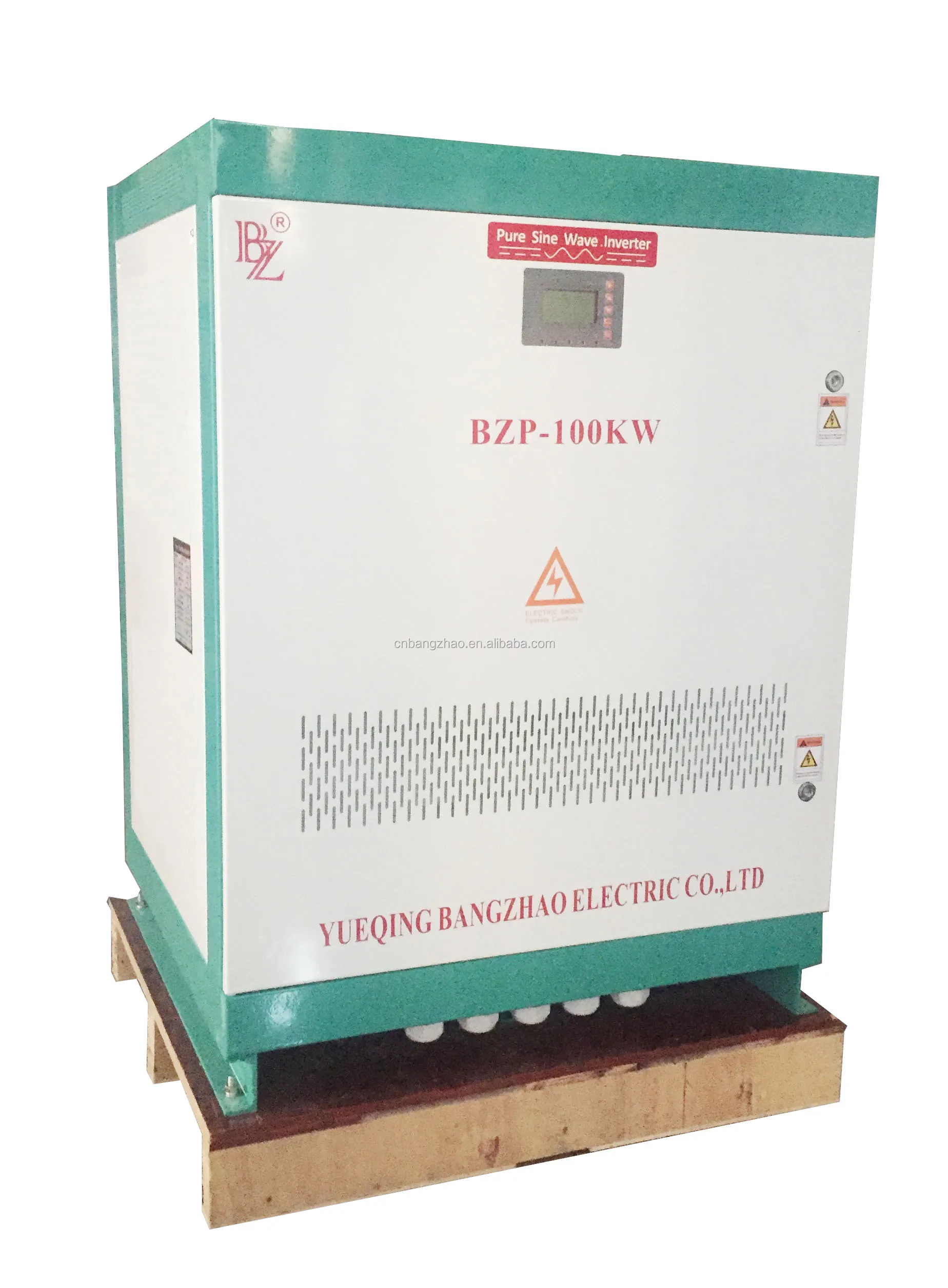

100KW off grid inverter:

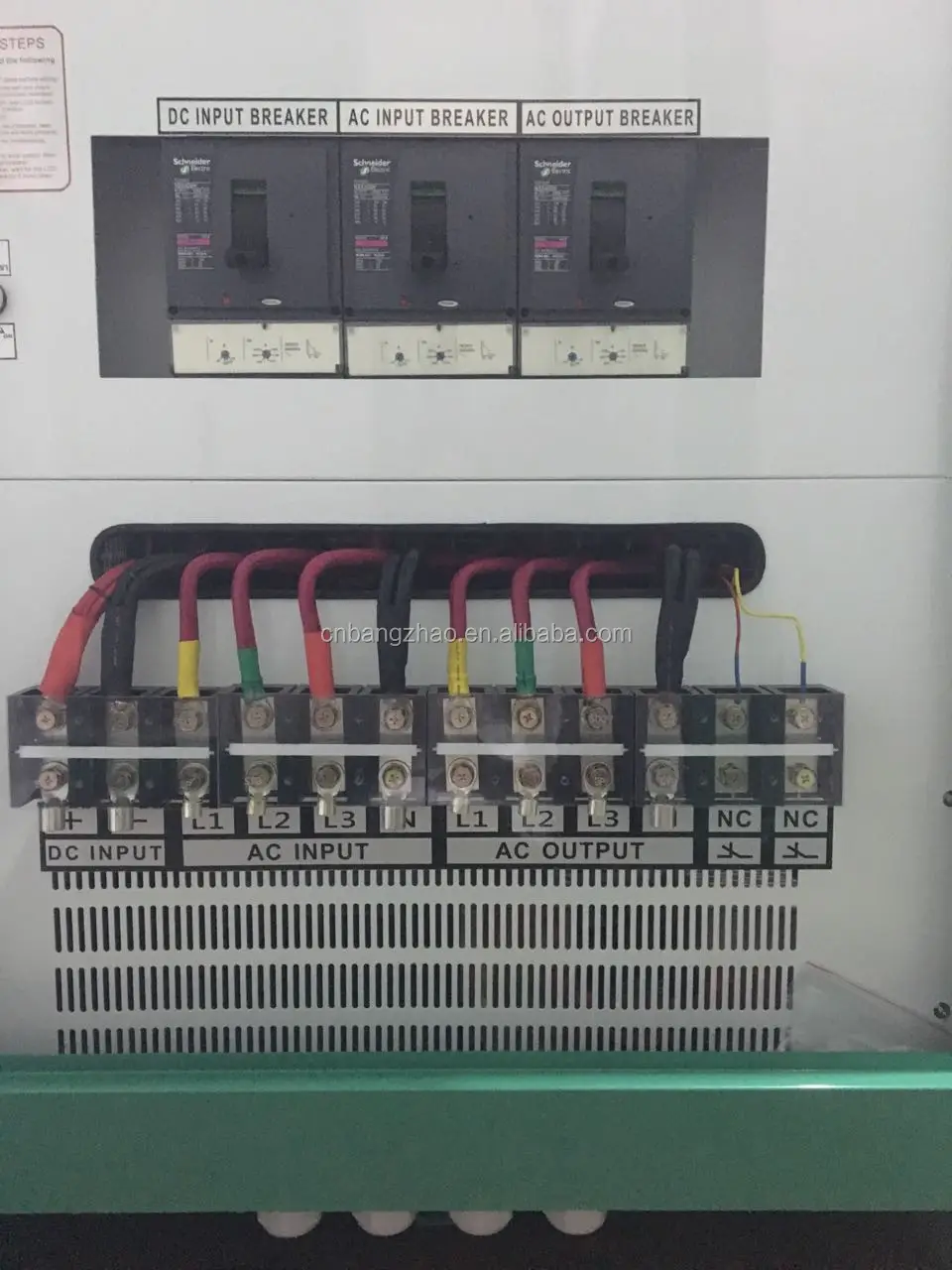

DC input is connected with Solar panels or Battery positive and negative.
AC input is connected with AC grid or AC generator
AC output is connected with 3 phase load
LCD parameter setting details:

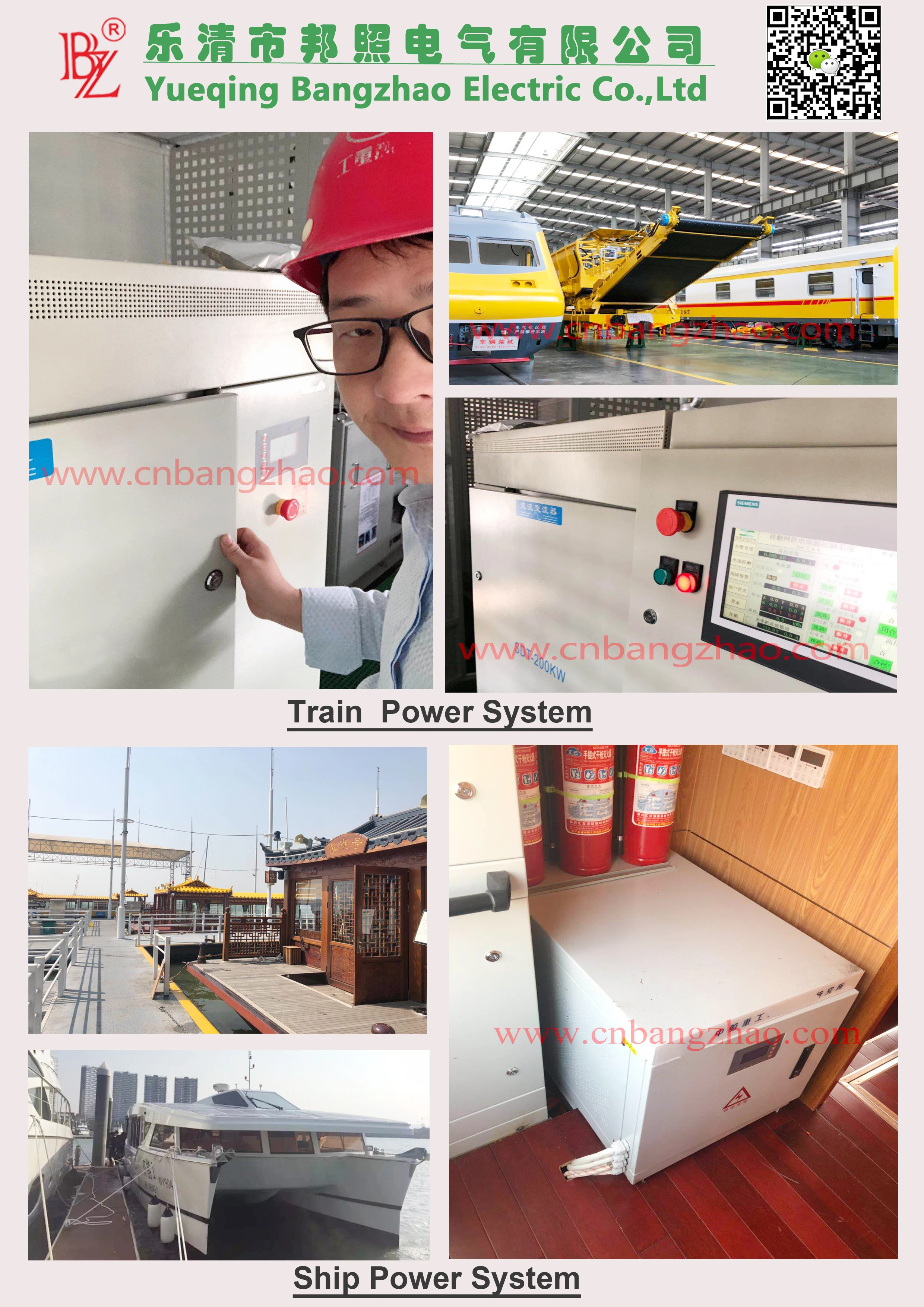

Installed case for Train or Boat system:

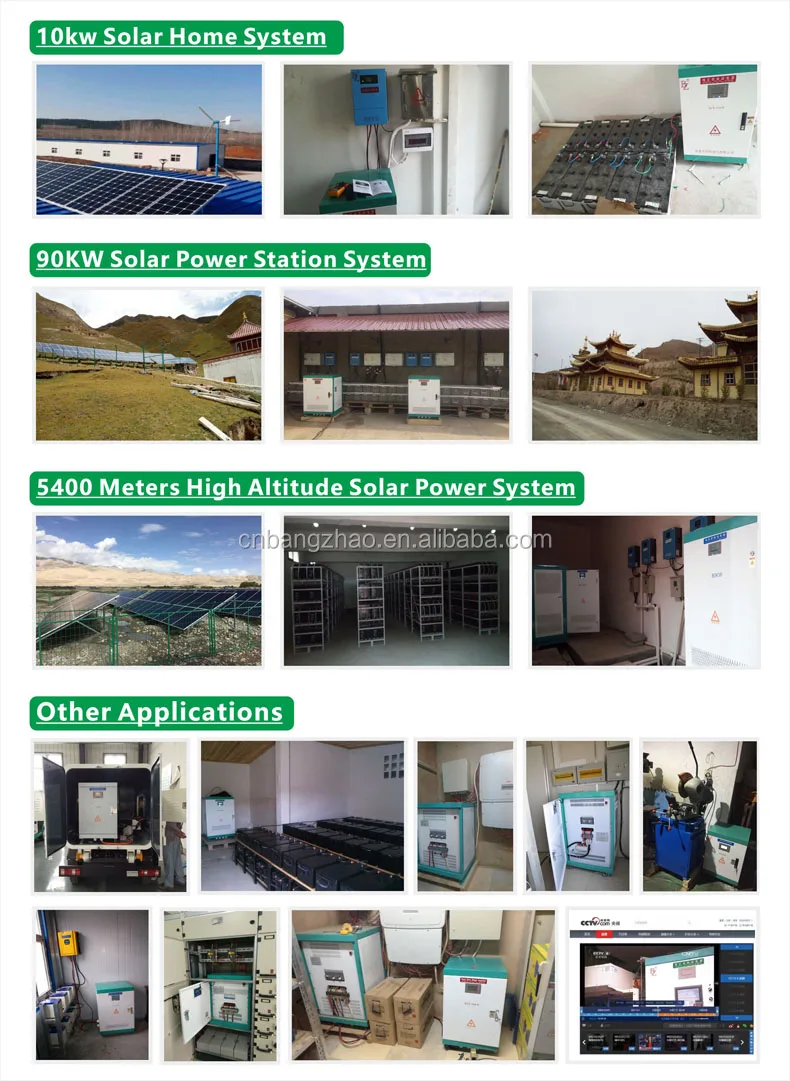

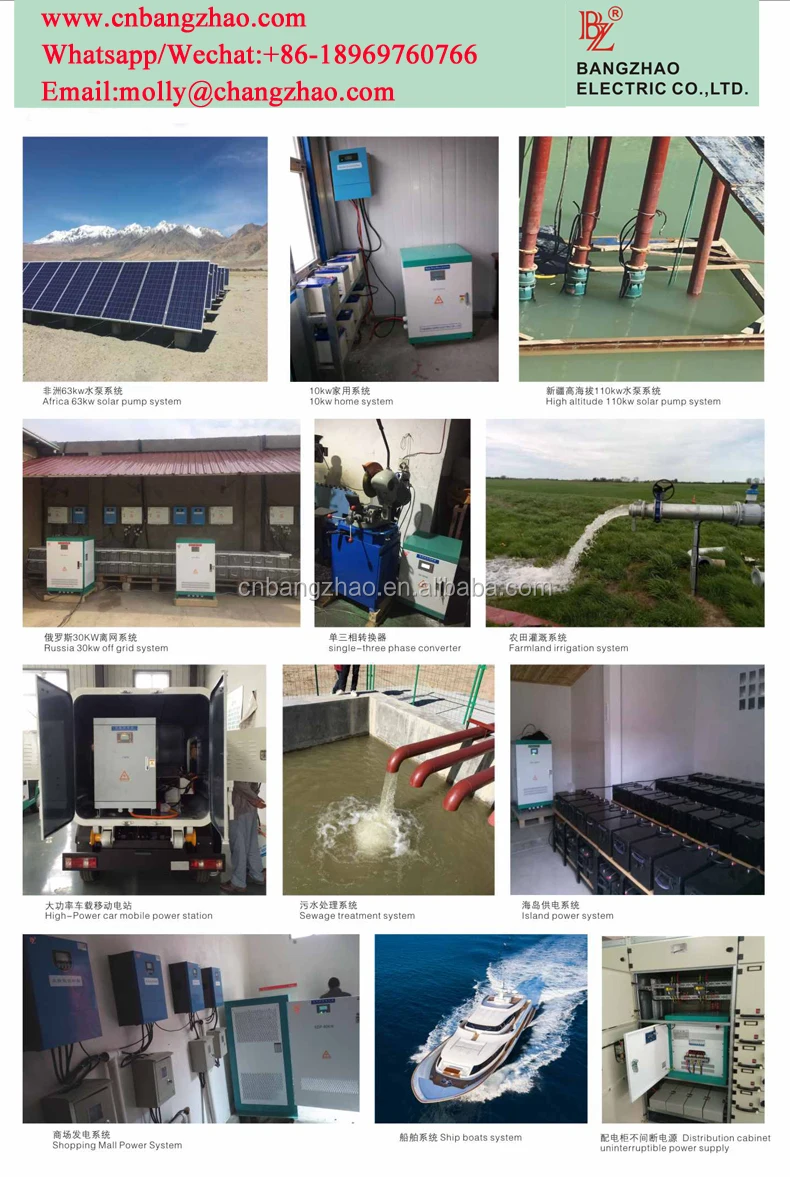

Installation Case
