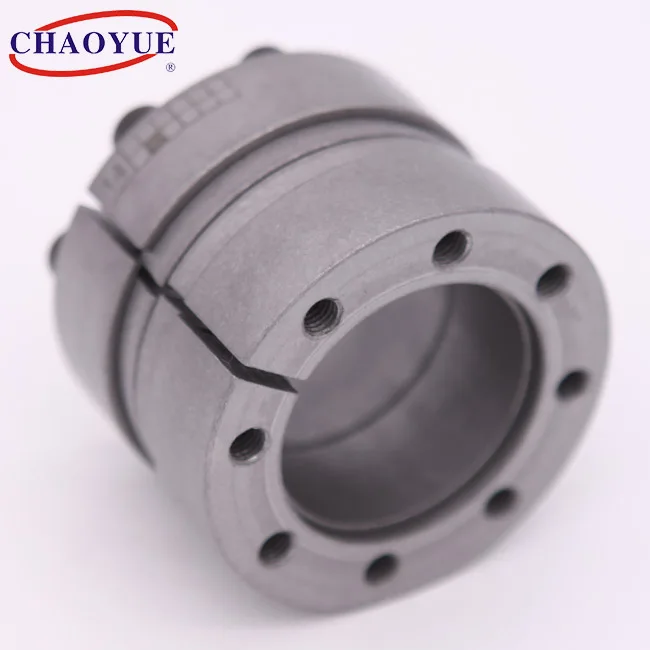

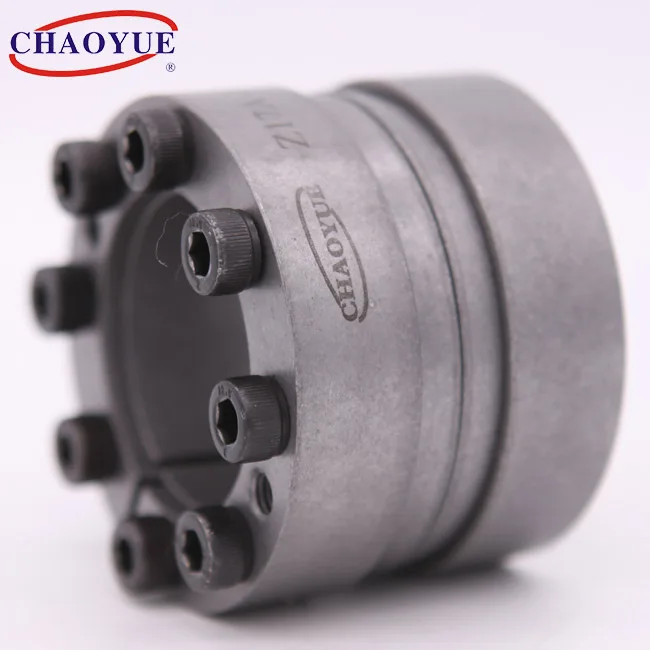

Type Z17A is a keyless shaft power lock. It can replace single keyway and spline ,in order to realize the connection between machinery parts (such as gear wheel,flywheel) and shafts,so the loading can be transmitted.Through the function of high strength of bolt when locking device is working,enormous strengh of tight holding power between hub, inner loop and shaft are produced.When bearing the weight and loading depend on connection power between locking device and machinery and additional frictional torce to transmission torsion or power on shaft.

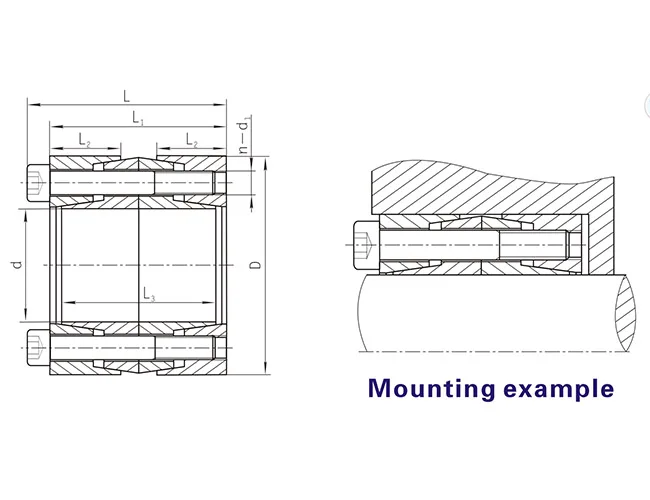

DIMENSION
Bolt
Rated Load
Pressure
on shaft
Pf
N/mm2
Pressure
on hub
Pf'
N/mm2
Torque of
tighten
locking-bolt
MA
N·m
Weight
[Kg]
d
D
L
L1
L2
L3
d1
n
Torque
Mt
[kN·m]
Axial
Force
Ft [kN]
30 35 40 45 50
55 60 65 75 80
52 52 52 64 64
46 46 46 56 56
17 17 17 20 20
40 40 40 48 48
M6 M6 M6 M8 M8
6 7 8 6 7
0.9 1.25 1.5 2.5 3.0
60 71 75 112 120
132 135 124 136 132
85 93 90 98 100
17 17 17 41 41
0.5 0.6 0.7 1.1 1.2
55 60 65 70 75
85 90 95 110 115
64 64 64 78 78
56 56 56 68 68
20 20 20 24 24
48 48 48 58 58
M8 M8 M8 M10 M10
8 8 9 8 8
3.8 4.3 5.3 7.6 8.2
138 143 162 219 219
138 127 132 143 134
108 102 108 110 105
41 41 41 83 83
1.3 1.4 1.5 2.6 2.8
80 85 90 95 100
120 125 130 135 145
78 78 78 78 88
68 68 68 68 76
24 24 24 24 28
58 58 58 58 66
M10 M10 M10 M10 M12
8 9 10 10 8
8.7 10.4 12.3 13 15
219 240 274 274 301
125 133 139 132 121
101 109 116 112 98
83 83 83 83 145
2.9 3.1 3.2 3.3 4.5
110 120 130 140 150
155 165 180 190 200
88 88 98 98 98
76 76 86 86 86
28 28 33 33 33
66 66 76 76 76
M12 M12 M12 M12 M12
9 10 12 12 14
18.6 22.5 29.3 31.5 39.4
338 376 451 451 526
123 126 121 112 122
103 108 101 95 106
145 145 145 145 145
4.9 5.3 7.3 7.8 8.2
160 170 180 190 200
210 225 235 250 260
98 112 112 126 126
86 98 98 114 114
33 38 38 46 46
76 86 86 102 102
M12 M14 M14 M14 M14
15 12 14 16 18
45 52.5 64.9 78.3 92.7
563 619 722 825 928
123 112 124 113 121
108 96 107 95 103
145 230 230 230 230
8.7 11.6 12.2 16.7 17.4
220 240 260 280 300
285 305 325 355 375
138 138 138 164 164
122 122 122 146 146
50 50 50 60 60
110 110 110 130 130
M16 M16 M16 M18 M18
16 16 18 18 20
126 137.5 167.6 217 258.5
1146 1146 1289 1552 1724
126 115 120 113 117
107 100 105 97 102
355 355 355 485 485
22.3 24.1 25.8 38.2 40.6
320 340 360 380 400
405 425 455 475 495
190 190 220 220 220
170 170 198 198 198
72 72 84 84 84
154 154 178 178 178
M20 M20 M22 M22 M22
20 20 20 21 21
357.8 380 501 555 584
2236 2236 2784 2923 2923
120 113 115 115 109
102 97 97 97 93
690 690 930 930 930
58.6 61.8 85 87.2 93.4
420 440 460 480 500
515 545 565 585 605
220 250 250 250 250
198 226 226 226 226
84 96 96 96 96
178 202 202 202 202
M22 M24 M24 M24 M24
24 24 24 24 28
657 795 831 868 985
3132 3617 3617 3617 3940
111 108 103 99 104
96 92 88 85 91
930 1200 1200 1200 1200
97.5 128.9 134.1 139.3 144.5
520 540 560 580 600
630 650 670 670 710
250 250 250 250 250
226 226 226 226 226
96 96 96 96 96
202 202 202 202 202
M24 M24 M24 M24 M24
28 28 30 30 30
1024 1063 1181 1224 1266
3940 3940 4219 4219 4219
100 96 100 96 92
88 84 88 84 83
1200 1200 1200 1200 1200
157.6 163.1 168.6 174 179.5

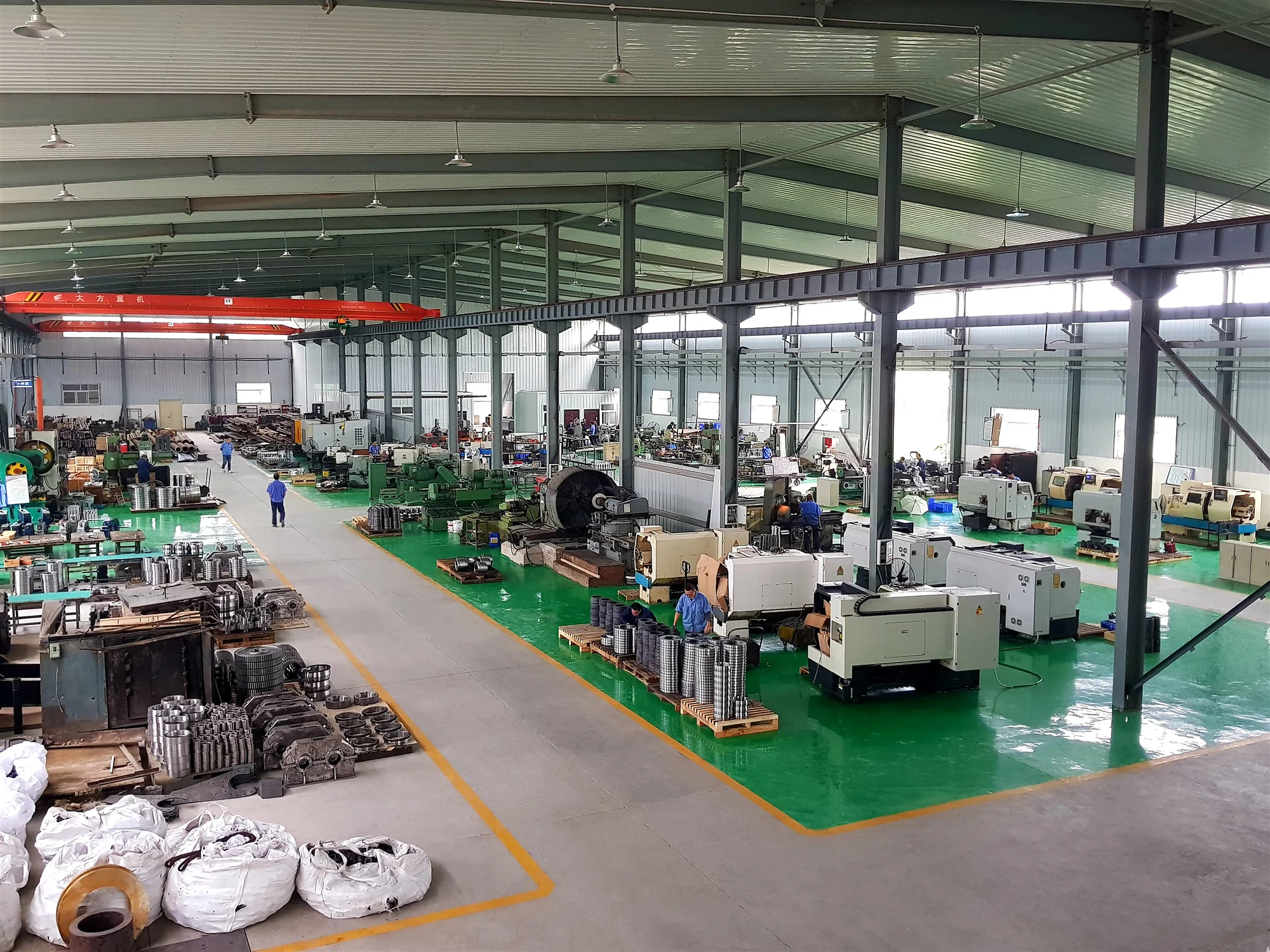

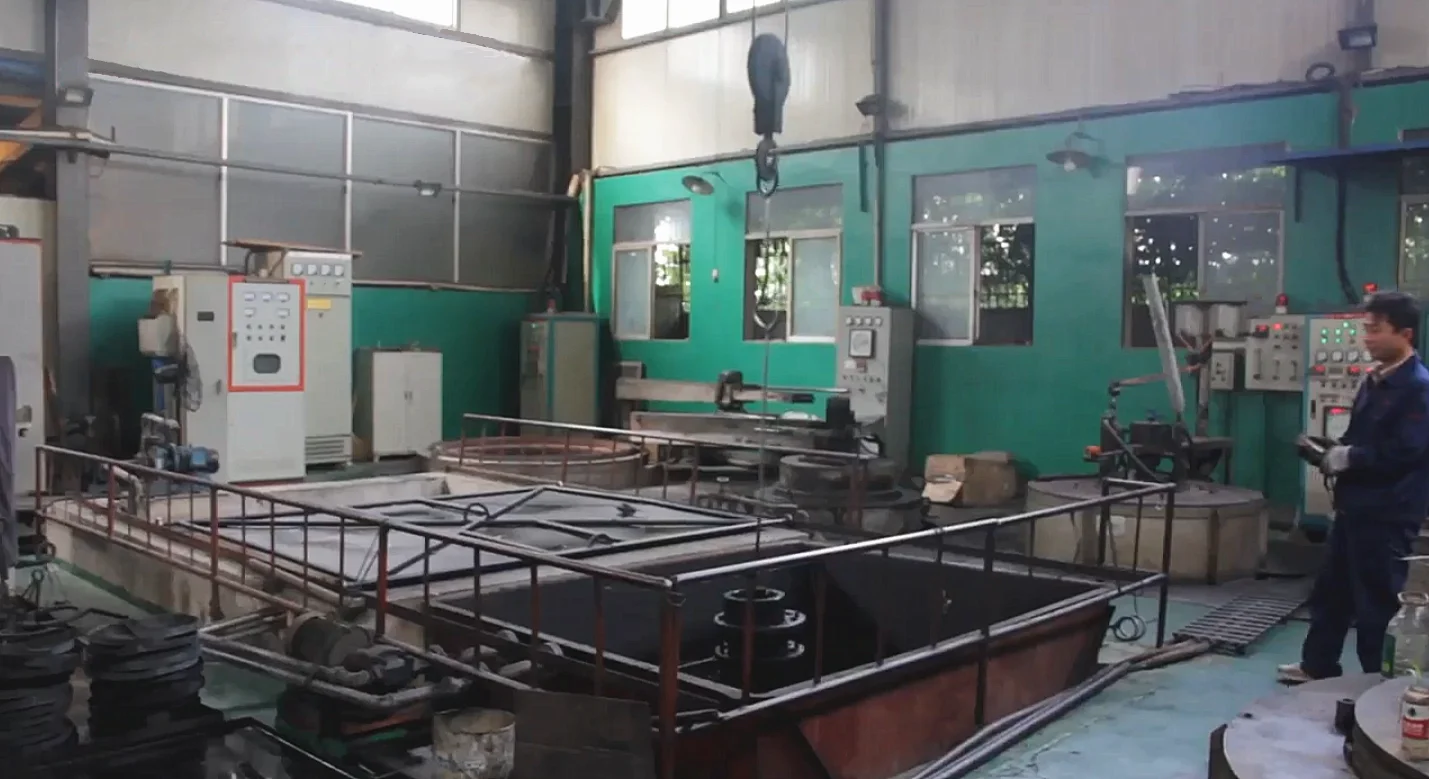

Company Information
Our Advantages
Certifications

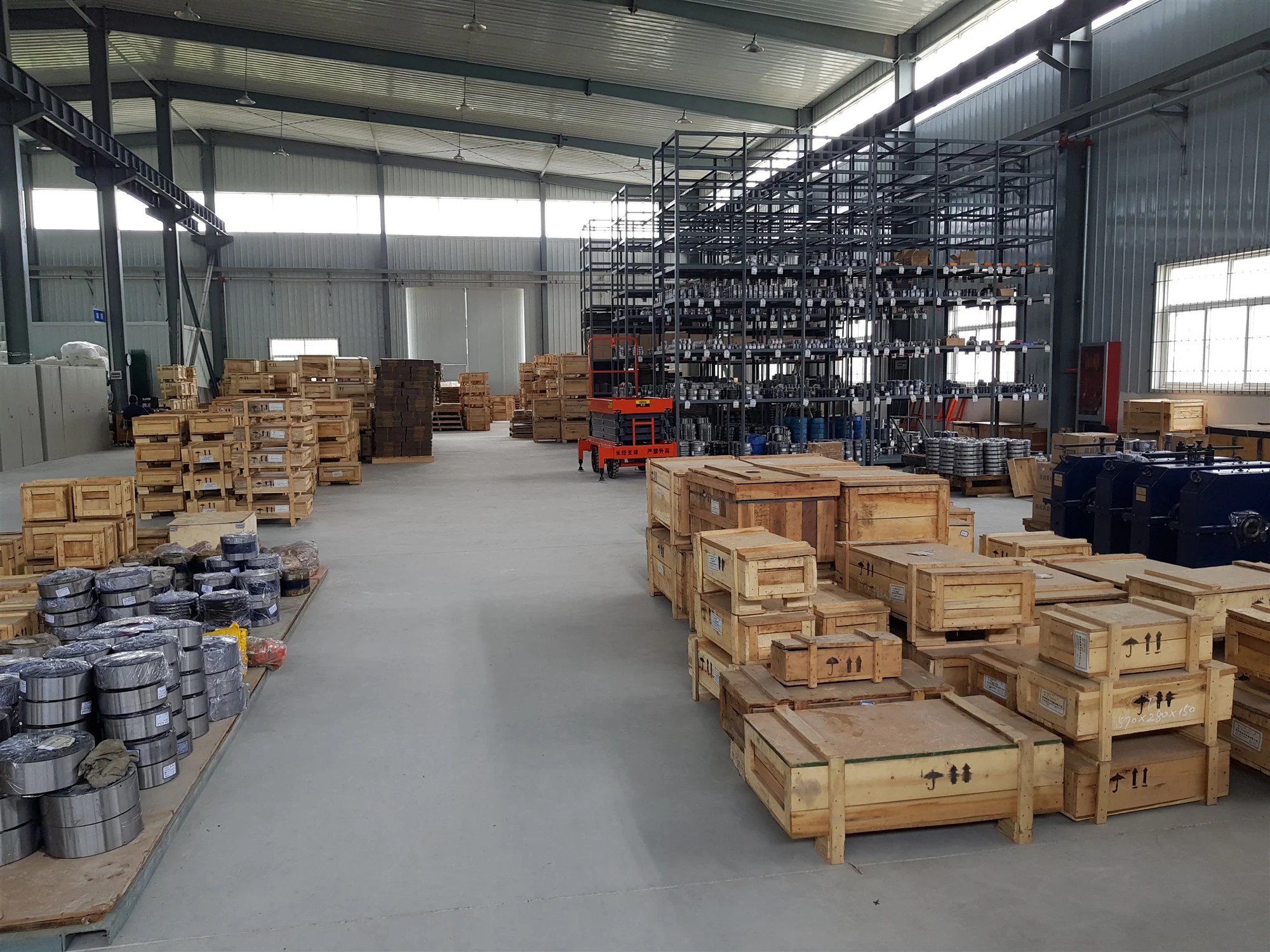

Packaging & Shipping
FAQ
Q: Are you factory or trading company ?
A : Xianyang CHAOYUE Clutch Co., Ltd was founded in 1999. We are a professional locking assembly & clutch manufacture with 20 years' experance of R&D.
Q: How to get price ?
A: Kindly info us with the product type and we will quote you ASAP.
If you are not sure about these details , pls just tell us :
Inner diameter is mm, outer diameter is mm, width is mm, torque range is kN·m,
Q: What's the MOQ ?
A: The minimum order quantity for most of our product is 1 pcs.
