This foldable model has larger capacity than normal shop cranes at 3 positions. The lifting piston and pump piston are chrome plated, and there is relief valve to prevent overload.
Main Features
Main Features of Foldable shop crane
1) Larger Capacity than Nomal Shop Cranes at 3 Positions. 2) Chrome Plated Lifting Piston and Pump Piston. 3) Relief Valve to Prevent Overload. 4) 360 Degree Swivel Operating Handle. 5) Forged Heavy Duty Swivel Hook. 6) With New Deadman Lowering System. 7) 125% Overload Testing Before Delivery. 8) Conforms to CE Safety Standard.

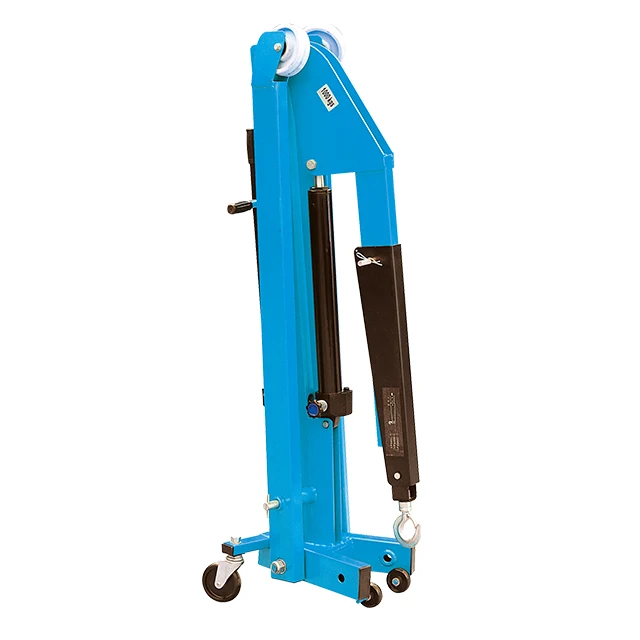

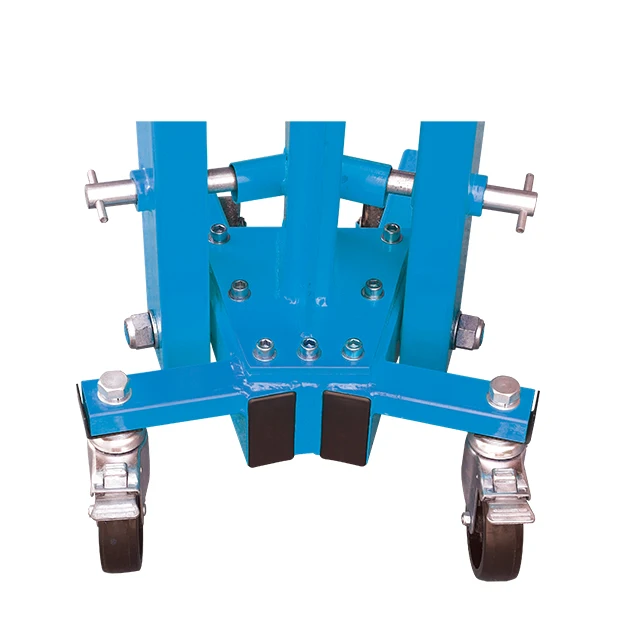

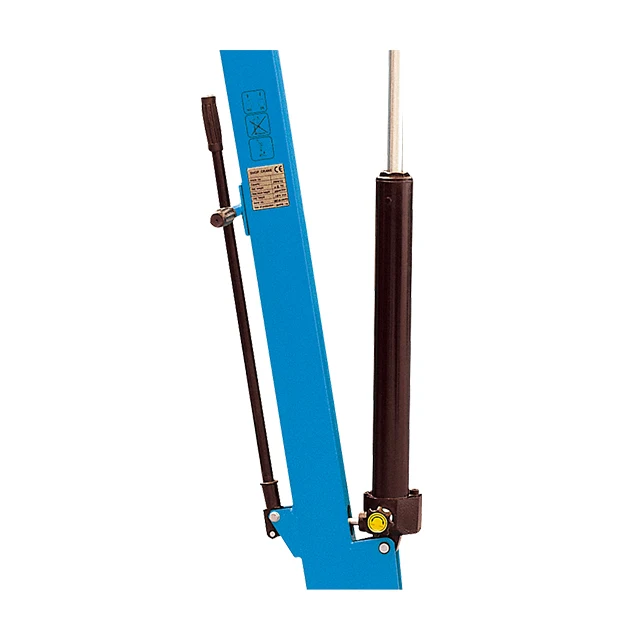

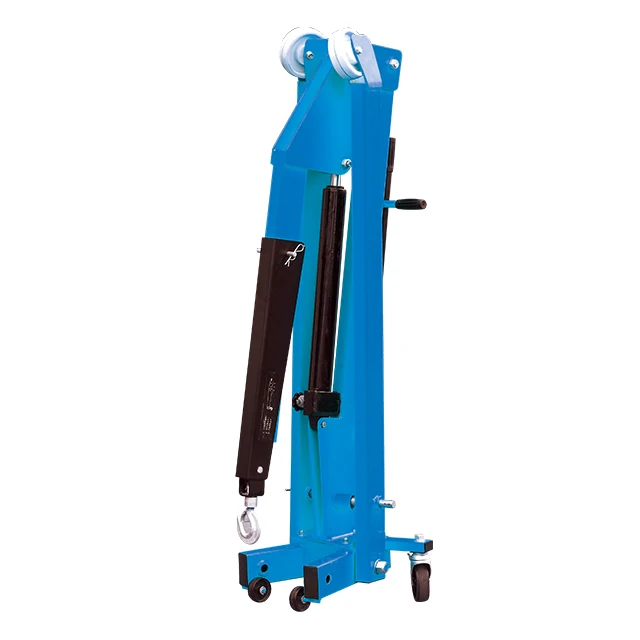

Detailed Images

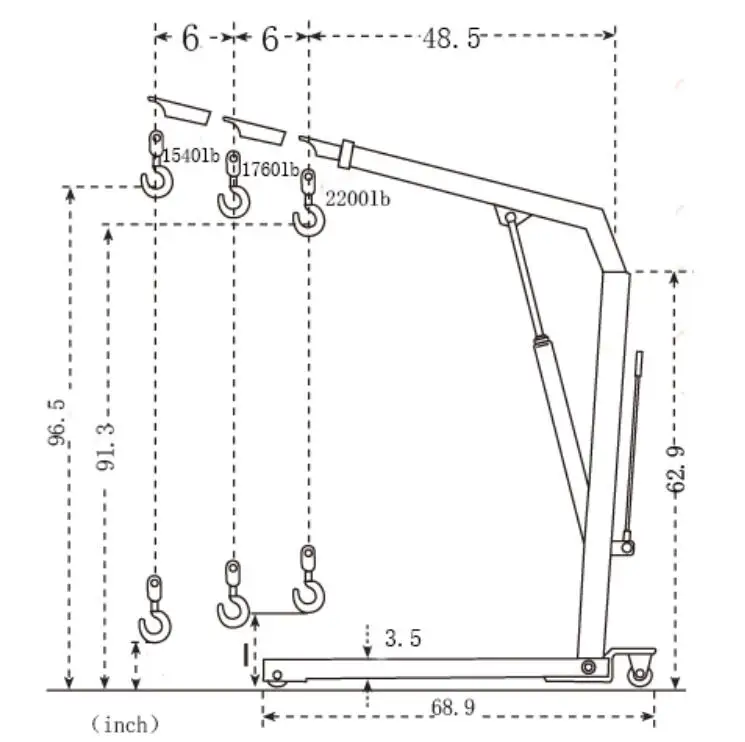

Size Information
Model
SC1000
Capacity at Position P1 (kg)
1000
Capacity at Position P2(kg)
800
Capacity at Position P3(kg)
700
Overall Width(mm)
1100
Net Weight(kg)
115
Dimensions A(mm)
1597
Dimensions B(mm)
90
Dimensions C(mm)
1749
Dimensions D(mm)
123
Dimensions E(mm)
150
Dimensions F(mm)
2450
Dimensions G(mm)
2320
Dimensions I(mm)
280
