Product Overview
Description
High safety corrosion-resistant hydraulic check valve
Product Description

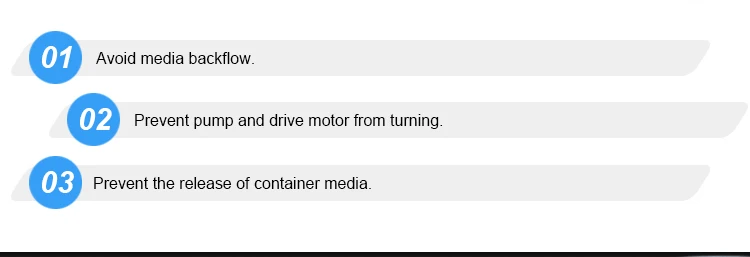

One-way valve is also called check valve or check valve. It is used in hydraulic system to prevent reverse flow of oil flow.
Name |
Type |
Size | Pressure max.(MPa) | Flow (L/min) |
Check valve | S | 6-30 | 31.5 | 400 |
| RVP | 6-40 | 31.5 | 600 |
Stack check valve | Z1S | 6 10 | 31.5 | 100 |
Stacked type hydraulic check valve | Z2S | 6-22 | 31.5 | 360 |
Pilot operated Check valve | SV/SL | 10-32 | 31.5 | 550 |
Product Details

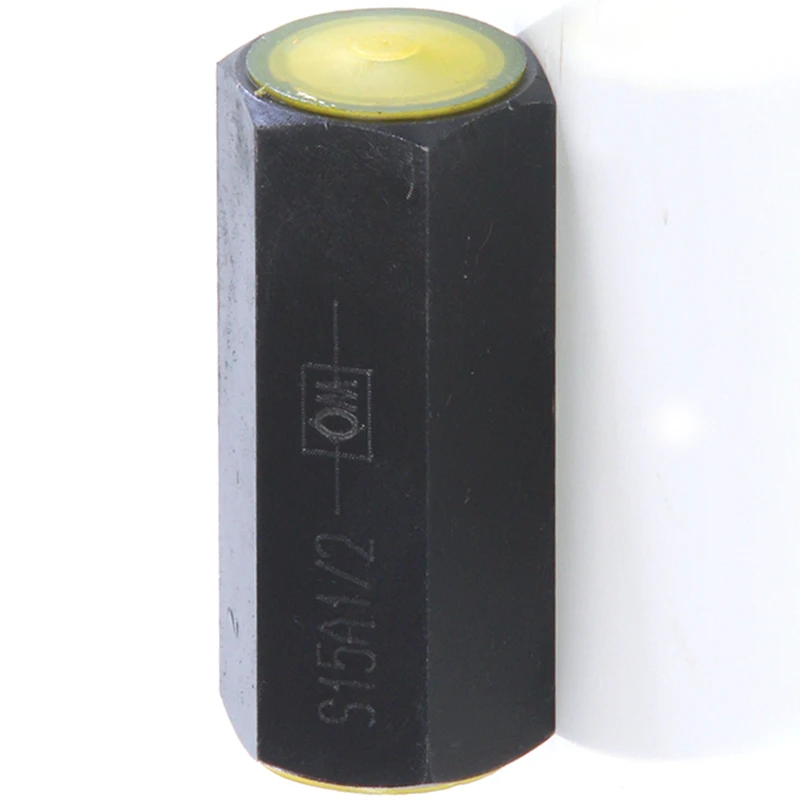

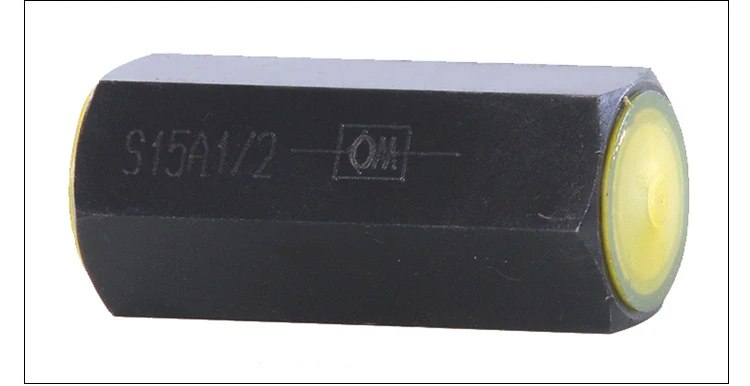

Check valve type S
Features:
- For threaded connection(screw-in connection)
- Subplate mounting
- Leakage-free closure in one direction
- Various cracking pressures, optional

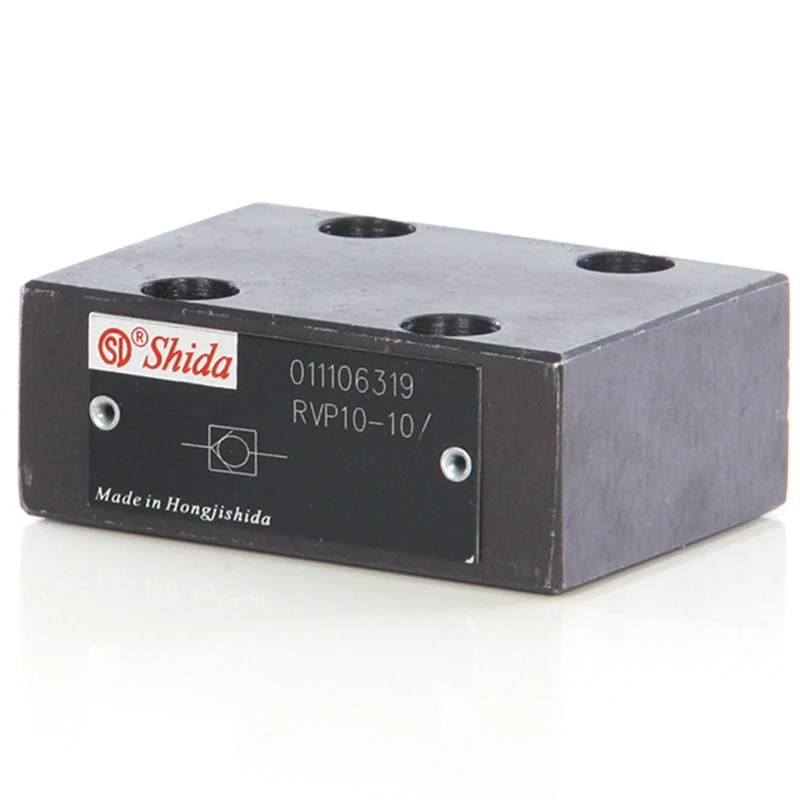

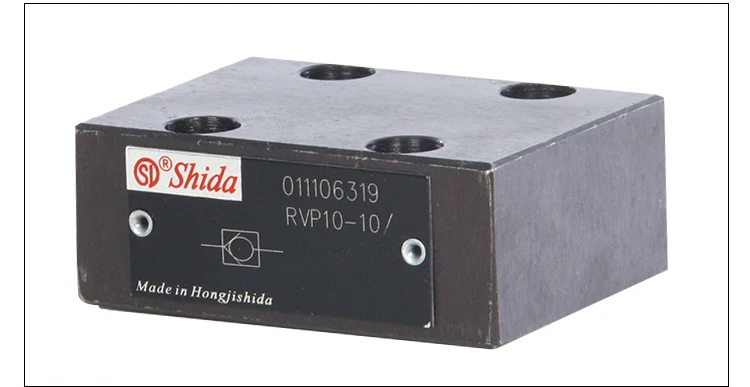

Check valve Type RVP
Features:
- Subplate connection
- Leakage-free closure in one direction

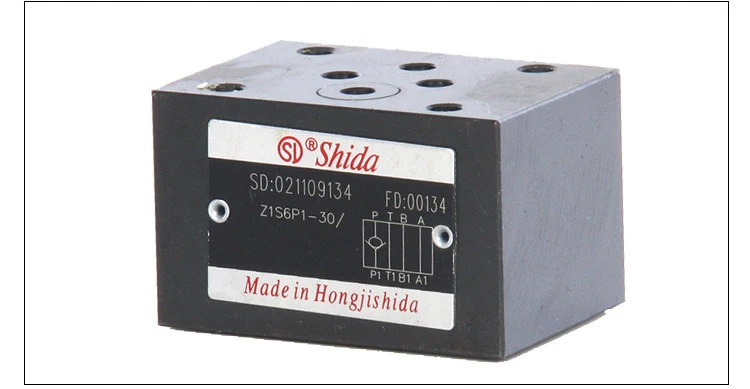

Stack check valve Type Z1S
Features:
- Sandwich plate valve for use in vertical stacking assemblies
- 8 different isolating functions

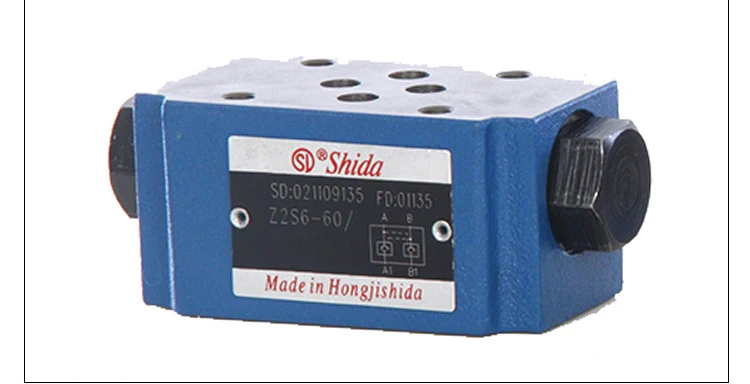

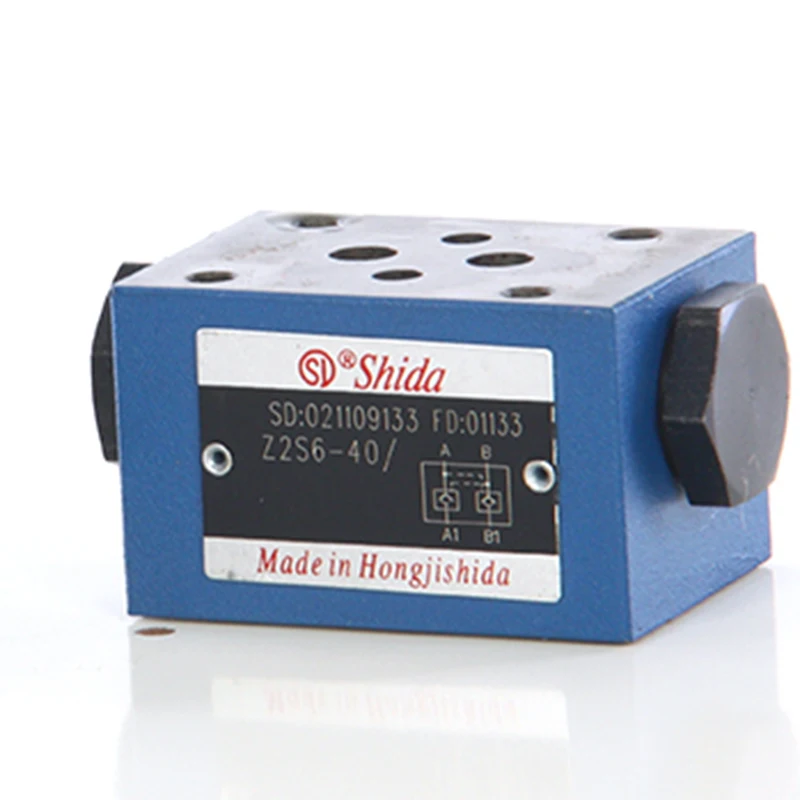

Stacked type hydraulic check valve Type Z2S
Features:
- For the leak free closure of one or two service ports
- Mounting pattern to DIN 24340 form A,ISO 4401 and CETOP-RP 121 H for use in vertical stacking assemblies

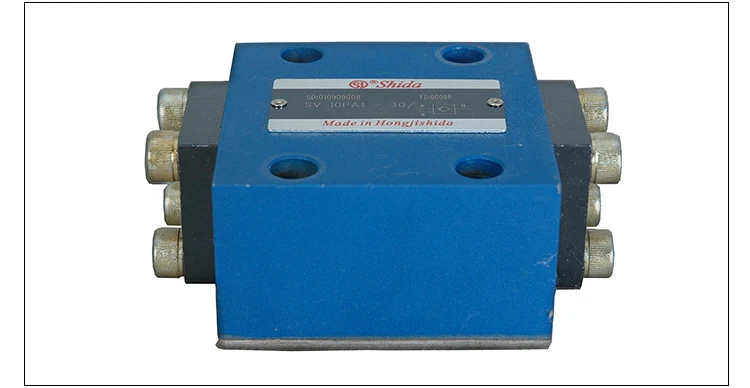

Pilot operated Check valve Type SV/SL
Features:
- check valve controlled by fluid
- For subplate mounting,Mounting pattern to DIN 24 340
- Subplate or screw threaded connection
- With or without leakage port
- With or without pre-opening
- Type with pre-opening,dampened decompression
- 4 opening pressures
- Porting pattern to DIN 24 340 form A, ISO 4401 and CETOP-RP 121 H
Production Advantage

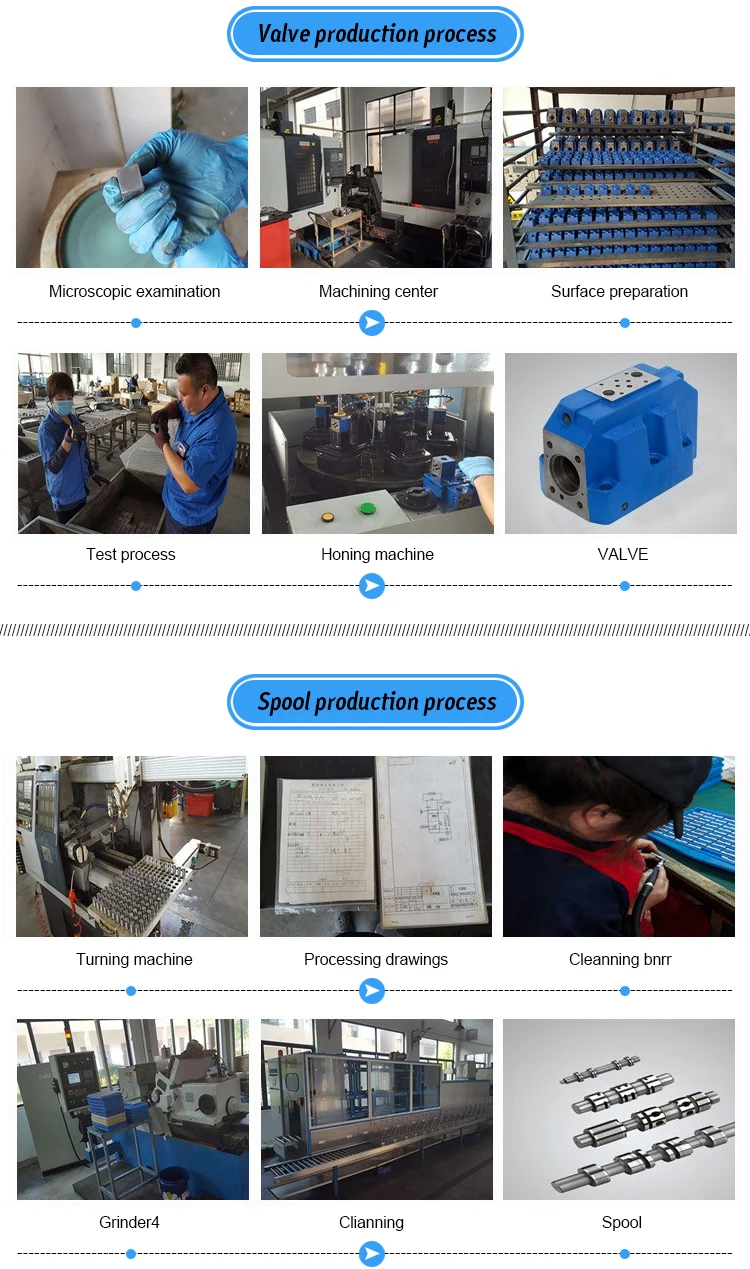

Production Process
