Newest Models Rvg Dental Sensor LM-10P X Ray Equipment
US $680.00-$950.00
Ceramic fiber furnace, electric furnace, PID auto control dental porcelain sintering furnace
- Category: Other Dental Equipments >>>
- Supplier: Nanyang Xinyu New Material Technology Co. Ltd.
Share on (60756176823):
Product Overview
Description

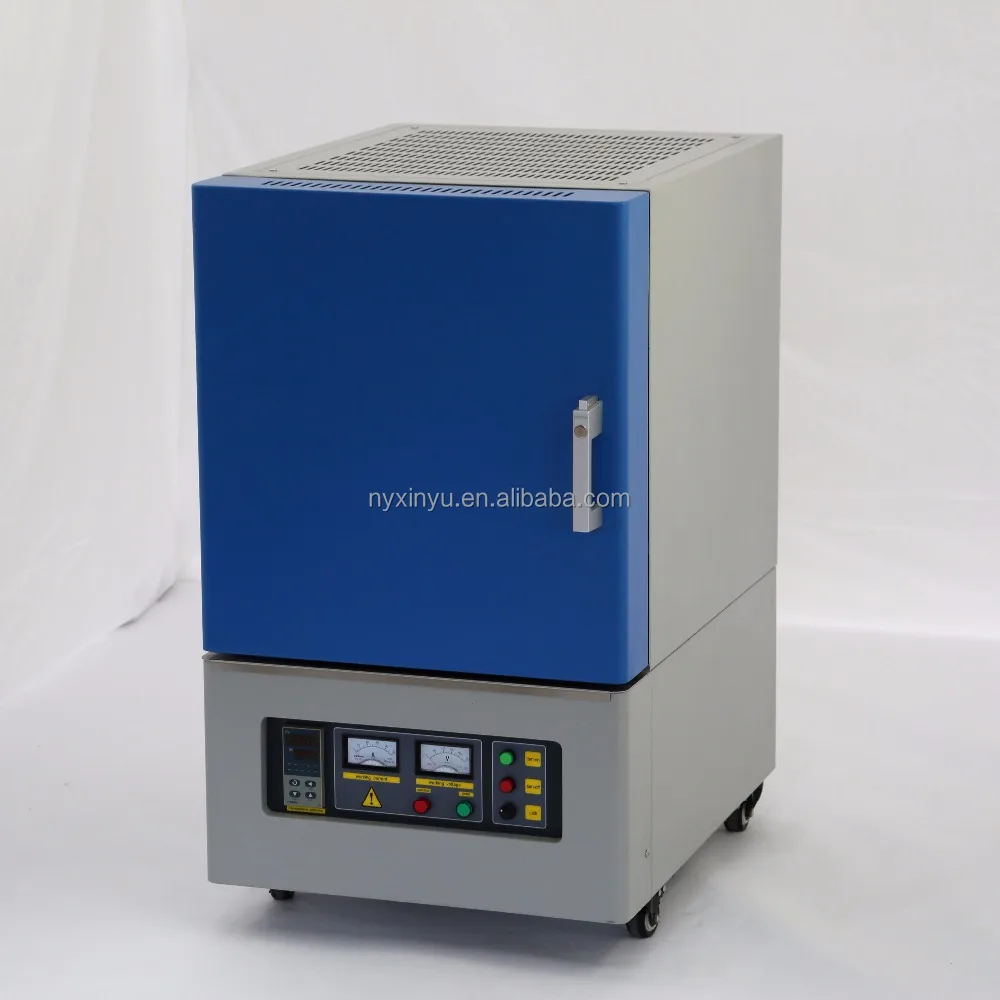

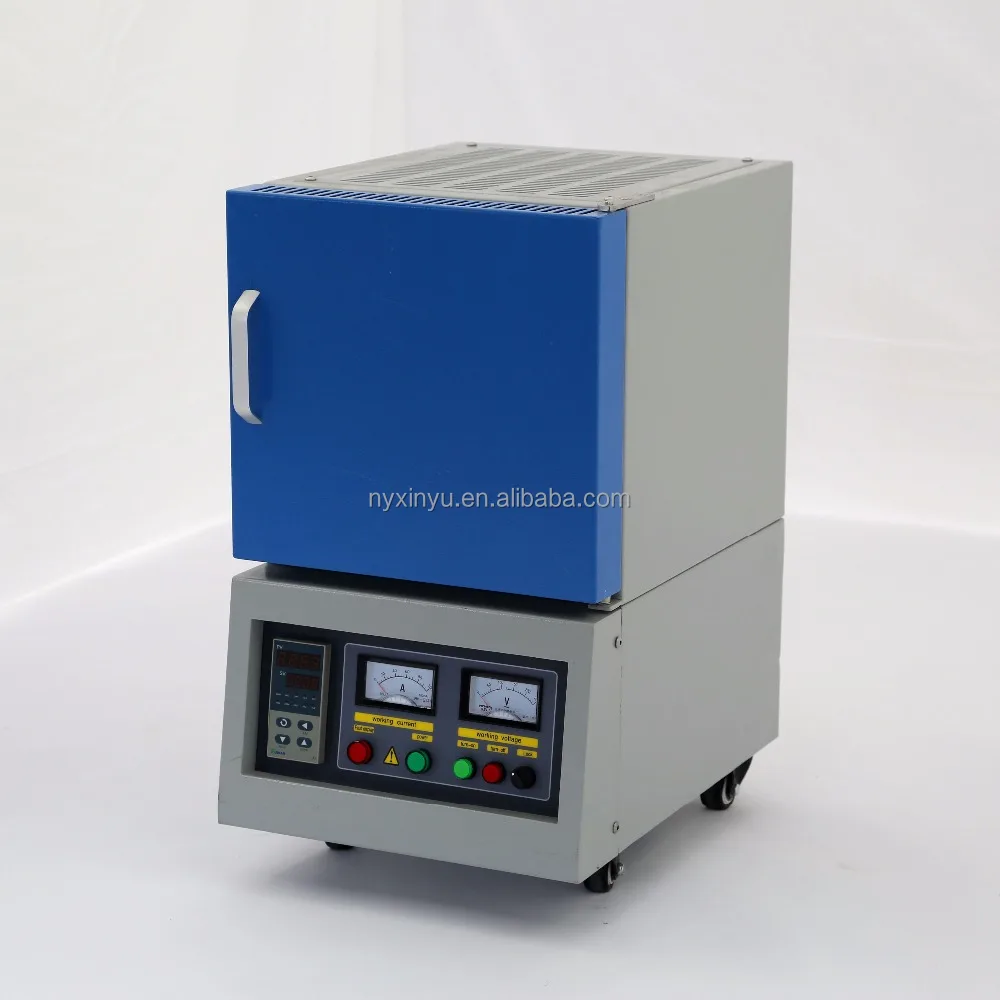

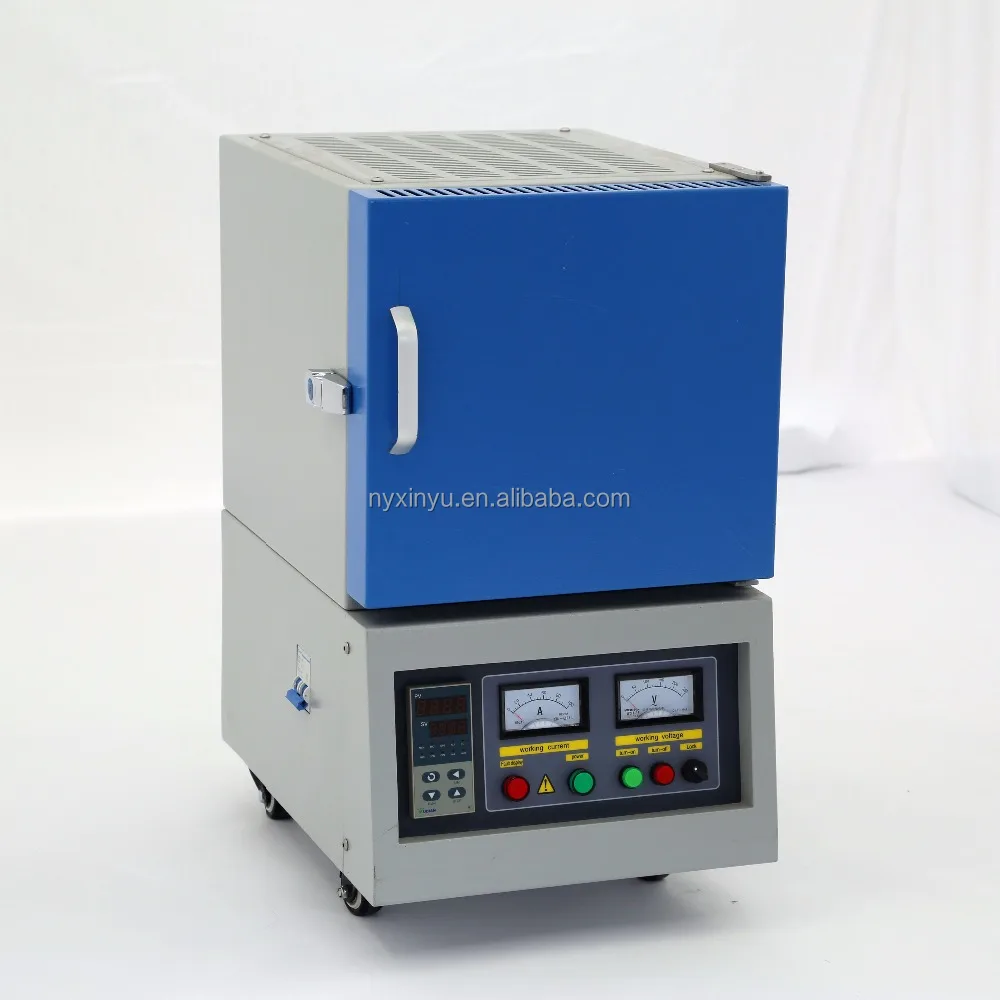

Dental oven, electric furnace, PID auto control dental porcelain sintering furnace
Product Description
Our products have the advantages that netural to cooling and warming faster 20-40 mins, energy saving, high precision temperature control, heat preservation performance , the microcomputer control, programmable automatic temperature, Widely used in ceramic industry, chemical industry, electronic, metallurgy, new materials, machinery, fire-proof material, building materials, special materials of experiment and production. welcome old and new customers.
All the hearth material are made by the imported Morgen fiber, and its effect of energy-saving is more that 80% of the old furnace.
Technica' Data
| Style: | SX2-2-17TP | |
| Standard Working Temperature: | 1600.C ( continuous ) | |
| Maximum Working Temperature: | 1700.C ( < 3 hrs) [Others degree:1400.C/1700.C/1800.C] | |
| Inside Chamber Size: | 100*100*100 mm | |
| Temperature Control: | 30 steps programmable and PID automatic control | |
| Heating Rate: | 10~20.C/ min (suggestion:<10.C) | |
| Temperature Accuracy: | +/- 1.C | |
| Working Voltage: | AC 220V Single Phase 60/50 Hz (or according to your requirement) | |
| Furnace structure: | Double shell with fan cooling | |
| Heating Element: | Mosi2 Heater | |
| Thermocouple: | B type | |
| Standard package included with the furnace: | ||
| Part description | Quantity | |
| Thermal couple: | 1 pc | |
| Stainless steel hook: | 1 pc | |
| Thermal gloves: | 1 pair | |
| Operation manual: | 1 pc | |
| Non-standard size could be made according to your requirement. | ||
| Warranty: Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs. | ||
| Replacement will be shipped to you after photo or other evidence are provided and investigated. | ||
Stardand Size:
Model | Max.Temp(°C) | Chamber Size (mm) | Voltage (V) | Power(W) |
SX2-1-12TP | 1200 | 100*100*100 | 220 | 1 |
SX2-2-12TP | 1200 | 200*150*150 | 220 | 2 |
SX2-6-12TP | 1200 | 300*200*200 | 220 | 6 |
SX2-9-12TP | 1200 | 400*300*300 | 380 | 9 |
SX2-2-14TP | 1400 | 100*100*100 | 220 | 2 |
SX2-4-14TP | 1400 | 200*150*150 | 220 | 4 |
SX2-9-14TP | 1400 | 300*200*200 | 380 | 9 |
SX2-16-14TP | 1400 | 400*300*300 | 380 | 16 |
SX2-2-17TP | 1700 | 100*100*100 | 220 | 2 |
SX2-4-17TP | 1700 | 200*150*150 | 220 | 4 |
SX2-9-17TP | 1700 | 300*200*200 | 380 | 9 |
SX2-7-17TP | 1700 | 400*300*300 | 380 | 16 |
(Controlled by the computer)
They can be programmed, and the temperature will increase automatically, with an accuracy of temperature controlling: ±1C
Packaging & Shipping
How to make an order
Company Information
Nanyang Xinyu Furnace Co., Ltd is a professional Heat treatment furnace manufacture which with more than 11 years experiences.
We have Professional technical engineers team, complete scientific management system, standard workshop and strict quality-monitoring framework.
Our furnaces have been exported to more than 30 countries and with good feedback from our customers.
Mainly products:
Car bottom furnace | Vacuum furnace | Tube furnace |
Muffle furnace | Atmosphere furnace | Crucible furnace |
Bottom loading furnace | Dental sintering furnace | Etc. |
FAQ
1. Q:Are you muffle furnace manufacturer?
A: Yes, we are professional muffle furnace manufacturer of China.
2. Q:What kind terms of payment can be accepted?
A: L/C, T/T, Western Union, Paypal, Trade Assurance, etc.
3. Q: Can I ask for customized furnace?
A: Yes, customized furnace is accepted.
4. Q: What about the delivery time?
A: Normally within 15 days after receiving your payment or based on order quantity and production schedule.
5. Q: What about the guarantee period?
A: The guarantee period is 12 months.
6. Q: What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
Dental oven, electric furnace, PID auto control dental porcelain sintering furnace
Dental oven, electric furnace, PID auto control dental porcelain sintering furnace
Dental oven, electric furnace, PID auto control dental porcelain sintering furnace
