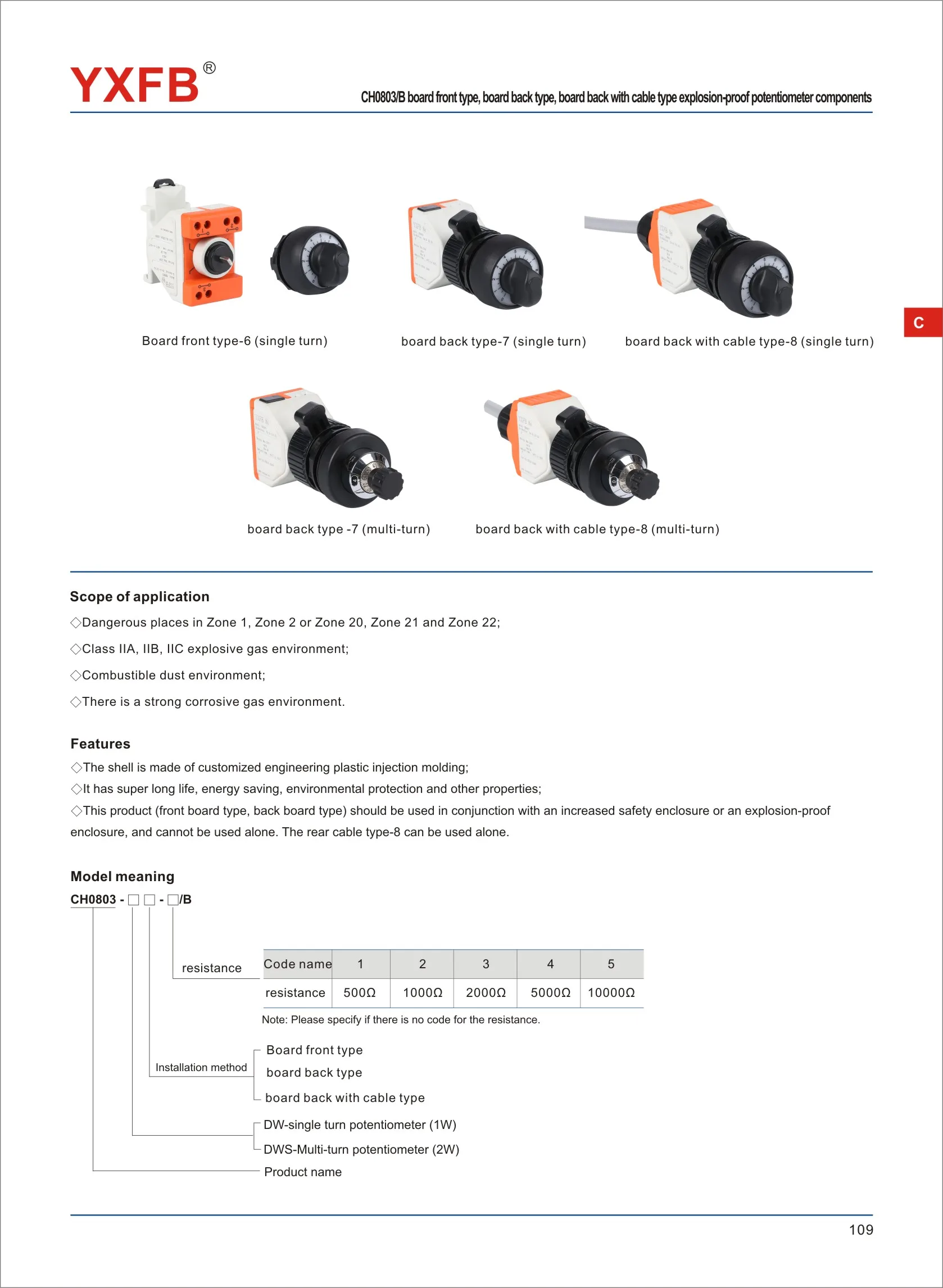

Плата типа взрывозащищенный мульти кругов потенциометр

Main technical data

Ex mark: Ex de IIC T6 Gb

Intended for: zone 1,2 and zone 21,22

Ambient temperature use: -55≤Ta≤60

Degree of protection: IP20

Button: Conventional closed heating current10A

Rated voltage: 250V      24V

Regimentation use:   AC15     DC13

Rated current:            6A          1A

Mechanical life: 300,000 times

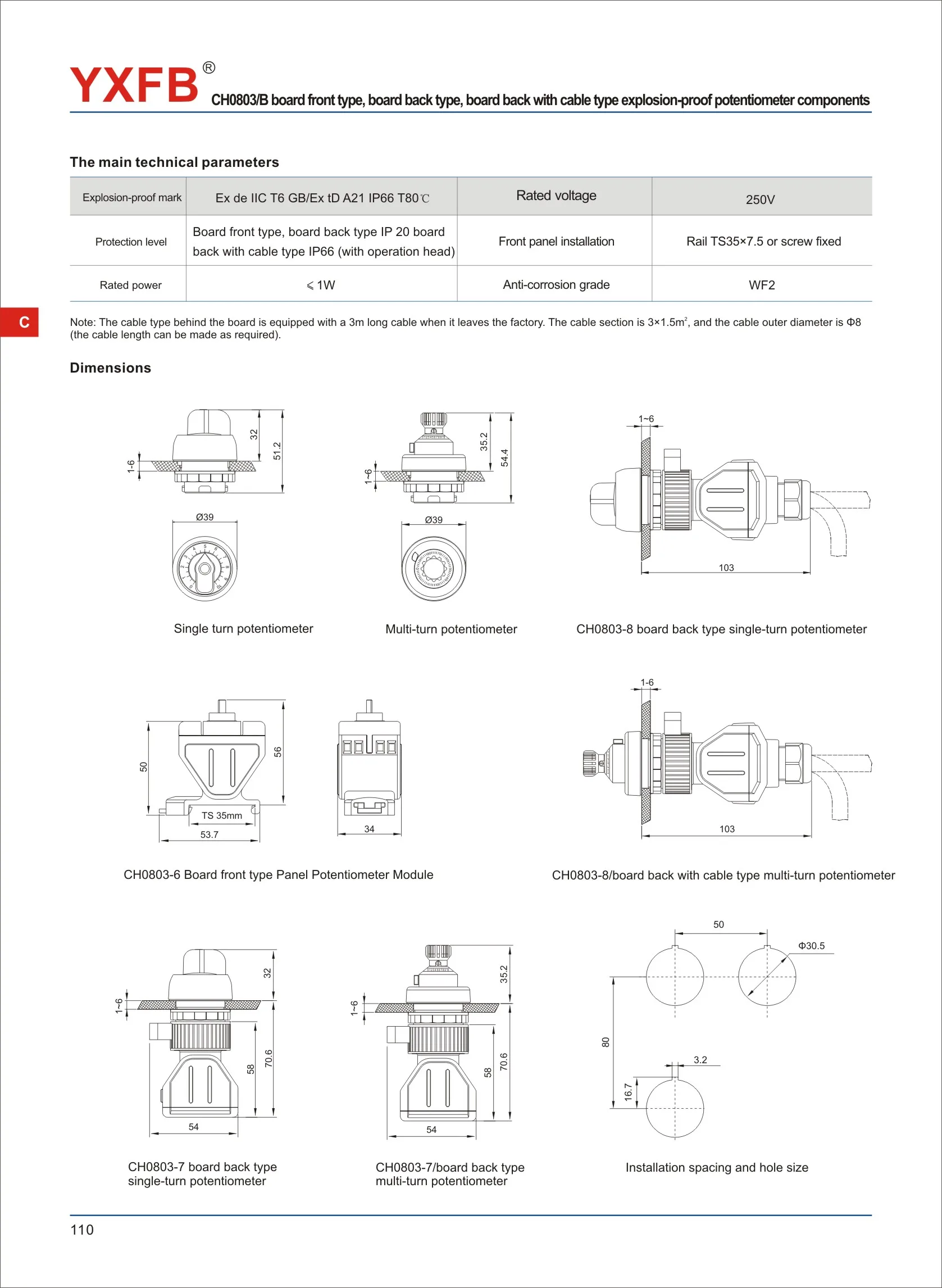

Board front type mounting: May be held on mounting rails TS35×7.5 or with screws

Specification of board back cable type cable: Flexible cable 3×1.5mm2

Length of board back cable type cable: 3mm ( diameter: Φ8mm )
