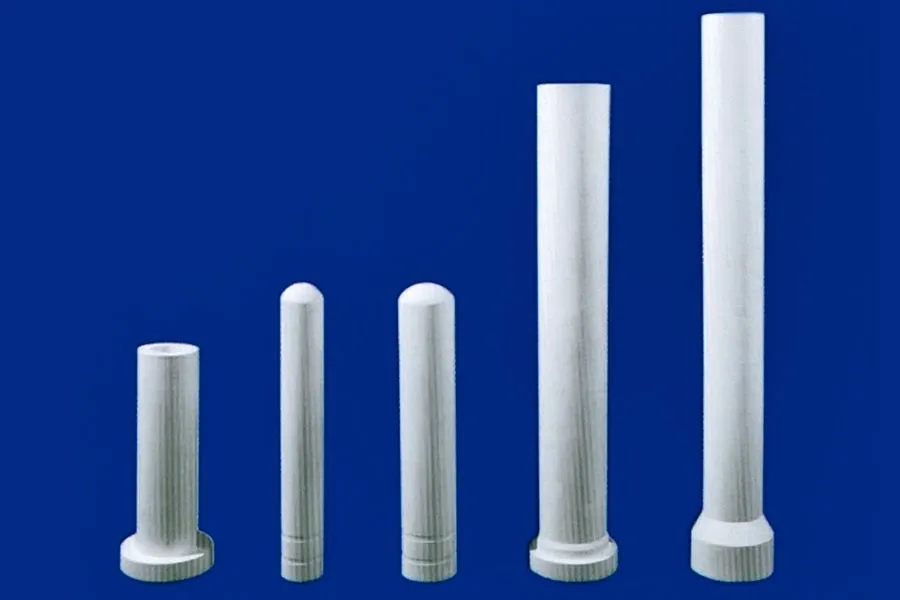

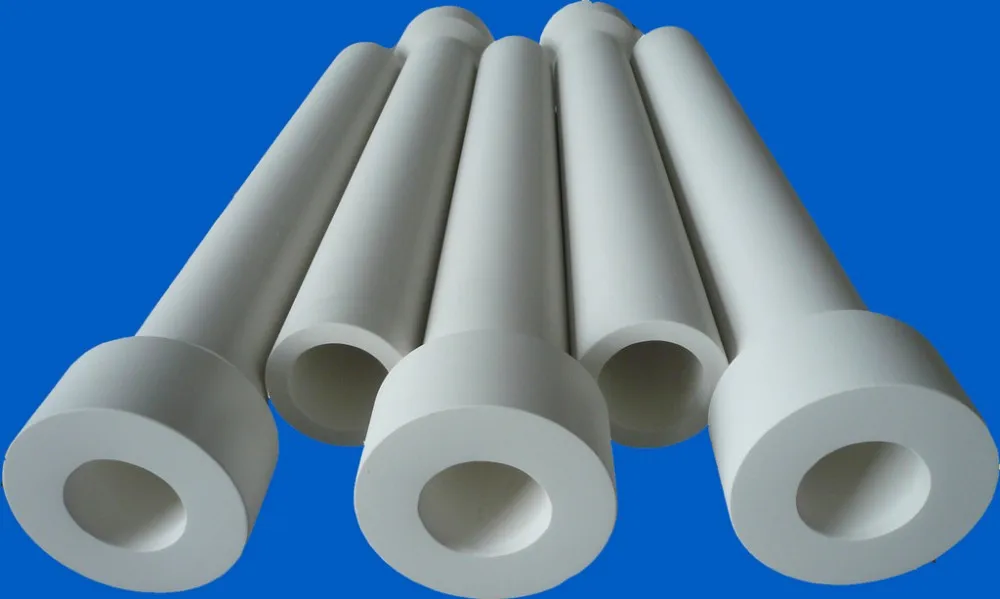

ZhengZhou STA aluminium titanate riser tube stalk for die casting

The aluminum titanate has higher melting point (1860 C), lower thermal expansion coefficient and excellent heat-shock resistance .Besides,the aluminum titanate don’t infiltrate with the metal melt(especially the non-ferrous metals) and glass melt.Therefore aluminum titanate can be widely used in the conditions of high-temperature resistance,heat-shock resistance and corrision resistance.

Performance

ceramic riser tube
erosion resistance

no pollution

Features .

1,Excellent thermal shock resistance
2,No infiltration with the non-ferrous metal
3,Excellent wear resistance
4,Low thermal-expansion coefficient
5,The service life of the aluminum titanate riser tube can reach 60 days which can enhance the production efficiency and reduce the cost.

Density                                         3.2g/cm3

Porosity                                       3.8%

Bending strength                         50MPa

Thermal-expansion coefficient 1.17x10-6/C

Heat-shock resistance                Good

Aluminum titanate riser tubes are mainly used in low press die casting industry,such as aluminum wheel making.Molten aluminium is transported by pressure from holding furnace via riser tube into a mould. Ceramic riser tube can replace iron riser tube because of its long service life
