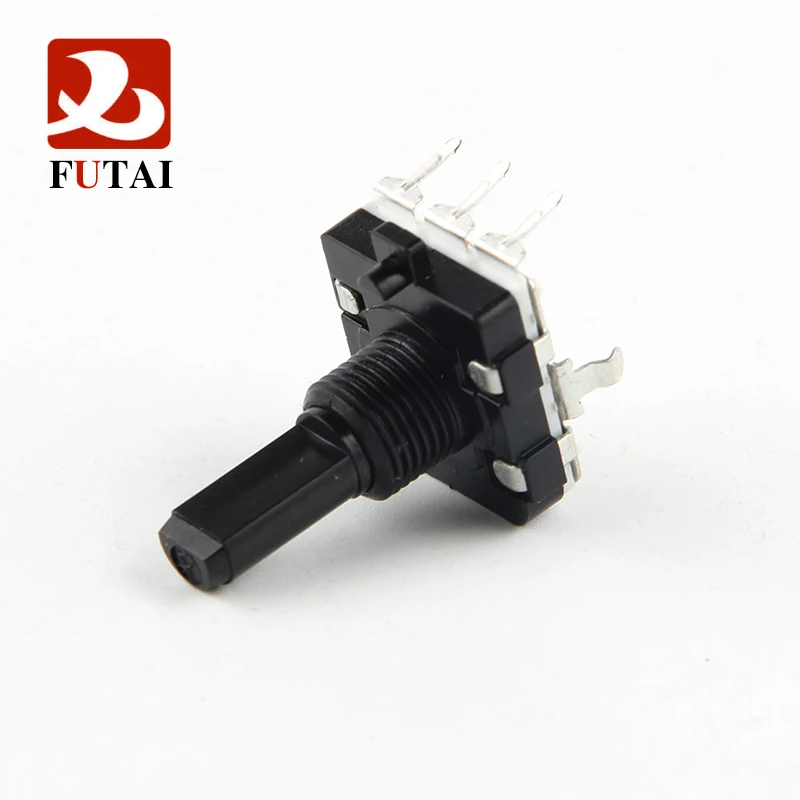

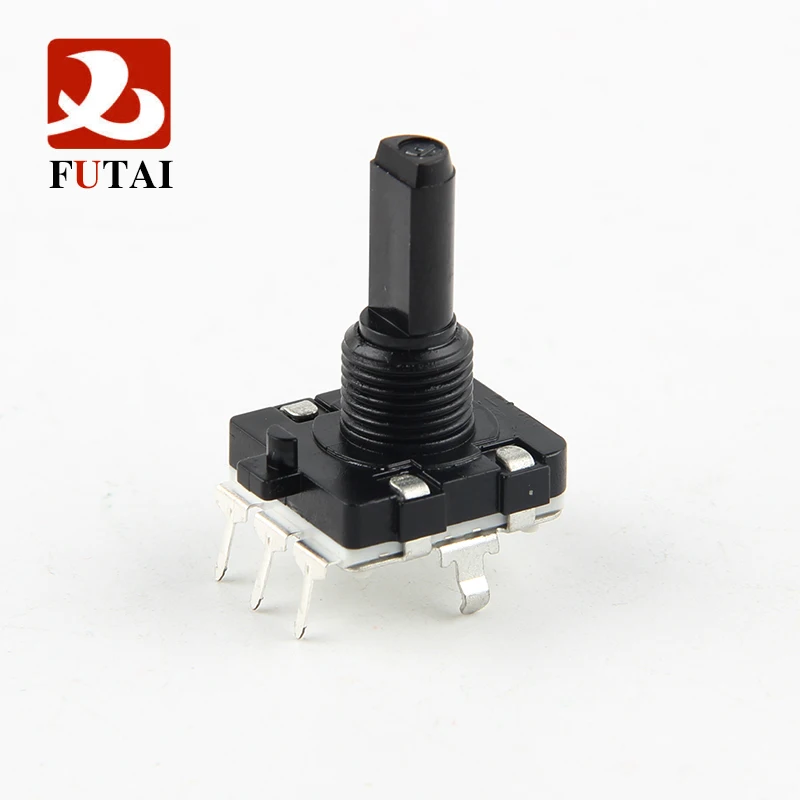

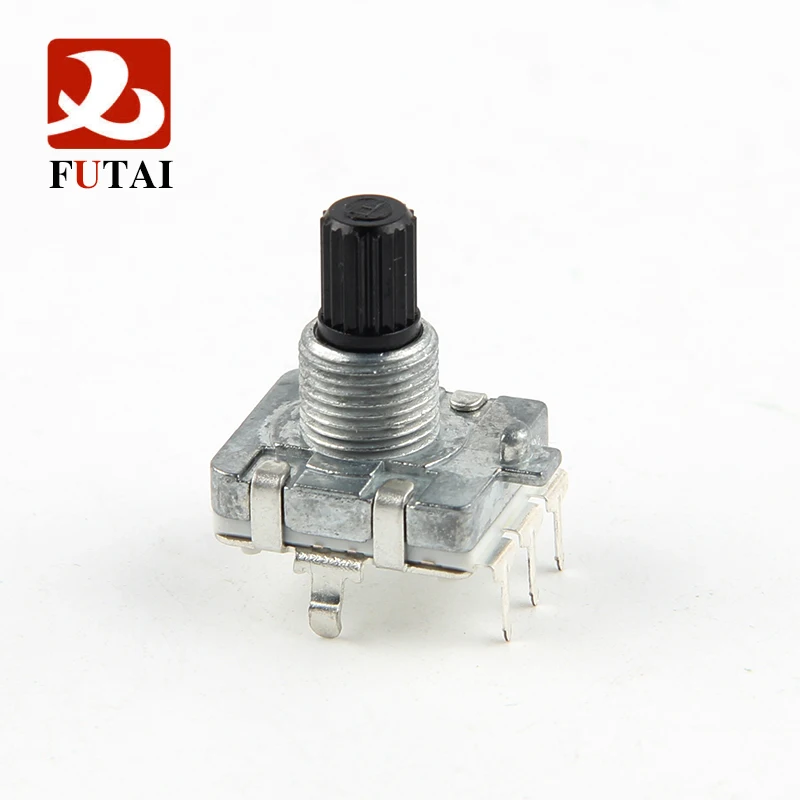

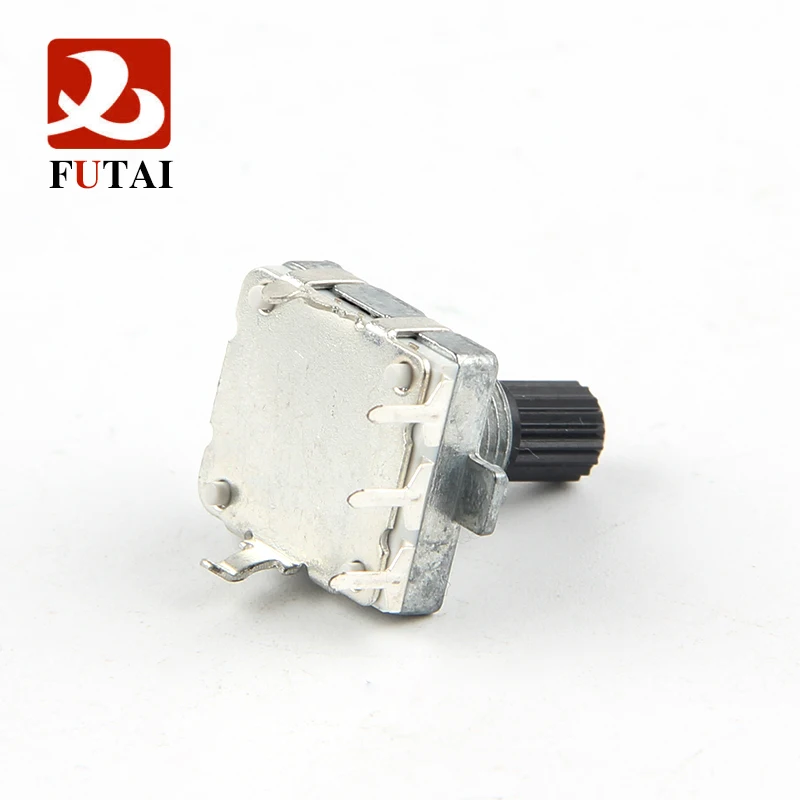

Futai EC16 series 16mm Size Type Incremental Insulated Shaft Rotary Encoder with and Bushing
- Category: >>>
- Supplier: Yueqing Futai Electronics Co. Ltd. [Zhejiang China]Yueqing
Share on (60756371843):
Product Overview
Description
Appliance:
the product are mainly suitable for microwave ovens, washing machines and other household appliances, also can be used for multimedia audio/amplifiers and related electronic equipment, the main function of regulating the temperature, adjust the time, adjust the volume, function selection.
SHAFT TYPE (flat shaft or tooth type shaft) AND SHAFT LENGTH CAN BE CUSTOMIZED AS DRAWING.
EC16-12PULES-12CLICK CW
EC16-24PULES-24CLICK CW
Mechanical characteristics | ||
Total rotational angle | 360° | |
Click torque | 30-120gf.cm | |
No. Of click | 12pules/12detent 12 click step angle:30±2° 24pules/24detent 24 click step angle:15±2° | |
Push-pull strength | 8.0kgf Max | |
Shaft play in rotational wobble | 5°Max | |
Electrical characteristics | ||
rating | DC 5V,A,B lead 5mA Max, C lead 10mA Max | |
resolution | 24 pules/360° 12pules/360° | |
Insulation resistance | 100MΩMin at DC250V | |
Dielectric | 1 minute at AC 300V | |
Phase difference | T1.T2. T3.T4≥0.08T | |
Sliding noise | T1,t3≤3mS t2≤2mS | |
Endurance characteristics | ||
Rotational life | 30000±200 cycles≤100gf.cm | |
Storage temperature range | -40℃≈85℃ | |
Operating temperature range | -30℃≈80℃ | |
Soldering characteristic | Dipping in soldering≤206℃±5°,within 3S Solder by hand≤300℃±5°, within 3S | |
FUTAI found in 2003. A 15 years experience professional guitar effect guitar foot pedal switch encoder and potentiometer manufacture. We have several new patented led guitar effect switches. Factory size is about 1500 square meters. All of our products approved by ROHS We are sure that long term business relationship due to High Quality and Good Price, and we have full confidence to meet you clients’ quality level and provide good price. Client comes first forever. Let’s mutual benefit.
EMS: need 10-15 business days to reach your side
UPS: special express for North America,need 3-5 working days
DHL: normally 3-5 business days could reach your side
FEDEX: normally 3-10 business days could reach US and European
or By Ocean & By Air
Service:
WELCOME TO ASK ANY QUESTIONS. Any inquiry will be replied in 12 hours.
If the product received is not as DESCRIBED, a replacement will be issued.
Q: what is your MOQ for this item?
A: MOQ is 100, but always flexible.
Q: Can I get some samples?
A: Sure, Sample order is available.
Q: what about lead time?
A: 7-10 days after deposit received.
Q: terms of payment?
A: Trade Assurance, T/T, credit card, western union, cash, Money Gram
Q: My item was damaged in shipping?
A: Our parts are carefully packaged to prevent damage in shipping.
