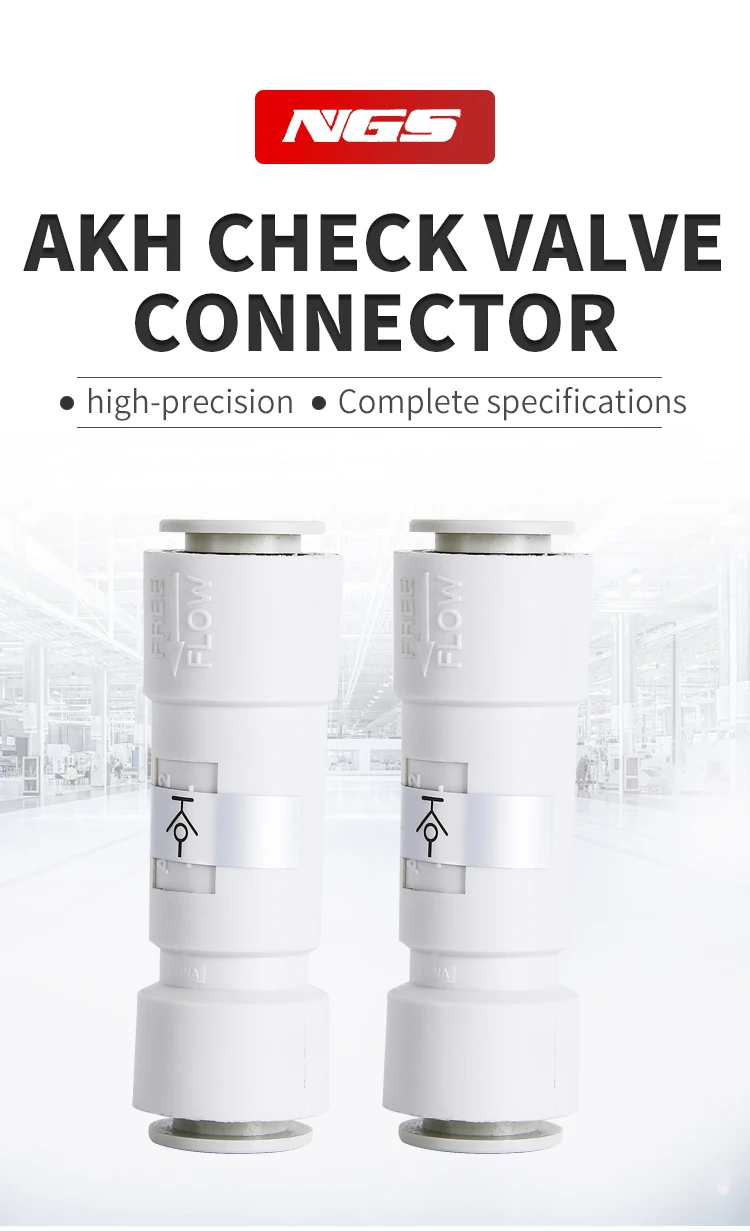

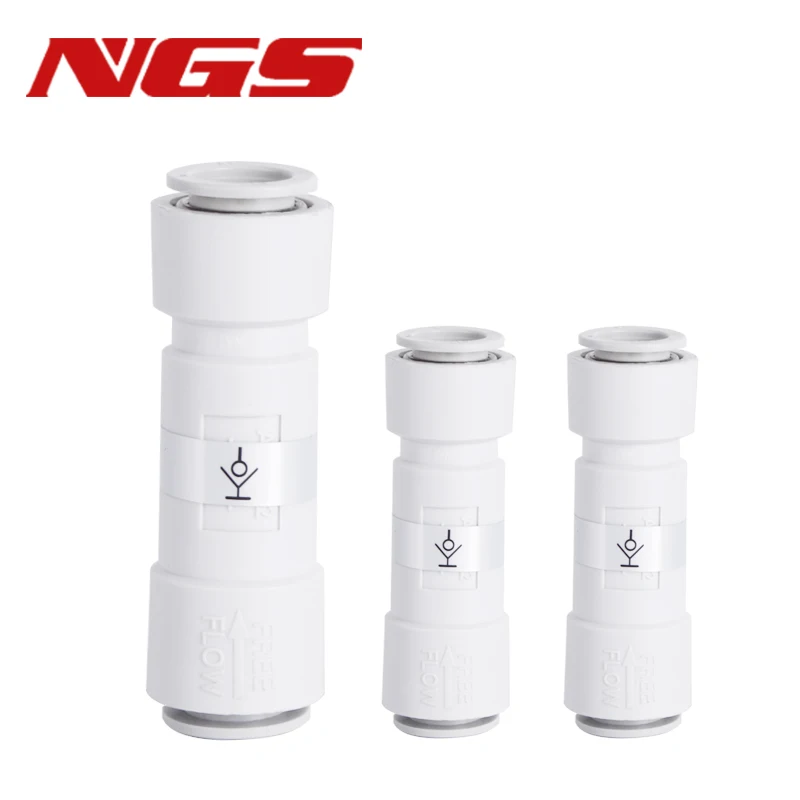

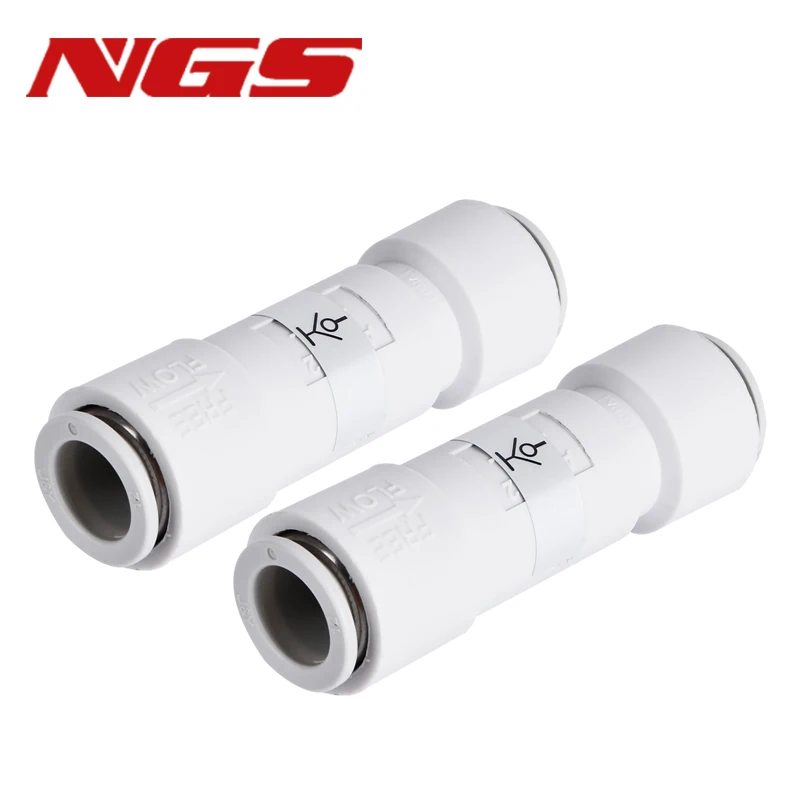

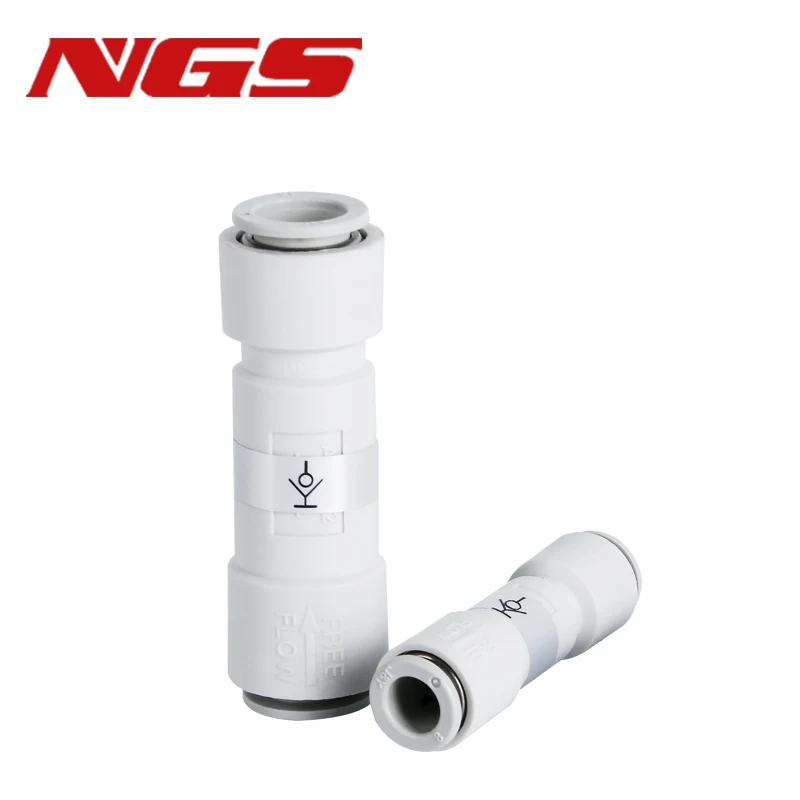

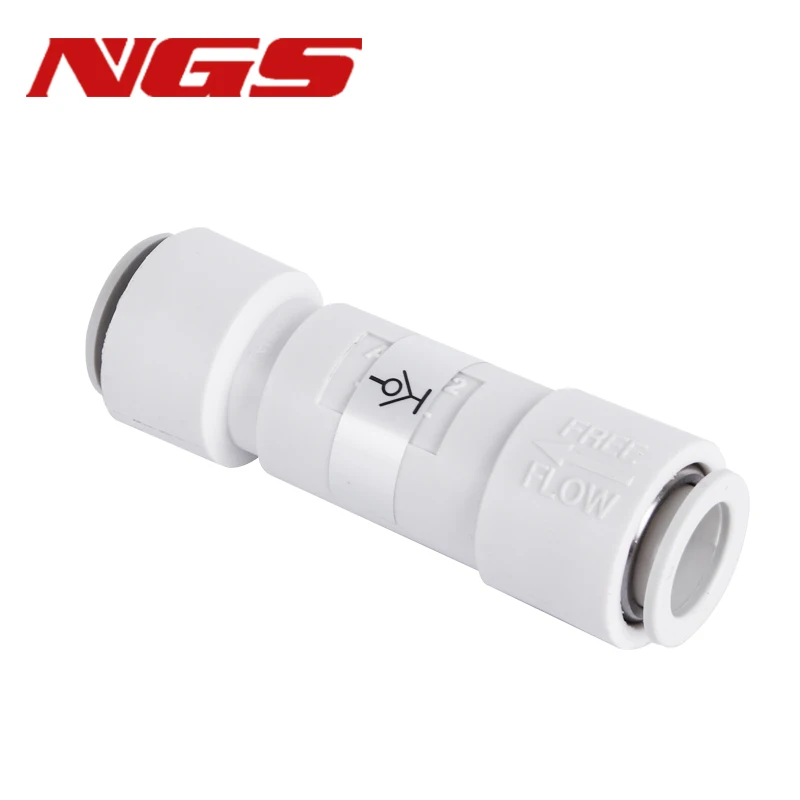

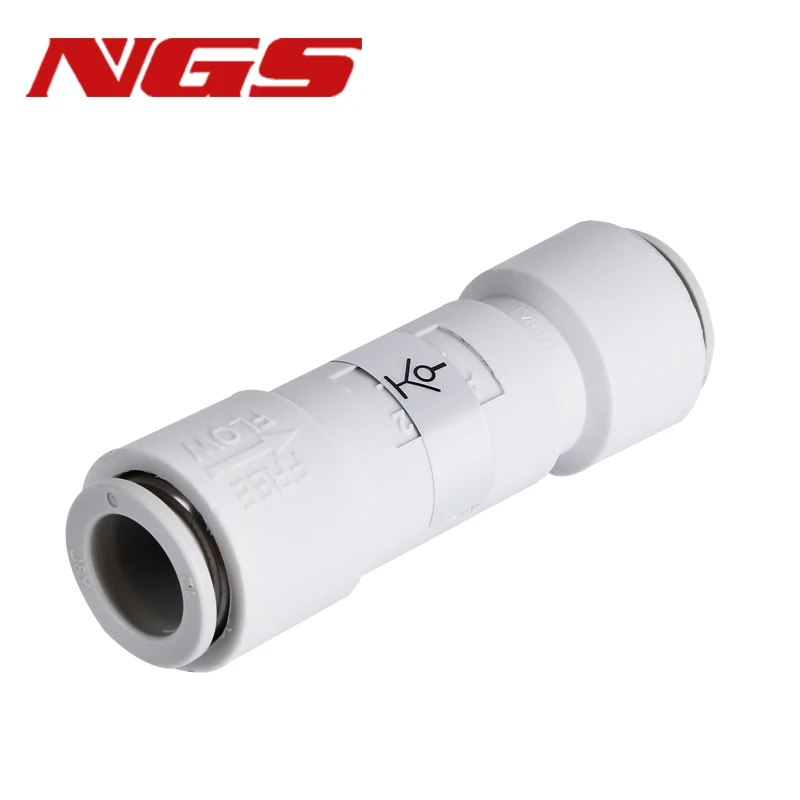

AKH AKH04 00 AKH06 00 AKH08 00 AKH10 00 AKH12 00 Pneumatic check valve 4MM 10MM 6MM 8MM Air Pipe One way Valve
- Category: Machinery Accessories >>>
- Supplier: Yueqing Naigesi Pneumatic Co. Ltd.
Share on (60756394780):
Product Overview
Description
Feature:
Series AK/AKH/AKB check valves offer various configurations to provide solutions based on operating conditions. The series is compact and lightweight with low cracking pressure. The AKH with one-touch fitting, straight type, is easily installed in pipelines, while the male connector type can be mounted directly onto equipment. The bushing type AKB can be used in applications with splashing coolant and spatter, etc.
- One-touch fittings
- Straight type
- Easily installed in pipe lines
- Compact and light weight
- Can be used for vacuum (-100kPa) -14.5PSI

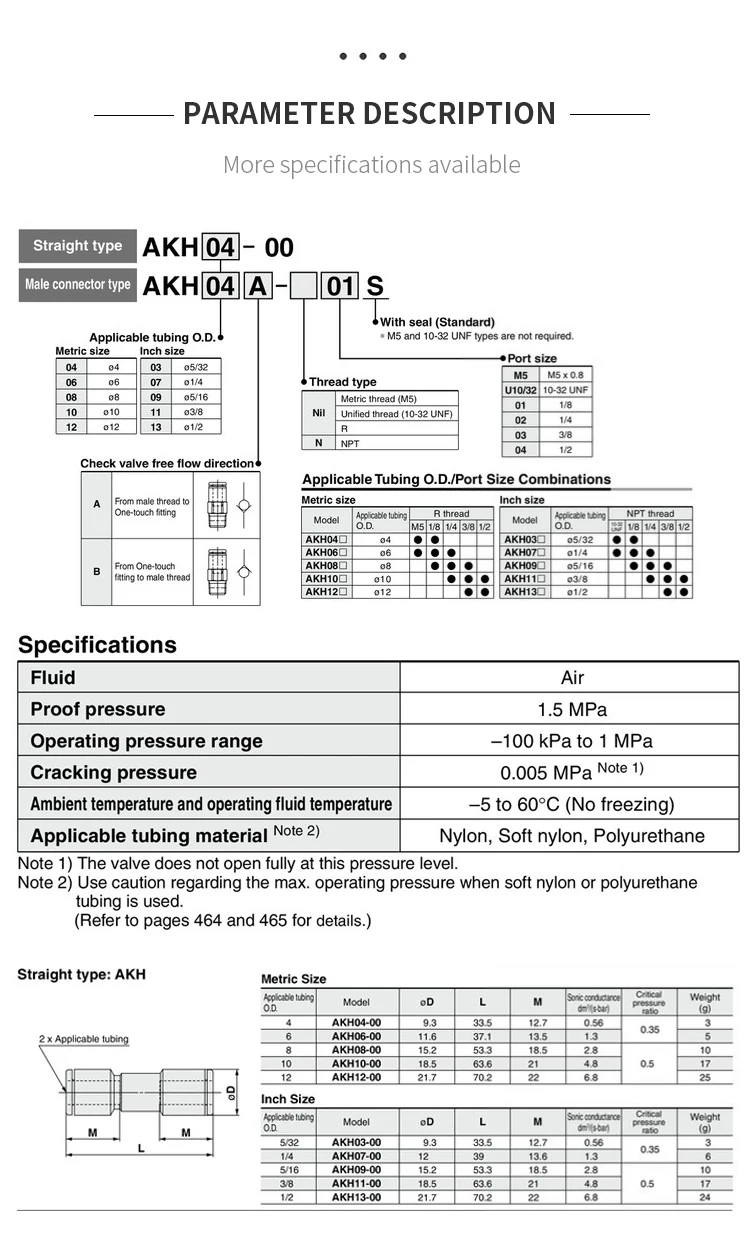

Technical data:
| Fluid | Air |
| Proof pressure | 1.5 MPa |
| Operating pressure range | –100 kPa to 1 MPa |
| Cracking pressure | 0.005 MPa |
| Ambient temperature and operating fluid temperature | –5 to 60°C (No freezing) |
| Applicable tubing material | Nylon, Soft nylon, Polyurethane |
Specification:
We have a variety of pneumatic accessories that have not been shown, if you need it, please do not hesitate to contact us, if you need to customize, please send us the drawing, I am glad to serve you!!!
Name: Check valve connector
Model: AKH series
Working medium: non-corrosive air/liquid
Use accessories: PU pipe/PE pipe/soft nylon
Suggested pressure: 0-0.8MPa
Maximum pressure: 1.0MPa
Low pressure: -99-0KPa
Operating temperature: 0-60℃

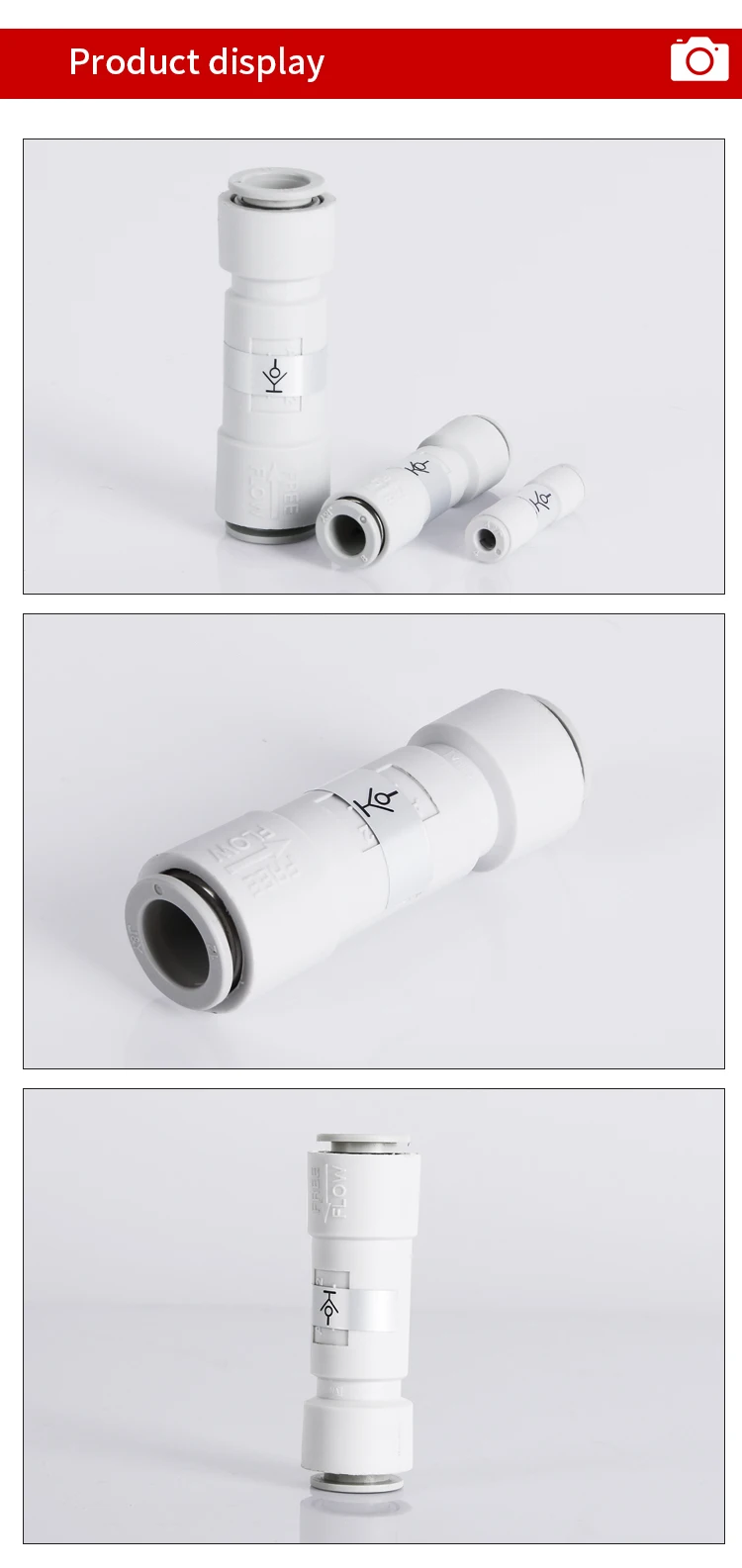

Picture of our product:
