Recycled paper pulping Chain Plate Conveyor for drum pulper
- Category: Paper Product Making Machinery >>>
- Supplier: Shandong,Xuridong,Machinery,Co.,Ltd.
Share on:
Product Overview
Description

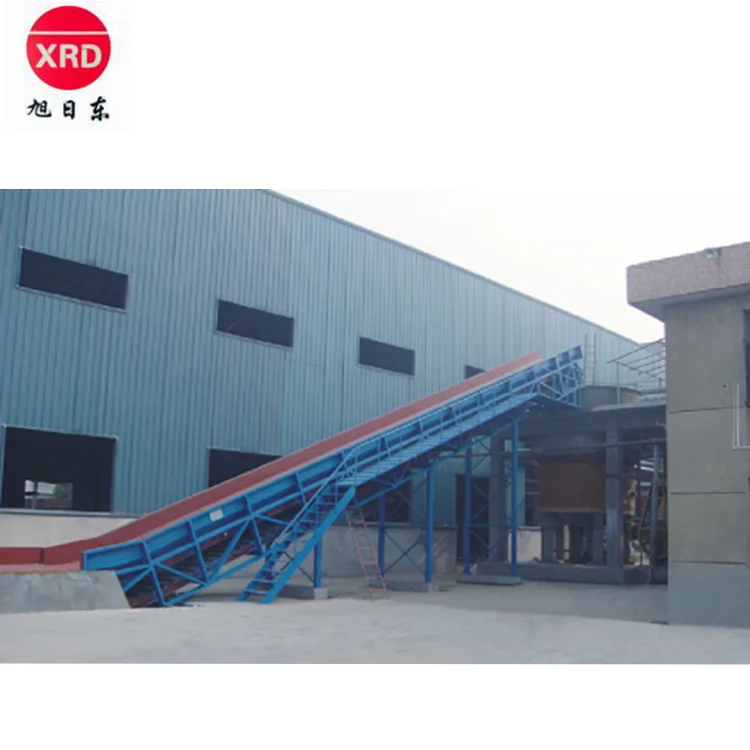

Recycled paper pulping Chain Plate Conveyor for drum pulper
Function & application
Raw material: waste paper,wood pulp materials
Output: corrugated paper, kraft paper, fluting paper,cardboard paper,test liner,toilet tissue paper roll. etc.
Processing mode: waste paper recycling and paper pulping system in paper mill
Application
Used for conveying waste paper and pulp board to the drum pulper or hydrapulper to make toilet tissue paper ,writing paper,kraft paper,fluting paper,test liner,etc.
Feature & benefit
Chain Plate Conveyor
1. Used to convey waste paper
2. First-class engineers
3. Less maintenance
4. With ISO, BV certificate
Technical specification
Type | XLB | |||||||
Width of chain plate(mm) | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 | 2600 |
Capacity (m3/h) | 60-220 | 80-255 | 95-300 | 110-345 | 140-390 | 160-430 | 200-500 | 240-600 |
Materials | waste paper or paper pulp plate | |||||||
Max.Limit of Material (mm) | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 |
Motor power(Kw) | 5.5 | 7.5 | 11 | 5 | 18.5 | 22-30 | 30-45 | 37-55 |
01. We are a manufacturer and we have import and export rights.
02. We produce wonderful environmental protection machines and solutions, pulp and paper making machines and solutions as well as tissue paper converting machinery and solutions,
03. Our main manufacturing facility which spans nearly 30,000m2.
04. We have achieved a total of 32 patents over the past few years.
05. Each year the output value of our products can reach up to 150 million RMB, to domestic and overseas.
06. We are in very close proximity to a very famous port city – Qingdao in northern China, and this location provides us with a plethora of logistics advantages, including: easy and cost effective transport by both air and sea, also.
01. Detailed installation manual and maintenance guideline are provided with the equipment.
02. Technical training and site-commissioning are available for you.
03. Any equipment issue, we will stand by. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
01. How to buy your idea products?
A: You can provide us your water sources, water quality, flow rate and ground area (connect us for more details).
02. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.
03. What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.
04. How to pack the products?
A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.
05. How to keep your equipment from corrosion?
A: We use the world-famous paint, like SigmaCoatings, PainBow, etc. What's more, we paint strictly according to the standard process.
06. How do you manufacture your equipment ?
A: Our machining technology includes laser/plasma cutting, automatic welding, CNC cutting and bending.
07. How to install after the equipment arriving destination?
A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
