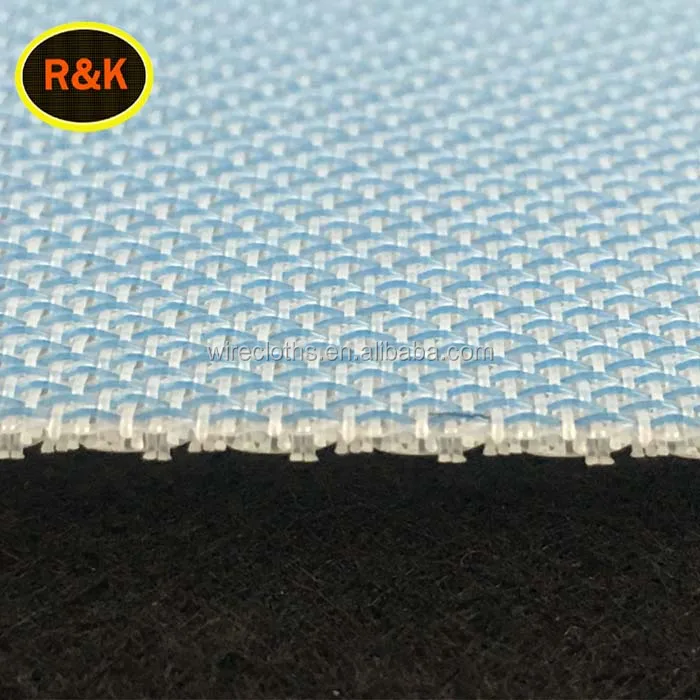

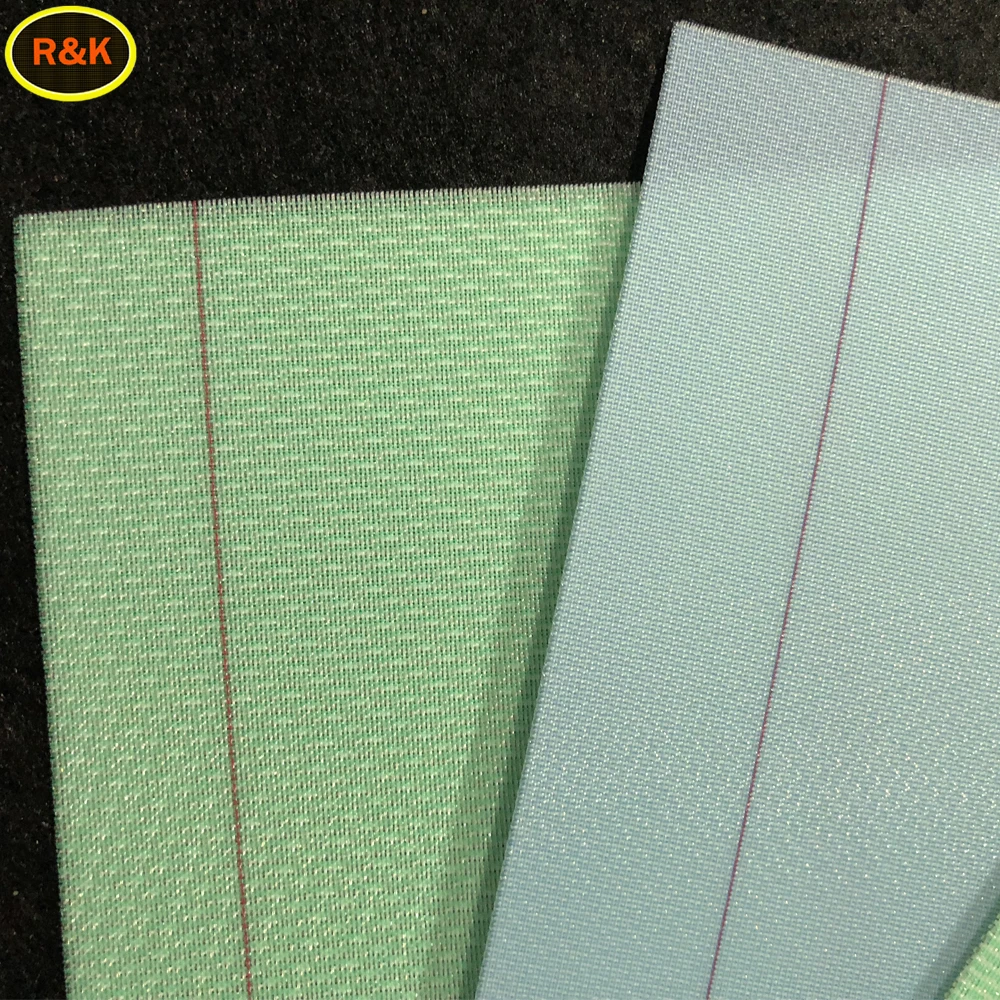

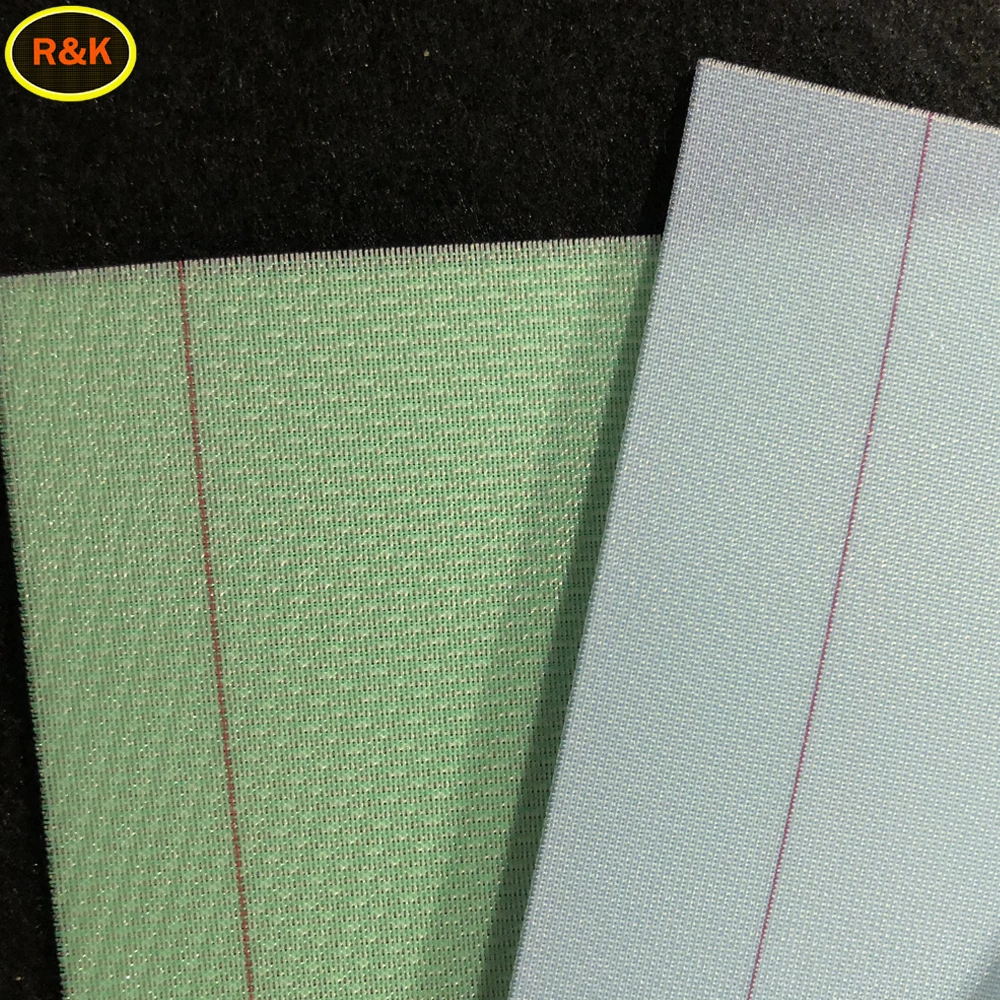

China supplier 22504 24504 Polyester weave forming fabrics for paper making

Product Overview

Description

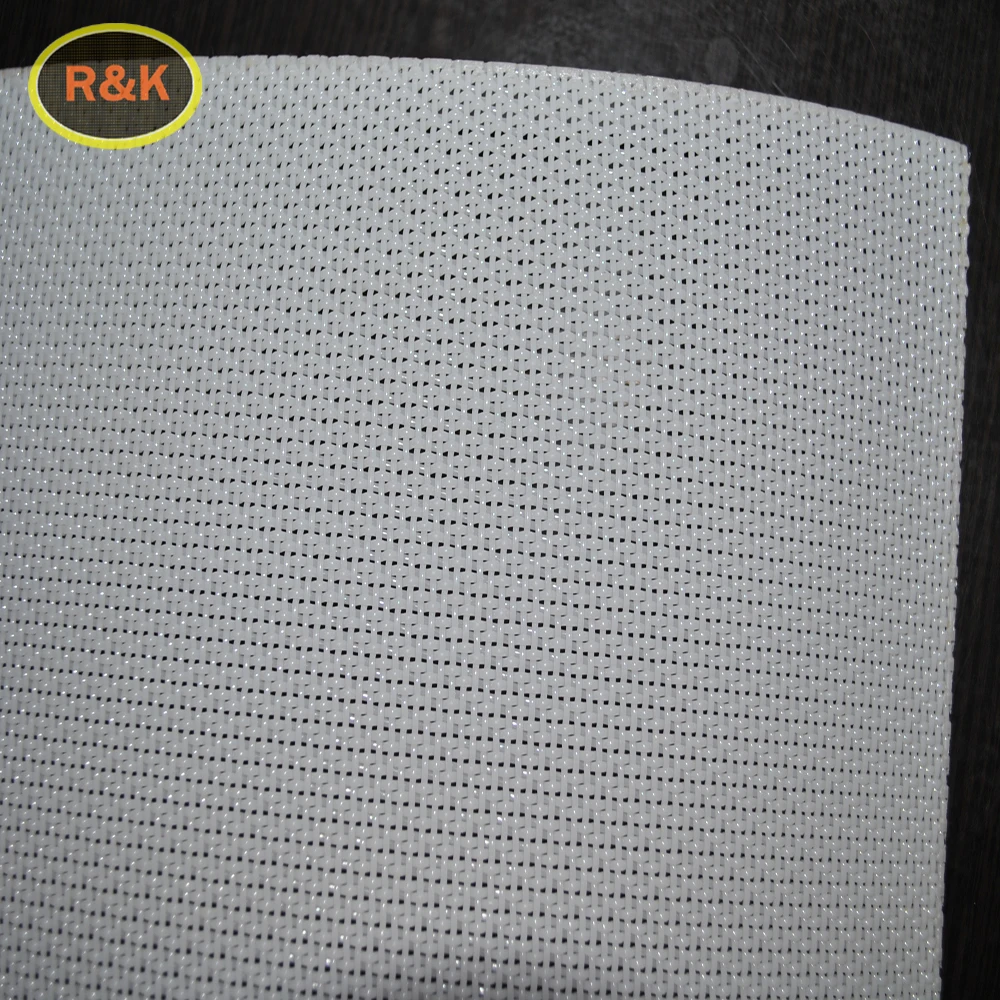

China supplier 22504 24504 Polyester weave forming fabrics for paper making

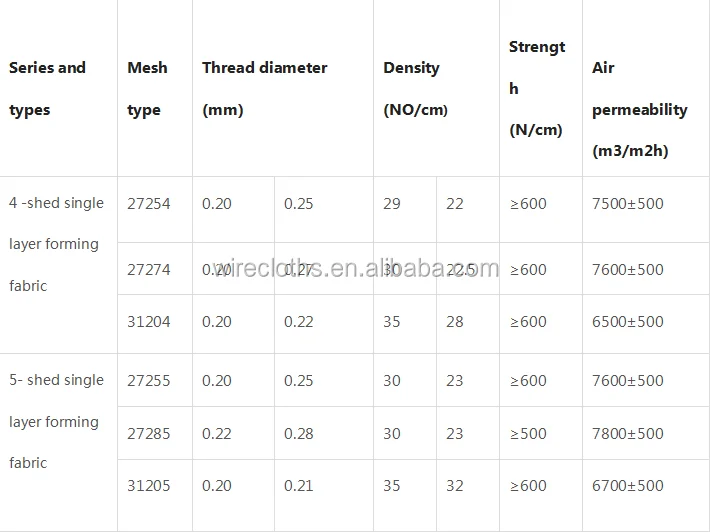

According to the weaving, polyester formingr fabric can be divided into 4-shed, 5-shed, 7-shed, 8-shed, 16-shed and 24-shed.

According to the category, it can be divided into singel layer, double layer, two and a half layer and three layer fabric.

According to the joining mode, it can be divided into insert, pin, pin ring and spiral ring join.



4-shed single layer fabric is suitable for making culture, printing and packing papers, etc.

5-shed single layer fabric is usually for making health, culture and packing papers etc.

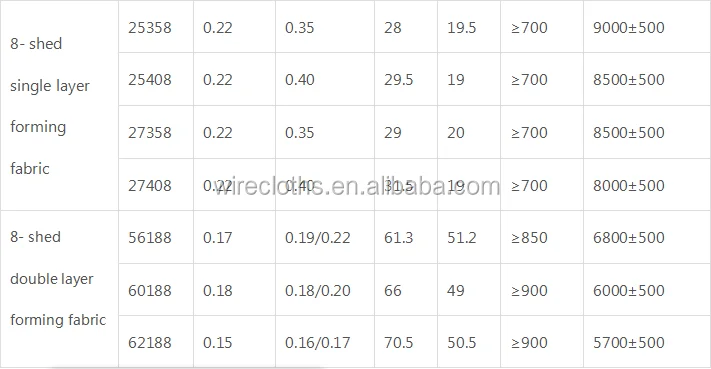

8-shed single layer fabric is generally for making high basic weight corrugated and packing papers etc.

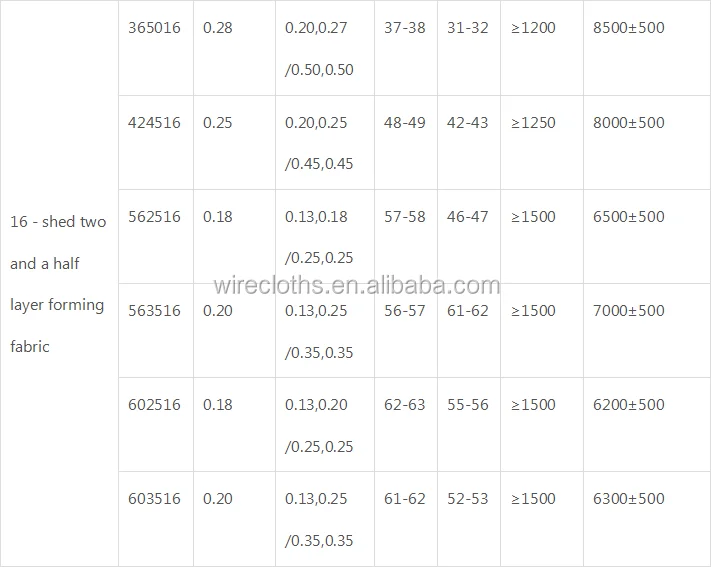

16-shed double and a half layer fabric is suitable for making quality printing paper, tissue paper and surface pulp, inner pulp and base pulp of the board paper, etc.



Multi-shed three-layer fabric is suitable for making quality printing paper, tissue paper and cigarette paper, and so on.



Features & Benefits of polyester forming fabric screen:

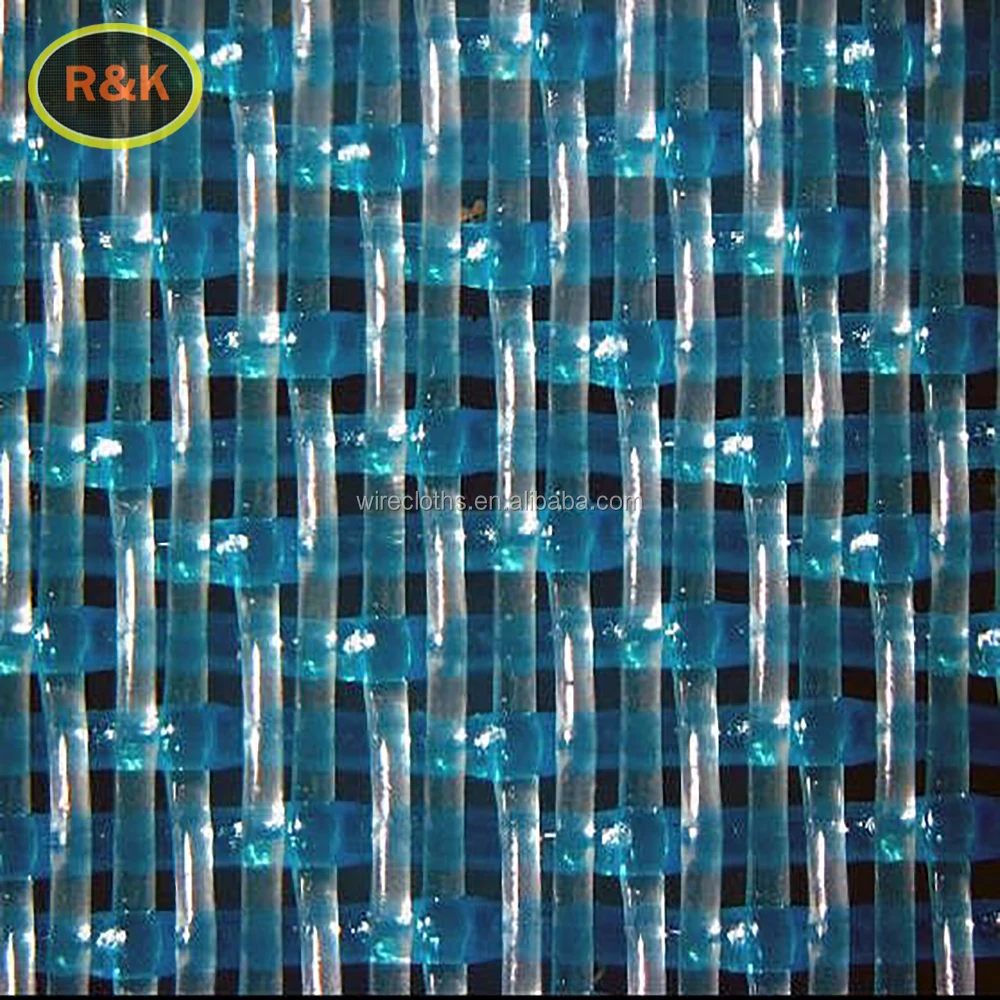

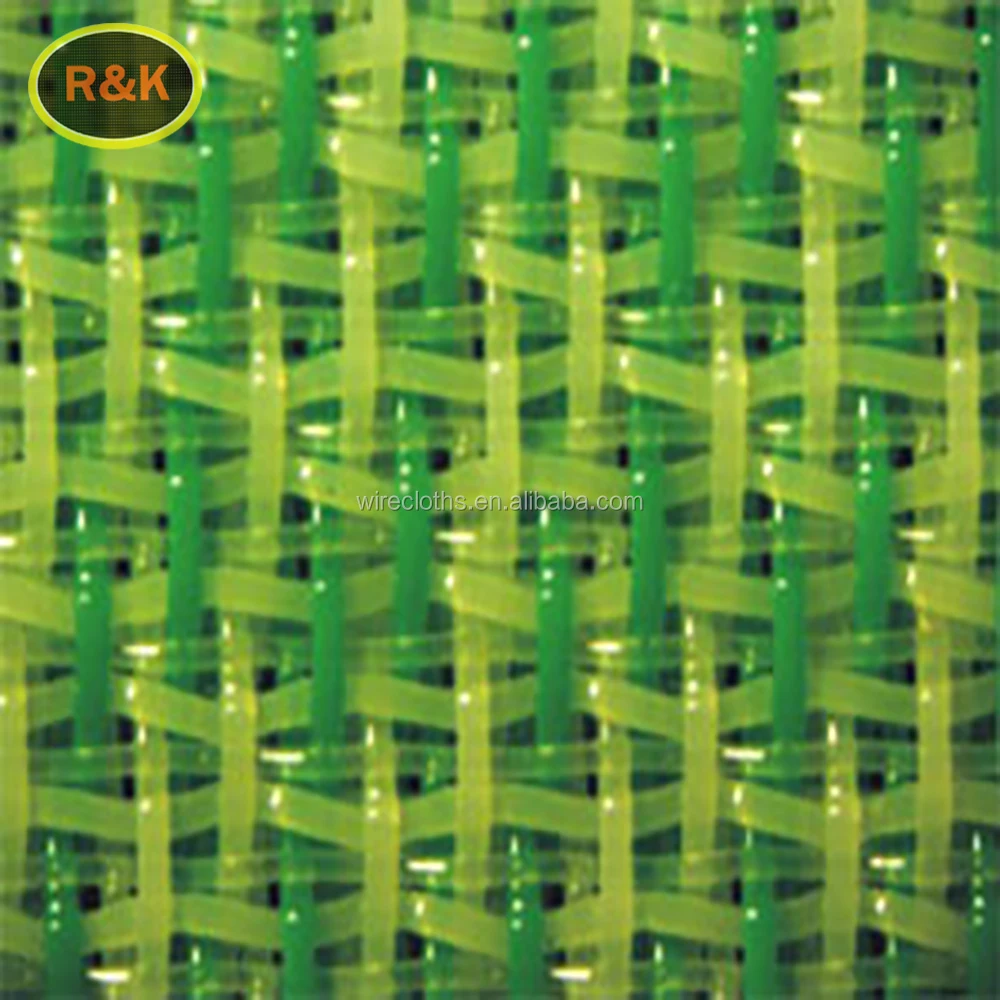

- High strength polyester forming mesh
- Stable under high tension polyester forming mesh fabric
- High resistance against abrasion polyester forming fabric
- Can be custom-made as special size on site
- Seamless - the seam has exactly same strength as the belt
- Can be repaired easily polyester forming fabrics
- Durability, smoothness and good dirt release polyester spiral dryer fabric
- Filled or unfilled to achieve different filtration characteristics (Air permeability: 250 to over 1000 CFM)
- Sealed edges for lasting, economical solutions
- Widths up to 9 linear meter polyester conveyor belt
- Standard lengths to 60-80 m or make to order
- pH range 2 to 8
