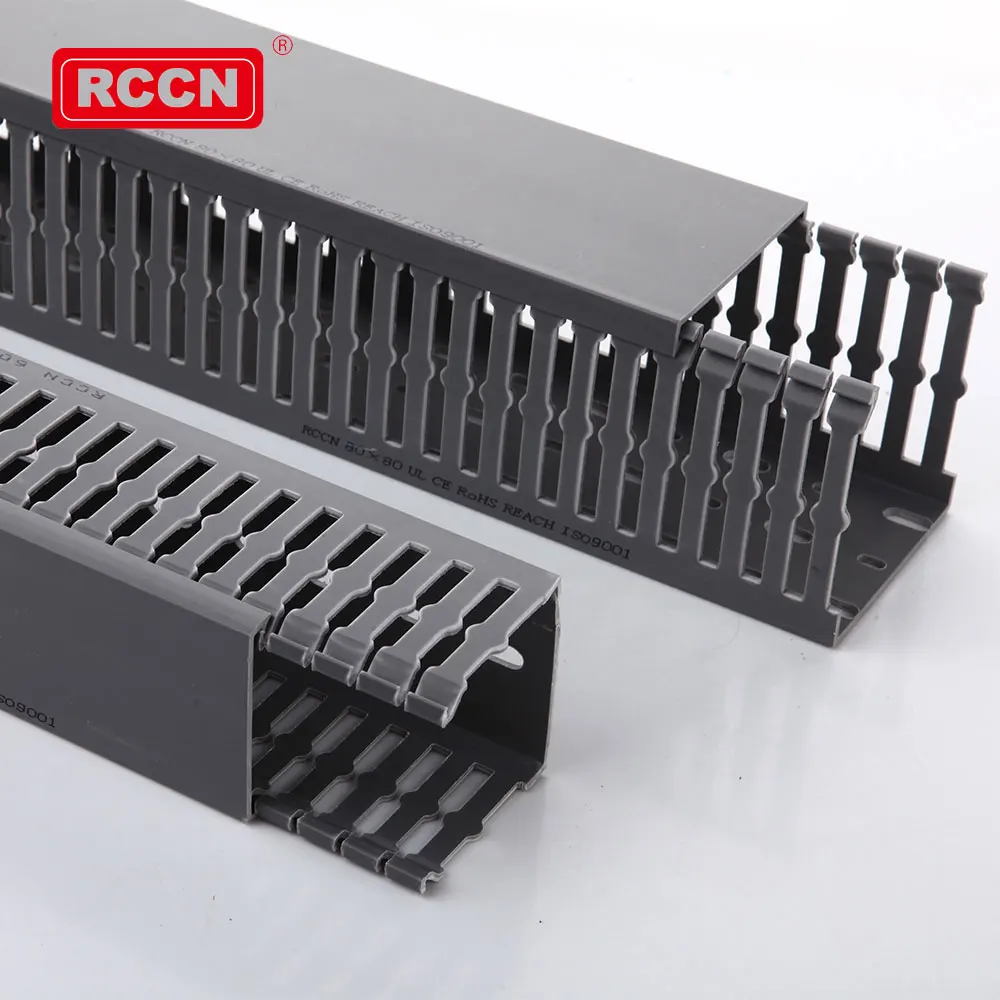

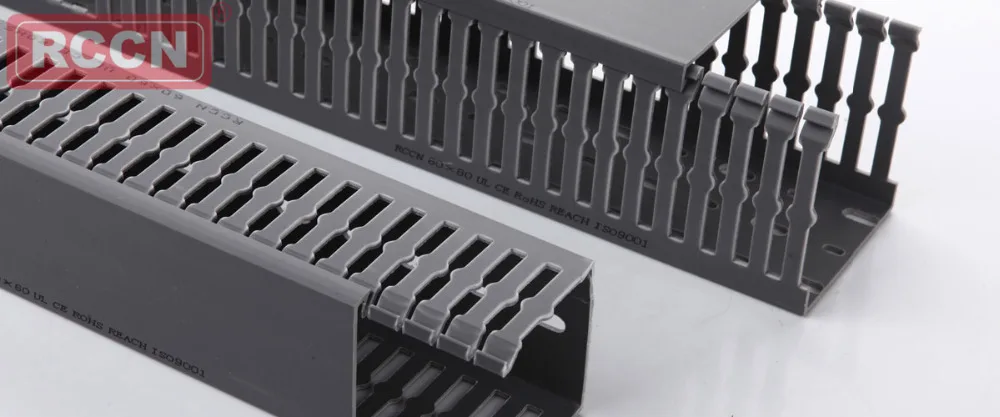

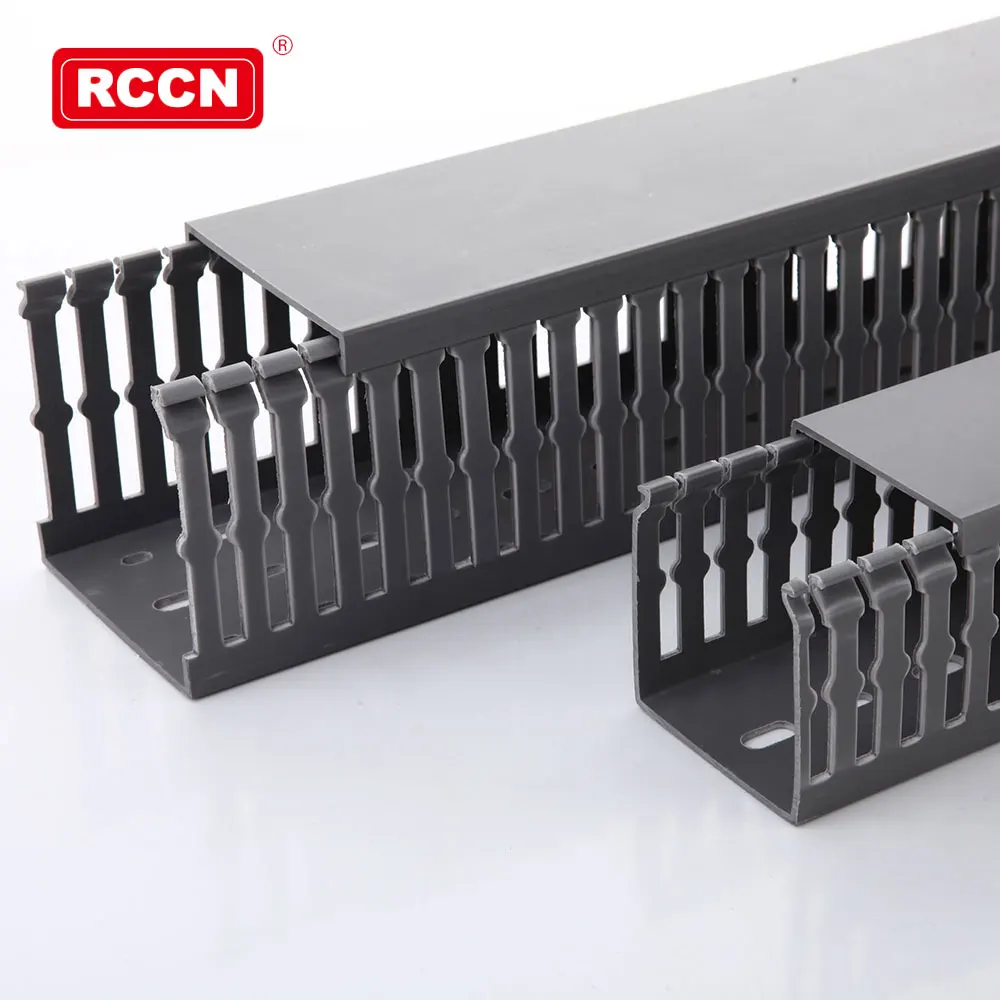

Professional Manufacturer Good price Wide finger and slot design wire duct cable tray GDRF

KEY FEATURES

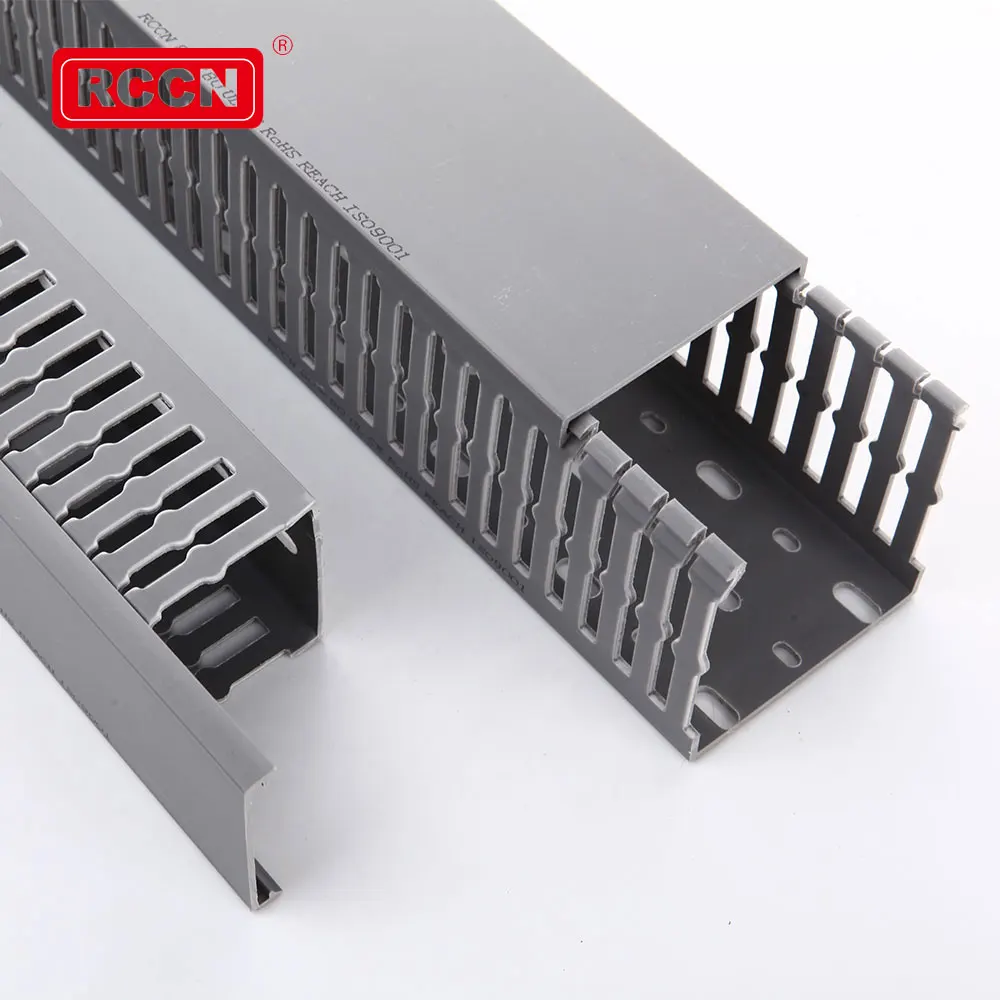

• Wide slot/finger design provides greater sidewall rigidity and can be used with a wide range of wire bundle sizes.


• Certificates:UL:E306674 CE:EN50085 RoHS,REACH.


• Made of Low-halogen rigid PVC, environmental friendly, lead-free


• Work temperature:-40 °c to 65 °c


• UL94 Flammability Rating of V-0, low smoke and halogen, inflaming retarding, insulated


• Provided with mounting holes

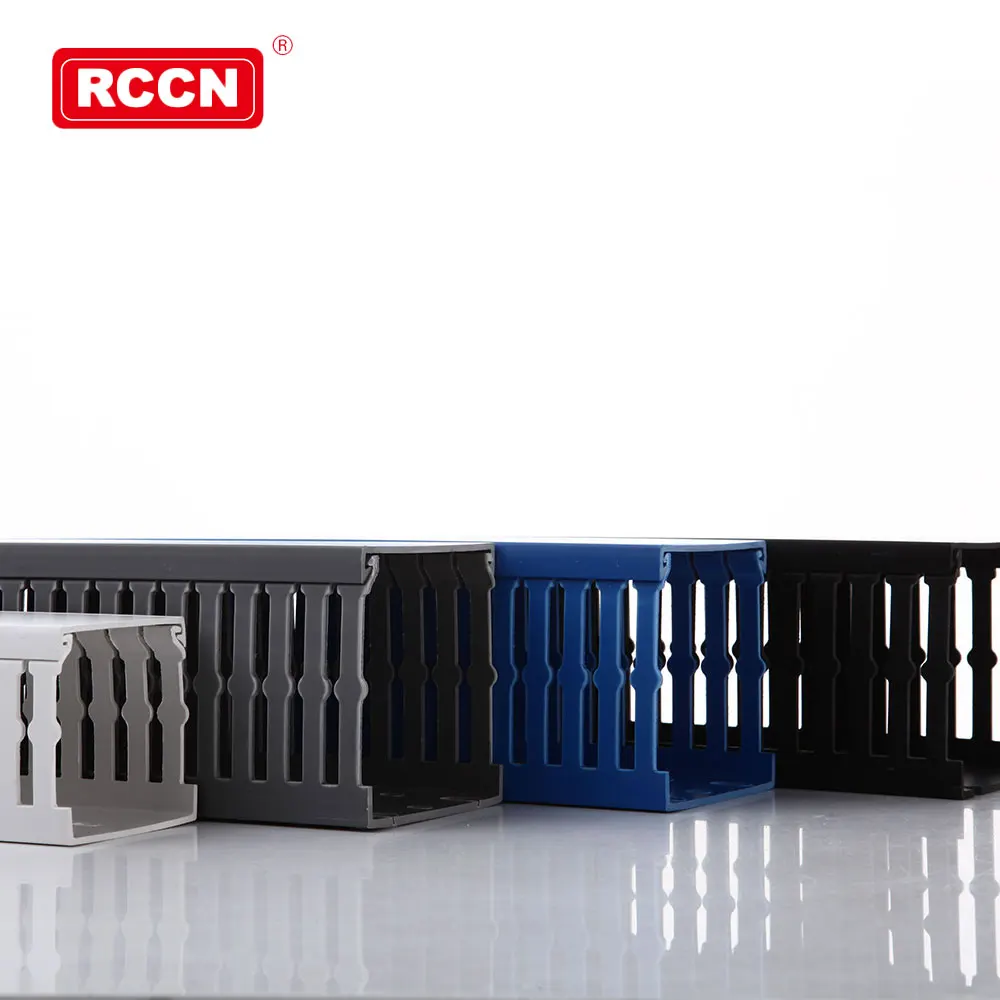

• Available color:gray.white.blue.black and other special colors


• Special length come with MOQ reques























































  Features	Advantages	Benefits
  Fine-tooth and the hole	Close to the electrical wiring bigger space to meet the high-density cable	Allowing more cable,  wiring overall aesthetic effect
  Rohs approved Enviroment-friendly Material	Approved by EU Rohs,Compliant with  US UL 94V-0,good inflaming	Eliminates health concerns  associated with PVC that contains lead
  Smooth rounded edges	Smooth edges in duct slots and  at top of duct fingers	Protects hands and  wiring/cabling from abrasion
  non-slip liner inside duct covers)	Will not slide easily when installed  on duct base	Cover stays in place during  shipment, vibration and when in a vertical  orientation,eliminating rework
  Flush cover design Greater capacity than traditional duct designs	Cover sits flush with sidewall	Can potentially use a smaller  size wiring duct for same number of wires Provides a neat and finished  appearance
  Slot smooth	Smooth adge after punching	No need to get offer abrasion,  save time

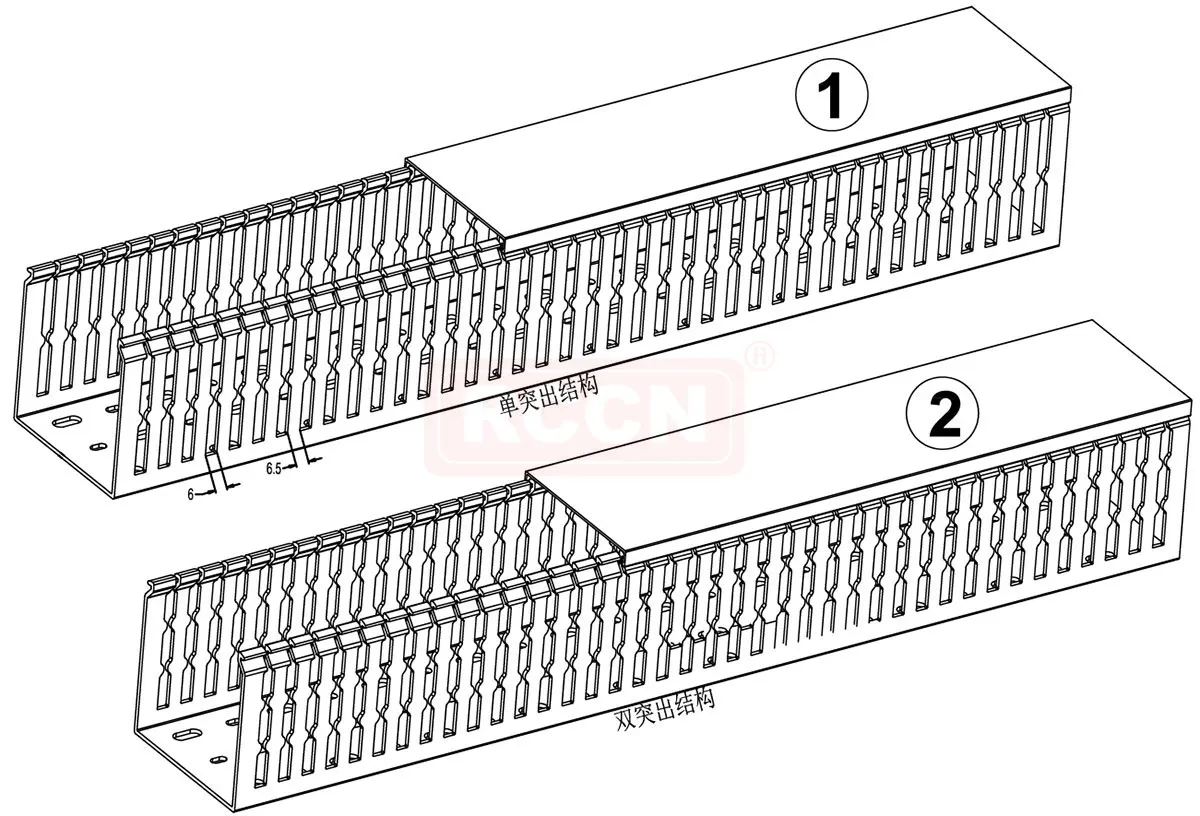

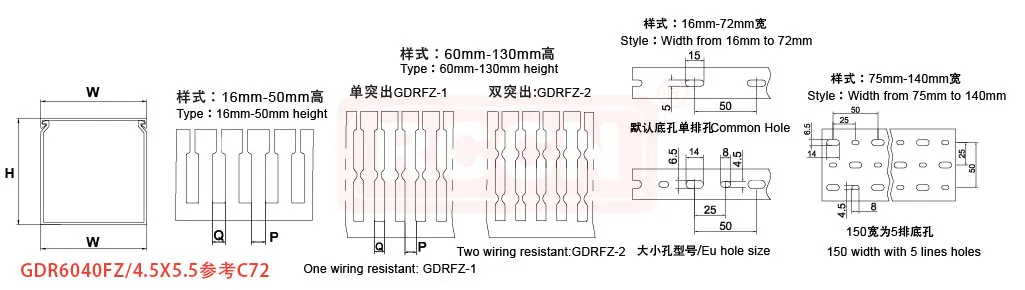

  Restricted slot design  Once inserted wires are  retained in the slot	with or without the cover being  installed	Eliminates hassle and saves  time during installation and maintenance

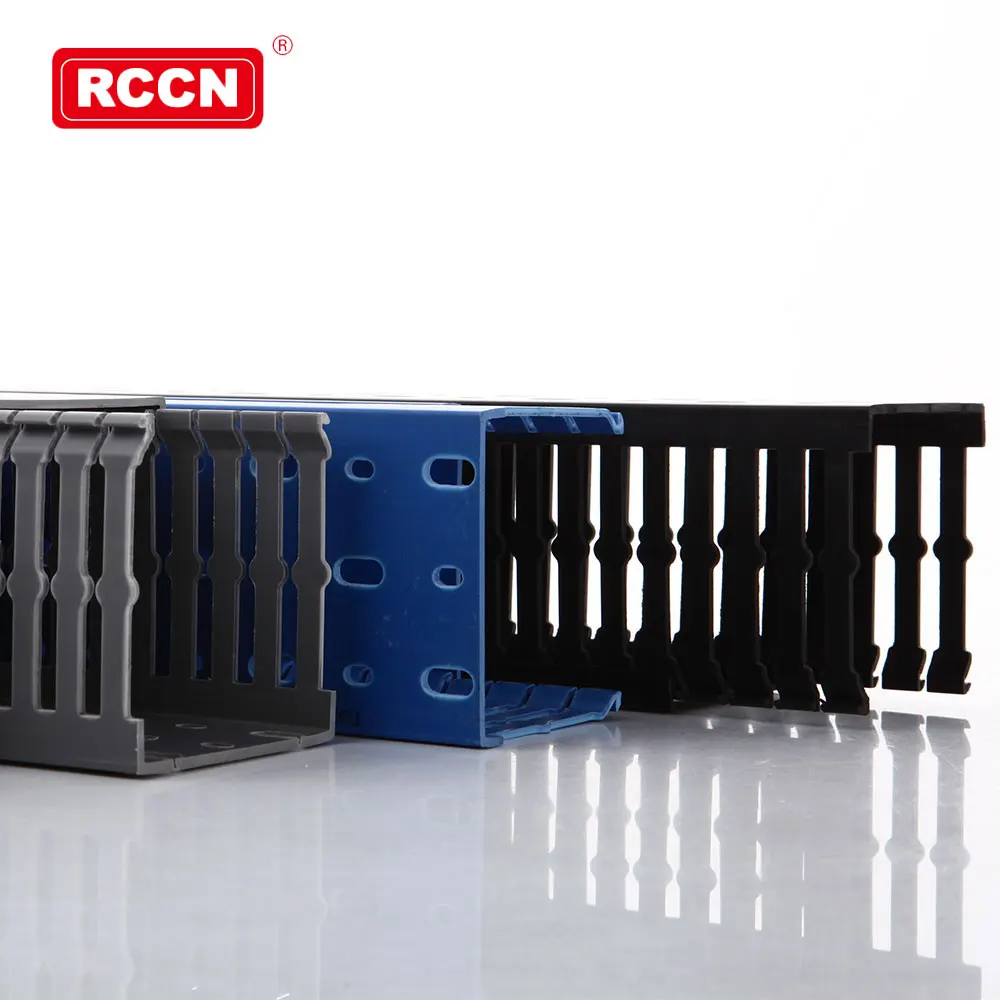

  Four different colors	Suitable to different environments using	Can meet different  customers'request  in different project
  Approved by many  certificates	America UL,Canada CULUS,  EuropeCE ,ROHS,REACH, Flamility and low smoking  certificate	Can provide related certificates of  the projects or parts need
