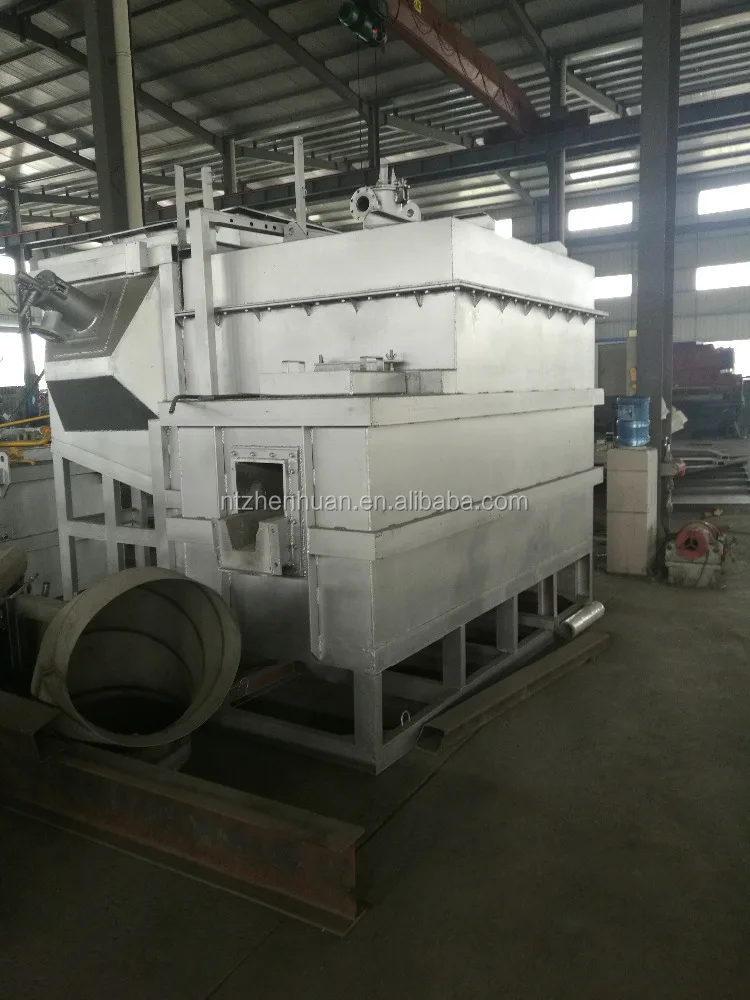

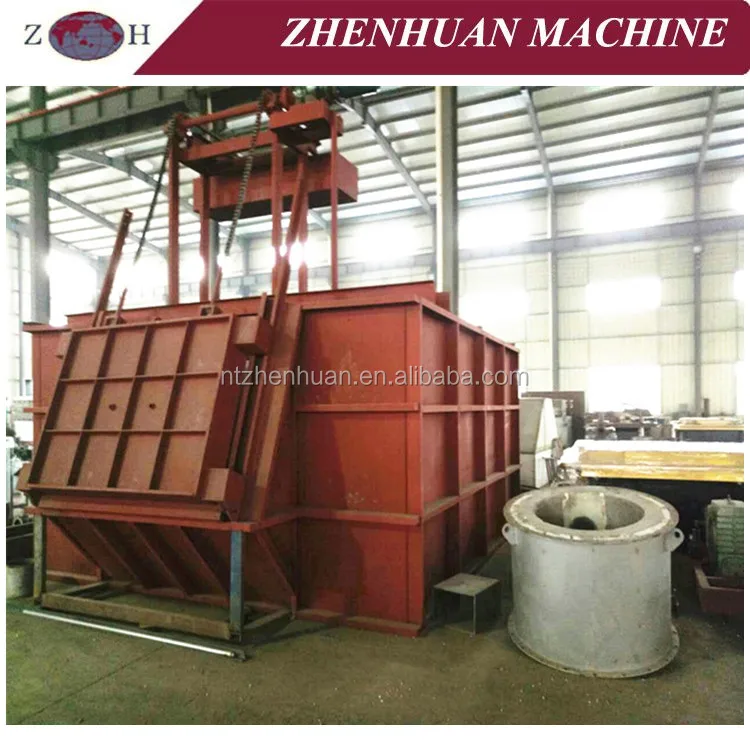

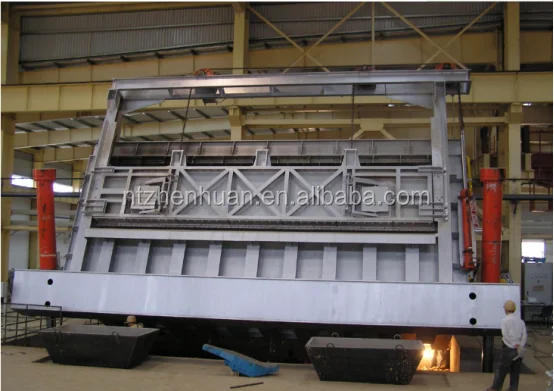

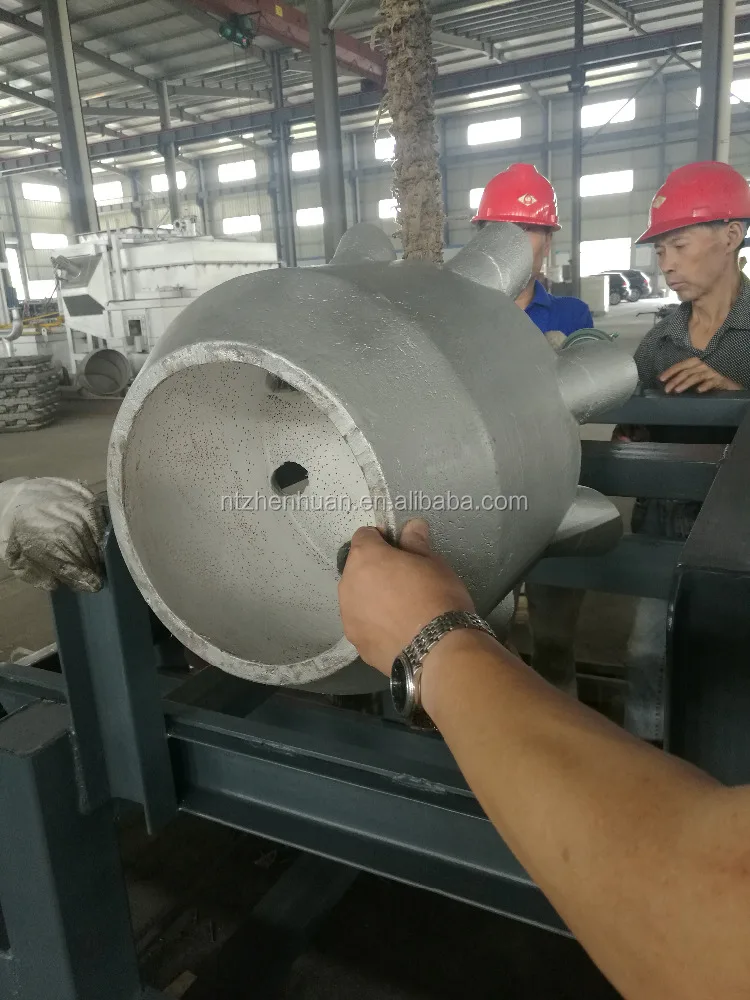

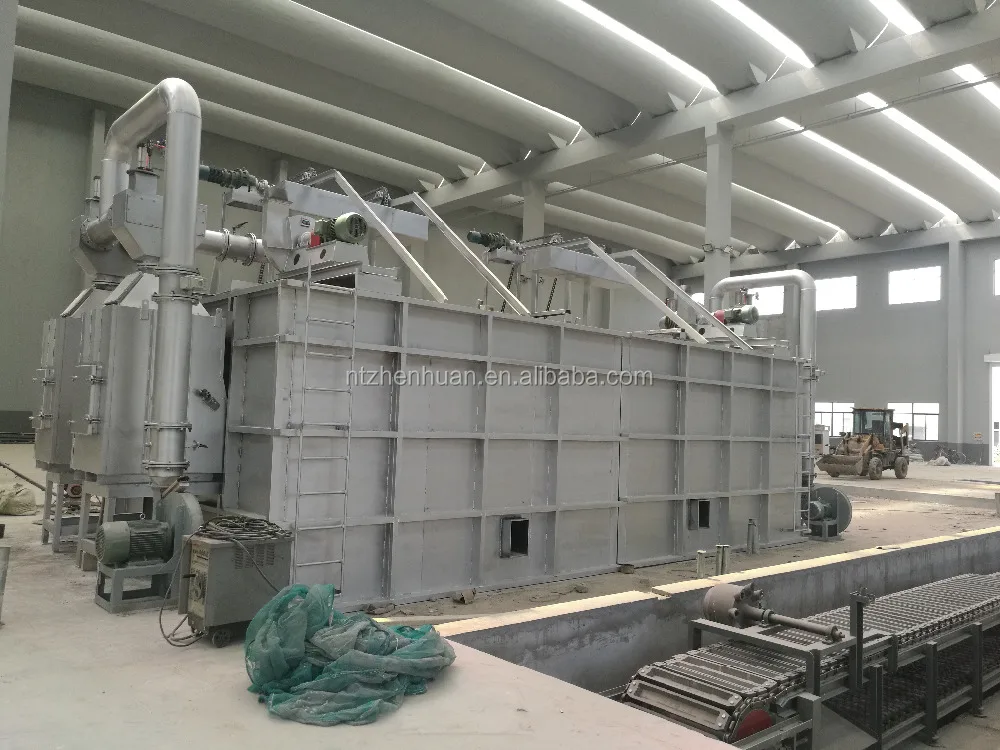

Aluminum scrap melting rotary furnace

Product Overview

Description

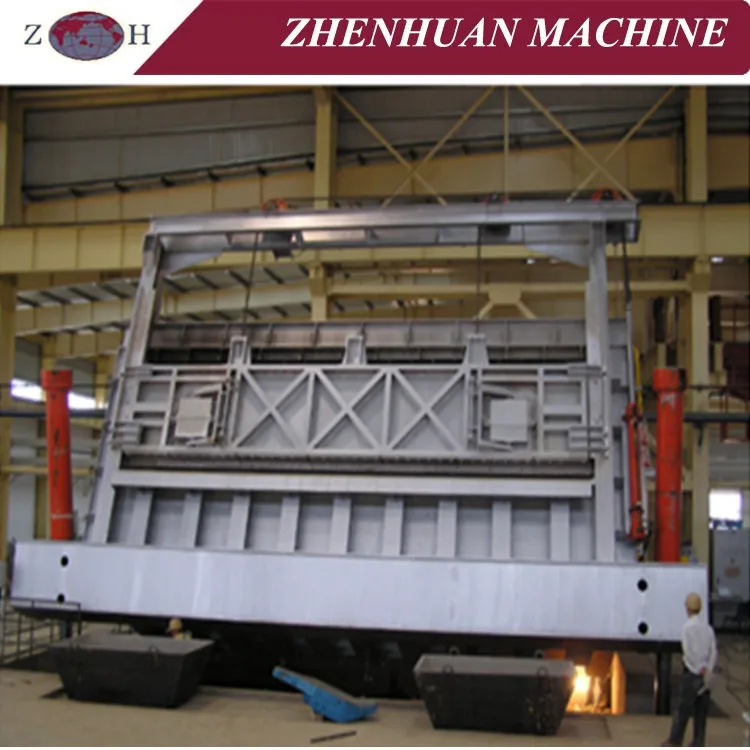

 Aluminium melting rotary furnace



1. Usage

This machine is used for melting nonferrous metals (aluminum) with tilting device.

1- The capacity is 20 tons

2- The shell of furnace is 8mm steel plate, furnace wall is 16# channel steel.

3- The thickness of fireproofing of furnace wall is 560mm. The thermal insulation material is silicate insulation board and high strength light-weight insulating brick.

Furnace hearth slag line and working layer of furnace bottom are used by Grade I aluminum bricks, and other parts are used by Grade III aluminum bricks.

4- Supply range: the drawing of civil foundation, layout chart, furnace body, furnace door, and lifting device. And foundation, oven , oven materials and draught fan are outside of offer

2. Main technical parameters

Name	Data
Furnace type	Rectangular stationary type
Capacity	More than 20 tons
Max. depth of aluminum water	About 500mm
Number of furnace door	1
Door operation	Power driven
Max. temperature	860℃
Normal operation temperature	720-800℃
Al water discharge type	Manual
Discharge hole diameter	About 60mm
Discharge mouth number	1
Nozzle number	2



































3 Fireproofing



Name	Material type	Thickness
Furnace wall (furnace tank which touch liquid)	High-alumina brick, Grade I	230mm
	Impermeable and insulating layer	330mm
	Steel plate (A3)	8mm
	Total thickness of furnace wall	568mm
Furnace wall (out of touch liquid)	High-alumina brick, Grade III	230mm
	Impermeable and insulating layer	330mm
	Steel plate (A3)	8mm
	Total thickness of furnace wall	568mm
Furnace bottom	High-alumina brick, Grade I	230mm
	Impermeable and insulating layer	280mm
	Total thickness of furnace bottom	510mm
Furnace top( arch)	Fire brick	230mm
	Insulating castable	150mm
	Aluminum silicate fiberboard	50mm
	Body frame channel steel	16# channel steel
	Total thickness of furnace top	430mm

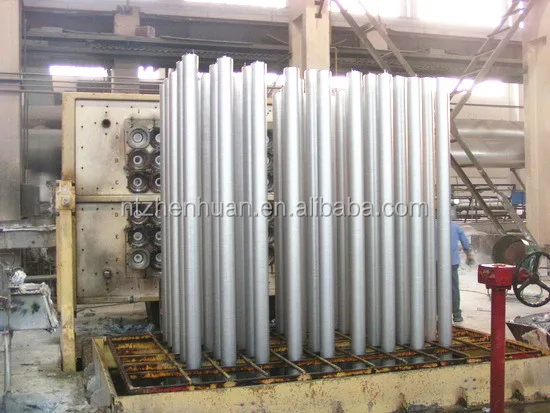

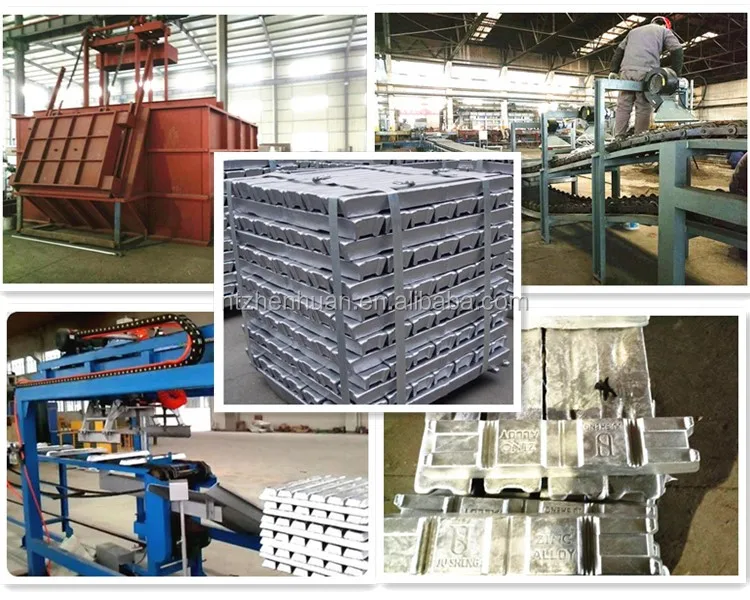

We can provide whole production line for aluminium alloy ingot and billet
