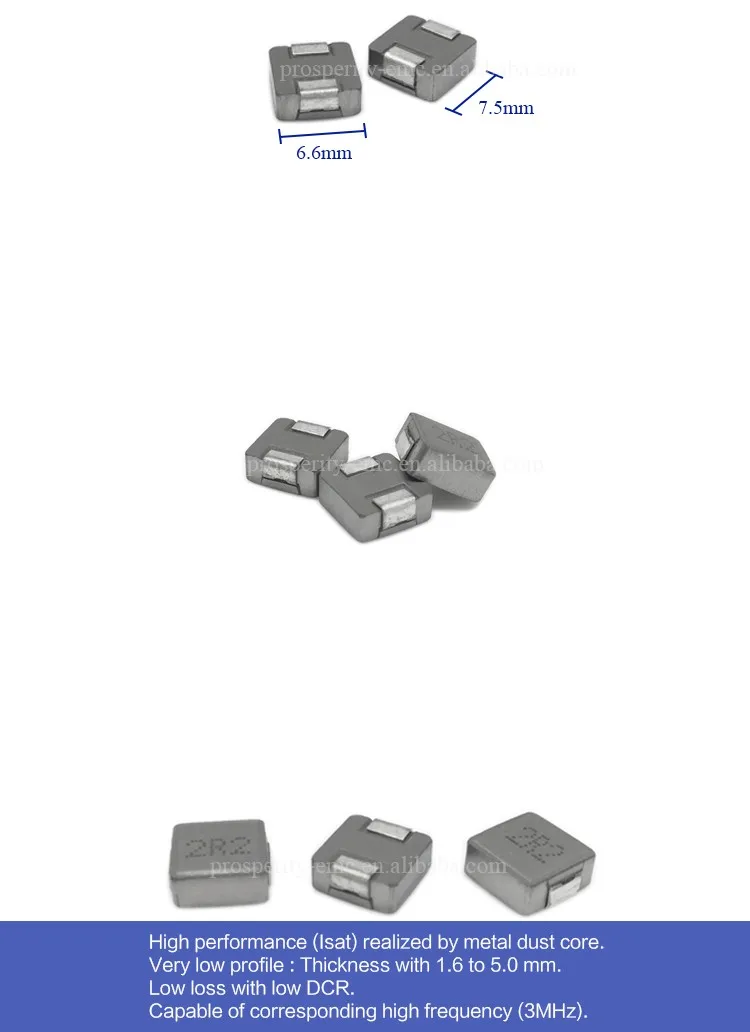

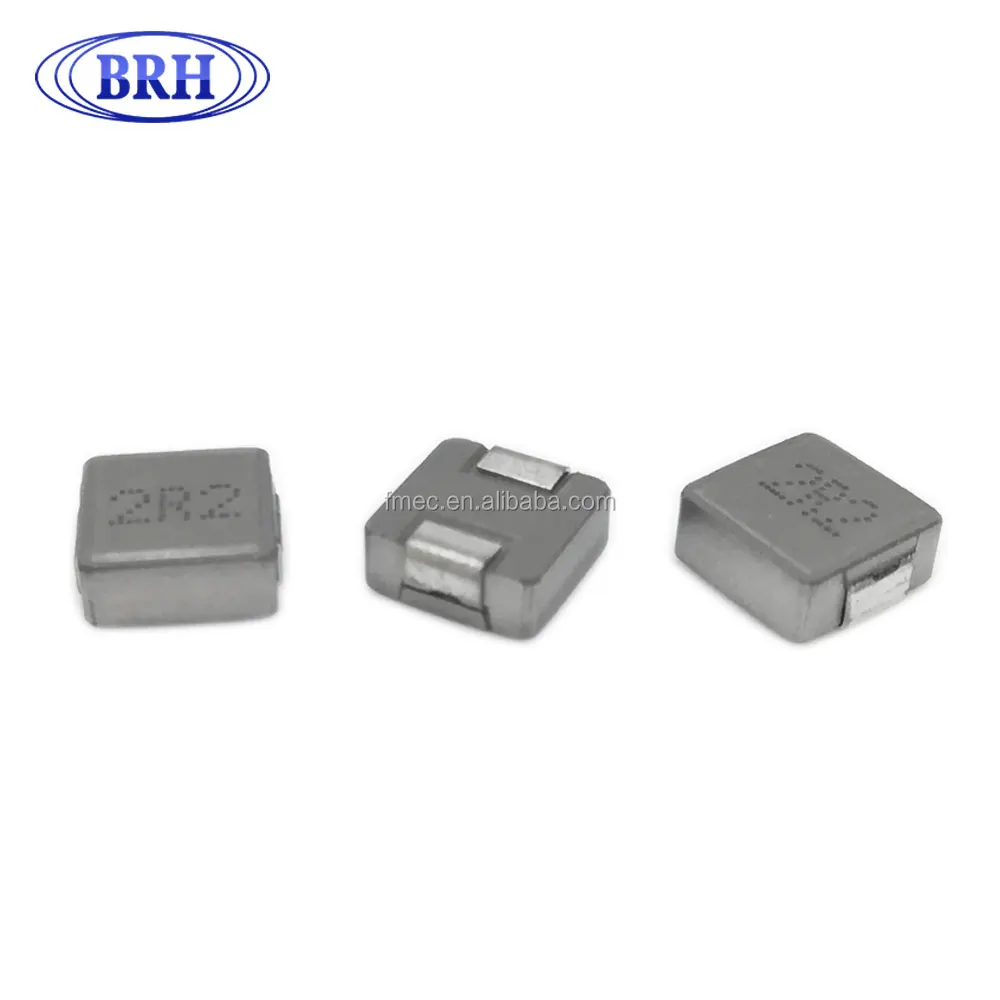

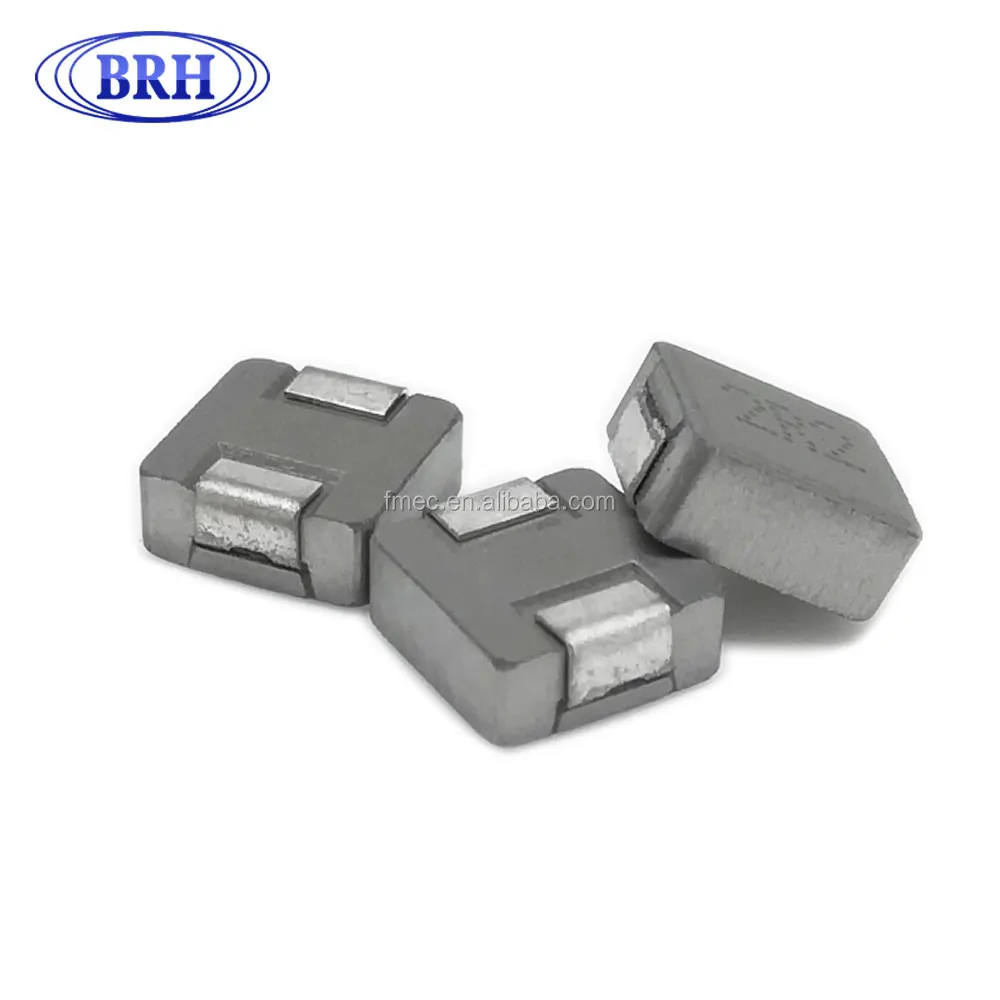

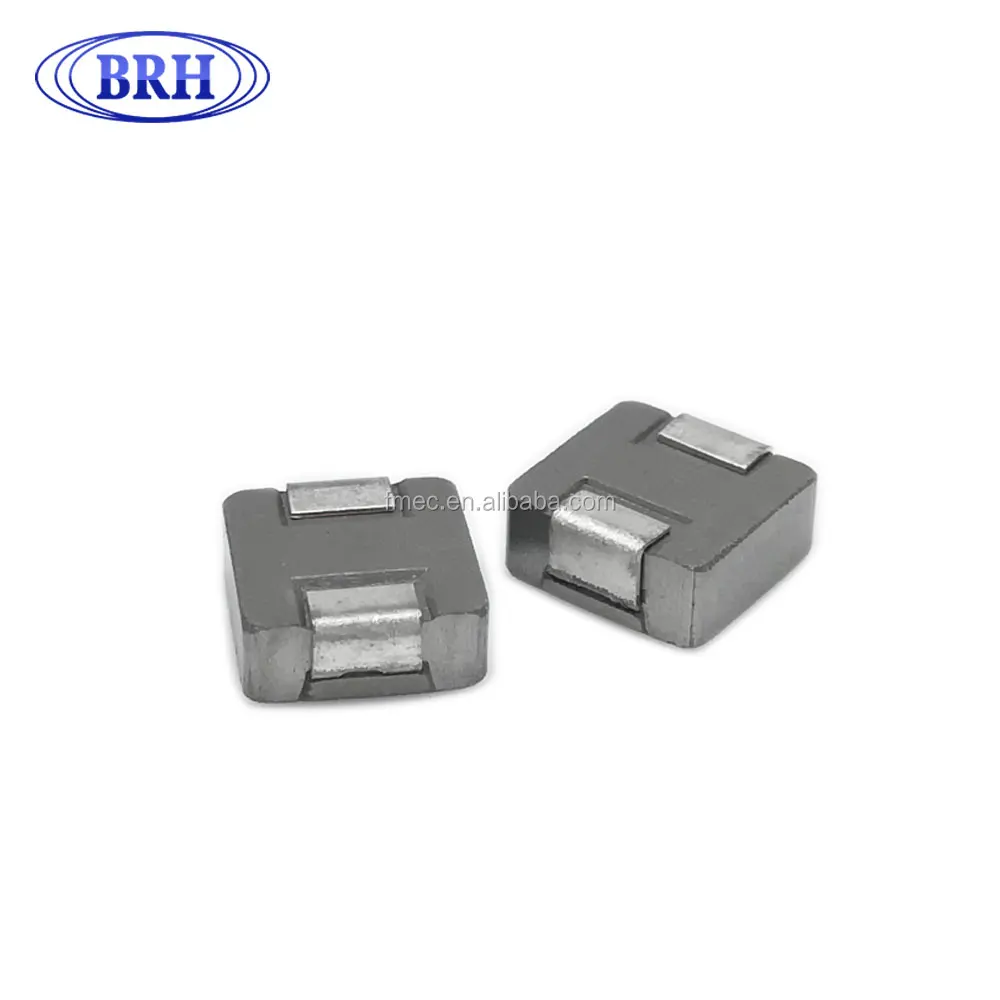

06030 size smd high current power inductor 2.2uh 14A
06030 size smd high current power inductor 2.2uh 14A
06030 size smd high current power inductor 2.2uh 14A
06030 size smd high current power inductor 2.2uh 14A
06030 size smd high current power inductor 2.2uh 14A

06030 size smd high current power inductor 2.2uh 14A

Share on (60757013729):


Price:

Quantity:


Product Overview

Description


Description
\t

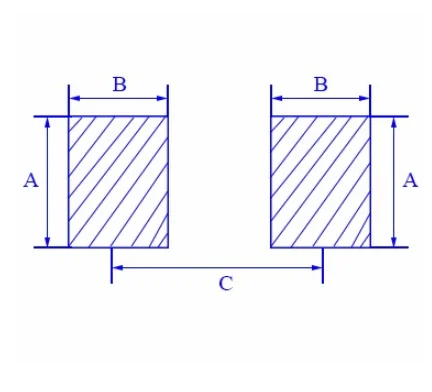

SIZE CODE (mm)
\t
A
Typ.
\t
B
Typ.
\t
C
Typ.
\t
04020
\t
2.5
\t
1.5
\t
3.7
\t
06030
\t
3.5
\t
2.4
\t
6.1
\t
06050
\t
3.5
\t
2.4
\t
6.1
\t
10040
\t
4
\t
3.5
\t
9.5
\t
12060
\t
5
\t
4
\t
10.1
\t
1265
\t
5
\t
4
\t
10.1

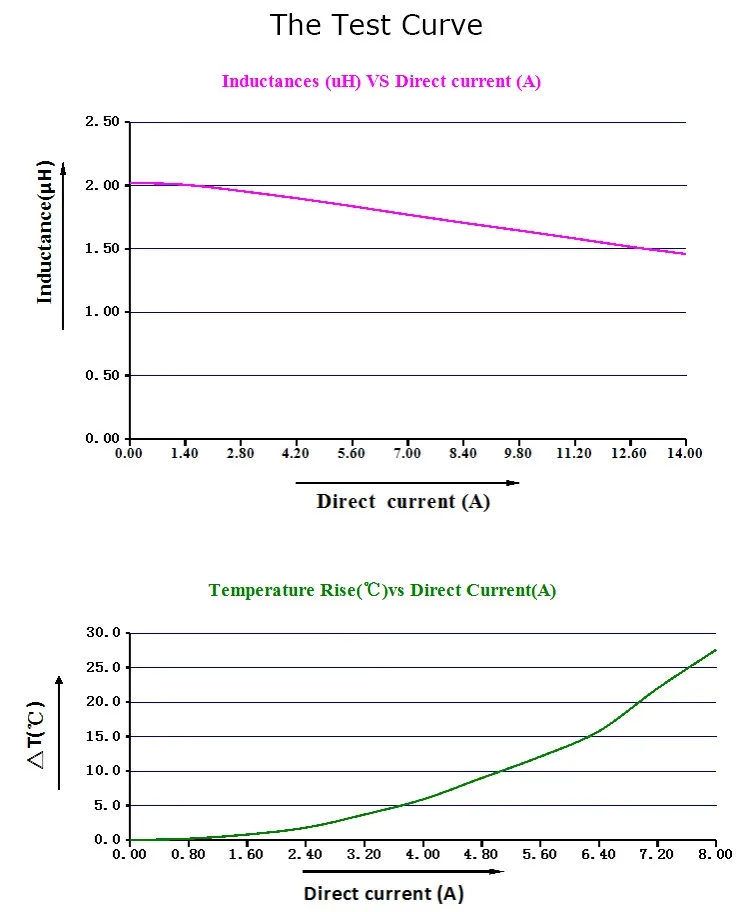

Parameter
\t
Test Data For Pre Production Samples
\t
MEAS.
 Item
\t
L(µH) Isat=0A
\t
L(µH) Isat=14A
\t
RDC
 (Ω)
\t
A
 m/m
\t
B
 m/m
\t
E
 m/m
\t
L(µH)
 Irms=8A
\t
Suggest
\t
2.2±20%
\t
L*0.7
\t
0.02+0
\t
7.5 MAX
\t
6.6±0.50
\t
3.0 MAX
\t
∆T=40℃
\t
1
\t
2.186
\t
1.558
\t
0.0157
\t
7.16
\t
6.64
\t
2.92
\t
27.60
\t
2
\t
2.133
\t
1.528
\t
0.0155
\t
7.20
\t
6.68
\t
2.94
\t
28.10
\t
3
\t
2.091
\t
1.505
\t
0.0156
\t
7.19
\t
6.65
\t
2.90
\t
27.60
\t
4
\t
2.157
\t
1.543
\t
0.0156
\t
7.17
\t
6.67
\t
2.93
\t
27.90
\t
5
\t
2.099
\t
1.508
\t
0.0156
\t
7.18
\t
6.68
\t
2.93
\t
29.20
\t
6
\t
2.206
\t
1.562
\t
0.0155
\t
7.15
\t
6.66
\t
2.93
\t
28.40
\t
7
\t
2.128
\t
1.534
\t
0.0158
\t
7.18
\t
6.67
\t
2.95
\t
27.80
\t
8
\t
2.158
\t
1.541
\t
0.0158
\t
7.20
\t
6.68
\t
2.94
\t
28.70
\t
9
\t
2.109
\t
1.512
\t
0.0157
\t
7.21
\t
6.65
\t
2.94
\t
29.20
\t
10
\t
2.133
\t
1.534
\t
0.0157
\t
7.18
\t
6.66
\t
2.93
\t
29.60
\t

\t

\t

\t

\t

\t

\t

\t

\t
X-bar
\t
2.140
\t
1.533
\t
0.0156
\t
7.18
\t
6.66
\t
2.93
\t
28.41
\t
R
\t
0.115
\t
0.057
\t
0.0004
\t
0.06
\t
0.04
\t
0.05
\t
2
\t
The above test data for reference,Actual results may differ due to different production batches
