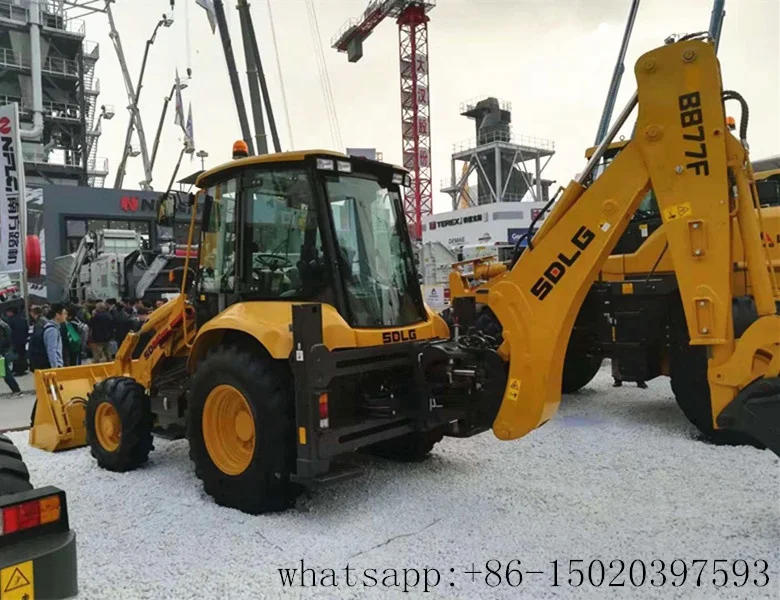

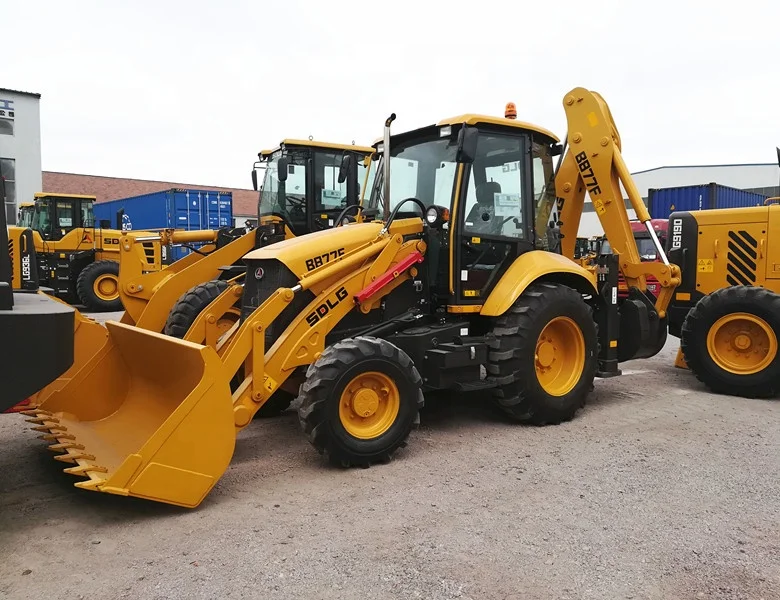

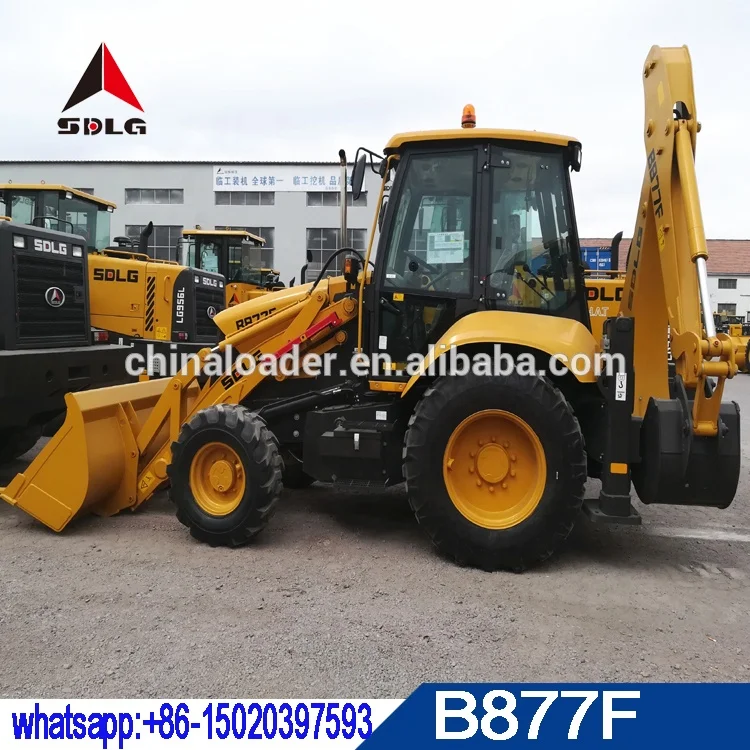

1M3 bucket capacity small tractor B877F for sale
- Category: >>>
- Supplier: Shandong Senxin Trade Co. Ltd.
Share on (60757016142):
Product Overview
Description

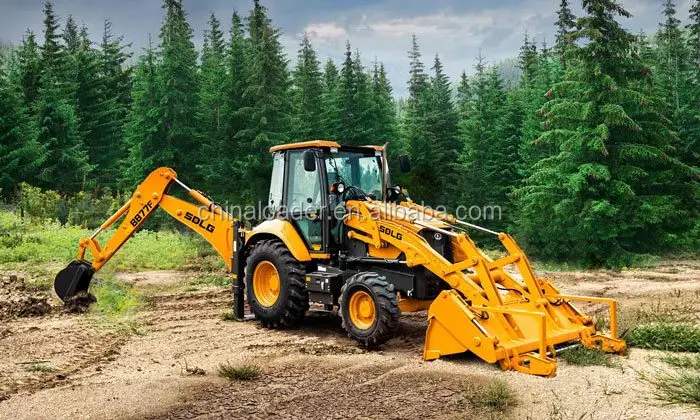

SDLG B877F backhoe loader china best price backhoe loader
Product Description
| Specifications | |
|---|---|
| Operating weight | 8 000 kg |
| Standard loader bucket capacity | 1m³ |
| Standard excavator bucket width | 625 mm |
| Lift capacity (rated load) | 1 800 kg |
| Maximum tractive force | 82 kN |
| Maximum digging force | 48 kN |
| Maximum breakout force | 48 kN |
| Minimum turning radius | 4 118 mm |
| Maximum lift capacity (ISO 14397-2) | 3 224 kg |
| Overall width | 2 350 mm |
| Overall height | 3 608 mm |
| Height to top of cab (including beacon) | 3 090 mm |
| Overall length | 5 917 mm |
| Wheelbase | 2 170 mm |
| Ground clearance | 346 mm |
| Roll back angle ground level | 45° |
| Dump angle | 45° |
| Dump height | 2 693 mm |
| Maximum operating height loader | 4 313 mm |
| Loading clearance excavator | 3 607 mm |
| Maximum digging depth | 4 303 mm |
| Operating height excavator | 5 335 mm |
| Reach from swing post ground level | 5 393 mm |
| Maximum excavator bucket rotation | 194° |
| Engine brand | Yuchai |
| Engine model | YC4A105Z-T20 |
| Engine type | In line, water cooled, four stroke, direct injection |
| Rated Power (SAE J1349) | 70 kW |
| Max Torque | Nm |
| Bore / stroke | 108 / 132 mm |
| Displacement | 4 837 ml |
| Transmission brand, model and type | Carraro TLB1-4WD Powershuttle |
| Gears forward | 4 |
| Gears reverse | 4 |
| Maximum speed forward | 38 km/h |
| Maximum speed reverse | 38 km/h |
| Service brake type | Vacuum servo |
| Parking brake type | Caliper disc |
| Front axle brand and type | Carraro steering axle |
| Front axle steering angle | 55° |
| Rear brand and type | Carraro wet brake |
| Rear differential lock | Yes |
| Hydraulics type | Gear pump |
| Hydraulics maximum flow | 200 L/min |
| Hydraulics maximum pressure | 22.5 Mpa |
| Fuel capacity | 135 L |
| Hydraulic oil capacity | 165 L |
| Axles (main and nal drives) | 7.5 + 0.8 * 2/15 L |
| Engine capacity | 10 L |
| Transmission capacity | 20 L |
| Anti freeze capacity | 14 L |
| Front tyre dimensions | 12.5 - 18 |
| front tyre pressure | 60.9 - 63.8 psi |
| Rear tyre dimensions | 18.4 - 26 (16.9 - 28) |
| Rear tyre pressure | 30.5 - 33.4 psi |
| newproduct | 1 |

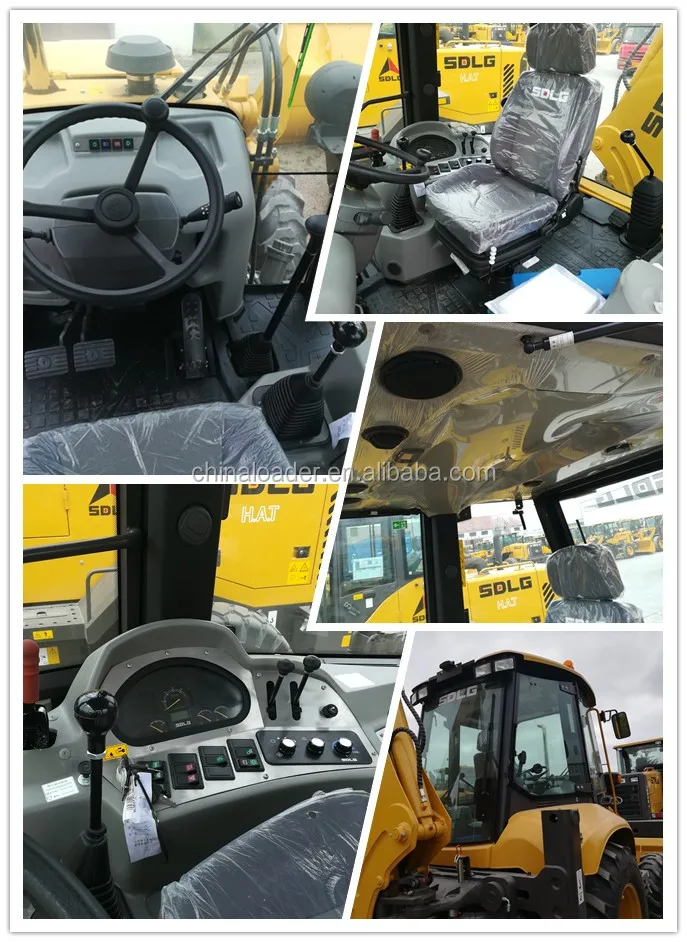

Product pictures
Packaging & Shipping

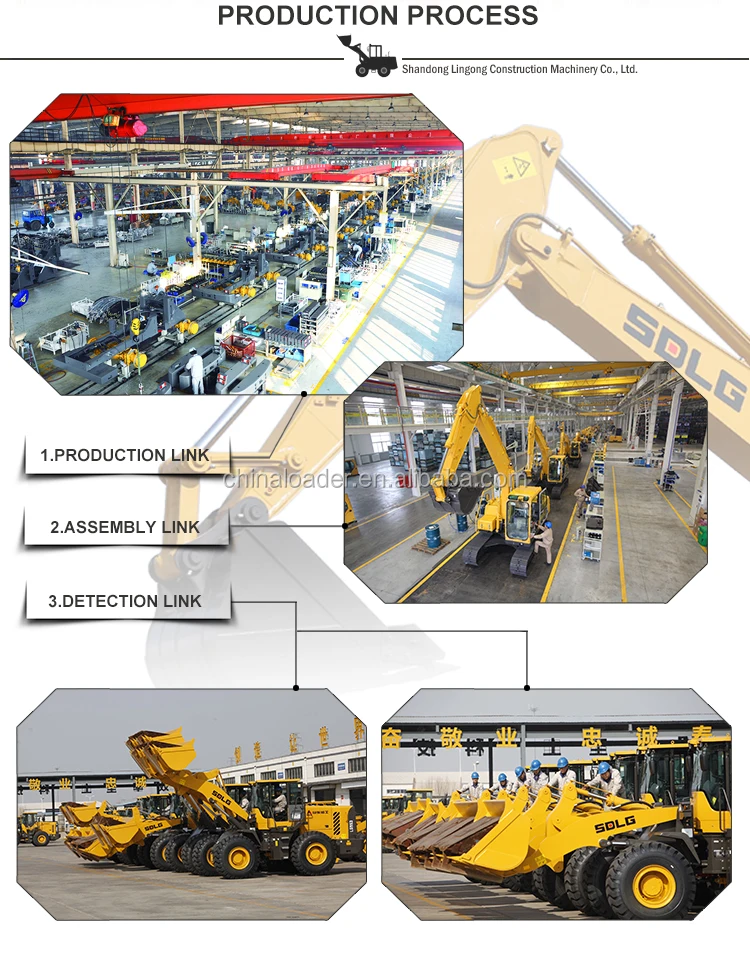

Product process
Related products
FAQ
About Payment item:
T/T 30% in advance, the balance should be paid before shipment.
About after-sale service:
*We supply 1200 working hours or 12 months warranty since the bill of lading date, whichever comes first.
