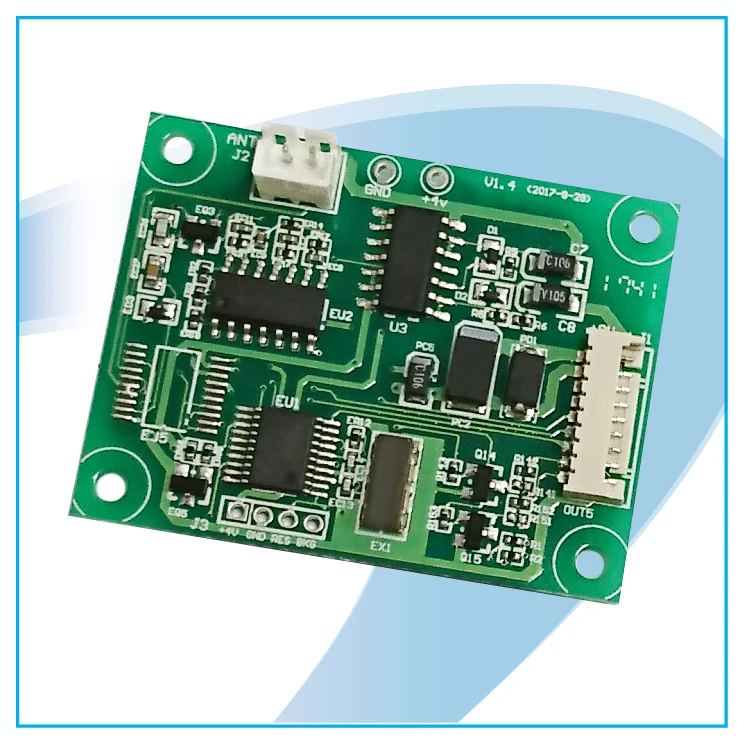

10uA Micro Power 125KHz RFID FSK Reader Module
- Category: >>>
- Supplier: PONGEE INDUSTRIES CO. LTD.
Share on (60757128700):
Product Overview
Description
Micro Power 125KHz RFID FSK Reader Module
Introduction
PXHD-12W-LW is ultra-low power modules designed to operate from 4volt to 9volt. At its lower power setting is consumes just 15μA making these modules the perfect low power alternative to conventional readers. The modules support Wiegand 26/34 data formats and able to read HD or compatible cards and ideal for fixed and portable applications.OEM/ODM orders are welcome.
Specification
RFID frequency | 125KHz FSK | |
Applicable cards | HC or compatible card | |
Reading range | DC 4V | 30mm |
DC 9V | 35mm | |
Output format | Wiegand 25~40 bits | |
Power input | DC4V~DC 9V | |
Transmission spec. | 9,600 bps N, 8, 1 | |
Standby current | 10~15μA | |
Working current | 21.3~23.8mA | |
Dimensions(L)×(W) | 43.2 x 33 mm / 1.7 x 1.3 inch | |
Operating temperature | -30℃~65℃ | |
Storage temperature | -40℃~85℃ | |

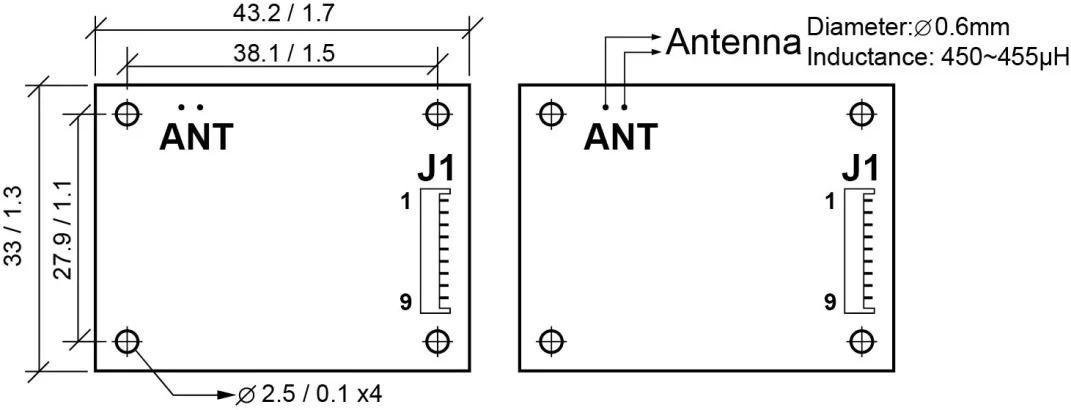

Dimension: Unit: mm[inch]
Optional Antenna
| Antenna Model No. | Dimension | Reading Range (Depending on tag size, tag type) |
| R-17-54TS/450UH | Internal diameter: 70 x 54 mm Outside diameter: 74 x 59 mm Height: 5mm | Card(T:1.8mm): 35 mm |
| Card(T:0.8mm): 30 mm | ||
| R-17-PP110/COIL | Internal diameter: 84 x 35 mm Outside diameter:86 x 38 mm Height: 3mm | Card(T:1.8mm): 35 mm |
| Card(T:0.8mm): 30 mm | ||
| R-17-PEI101/COIL | Internal diameter:34 x 34 mm Outside diameter: 23 x 23 mm Height: 2 mm | Card(T:1.8mm): 28 mm |
| Card(T:0.8mm): 24 mm |
Ordering information

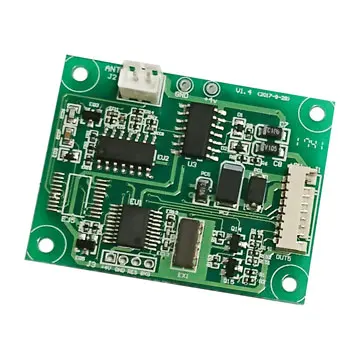

PXHD-12W-LW | Micro Power 125KHz FSK HC Module, With 2 pin connector for antenna | |

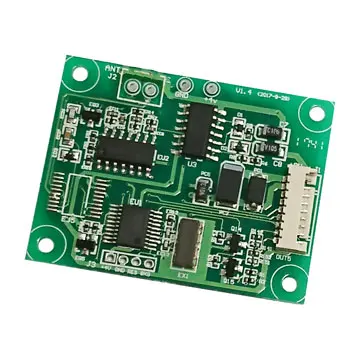

PXHD-12W-LW1 | Micro Power 125KHz FSK HC Module | |
We reserve the right to change the specification without prior notice or obligation!
