Widely used Cooling tower water filter CS Series Centrifugal Liquid Solid Separator filter
- Category: >>>
- Supplier: Shanghai JCI Technology Co. Ltd.
Share on (60757131174):
Product Overview
Description
Product Introduction

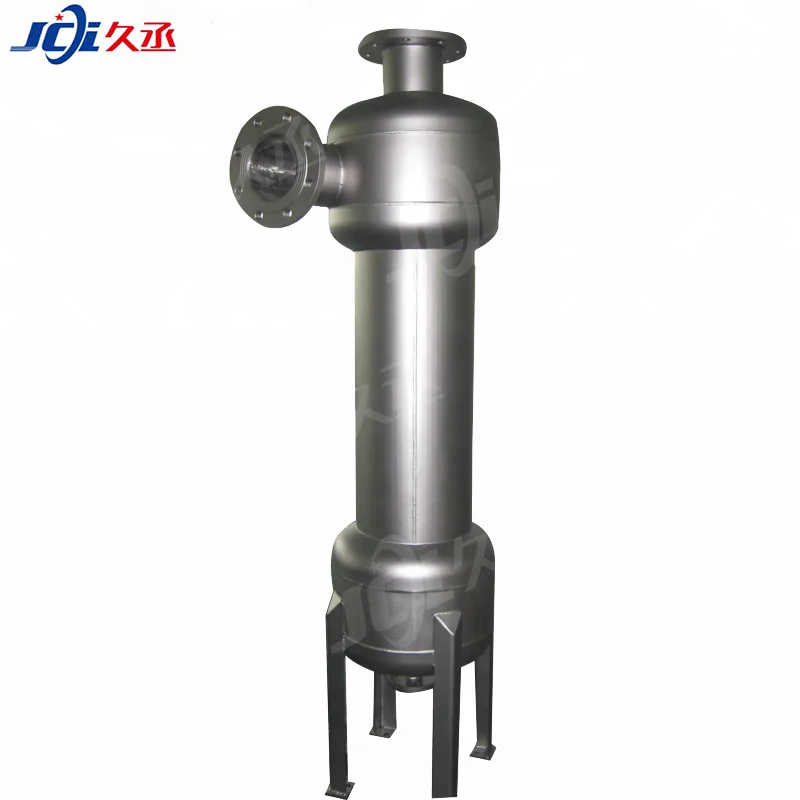

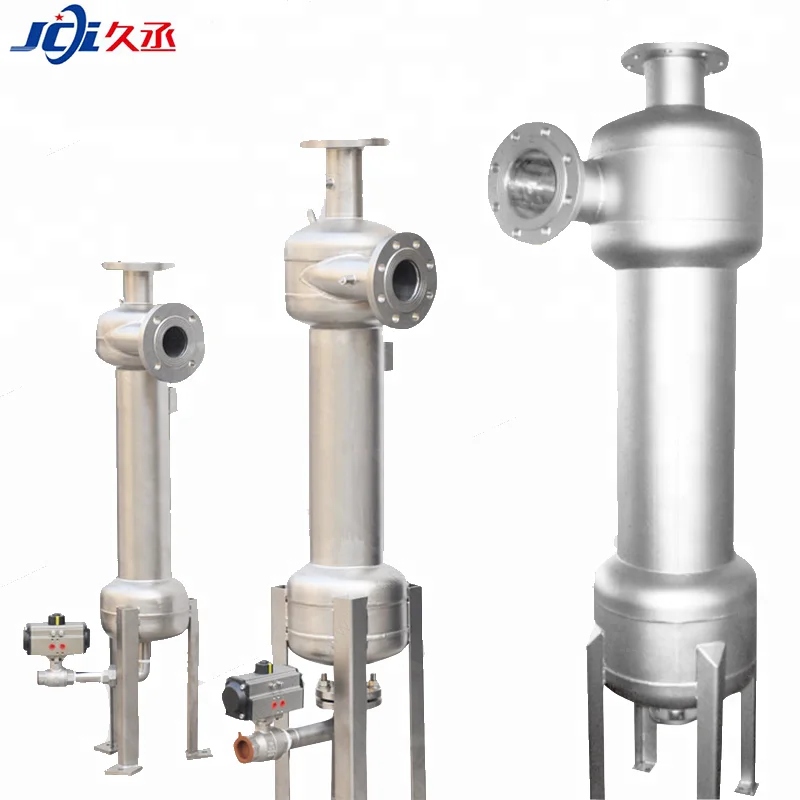

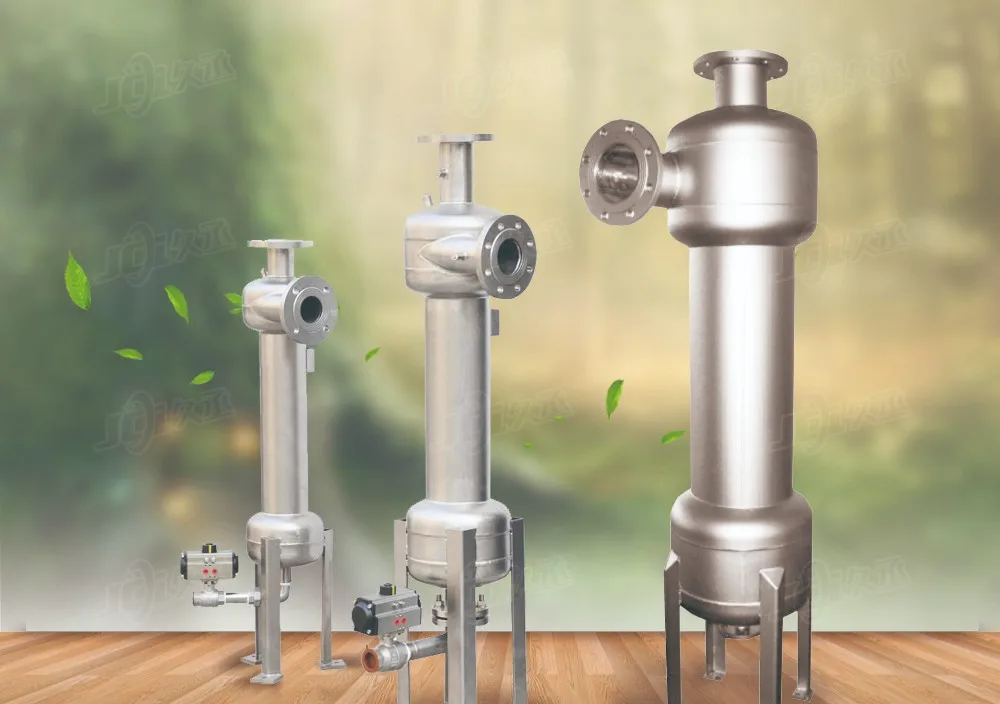

CS Series Centrifugal Liquid Solid Separator
Brief introduction

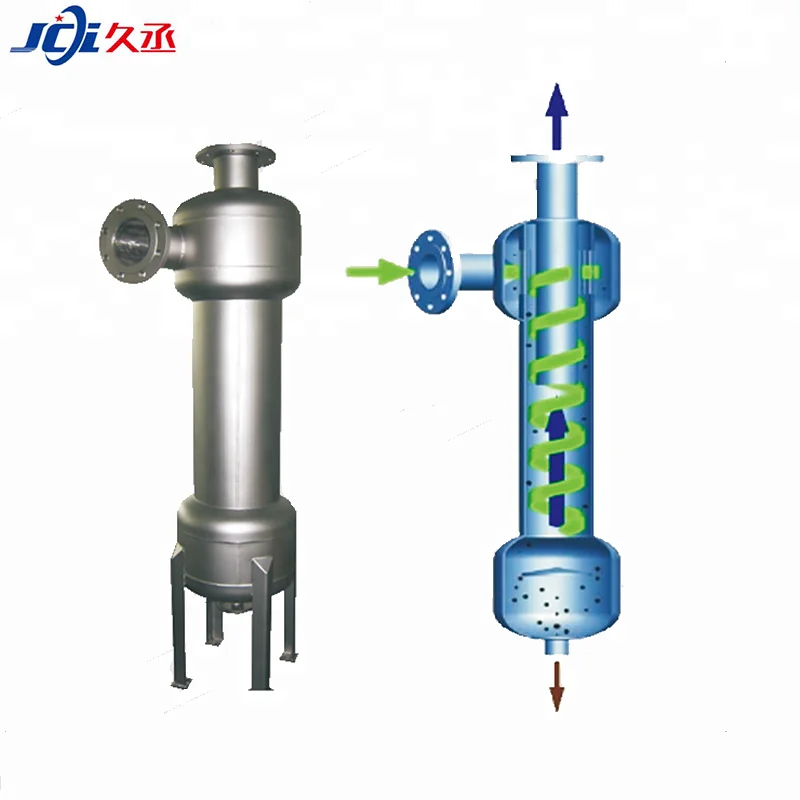

CS Separator is designed to separate precipitable particles via centrifugal force generating from high-speed rotation of fluid. It is extensively used in the field of solid-liquid separation. Its separation efficiency of large-proportion particles that are larger than 40μm is up to 98%. It can separate solid impurities as small as 5μm. The larger the particle proportion is and the lower the viscosity is, the better separation effect will be.
No mobile components are needed when CS Separator is working. There is no need to replace the filter elements or clear the impurities manually. Automatic discharge can be realized only by opening the discharge ball valve at the bottom. The highly efficiency, consistent performance and economic running cost make it an ideal solution for solid-liquid separation.
Through multi-stage separation, CS Separator can significantly improve separation efficiency. It is also an excellent pre-separation device Better filtration effect can be obtained by low-cost high-reliability pre-treatment with CS Separator and then precision filtration with self-cleaning filter, bag filter or cartridge filter, etc., which can also reduce filtering material consumption and material discharge.
No mobile components are needed when CS Separator is working. There is no need to replace the filter elements or clear the impurities manually. Automatic discharge can be realized only by opening the discharge ball valve at the bottom. The highly efficiency, consistent performance and economic running cost make it an ideal solution for solid-liquid separation.
Through multi-stage separation, CS Separator can significantly improve separation efficiency. It is also an excellent pre-separation device Better filtration effect can be obtained by low-cost high-reliability pre-treatment with CS Separator and then precision filtration with self-cleaning filter, bag filter or cartridge filter, etc., which can also reduce filtering material consumption and material discharge.
Technical Parameters & Specifications
Model No. | CS Series |
Inlet/Outlet size | DN25-DN300 |
Applicable viscosity | 1-40cp |
Single flow rate | 4-1,145m3/h |
Design pressure | 0.6-1.0MPa(Other pressure can be customized.) |
Design temperature | 200°C |
Pressure drop | 0.02-0.07MPa |
Housing material | 304/316L |
Technical features and advantages
1. Its separation efficiency of large-proportion particles that are larger than 40μm is up to 98%. It can separate solid impurities as small as 5μm.
2. The larger the particle proportion is and the lower the viscosity is, the better separation effect will be.
3. No consumables, cost cutting.
Product Application
Part of Applicable Industries
Applicable fields: Water treatment, metal processing, biochemical pharmacy, paper making, petrochemical engineering, etc.
Applicable liquids: Raw water(river water, seawater, reservoir water, ground water), sewage treatment, circulating water, machining coolant, cleaning agent, etc.
Main filtration function: Removing various sizes of particles, pre-filtration function, purifying liquid and protecting key equipment.
Filter type: Centrifugal solid-liquid separator; automatic consecutive online working.
Part of Our Valued Customers
customer evaluation
Customer Photos
Our Company
Company Profile
Shanghai JCI Technology Co., Ltd. is a leading company in design and manufacturing around the world filtration industry. The company specializes in automatic and intelligent filtration, especially holds an important status in the field of self-cleaning filtration.
We have a large group of excellent technical personnel concentrating on filtration R&D. The company has strict control on all processes ranging from design to production, inspection and after-sales service as conducted by its well-experienced engineers. The awareness of quality and service as well as the spirit of detail-focused manufacturing has been penetrated into every detail of the company. Through carrying out scientific and normative management and establishing follow-up service archive for every product, we can ensure that every product and every detail of it is excellent, safe and reliable.
We are a global professional company. Over the years, we have possessed many R&D, management and manufacturing centers, marketing and service networks throughout the world. Headquartered in Shanghai, the company has two production bases in Kunshan, Jiangsu and Taiwan, China, and has agents in Singapore, Malaysia and Myanmar. In the future, JCI will become a leader in the field of automatic filtration system and industrial purification technology, to enable efficient and safe filtering products to serve the whole world.
Certifications
Why Choose Us
Professional marketing personnel
1. At least 2 months of technical product training before work.
2. Reply your inquiries in 5 minutes; submit the competitive price in 2 hours.
2. Business English major and Communicate smoothly.
2. Reply your inquiries in 5 minutes; submit the competitive price in 2 hours.
2. Business English major and Communicate smoothly.
Professional design team
1. Custom-built filters to meet your project requirements.
2. Design in 2 hours for free.
3. After sales service engineers available to service machinery overseas or making phone calls. Solving problems in 1 hour.
We are factory
1. Self-marketing.
2. We have strict control on all processes ranging from R&D design, production, inspection and after-sales service.
3. Warmly welcome to our factory for a visit.
Product Processing

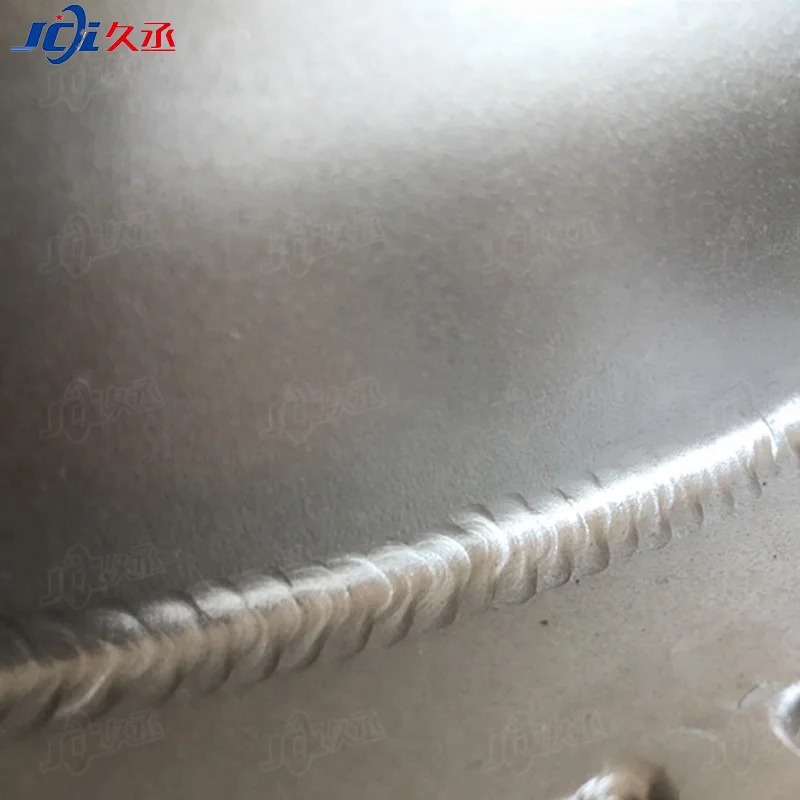

Welding Assembling Pressure Test Packing
