Anti Pinch 12V And 24V Electric Bus Door Opener and Actuator With Good Quality Electric Door Motor Bus Parts and Accessories
- Category: >>>
- Supplier: Shanghai Trion Industrial Co. Ltd.
Share on (60757135476):
Product Overview
Description
Products Description
Specification
I. Product Description

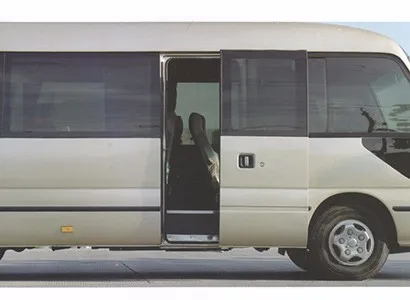

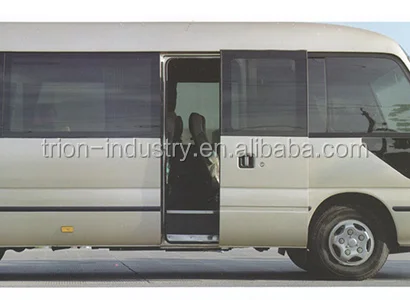

Application: shuttle bus, light and medium coach, utility vehicle, limo-bus and midi-bus.

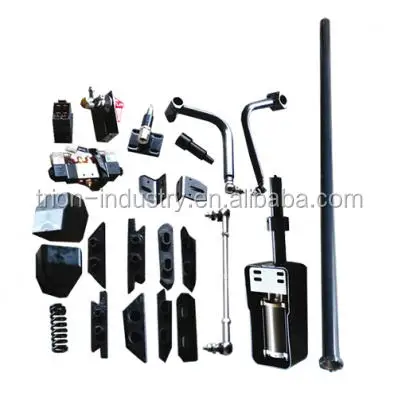

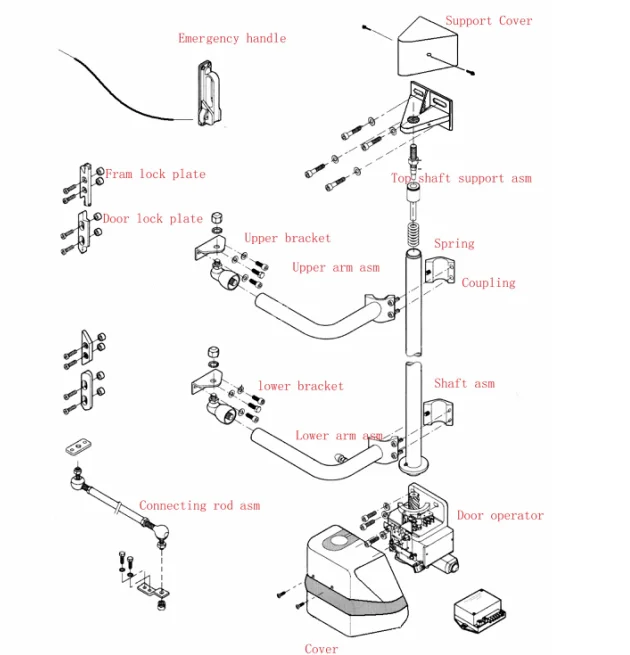

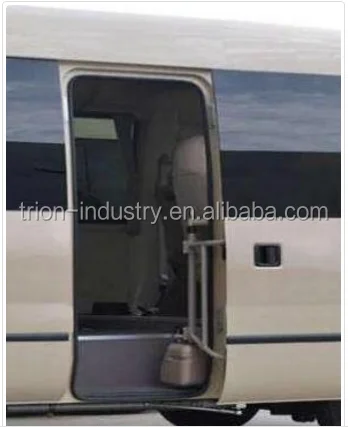

System Component: Rotary actuator assembly, Shaft assembly and Door panel assembly.

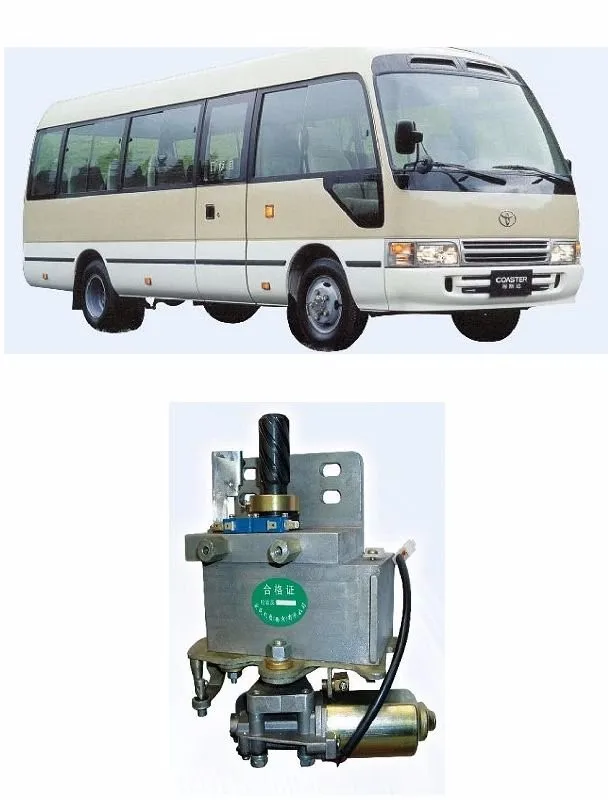

1) The Actuator assembly consist of welding motor structure and unit assemblage of pivoted arm.
2) The shaft assembly is designed for easy installation and maintenance.
3) The door panel is made of aluminum alloy, which has the attributes of light weight, high strength and long life.
II. Product Feature
1)Auto operation :It uses direct current motor as power supply, controlled by power switch. The axle of motor rotates clockwise(or
anticlockwise).The rotation is decelerated by a turbine-worm gear and two pairs of other gears. When there is rotary moment on the
output axes of operator, the door will be opened(closed).After the door and door frame touch, screw lifting mechanism of pivoted
arm will begin work, the door will be lifted, and the four locks installed on the door and door frame will be locked.
2)Emergency release: In case of emergency, put the red handle in ”manual” position, the door can be opened by hand easily.
3)Prevent from clipping: In the process of closing door, if something or somebody blocks it, the prevention from clipping will
work immediately, and the door will open automatically.
III. Main Parameters
1.Specified voltage : DC12V/ DC24V
2.Electric motor specified power : 40W
3.Working speed: 5r/min
4.Max lifting height of the door: 14mm
5.Rotary moment: ＞1000N.m
6.Lifting load: ＜1000N
7.Current of working Process of revolution：3.5A Process of revolution
8.Process of lifting：MAX 7A
9.Allowed ambient temperature -40℃～+55℃
Application Scenario
Company Profile
Shanghai TRION Industrial Co. Ltd, located in Shanghai,China, next to Hongqiao transportation hub, is specialized in the R&D and manufacture of automotive parts, covering R&D, manufature, sales and service. We focus on the automotive electronics and our products are widely equipped on different type of vehicles.
We have been concentrating ourselves in automotive part domain for more than 10 years, and have accumulated abundant experience and resources. We strive our best to satisfy our customers on various demands of functionality, performance and price. Meanwhile, we have set up dedicated teams for body, chasis and electrical parts, which enables us communicate with our customers effectively and efficiently on technical subjects, for example the customized development. Our purpose is to serve our customers by developing the best cost performance products with accurate understanding of their requirements via efficinet communication, professional know-how and abundant resources; by providing high quality products through excellent project management skills and quality control methods.
We adhere to the management philosophy that quality makes survival, technology brings development, market shows direction and service strengthens purpose. We are willing to provide customers with completed, pluralistic and multi-level service, and willing to work sincerely with all partners to create brilliant future!
We have been concentrating ourselves in automotive part domain for more than 10 years, and have accumulated abundant experience and resources. We strive our best to satisfy our customers on various demands of functionality, performance and price. Meanwhile, we have set up dedicated teams for body, chasis and electrical parts, which enables us communicate with our customers effectively and efficiently on technical subjects, for example the customized development. Our purpose is to serve our customers by developing the best cost performance products with accurate understanding of their requirements via efficinet communication, professional know-how and abundant resources; by providing high quality products through excellent project management skills and quality control methods.
We adhere to the management philosophy that quality makes survival, technology brings development, market shows direction and service strengthens purpose. We are willing to provide customers with completed, pluralistic and multi-level service, and willing to work sincerely with all partners to create brilliant future!
Certifications
Packing & Delivery
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 10-15days days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
