LCKX High pressure machinery bearing one way sprag overrunning clutch

Price:RUB 6,503.37 - RUB 22,953.06

Quantity:

Product Description

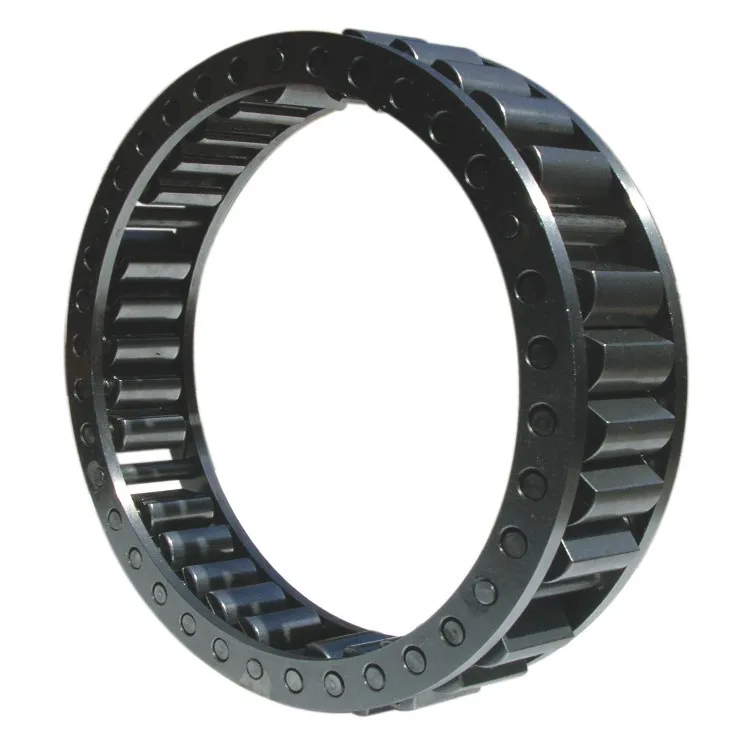

LCKX High pressure machinery bearing one way sprag overrunning clutch

Parameter of LCKX High pressure machinery bearing one way sprag overrunning clutch

TYPE	NOMINAL TORQUE [N · m]	OVERRUNNING LIMITING SPEED [r / min]		DIMENSION IN CONTOUR [mm]					WEIGHT [kg]
TYPE	NOMINAL TORQUE [N · m]	INNER RACE	OUTER RACE	d [h7]	D [js6]	D2	L	L1	WEIGHT [kg]
LCKX25	54	500	1750	25	47	25	19.4	15	0.20
LCKX30	75	400	1575	30	52	30	19.4	15	0.45
LCKX35	102	390	1400	35	57	35	19.4	15	0.53
LCKX40	162	350	1260	40	62	40	19.4	15	0.86
LCKX45	285	300	1050	45	67	45	33.4	29	1.20
LCKX50	462	250	875	50	72	50	33.4	29	1.65
LCKX55	783	230	700	55	77	55	33.4	29	2.12
LCKX60	850	200	560	60	82	60	33.4	29	2.36
LCKX65	1050	180	525	65	87	65	40	34	2.68
LCKX70	1224	180	490	70	92	70	40	34	3.02
LCKX75	1850	150	455	75	97	75	40	34	3.54
LCKX80	2140	130	420	80	102	80	40	34	3.98
LCKX85	2450	105	350	85	107	85	40	34	4.36
