HY WDS2E China Chinese ultrasonic anemometer Wind Sensor with de icing heater rs485 output wind speed sensor
- Category: >>>
- Supplier: Hongyuv Technology Co. Ltd.
Share on (60757408706):
Product Overview
Description
Product Description
Overview
HY-WDS2E Ultrasonic 2D Anemometer is a compact ultrasonic wind speed and wind direction sensor. It is designed to simultaneously measure the 2-dimensional horizontal components of the wind speed and direction. Using ABS shell, Weight is lighter and Structure is more stable. Build-in own intelligent heating module, It can work normally under the cold and freezing weather.
Typical Applications
- Highway
- Meteorology
- Oil drilling platform
- Waterway
- Harbour
- Wind power plant
- Automatic meteorological station
Key Features
- No moving or wearing parts
- Using engineering plastic or aluminum alloy shell make it lighter
- Adopts the reflecting type of ultrasonic probe, the structure robust
- Using acoustic phase compensation technology, precision is higher
- Build-in three axis electronic compass
- 3D acceleration module can provide the stability of the vertical and horizontal swing data
Specification
Wind speed |
| Power requirements | ||
Range | 0 - 60m/s |
| Power supply | DC 5-30V |
Accuracy | ±3% |
| Power Consumption | 5mA@12V(Without heating) |
Resolution | 0.01m/s(0.02 knots) |
| ||
Response Time | 1s (0.25s customized) |
| Startup time | < 1 seconds |
Threshold | 0.01m/s |
| Mechanical | |
Wind Direction |
| Housing | ABS shell | |
Range | 0 - 359° |
| Dimension | Φ144×163mm |
Accuracy | ±3° |
| Weight | 0.38kg |
Resolution | 1° |
| Environmental | |
Response Time | 1s (0.25s customized) |
| Protection | IP65 |
Measurement |
| Operating Temperature | -40℃ to +70℃ | |
Output Rate | 1s (0.25s customized) |
| Storage Temperature | -50℃ - +80℃ |
Parameters | Wind Speed & Direction |
| Operating Humidity | 0 to 100% RH |
Unit of measure | m/s |
| EMC | EN 55032:2015 |
Protocol | MODBUS / NMEA-0183/ASCII |
| EN 55024:2010 | |
Outputs |
| Service life | ||
Analogue outputs | 2 outputs: 4-20mA. Max. 500Ω Load |
| 10 years | |
Serial outputs | RS232,RS485,SDI-12 |
| Accessories | |
Baud Rate | 4800-19200 |
| Cables | 4 meters |
Warranty |
| Color of body | ||
2year |
| Black or White | ||

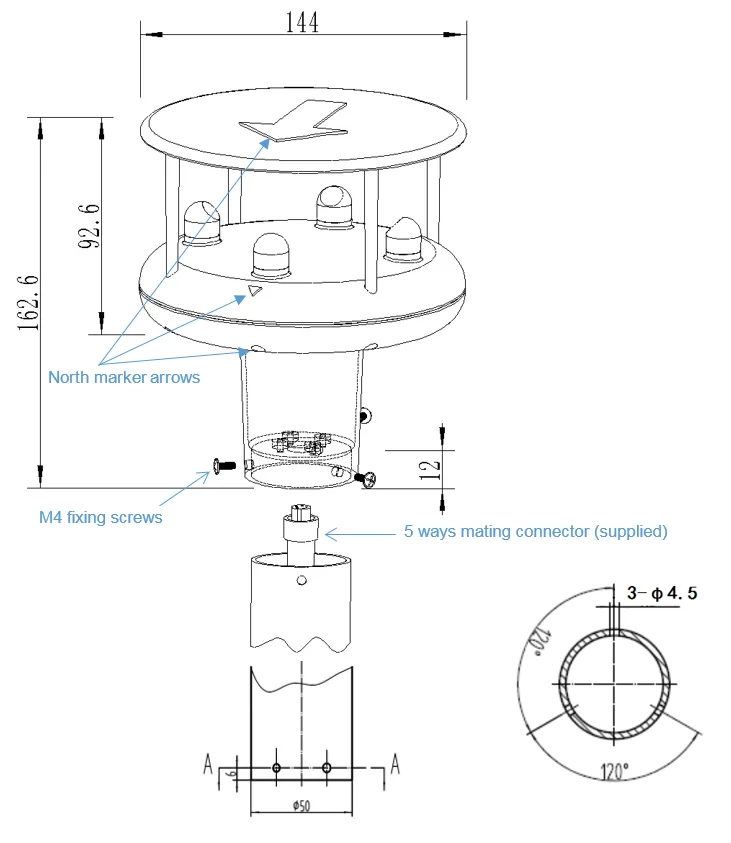

Dimension

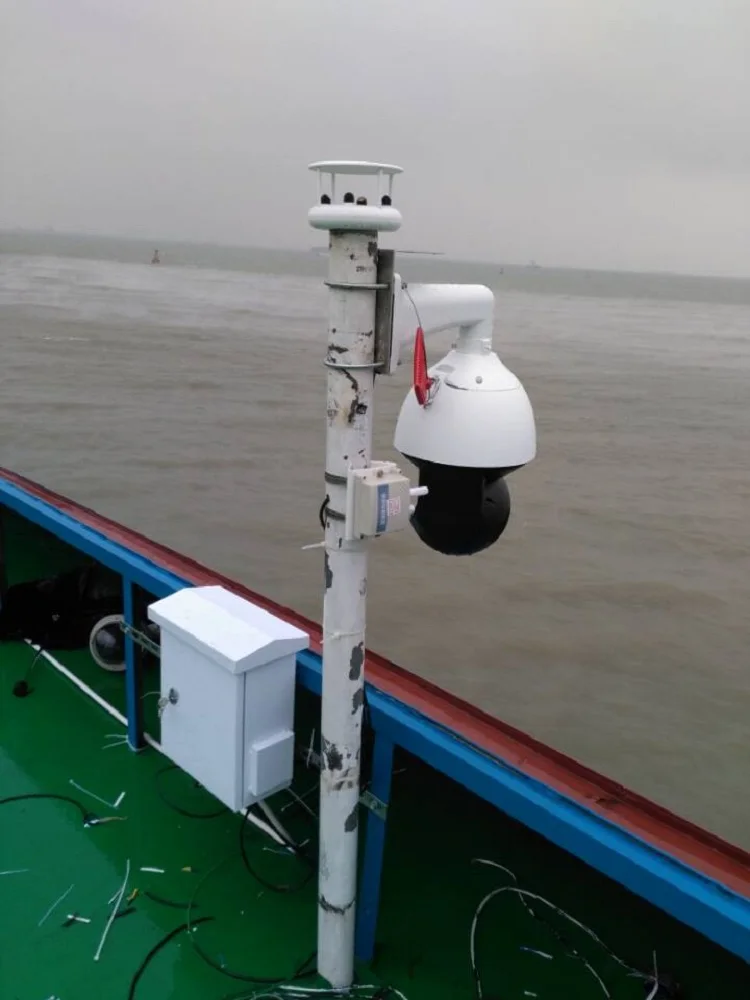

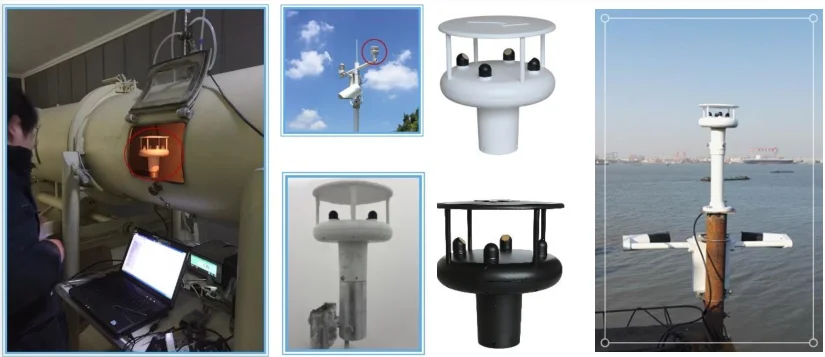

Phontos on site

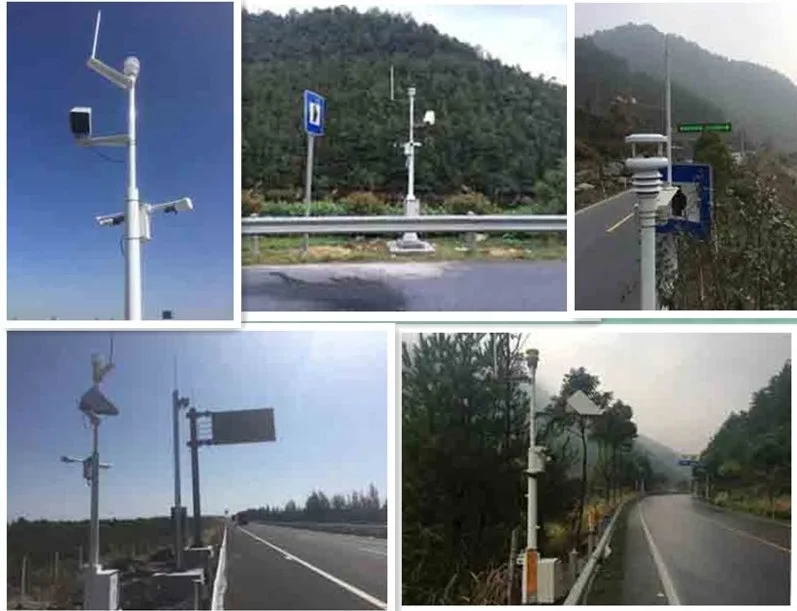

Our weather station,visibility monitor, tunnel photometer,illuminance monitor, road surface state detector are widely used in high way, tunnel for traffic control.
About us
Hongyuv Technologies Co.,Ltd is located in Chengdu Hi-tech West Zone. As a high-tech company, We takes the development of new products as its main business direction. All of our products are self-developed and fully owned independent intellectual property rights of our sensors. Our current products are mainly divided into three categories: meteorological sensors, traffic environment detection sensors and photoelectric detection sensor for industrial application.
Hongyuv has a professional R&D team with over 10 years development experience involve in photoelectric detection, ultrasonic technology, video image analysis, etc. Therefore, we took the lead in the development of the transmissometer, visibility meter, ultrasonic wind speed and wind direction detector , Egg embryo classification infrared detector.
Our Services
Price, Package, Service
1, Price : EXW, FOB, CIF
2, Payment: 100% T/T in advance, west union or paypal .
3, Packing : standard export packing , including instructions
4, Leading time : 5-8 working days after payment.
5, OEM avaliable
6, Shipment: Express (FedEx, DHL, UPS & TNT) or forwarder (by sea, air)
7. One year free repair for quality warranty
