Polynet 36 cells Semi flexible solar panel 100w Mono flex photovoltaic solar panels
- Category: >>>
- Supplier: Hefei Polynet Products Co. Ltd.
Share on (60757454393):
Product Overview
Description
Product Description
Polynet 36 cells flexible solar panel 100w Mono flex photovoltaic solar panels
Semi flexible solar panel
- with high-efficiency mono crystalline cells - own high High curvature,as like for the long 2m solar panel can reached 0.9m Arc diameter
and are widely used in RV, marine, caravan and applied to all irregular surfaces.
Easy Installation

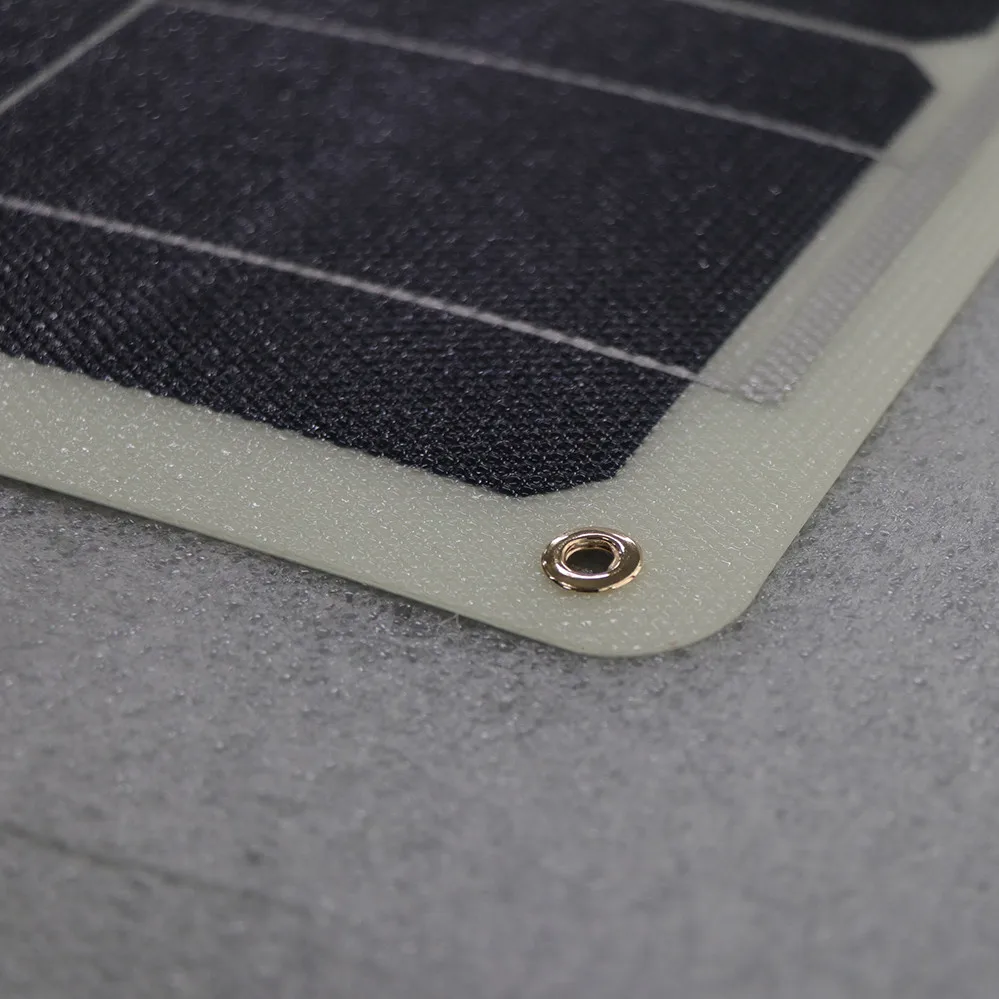

- Semi Flexible solar panel can be affixed by adhesive or grommets
(with which you can easily attach or detach the panels.)
- Holes on panels are pre-drilled for fast mounting and securing, perfect for non-permanent installations.
Flexible & Widely Compatibility
- Versatile installation options: applicable for RV, boat, cabin, tent, yachts or any other irregular surfaces.
Reliability

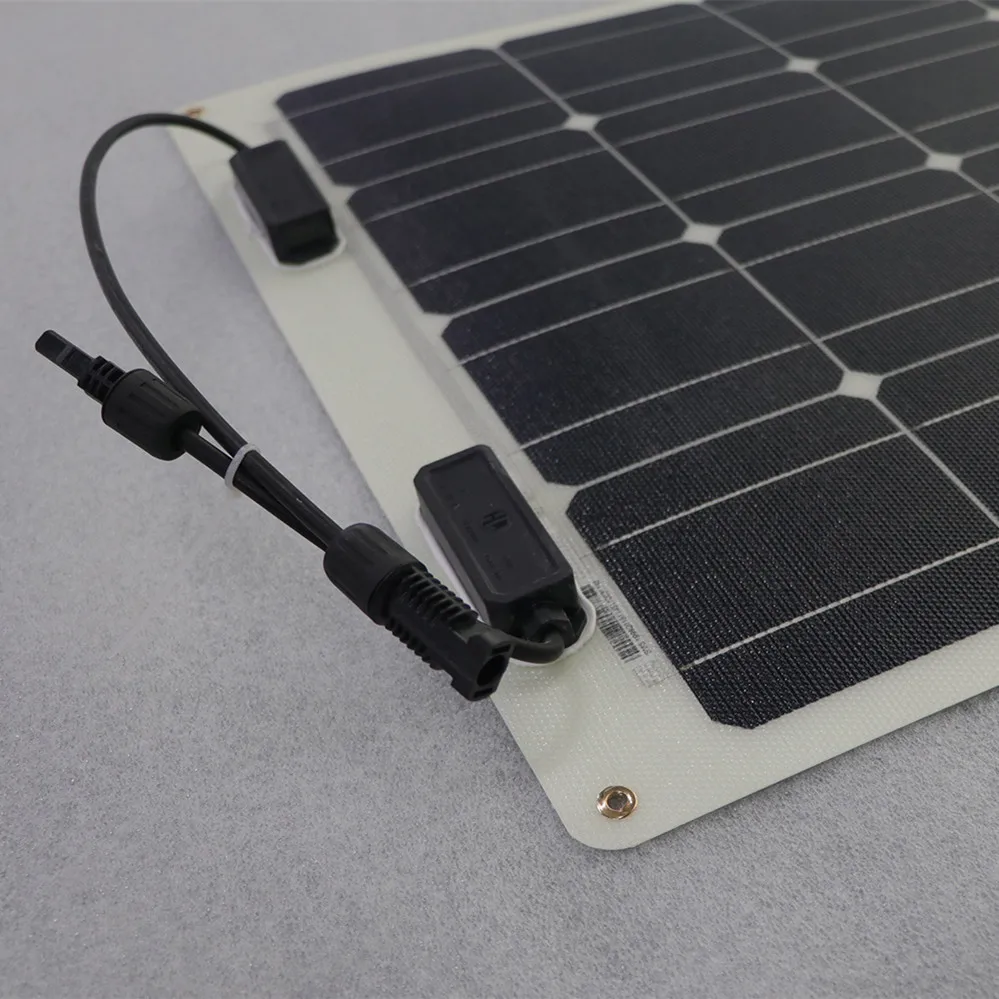

- The junction box is sealed and waterproof.
High efficiency
- the efficiency of semi flexible solar panel is up to 23%.

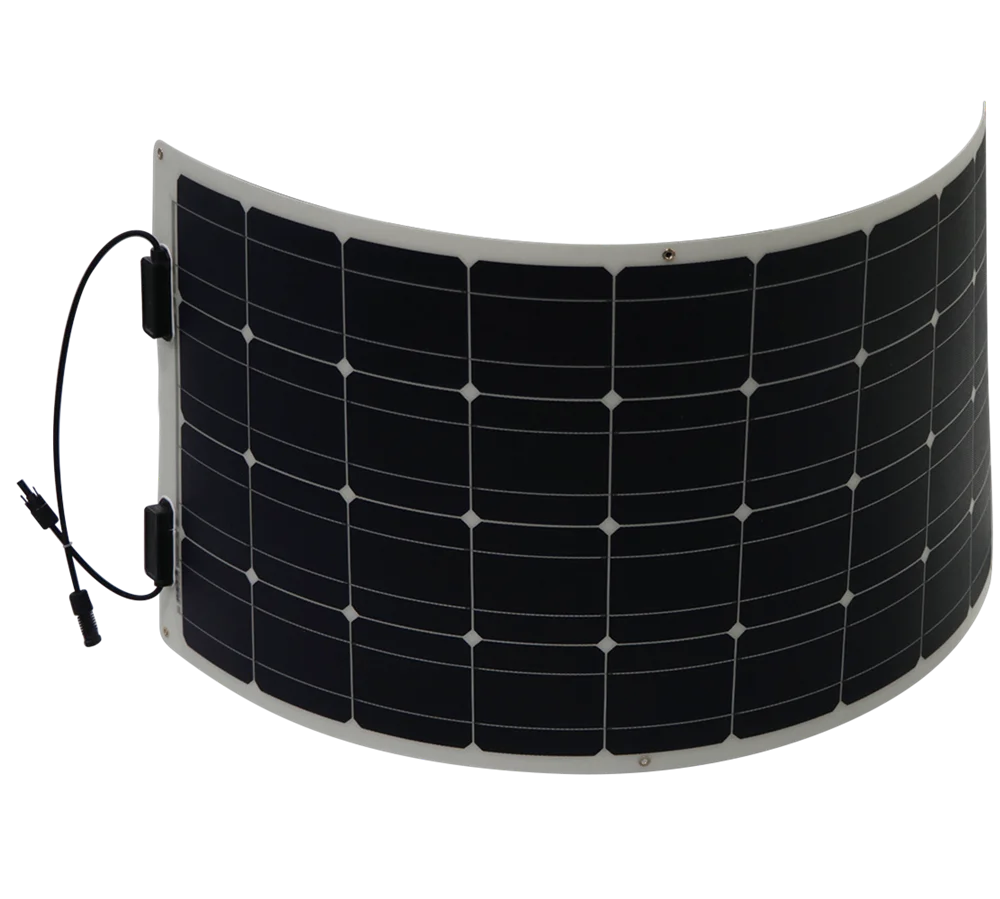

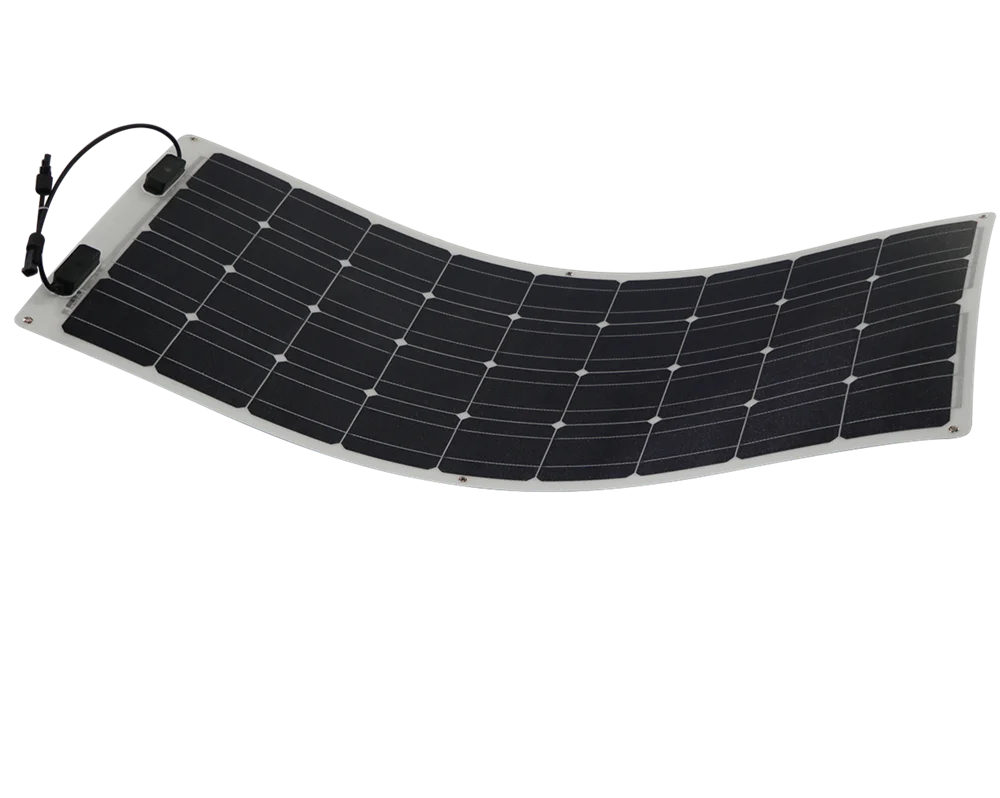

100w flexible mono solar panel's picture display:
Specification
| Module Type | PMF-50M | PNF-55M | PMF-100M | PMF-110M |
| Maximum Power(Pmax) | 50W | 55W | 100W | 110W |
| Open-circuit Voltage (Voc) | 22.6V | 22.8V | 23.5V | 23.7V |
| Maximum Power Voltage(Vmp) | 18.5V | 18.6V | 19.0V | 19.15V |
| Short-circuit Current (Isc) | 2.92A | 3.1A | 5.67A | 5.76A |
| Maximum Power Current (Imp) | 2.71A | 2.956A | 5.27A | 5.744A |
| Module Efficiency (%) | 13.5% | 14.85% | 15.4% | 16.94% |
| Power Tolerance | 0~+5W | |||
| Standard Test Environment | Irradiance 1000w/m2, Ambient temperature 25℃, Spectrum AM 1.5 | |||
| STC: Irradiance 1000W/m2, Cell temperature 25℃, AM=1.5. | |||||||
| Mechanical Parameters | |||||||
| Cell Type | Mono-crystalline 125x125mm (1/3 6inch,5inch,6inch) | ||||||
| No. of Cells | 36 (4x9) | ||||||
| Dimension | 562×660×2 mm / 1216x533x2 mm / 1502×660×2 mm | ||||||
| Junction Box | IP 68 rated (each j-box have one bypass diodes) | ||||||
| Output Cable | Photovoltaic technology cable 4.0 mm2, (+)150 / (-)450 mm | ||||||
| Connector | MC4 compatible | ||||||
| Working Conditions | |||||||
| Maximum System Voltage | 600 V DC (IEC) | ||||||
| Operating Temperature | -40°c~+85°c | ||||||
| Maximum Series Fuse | 20A | ||||||
| Application Class | Class A | ||||||
| Power Tolerance | 0/+5 W | ||||||
Production
Packaging & Shipping

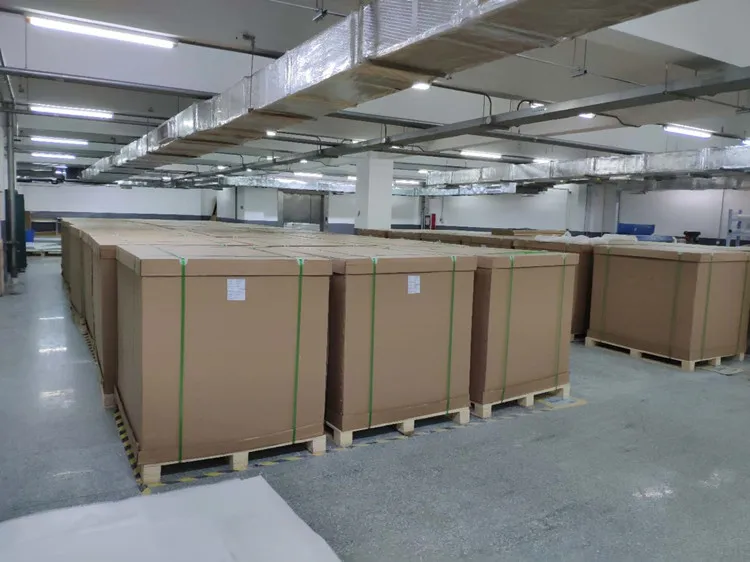

100w flexible solar panel Package:
Semi flexible solar panels Shipping:
Project cases

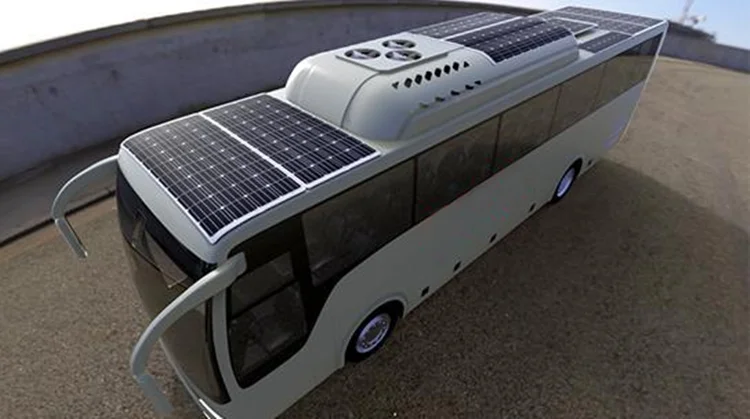

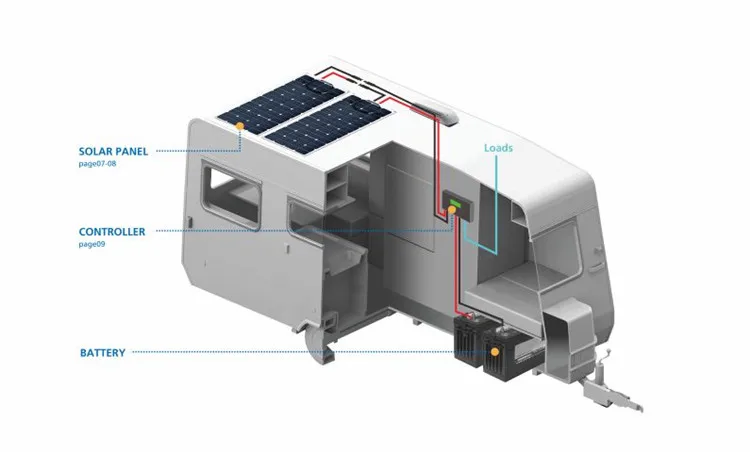

100w flexible solar panel application:for car ,ship,Rvs,watercraft,tractors,
recreation vehicles,camping...
