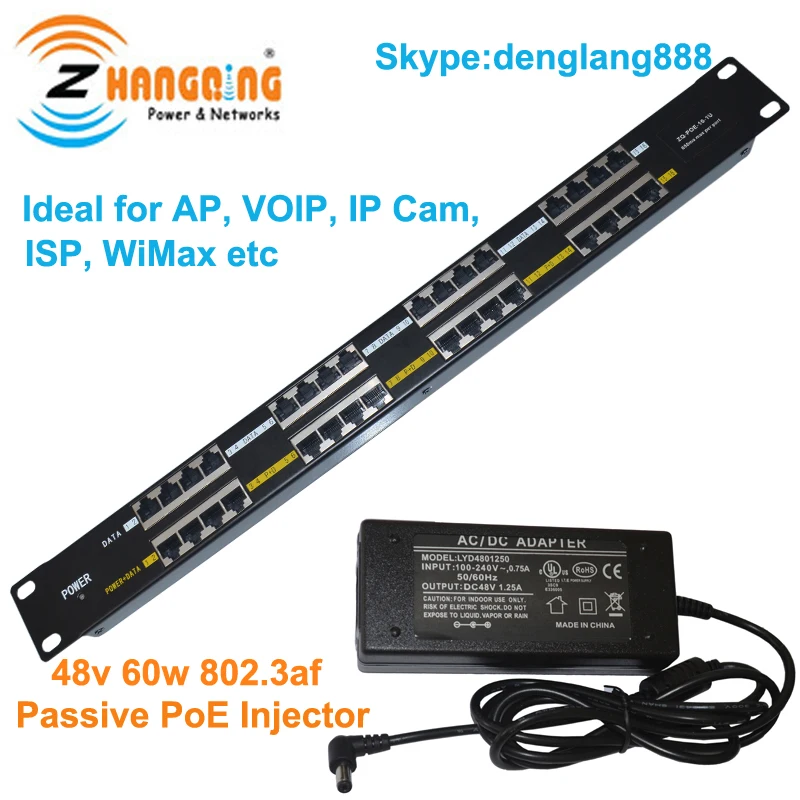

POE 16 1U Rack mount Passive 802.3af 802.3at 24v 48v 56v poe panel 16 port poe injector for Camera AP

USE 10/100M Ethernet
Flexible power(DC 12V TO 57V)
Each Port Current Protection (650mA+/-10%)
For 19’’ Rack

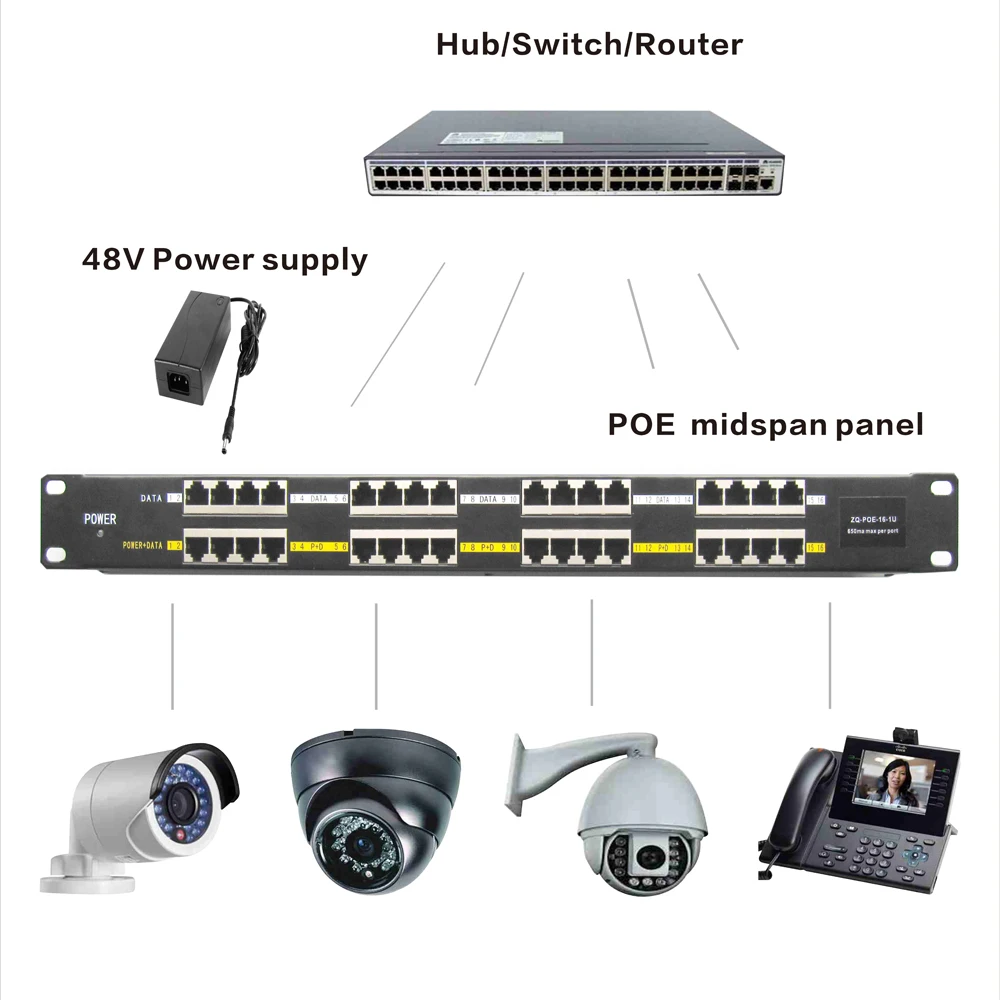

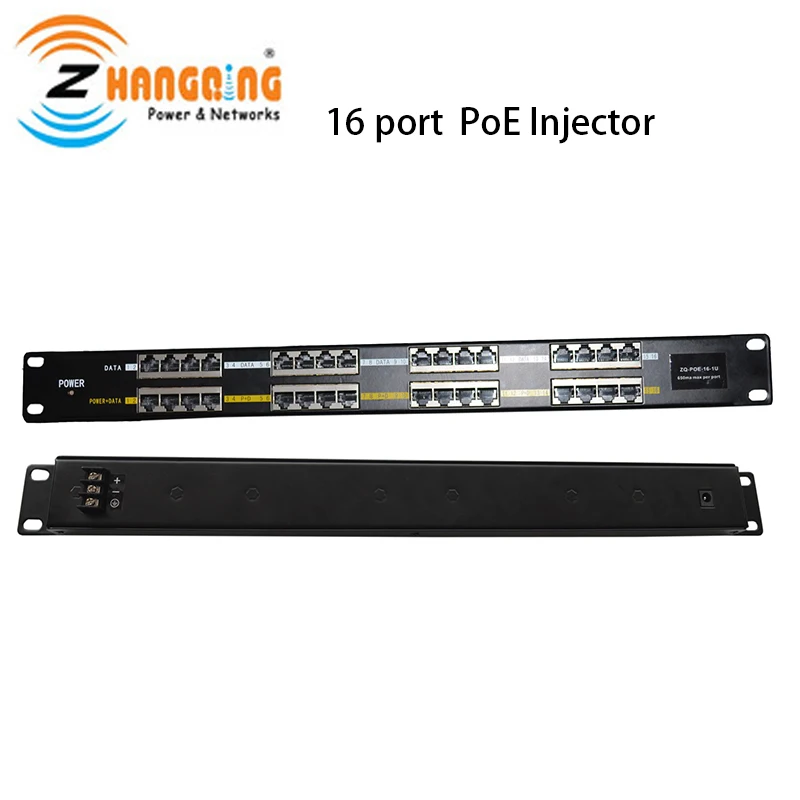

The 16 port PoE panel is used 10/100M Ethernet, the upper Rj45 sockets is form “LAN/Switch/PC” 1/2&3/6 are transmitting data. The under RJ45(power + data) socket is to deliver data and power:1/2&3/6 transmitting data, 4/5(+) & 7/8(-) for power. Passive POE is composed of 16 set of Rj45 sockets, one 60V DC power jack and 3 PIN din power connector. Input power requests 160W or more AC TO DC power converter. The input dc hole diameter is 2.1mm and the other end OD id 5.5mm. And the other is 3 PIN (V+, V-, GND) din power connector for Input.

Each socket provides protection against short overflow (current protection 650mA+10%-10%). The sum total output power must be lower than the MAX input power of AC-DC power converter. If not, it is necessary to consider taking higher AC-DC power converter. The recommended formula for AC-DC power converter is 10W per RJ45 set (1 set = 2 x RJ45sockets). For example, 16 x 10W = 160W for 16 port Passive PoE panel .

The configuration size of panel is 1U (height), 19” (width) and 25mm (thickness), as is available to answer market demand and convenient to be installed directly

Input :12V TO 57V 8A Max (Use DC Jack)
           12V TO 57V 16A Max (Use 3PIN connector)
Data: 1/2&3/6
Power : 4/5 V+ & 7/8 V-
Data In : Connects PC/HUB/Switch
Weight : 670g
Dimensions: 482.6mm×44.3mm×25m
Case of material: metal work material
Ethernet Cable : TIA/EIA 568 Cat. 5/6/7
Data rate : 10/100Mbps
Connector : RJ-45
Operating Temperature : 0°C ~ 60°C
Storage Temperature : -40°C~+70°C
Operating Humidity : 10%~80%RH
Storage Humidity : 5%~90%RH

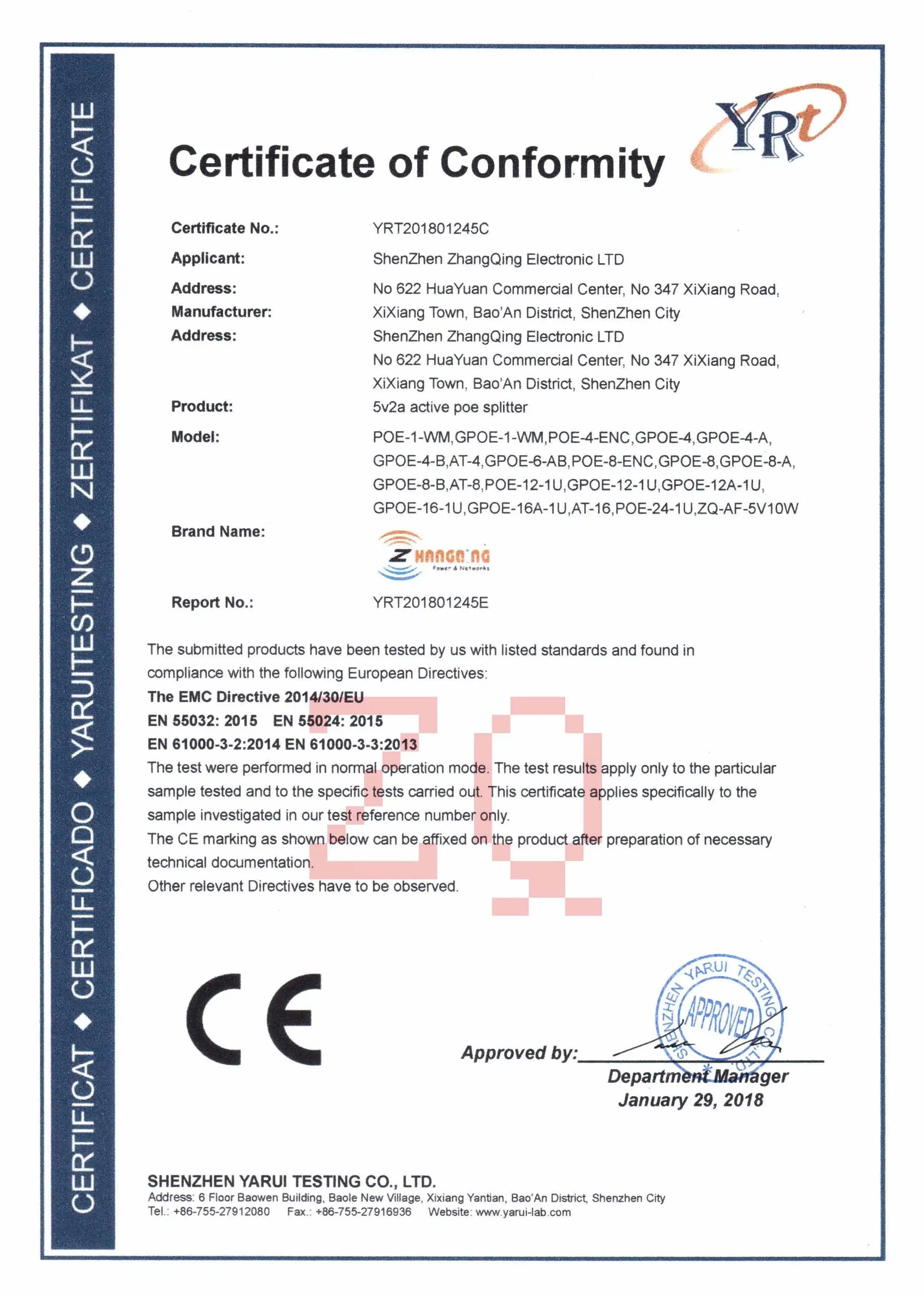

Certification: CE

IP Phone such as Polycom, YeaLink etc
Wireless Access Point (WiFi AP), such as MikroTik, Ubiquiti, OpenMesh etc
WiMAX Basestation
IP Survellance Camera
Door Security
POS
Netbook/mini Notebook

POE-16-1U 16port POE Injector Panel Pin 4/5 V+; Pin 7/8 V-

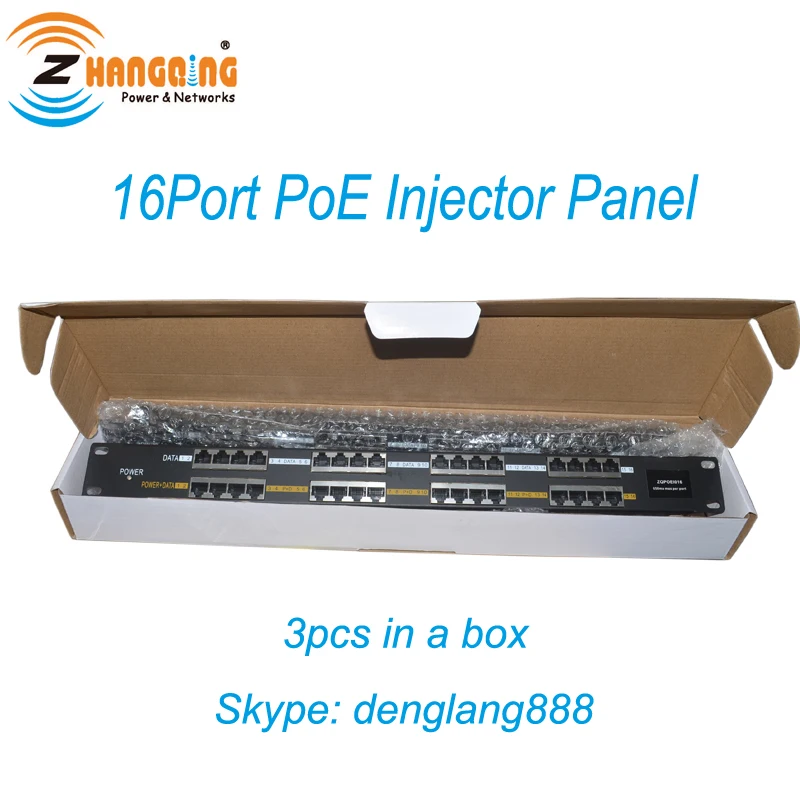

3pcs a white box, 36pcs a carton

51*44.5*17cm, 23KGS

Some in stock usually
