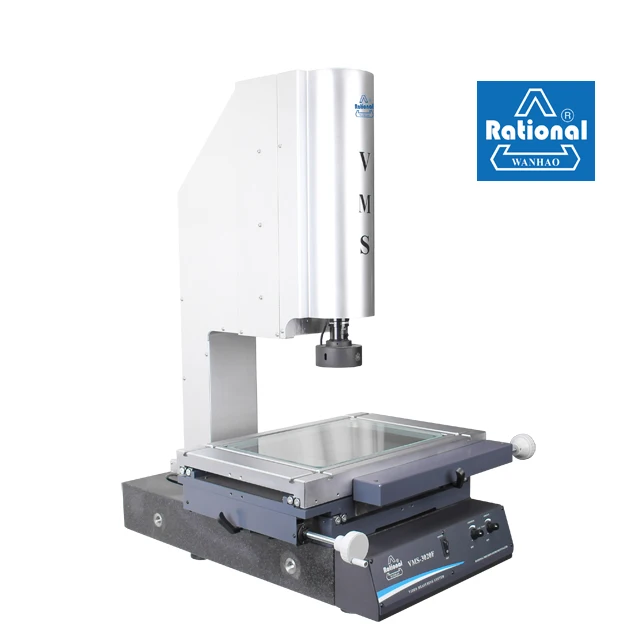

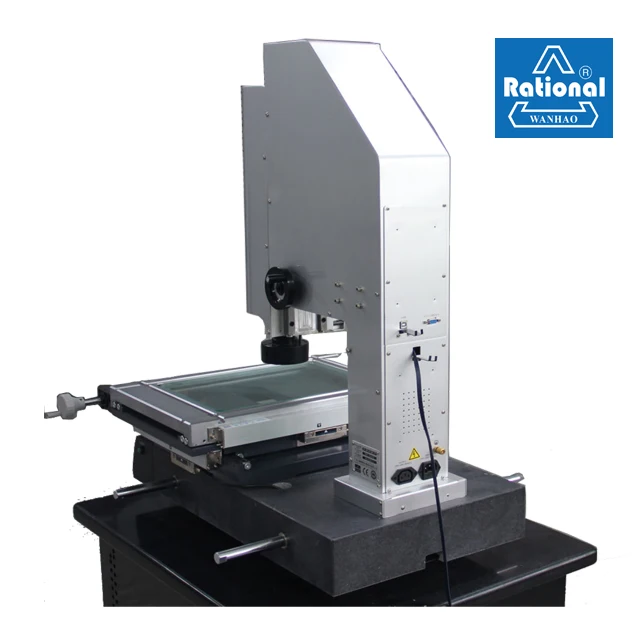

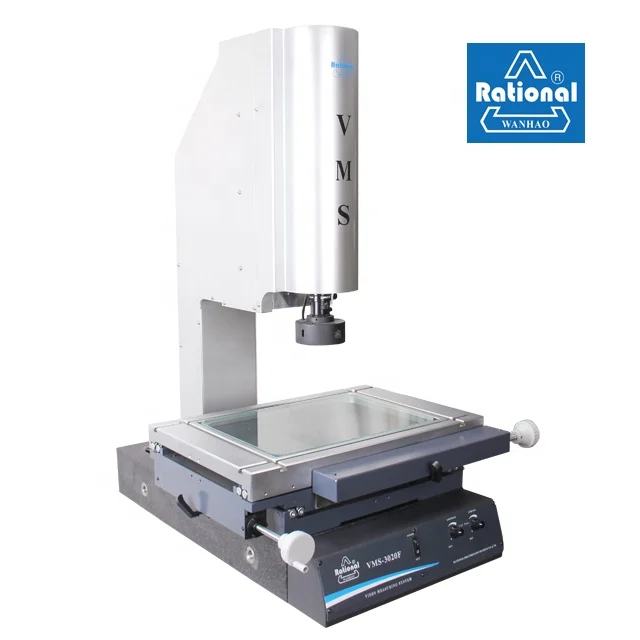

VMM Video Measuring Machine High Precision Video Measuring System
- Category: Other Optics Instruments >>>
- Supplier: Guangdong Rational Precision Instrument Co. Ltd.
Share on (60757481693):
Product Overview
Description
Video Measuring Machine
Product brief:
Applied mainly for 2D measurement and can support some specific 3D measurement as necessary, this instrument is a high precision and high efficiency measuring machine. Designed and manufactured by Rational Precision Instrument, a company with more than 20 years of history in precision measuring systems, Rational Video measuring machines are of good quality and reliability and have been used in the field of machinery, electronics, instrument, meter, watch, light industry, plastics as well as measuring chambers, laboratories of institutes and universities, research institutes, metrological verification departments and workshops, etc.
Features:
1. Varieties of lighting solutions to meet various or specific requirements of customers.
2. Effectively support data processing, data display, data input, and data output
3. Linear scales supports the resolution of 0.5um

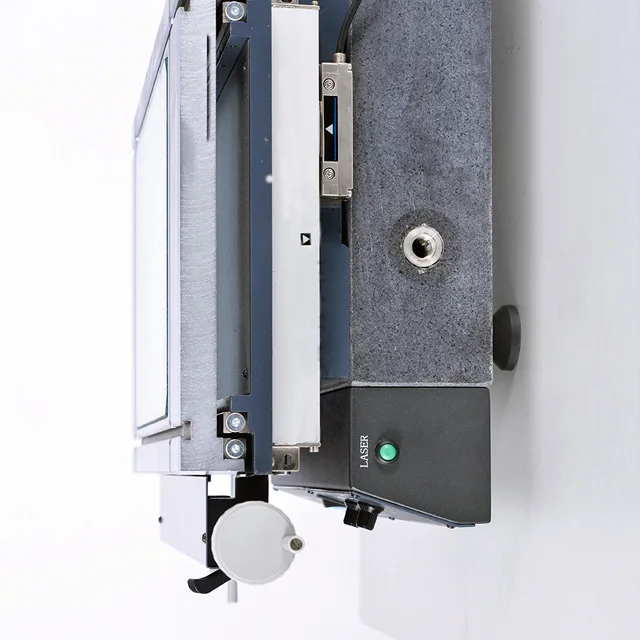

4. Detects the measured workpiece’s specific location by laser indicator, which is convenient to position and operate.
5. Foot-switch is matched with measuring software, which makes operation easier.
Product Description
Working table | Model | VMS-1510G/VMS-1510F | VMS-2010G/VMS-2010F | VMS-2515G/VMS-2515F | VMS-3020G/VMS-3020F | VMS-4030G/VMS-4030F |
| Metal table size (mm) | 354×228 | 404×228 | 450×280 | 500×330 | 606×466 | |
| Travel (mm) | 150×100 | 200×100 | 250×150 | 300×200 | 400×300 | |
| Z-axis travel (mm) | 200 (can be customized to 400) | |||||
| Consistency error of origin in different sections | G series: E0≤30 (every 100mm displacement in Z axis); F series: E0≤20 (every 100mm displacement in Z axis) | |||||
| Linear scale resolution: 0.0005mm. X, Y-axis indication error: (2.5+L/100)μm (L is the length of the measured object. Unit: mm) | ||||||
Video system | F seris | G seris | ||||
| GIGE Color Camera | 1/3”color CCD camera | |||||
| Auto zoom lens magnification: 0.58X~7.5X | Auto zoom lens magnification: 0.7X~4.5X | |||||
| Magnification: 27.4~351.3X(24"display) | Magnification: 26.6~171X | |||||
| Object view: 14mm~1.4mm | Object view: 8.1mm~1.3m | |||||

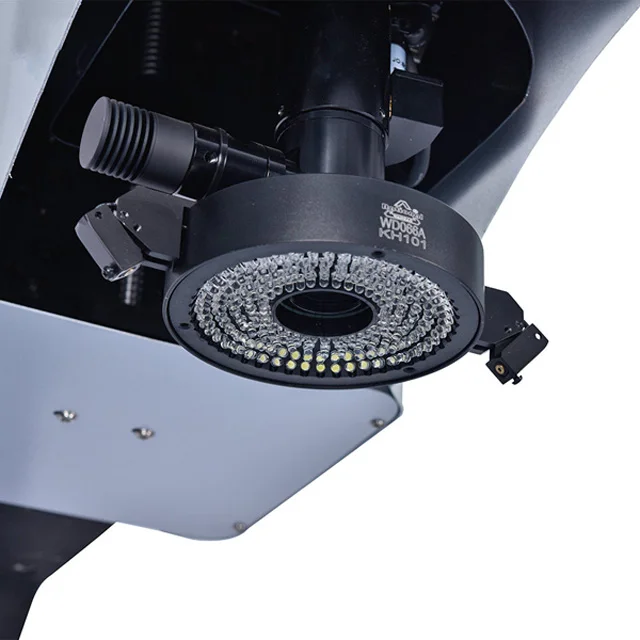

| Surface lighting and transmission lighting both adopt adjustable LED | ||||||
Company Information
Rational is very proud to introduce you the series of products, a highly functional, precise and universal model, however they can be customized to meet specific requirements of customers as well. Starting from Taiwan, Rational Precision Instrument Co., Ltd., was set up in Guangdong, China in 1995, and has become a professional company in precise measuring field. With the R&D forces from both Taiwan and mainland China, Rational has been a successful high-tech company by dedicating to innovation and manufacturing for measuring systems, and enjoyed the No. 1 market share for video measuring systems and profile projectors in China and many countries in Asia. With the experiences and technical background, we are very confident to offer you our reliable products in your country and make the cooperation between us a fruit one.
![]Y}C83SF3`EB1)NN04]YNN7.png](http://sc01.alicdn.com/kf/HTB1f5MbQXXXXXa3XVXX760XFXXXd/230291111/HTB1f5MbQXXXXXa3XVXX760XFXXXd.png)
Packaging & Shipping
Our Services
Rational is committed to offering premium quality products and satisfactory services to our customers. We view after-sale service with the importance that it deserves.
If you are experiencing a problem, let our product knowledge and collective experience minimize your inconvenience.
We offer you start-up support, measurement services, maintenance, repairs, upgrades and retrofits. You can rely on us.
We devote ourselves to providing continuous technical support and services including but not limited to the followings:
1. Process control and enhancement.
2. Machinery training and upgrading.
3. Machinery, metrology, sales and services.
4. Specialist maintenance repair, and refurbishment.
5. Consultancy and advisory services.
6. Online technical support.
7. Onsite training and after-sale service by our distributors worldwide.
Our support services are mainly on Profile Projector, Video Measuring System (VMS), Coordinate Measuring System (CMS), Tool Presetter, White Light Interferometer, Height Measuring Instrument, Linear Scale, Digital Readout, IC, Measuring Software, etc.
