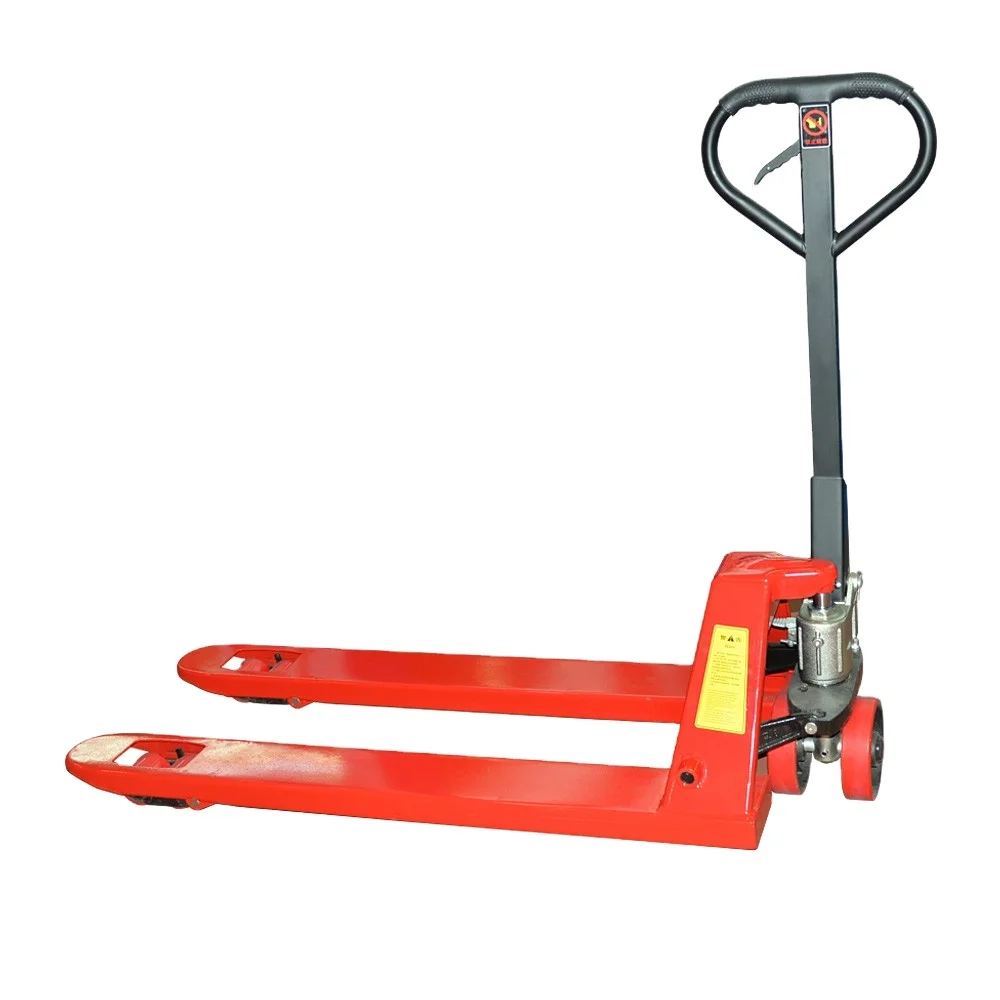

China Manufacturer 2.5 ton 2500kg 5000bls Manual hand pallet truck pallet jack

China Manufacturer 2.5 ton 2500kg 5000bls Manual hand pallet truck pallet jack

Category: Pallet Jack >>>
Supplier: Shanghai Yiying Crane Machinery Co. Ltd.

Price:$116.00 - $136.00

Quantity:

Product Overview

Description

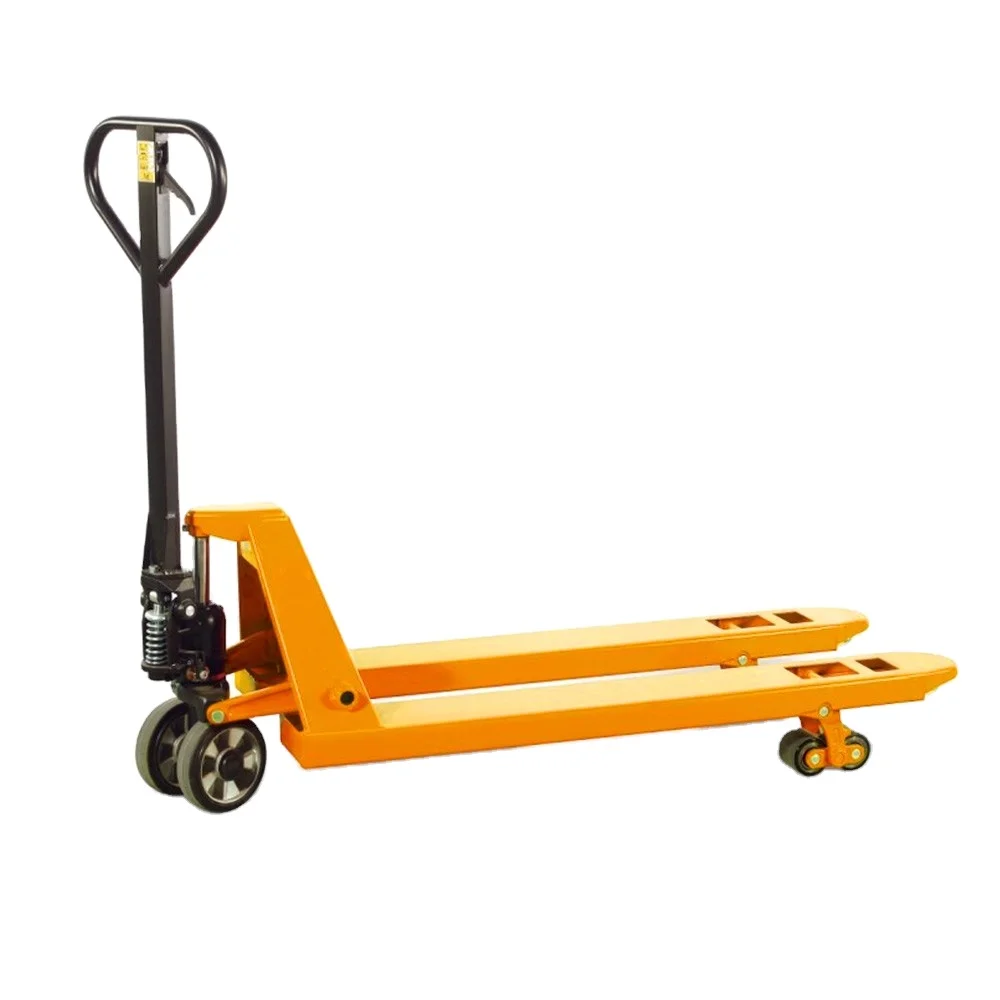

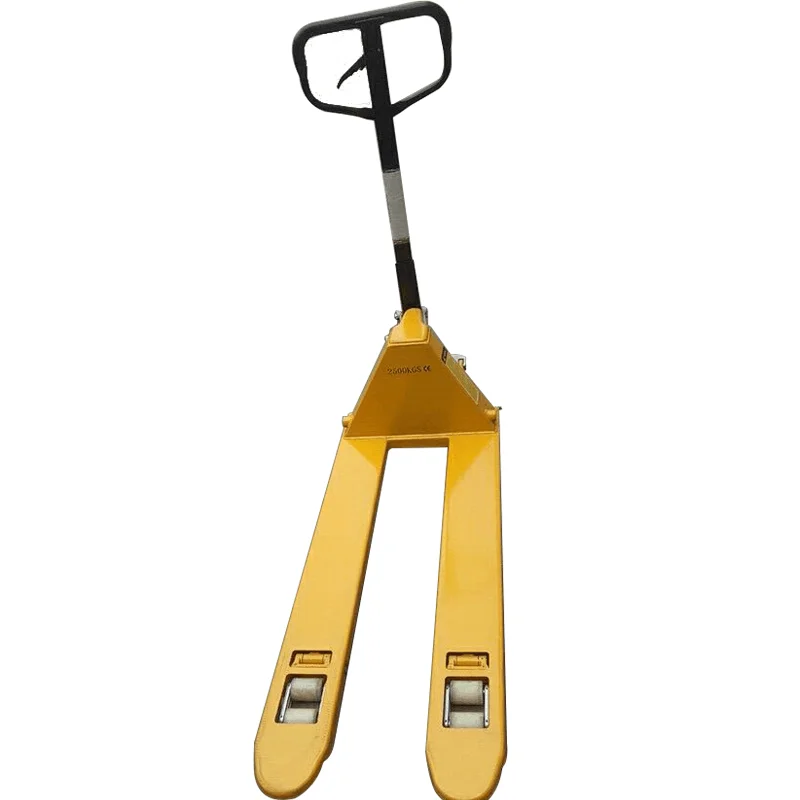

China Manufacturer 2.5 ton Manual hand pallet truck price

What Features of our ce hydraulic df hand pallet truck?

2017 china ce hydraulic df hand pallet truck

Hugo ce hydraulic df hand pallet truck parameter size

2017 china ce hydraulic df hand pallet truck

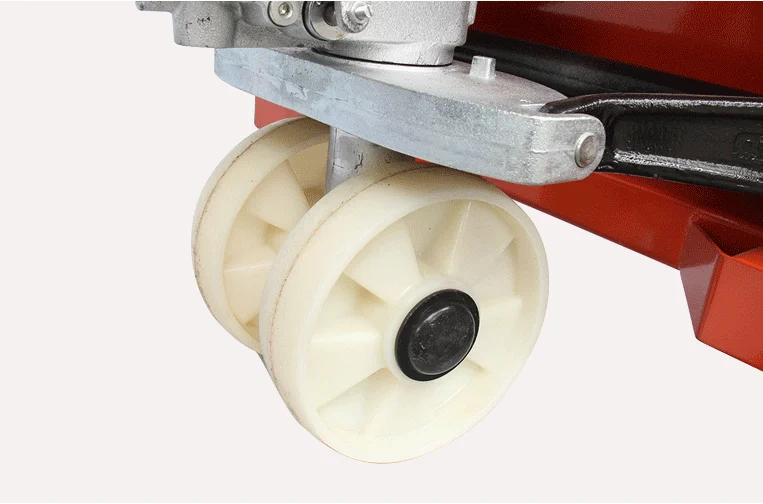

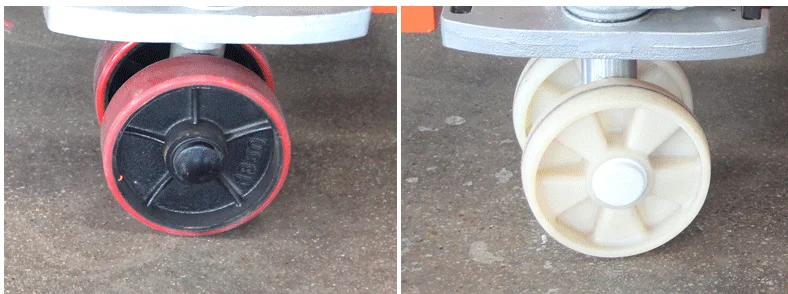

Capacity	Minimum height (mm)	Max lift height (mm)	Length(mm)	Width(mm)	Wheel type	Load wheel size(mm)	Steer wheel size(mm)
2	80	200	1150	550	Rubber/PU/Nylon	70*80	180*50
2	80	200	1220	685	Rubber/PU/Nylon	70*80	180*50
2.5	80	200	1150	550	Rubber/PU/Nylon	70*80	180*50
2.5	80	200	1220	685	Rubber/PU/Nylon	70*80	180*50
3	80	200	1150	550	Rubber/PU/Nylon	70*80	180*50
3	80	200	1220	685	Rubber/PU/Nylon	70*80	180*50
5	80	200	1220	685	Rubber/PU/Nylon	70*80	180*50

hand pallet truck type introduction

2017 china ce hydraulic df hand pallet truck

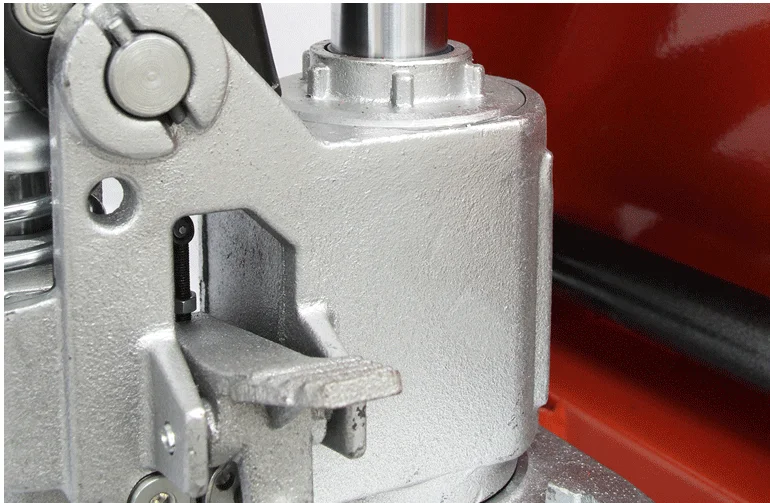

AC integrated casting pump

1.Good sealing performance:Overall seal, avoid leaking
2.Each piston rod with chromium plating treatment
3.Overflow valve has overload protection
4.Whole overflow valve in view,so can be fixed easy
Notice:The min lifting height is 85mm

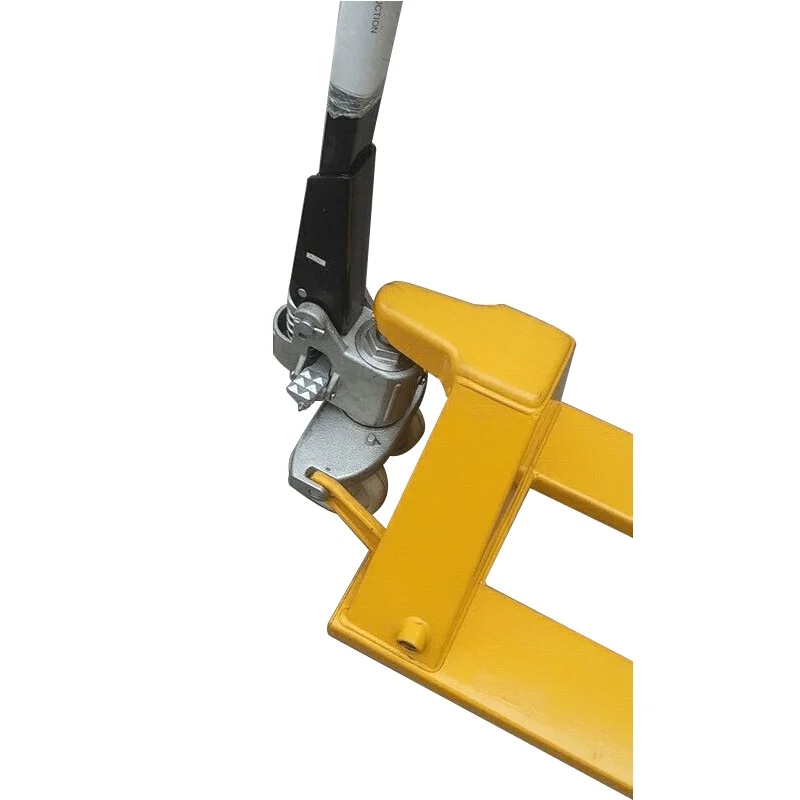

DF welding pump
Reduce the whole pallet truck costs, affordable,

with the following advantages:
1.  Oil pump with manual slow down control valve, high safety
2.  Three adjustable handle for easy operation
3.  In the front of fork is cambered, easy to insert the pallet

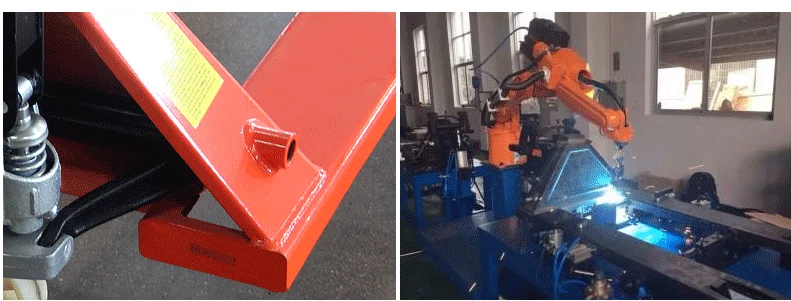

4.  C-type fork can support heavy load, durable
5.  The fork can be manually adjusted to control

the minimum height of the fork

Notice:The min lifting height is 75mm

The difference between the two:
AC oil pump is a pump, one-time casting molding.

DF oil pump is split pump is separate welded, the advantages of an integral pump is raised after loading effort,
The valve core is an integral whole, and the valve core has the advantages of long service life, little trouble and labor saving.
